18" Marvel Model 8/M8 Series #8 Vertical Band Saw; S/N 810680-A

18" Marvel Model 8/M8 Series #8 Vertical Band Saw; S/N 810680-A
Phoenix, AZ
orCall 1-520-836-9727
Description
Rec # 2912

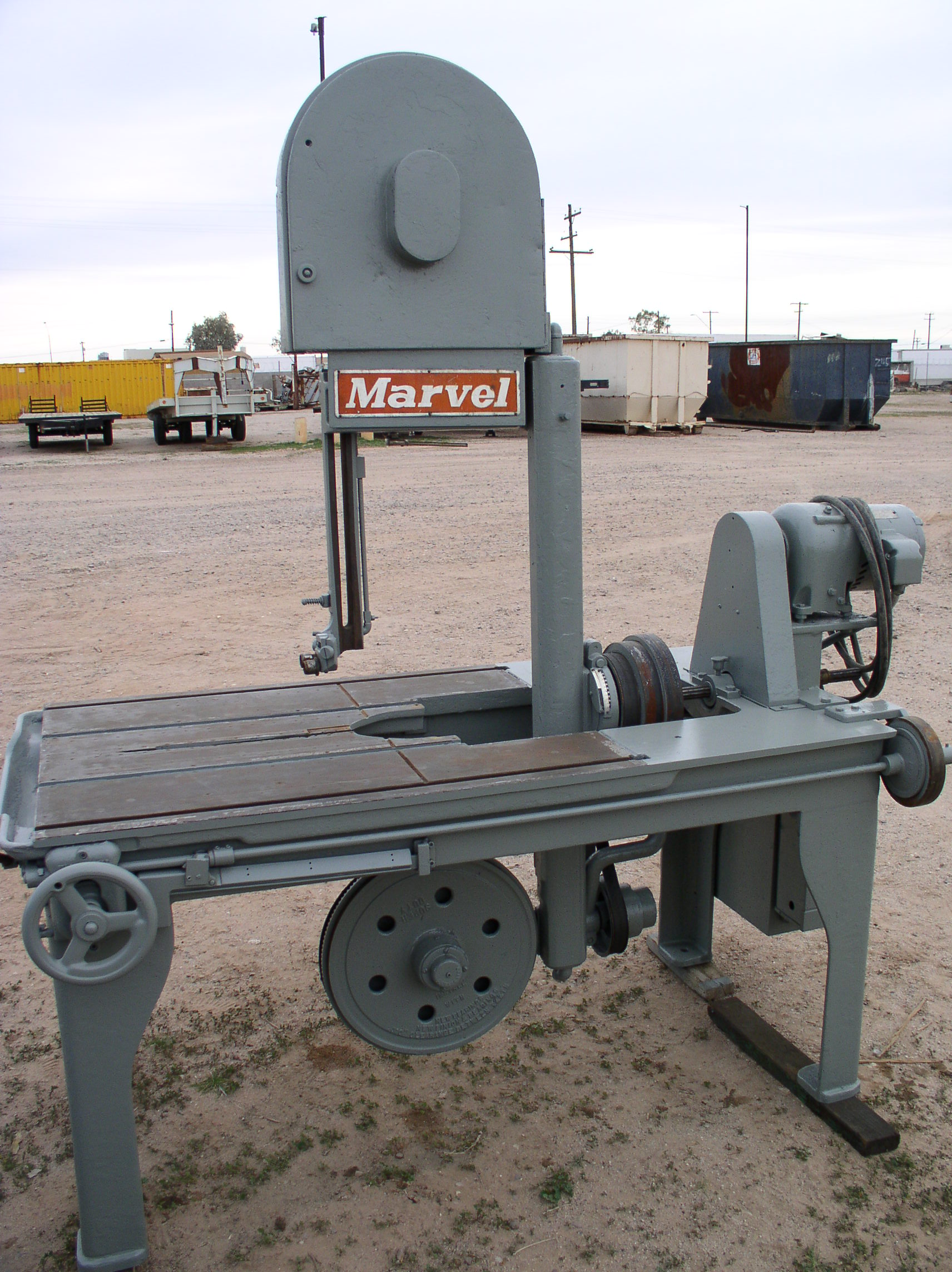

(1) Used 18" Marvel Model 8/M8 Series #8 Vertical Band Saw; S/N 810680-A
Specifications:
Plate Capacity:
Length............................................Any
Width.............................................18"
Height.............................................20"
Throat Depth........................................................18" (nominal)
Vertical Capacity (Table to Upper Guide).............20"
Travel of Table.....................................................18" (nominal)
Table Feed Rate (Variable)..................................N/A
Table Rapid Traverse Rate..................................N/A
Wheel Diameter(2)...............................................18"
Blade Width Capacity...........................................1"
Blade Length........................................................168" (nominal)
Blade Tension Control..........................................Manual
Blade Speed .........................................................
Guide Post Size.....................................................2.5 x 1.5 (nominal)
Maximum Head Tilt................................................45 (L or R)
Head Travel..........................................................18"
Table:
Working Surface Area...................................32" L-R x 42" F-B
Load Capacity..............................................500 lb (est.)
Working Height.............................................33" from floor
Workpiece Mounting System........................T-Slotted
Construction Type.......................................Cast Steel
Upper Wheel Adjustment.......................................4" (nominal)
Wheel Type...........................................................Cast Iron
Guide Post Adjustment..........................................Manual
Main Drive Type.....................................................Belt
Main Drive Horsepower..........................................1.33
Electrical Characteristics........................................480 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls
Powered Head Travel
Overall Dimensions...............................................80" L-R x 40" F-B x 80" High
Weight...................................................................2,425 lbs (est.)
F.O.B..................................................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2912 |
