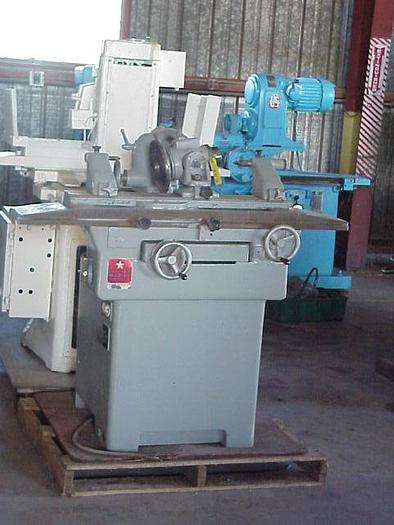

12" x 24" HABIB (Swiss) Universal Tool and Cutter Grinder
No longer available
12" x 24" HABIB (Swiss) Universal Tool and Cutter Grinder
Arizona
Description
(1) Used 12" x 24" HABIB (Swiss) Universal Tool and Cutter Grinder
Specifications:
Table Working Surface..................................................5 " x 37 "
Longitudinal Movement of Table....................................24" nominal
Cross Movement of Table.............................................
Swing Over Table..........................................................11"
Table T-Slot...................................................................7/8"
Table Swivel..................................................................10°
Distance Centerline of Wheel Shaft To Top of Table.....N/A " Min. " Max.
Distance Between Tailstocks.........................................30" Max.
Distance Between Workhead and Tailstock Center.......N/A
Distance Between Workhead Collet and Tailstock.........N/A
Vertical Column Movement............................................10" nominal
Column Diameter...........................................................5"
Diameter of Face Mills...................................................
Spindle Hole..................................................................
Grinding Wheel Hole Size..............................................7/8"
Workhead Spindle Speeds, Range................................R.P.M.
Internal Grinding Spindle Speed....................................R.P.M
Grinding Table Speeds, Infinite......................................F.P.M.
Power Rapid Table Traverse..........................................F.P.M.
Wheel Wear Compensation, Range..............................." to "
Power Cross Feed on Diameter....................................." Max.
Grinding Spindle Motor..................................................HP @ RPM
Workhead Chuck Motor, Horsepower...........................
Workhead Chuck Motor RPM......................................
Electrical Characteristics................................................240-480 VAC / 60 Cycle
Equipped With:
Electrical Controls
Overall Dimensions........................................................56" L-R x 52" F-B x 52" High
Weight............................................................................2,500 Lbs. (est.)
F.O.B..............................................................................Casa Grande, Arizona
Specifications
Manufacturer | Unknown |
Condition | Used |
Stock Number | 1302 |
