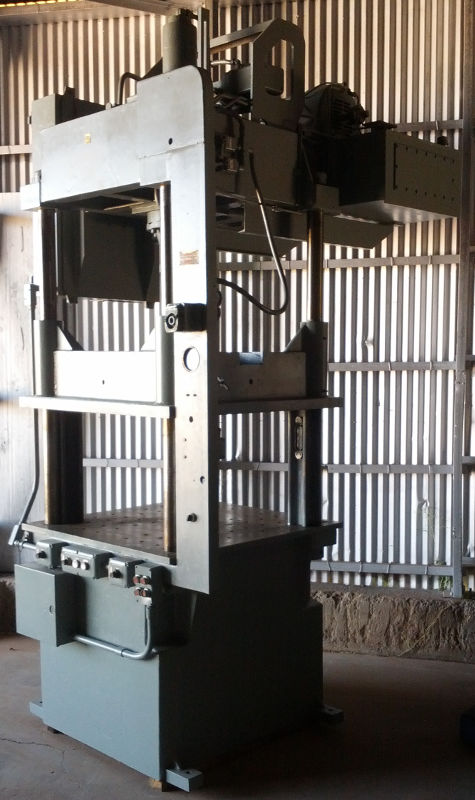

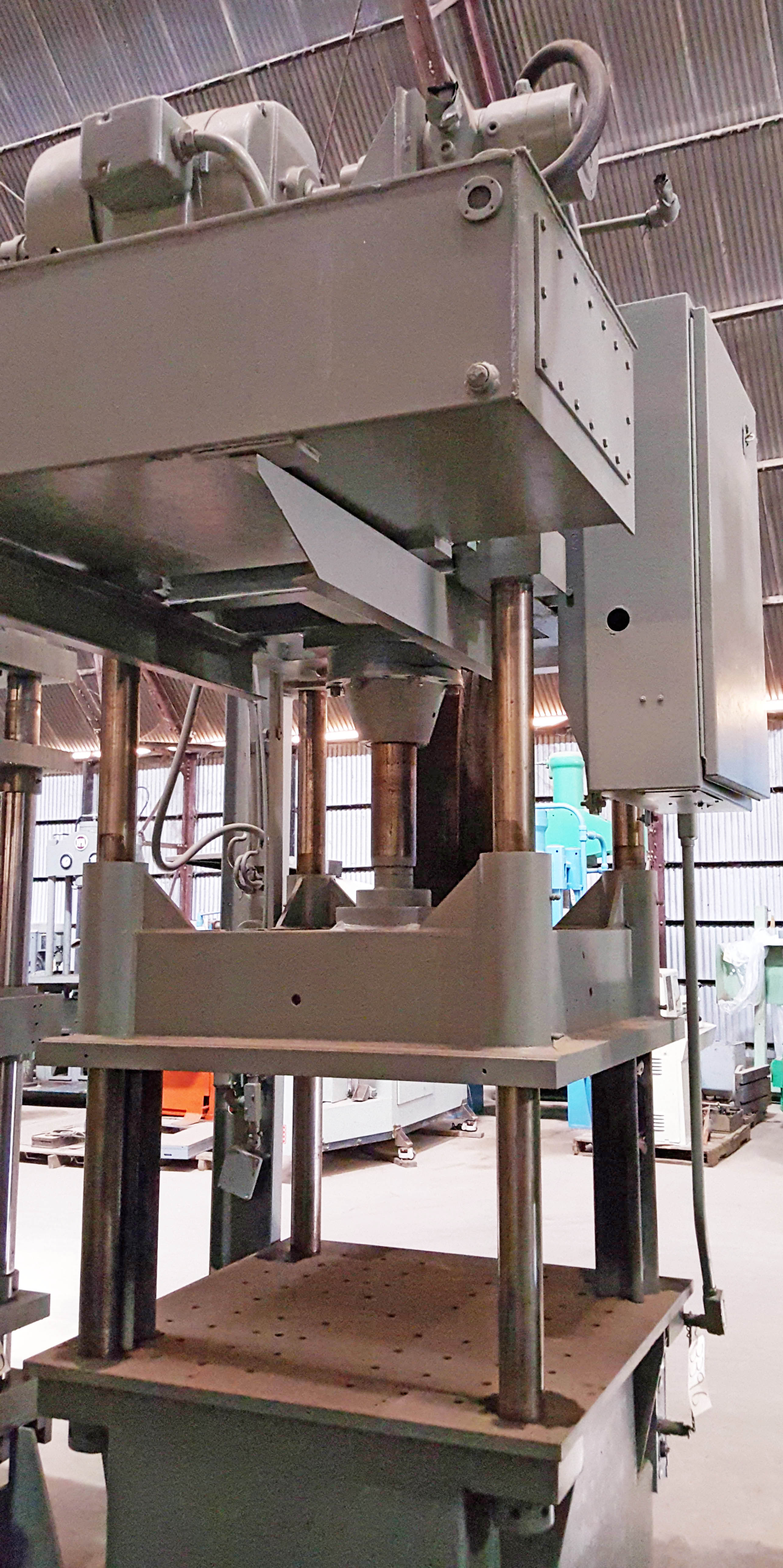

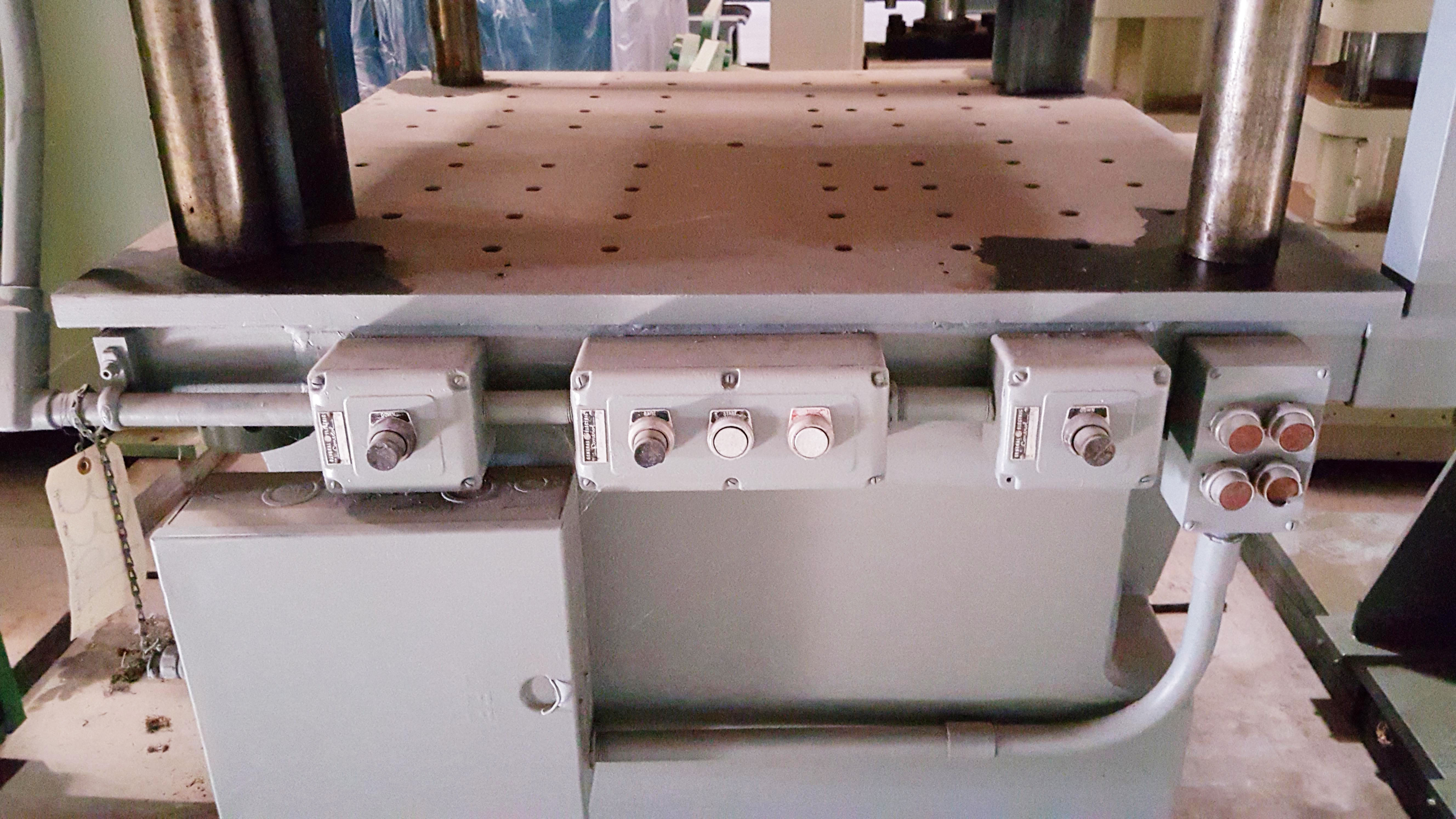

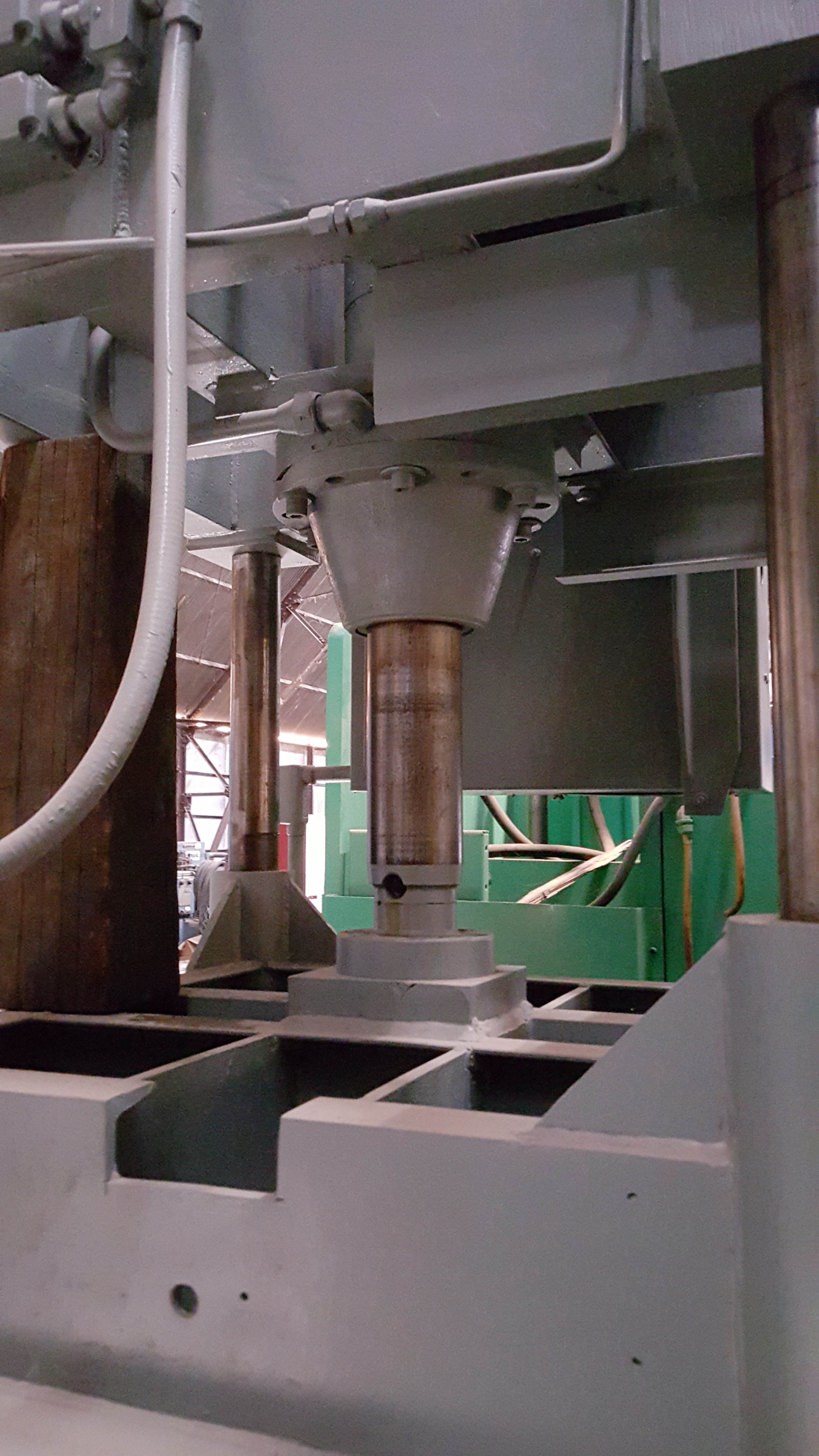

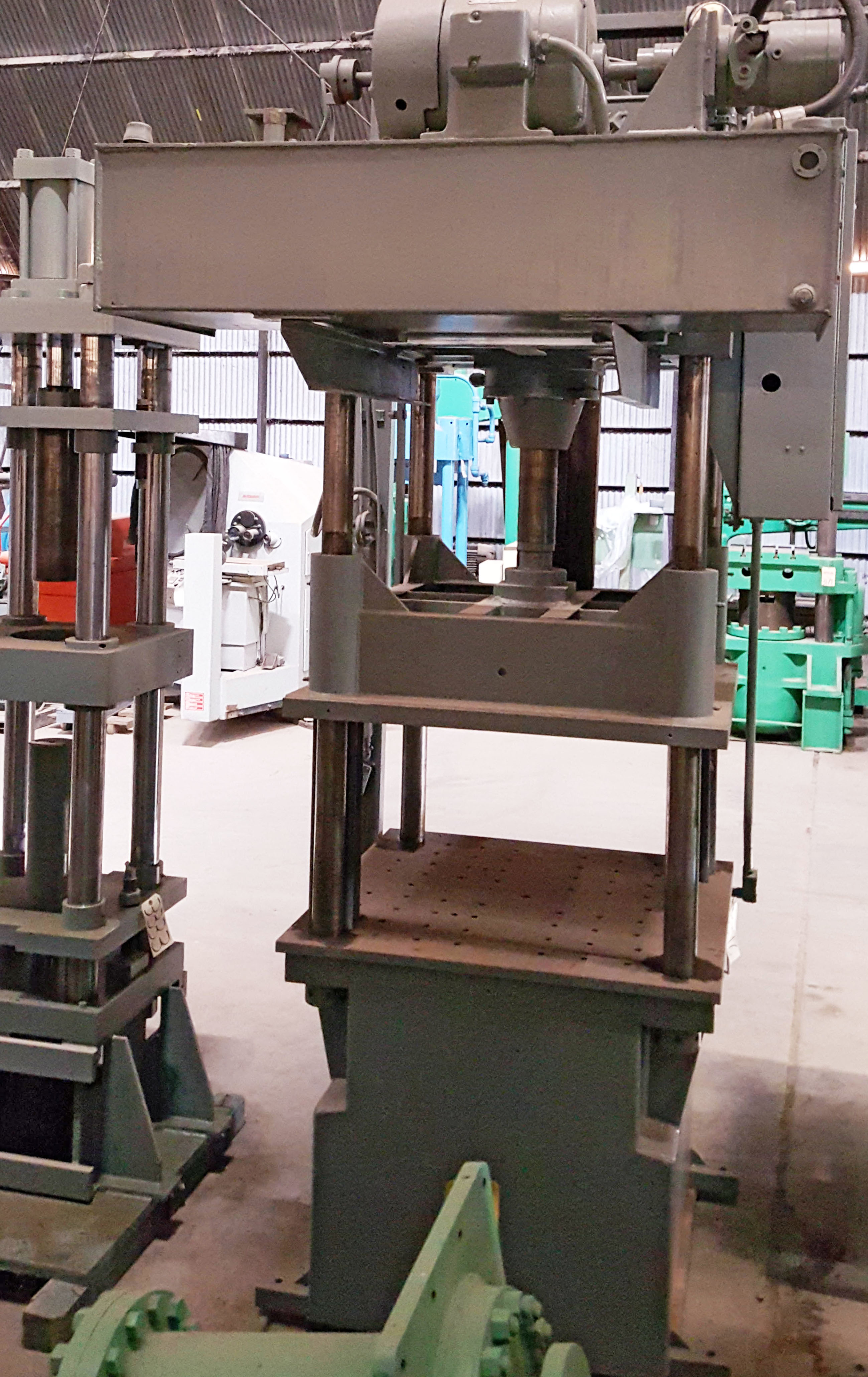

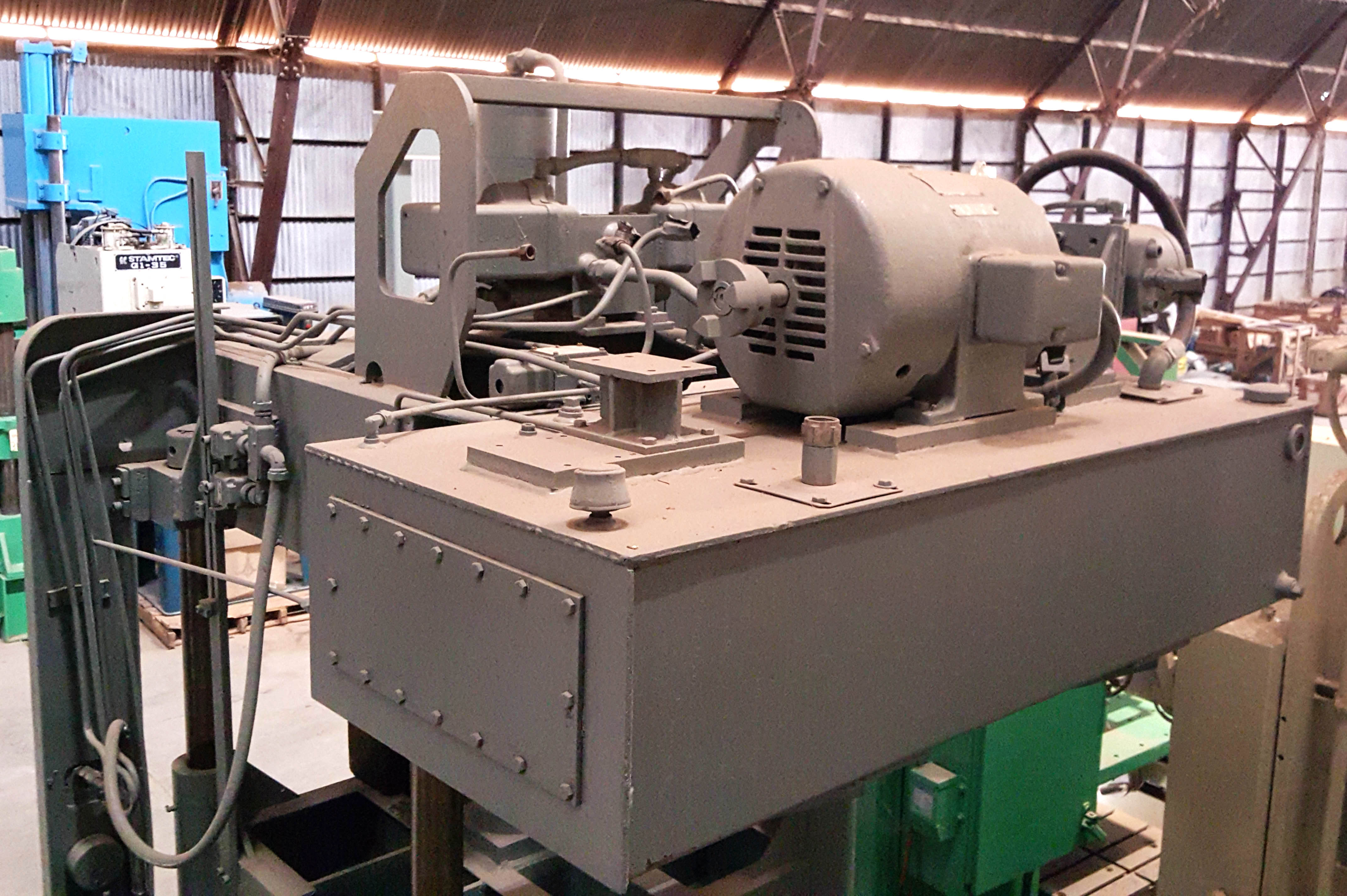

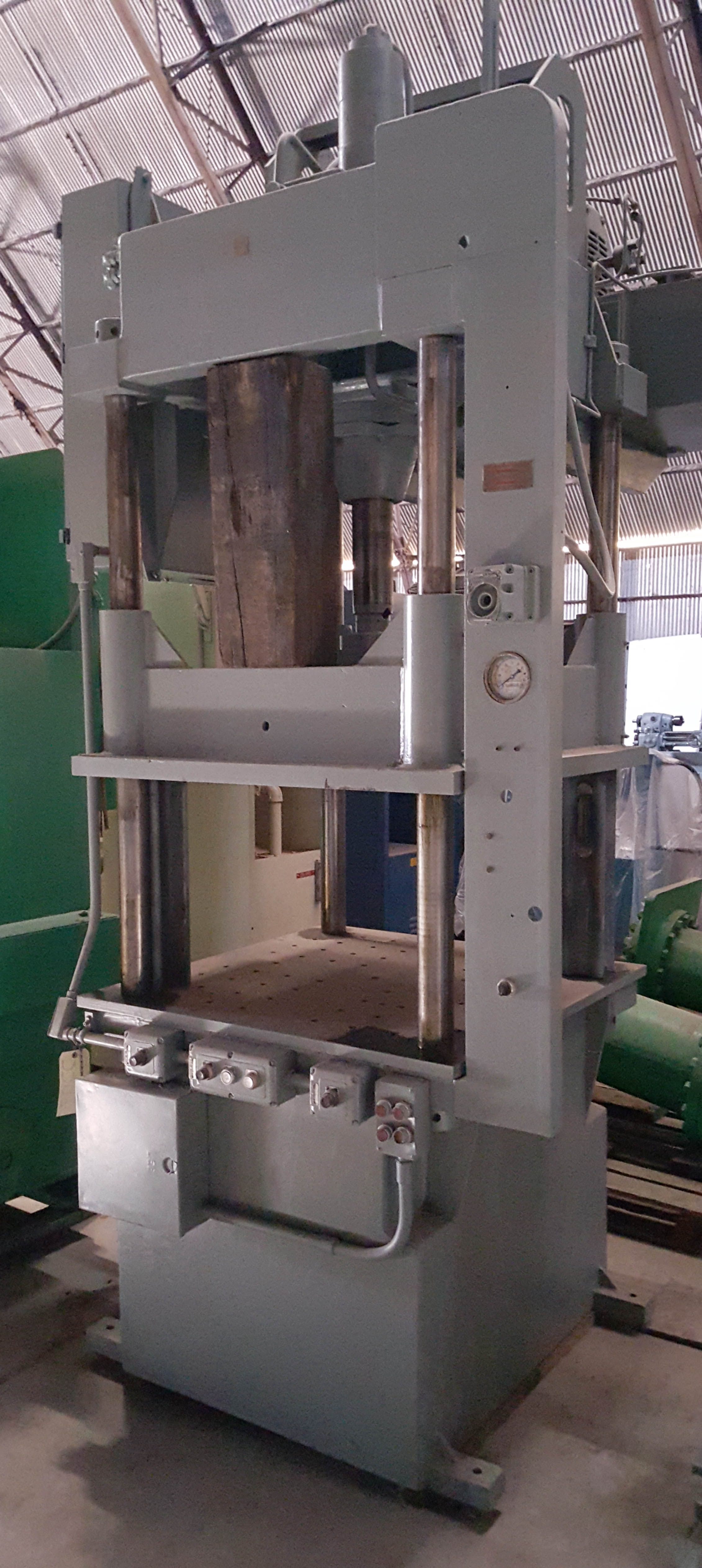

50 Ton DAKE #27-153 Four Post Hydraulic Down Acting Press;

50 Ton DAKE #27-153 Four Post Hydraulic Down Acting Press;

Casa Grande, AZ

orCall 1-520-836-9727

Description

Specifications: Capacity.........................50 Tons (pressing) 20 Tons (return) Bed Area.........................41" x 41" Ram (Slide) Area.................41" x 30" Distance Between Posts...........30" L-R x 30" F-B Stroke of Ram (Slide)............24", adjustable Daylight Opening.................24" Distance Floor to Bed............36" Tie Rod Diameter.................3" Number of Ram Cylinders..........1 Type of Ram Cylinders............Double-Acting Diameter of Ram Cylinder.........5" (nominal) Ram (Slide) Speeds: Pressing....................42 IPM Advance.....................110 IPM Return......................290 IPM Breakaway...................110 IPM Hydraulic System: Manufacturer & Type......... Power & Pressure............7 1/2 HP, 5000 psi Fluid Capacity..............55 gallons Electrical Characteristics.......220 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls with Operators Station Tonnage Gauge Reinforced Welded Steel Frame Adjustable Stroke Control Approx. Overall Dimensions.......58" L-R x 69" F-B x 127" H Weight...........................5,500 lbs. (est.) FOB..............................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3396
