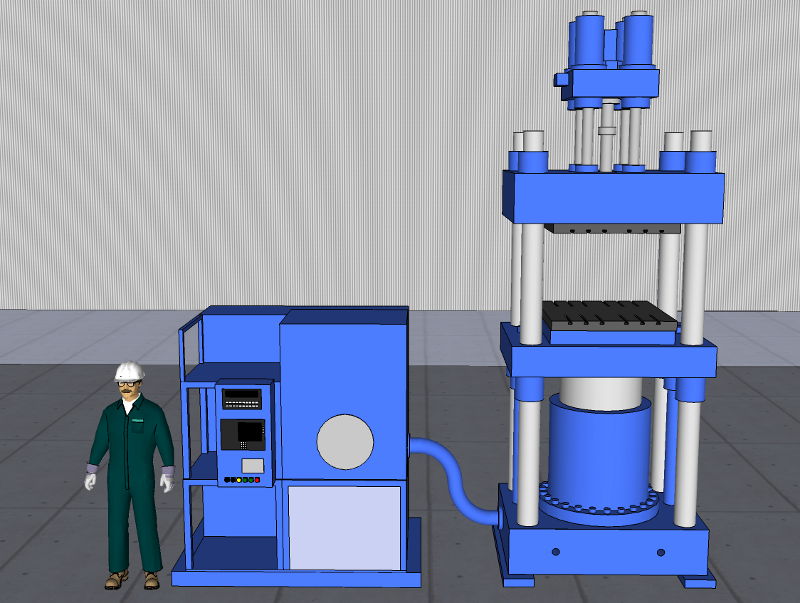

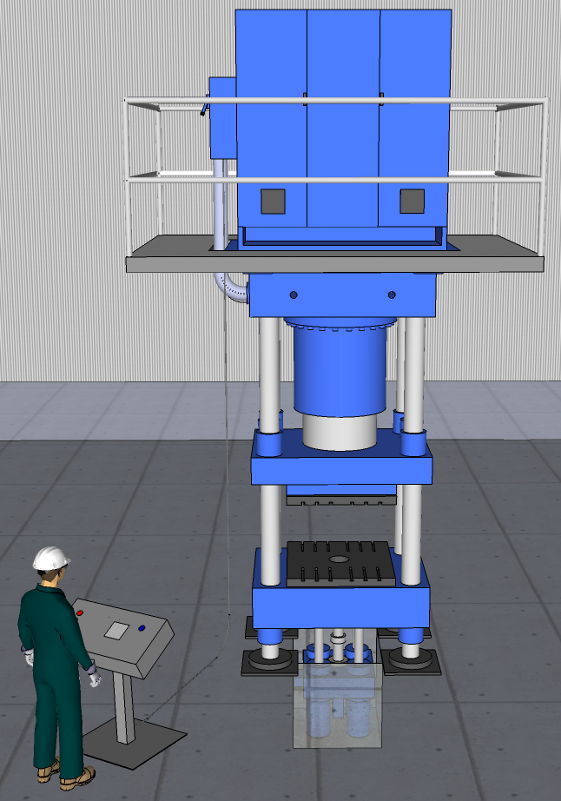

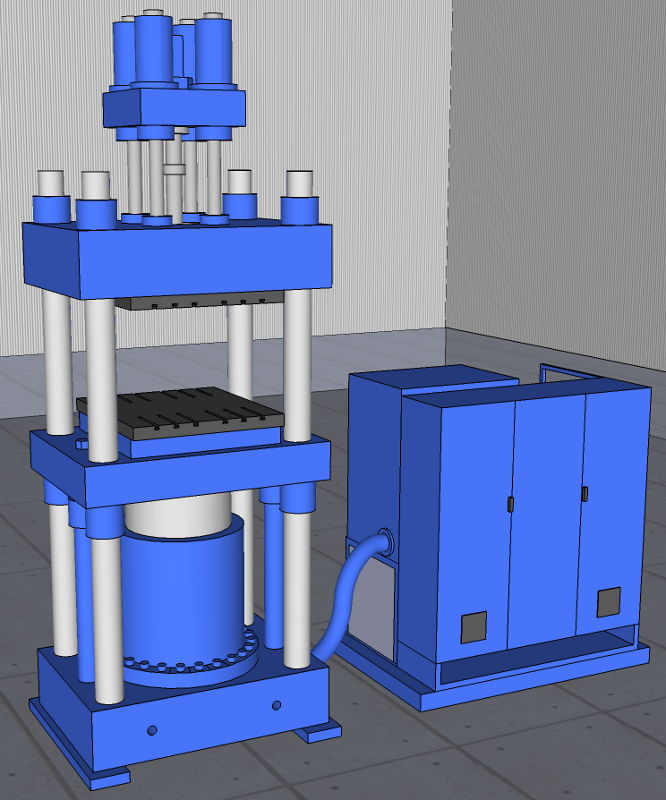

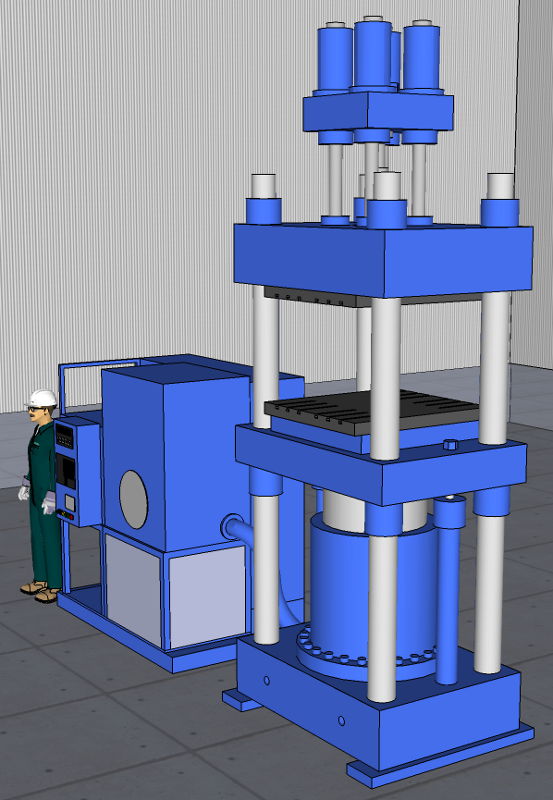

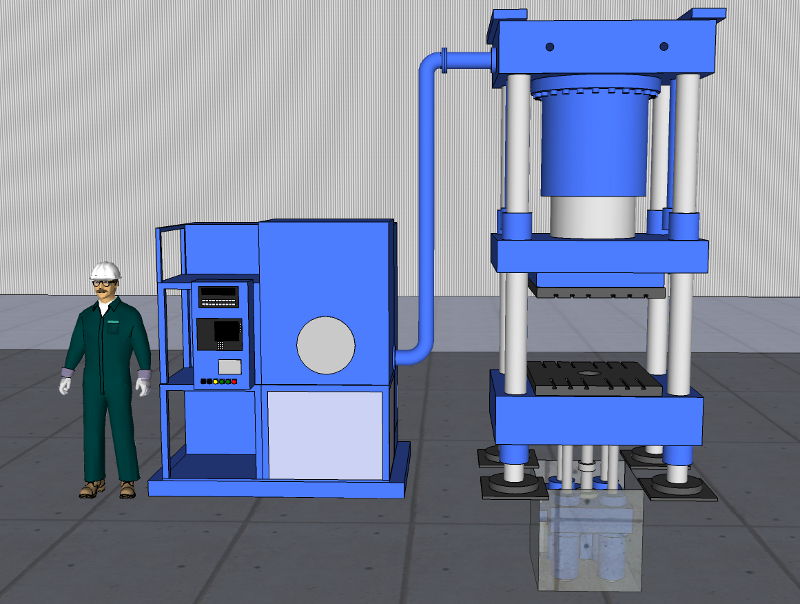

800 Ton Maplan (Austria) 4-Post Up/Down-Acting Hydraulic Press; 2005

800 Ton Maplan (Austria) 4-Post Up/Down-Acting Hydraulic Press; 2005

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 800 Ton Maplan (Austria) 4-Post Up/Down-Acting Hydraulic Press; 150 Ton Cushion/Ejector; 2005; Very Low Hours Specifications: Capacity (tonnage): Pressing.......................800 Tons @ 2,500 p.s.i

Bed Area............................46 5/16" F-B x 64 1/8" L-R Ram (Slide) Area (T-Slotted)........46 3/16" F-B x 64 1/8" L-R Distance Between Posts..............27 1/2" F-B x 44" L-R Stroke of Ram (Slide)...............26" Daylight Opening ...................51" Distance Floor to Bed...............34" Tie Rod Diameter....................7" Number of Pullback Cylinders........2 Number of Ram Cylinders.............1 Type of Ram Cylinders...............Single Acting Diameter of Ram Cylinder............34"

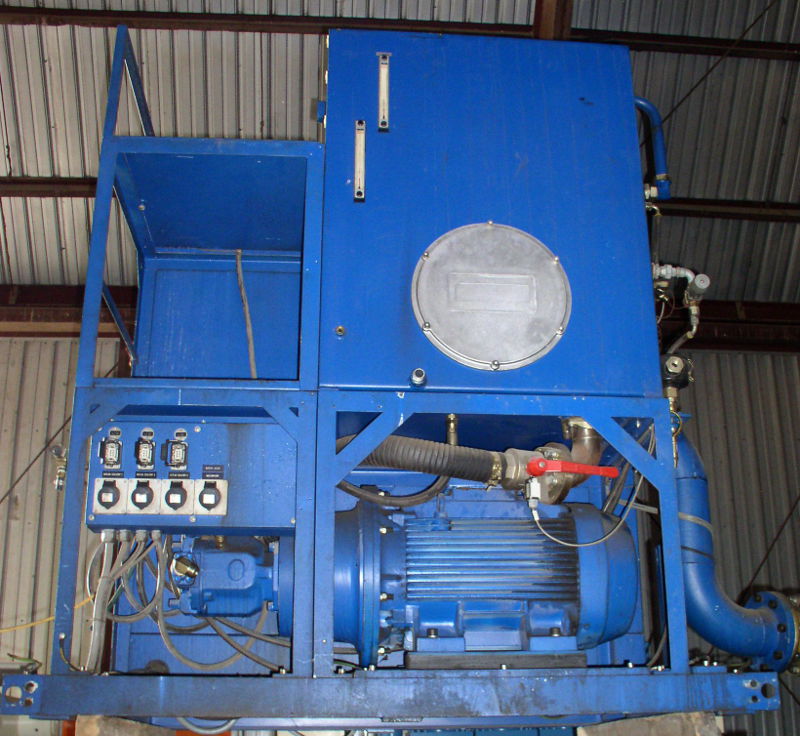

Hydraulic System: MFGR & Type....................Rexroth Power & Pressure...............150 HP @ 2,500 PSI Fluid Capacity.................260 gal. (nominal) Electrical Characteristics..........240/480 VAC / 3 Phase / 60 Cycle

Equipped With: 150 Ton Up-Acting Cushion / Ejector: Ejector Stroke............16" Ejector Rod Diameter......8"

Overall Dimensions Press 68" L-R x 54" F-B x 145" High

Hydraulic Unit 104" L-R x 53" F-B x 84" High Weight..............................52,000 lbs. (nominal) F.O.B...............................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3211
