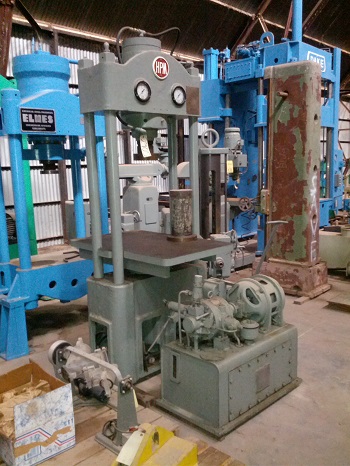

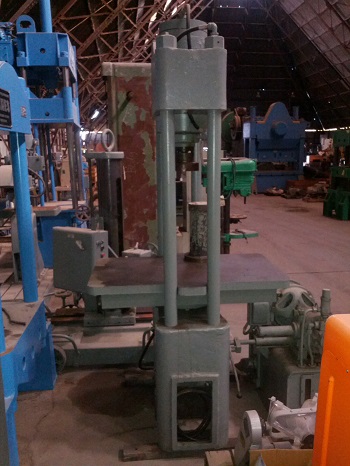

75 Ton HPM 4-Post Hydraulic Press; S/N 41-240;

75 Ton HPM 4-Post Hydraulic Press; S/N 41-240;

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 75-Ton HPM 4-Post Hydraulic Press; S/N 41-240 Specifications: Capacity..............................75 Tons Bed Area..............................48" L-R x 29" F-B Slide Area............................7 1/2" diameter Distance Between Posts................29" L-R x 29" F-B Stroke................................9" Daylight Opening......................25" Distance Floor to Bed.................39 9/16" Tie Rod Diameter .....................3" Number of Ram Cylinders...............1 Type of Ram Cylinders.................Double-Acting Diameter of Ram Cylinders.............1 1/2" Ram (Slide) Speeds: Pressing......................... Advance.......................... Return........................... Hydraulic System: Manufacturer & Type.............. Power & Pressure................. Fluid Capacity...................44 gallons (est.) Line or Gauge Pressure................2,300 lbs. Electrical Characteristics............220/440 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls Complete Hydraulic System with Reservoir/Tank Overall Dimensions....................48" W x 103" L x 44" H Weight................................6,000 lbs (est) F.O.B.................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2905
