500 Ton Modern Hydraulic Press; Straight Side; Up Acting Type; MFG. 1995; $54,500

500 Ton Modern Hydraulic Press; Straight Side; Up Acting Type; MFG. 1995; $54,500
Casa Grande, AZ
orCall 1-520-836-9727
Description
Price: $54,500

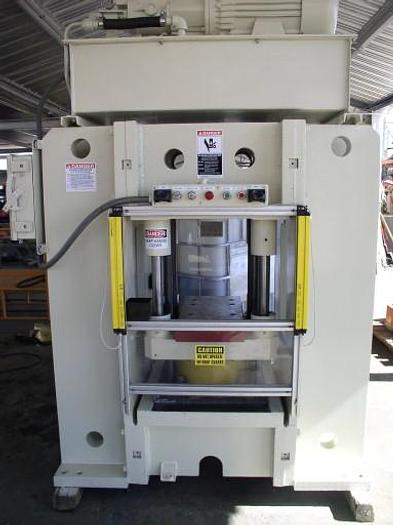

(1) Used 500 Ton Modern Hydraulic Press; Straight Side; Up-Acting Type; All steel construction; MFG. 1995
Specifications:
Capacity (tonnage):
Pressing........................500 Tons
Advance.........................45 Tons
Return..........................27 Tons
Bed Area.............................13" L-R x 28" F-B
Ram (Slide) Area.....................12" L-R x 21'' F-B
Distance Between Housings............27"
Window Openings......................10" wide x 18'' high
Stroke of Ram (Slide)................5" (max)
Daylight Opening.....................20" (max)
Distance Floor to Slide..............30" (nominal)
Guide Post(s) Diameter...............2"
Type of Ram Cylinder.................Double Acting
Diameter of Ram Cylinder.............12"
Ram (slide) Speeds:
Pressing........................15 inches/min.
Advance.........................120 inches/min.
Return..........................145 inches/min.
Hydraulic System:
Pump Type.......................Pressure compensated variable volume
Power & Pressure................10 HP @ 2500 psi
Fluid Capacity..................45 gal. (nominal)
Electrical Characteristics...........240/480 VAC / 3 Phase / 60 Cycle
Equipped With:
4- Post Ram/Slide Guide System
Ram/Bed Spacer (Riser) Plate/Parallels Per Customer Requirements
Crown Mounted Hydraulic System
Complete Electrical Controls With Operator's Station
Contrinex Light Barrier Safety System
Overall Dimensions...................30" F-B x 60" L-R x 9' High
Weight...............................12,000 lbs. (est.)
F.O.B................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2871 |
