2,000 Ton Reed City 6 Post Up-Acting Hydraulic Press; P.O.R.

Casa Grande, AZ

orCall 1-520-836-9727

Description

Price: P.O.R.
(1) Used 2,000 Ton Reed City Hydraulic Up-Acting Press; 6 Post Type
Specifications:
Capacity (tonnage):
Pressing.......................2,120 Tons @ 6,000 p.s.i.
Advance........................225 Tons @ 3,750 p.s.i.
Return.........................25 Tons @ 3,750 p.s.i.
Bed Area............................68" F-B x 56" L-R
Ram (Slide) Area....................68" F-B x 56" L-R
Distance Between Posts..............16" F-B x 30 1/2" L-R
Stroke of Ram (Slide)...............6" (nominal)
Daylight Opening ...................13 1/2"
Distance Floor to Crown.............73 1/2"
Diameter of Posts/Tie Rods(6).......10"
Number of Ram Cylinders.............4
Type of Ram Cylinders...............Single Acting
Diameter of Ram Cylinders...........6" (Nominal)
Number of Advance Cylinders.........4
Number of Intensifier Cylinders.....4
Intensifier System Pressure.........6,000 PSI
Ram (slide) Speeds:
Pressing.......................20 inches/minute
Advance........................210 inches/minute
Return ........................260 inches/minute

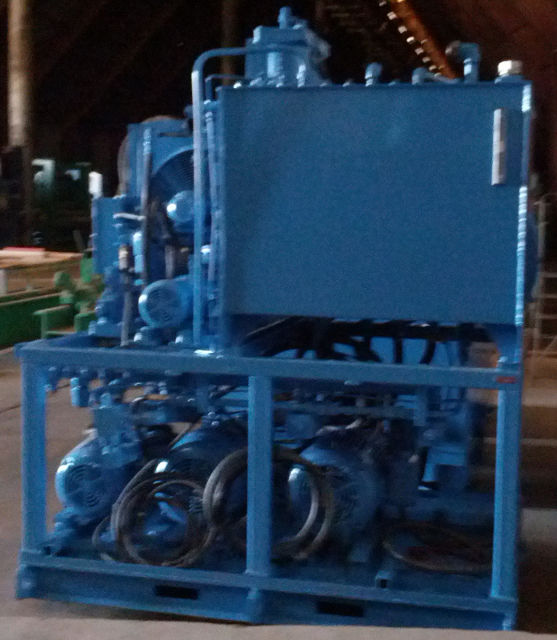

Hydraulic System:
MFGR & Type....................Parker Pressure Compensated/Variable Volume
Power & Pressure...............135 HP @ 3,750 PSI
Fluid Capacity.................440 gal.
Electrical Characteristics..........480 VAC / 3 Phase / 60 Cycle
Equipped With:

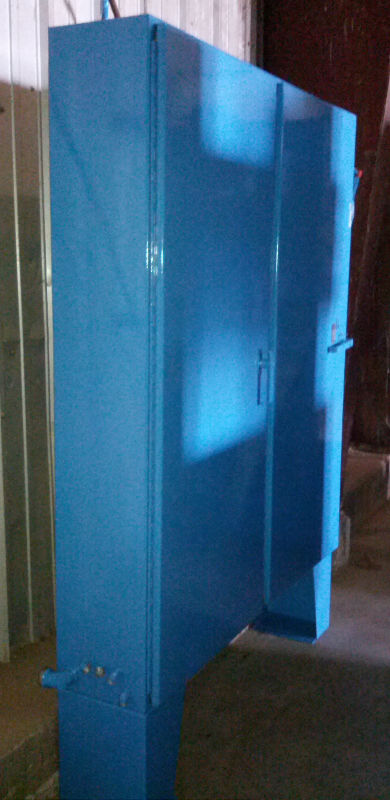

Complete Electrical Controls
Complete Hydraulic System
Complete Design & Engineering Documentation
Overall Dimensions..................87" F-B x 74" L-R x 113" Height
94" F-B x 60" L-R x 104" Height (Hydraulic Unit Only)
Weight..............................72,000 lbs. (est.) (Press Only)
FOB.................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2395
