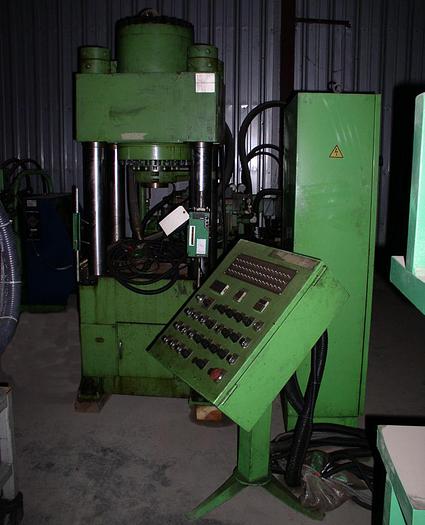

200 Ton Dongsung Hydraulic Shell Press; 4-Post

200 Ton Dongsung Hydraulic Shell Press; 4-Post

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 200 Ton Dongsung 4-Post Hydraulic Press Specifications: Capacity............................200 tons Bed Area............................31 1/2" L-R x 23 1/2" F-B Ram Area............................6" diameter Distance Between Posts..............19 1/4" L-R x 12" F-B Stroke..............................18" Daylight Opening....................21" Distance Floor to Bed...............27" Tie Rod Diameter....................4 3/4" Number of Ram Cylinders.............1 Type of Ram Cylinders...............Double Acting Diameter of Ram Cylinder............14" (nominal) Ram (Slide) Speeds: Pressing....................... Advance........................ Return......................... Hydraulic System: Power..........................30 HP Reservoir Capacity.............350 gallons (est.) Electrical Characteristics..........440 VAC / 3 Phase / 60 Cycle Equipped With: Electrical Controls Ejector DHR Hydraulic Cooling System Approx. Overall Dimensions.......... Weight.............................. FOB.................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3318
