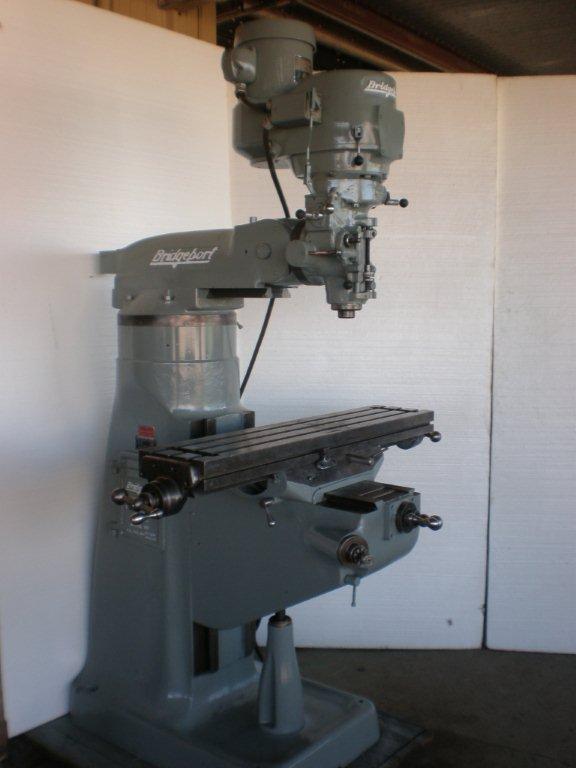

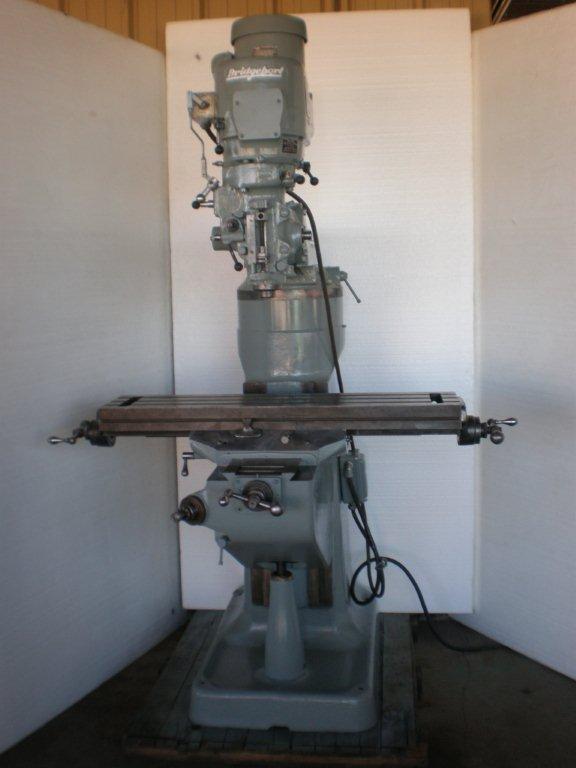

9" x 42" BRIDGEPORT Vertical Milling Machine

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 9" x 42" Bridgeport Model 70224 Knee Type Vertical Milling Machine; Series I; S/N J107561
Specifications:
Table Size.............................................9" x 49" T-Slotted
Table Travels:
Longitudinal (x-axis).........................30"
Cross Travel (y-axis).......................12 "
Vertical Travel (z-axis).....................14''
Quill Travel...........................................5''
Spindle Taper.......................................R-8 type
Throat Distance....................................6''(min.)
18''(max.)
Table to Spindle Nose ..........................2.5'' (min.)
18.25'' (max.)
Speed Range........................................Unk.
Motor.....................................................1.5 HP
Electrical Characteristics.......................230 VAC / 3 Phase / 60 Cycle
Equipped With:
Multiple axis head rotation
Complete Electrical Controls
Overall Dimensions...............................57" L-R x 53" F-B x 87" High
Weight...................................................2,400 lbs. (est.)
F.O.B.....................................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2693
