10" x 55" NIIGATA 3UM Universal Milling Machine; 15 HP; With Kwik Switch Tooling
10" x 55" NIIGATA 3UM Universal Milling Machine; 15 HP; With Kwik Switch Tooling
Casa Grande, AZ
orCall 1-520-836-9727
Description
(1) Used 10" x 55" NIIGATA Model 3UM Universal Milling Machine; S/N 83145
Specifications:
Table Size................................10 1/2" x 55" T-Slotted
Table Travels:
Longitudinal (X)...................40" nominal
Cross Travel (Y)..................16 1/2"
Vertical Travel (Z)................15 3/4"
Quill Travel...............................
Spindle Size..............................SK-50 DIN
Throat Distance.........................
Table to Spindle Nose...............
Speed.......................................45-1,400 RPM
Motor........................................15 HP
Electrical Characteristics...........460 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls

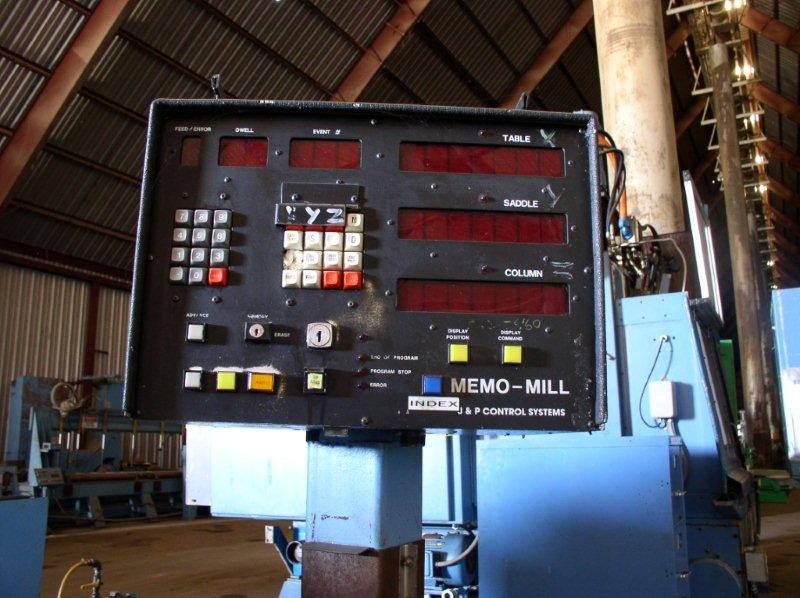

Meno-Mill Control
Power Feeds
Coolant

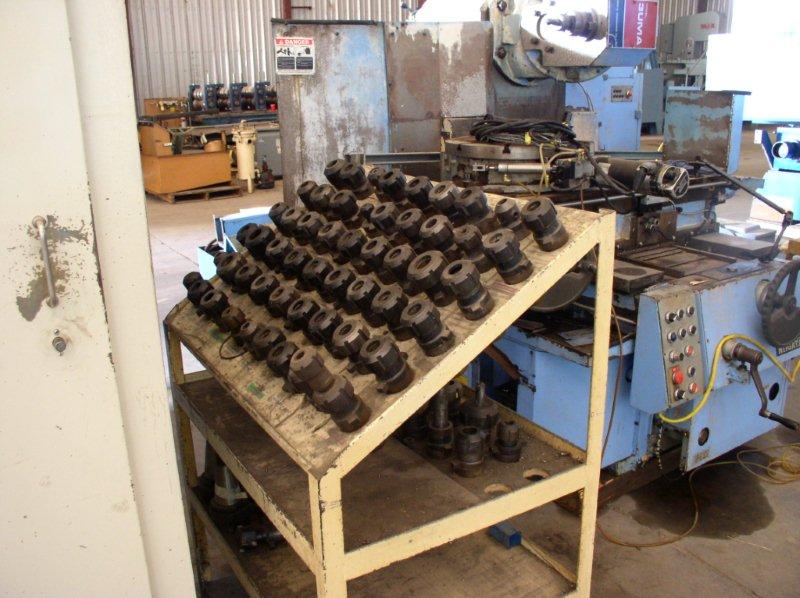

Kwik Switch Tooling (50-100 peices)
Overall Dimensions.....................
Weight........................................9,500 lbs. (est.)
F.O.B.........................................Casa Grande, Arizona
Specifications
Condition | Used |
Stock Number | 2750 |
