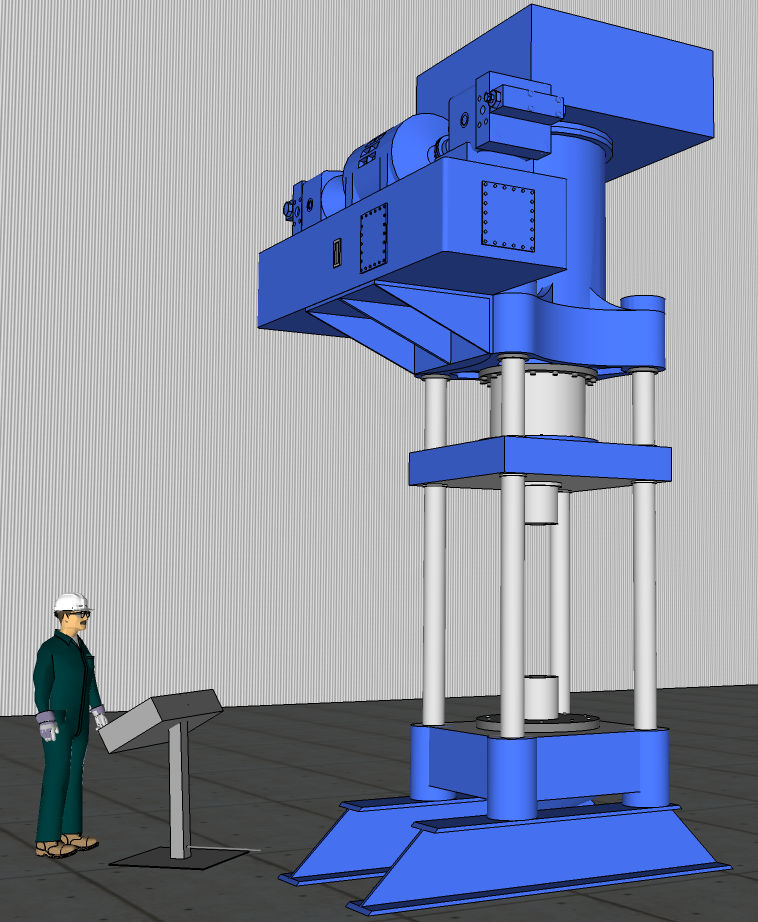

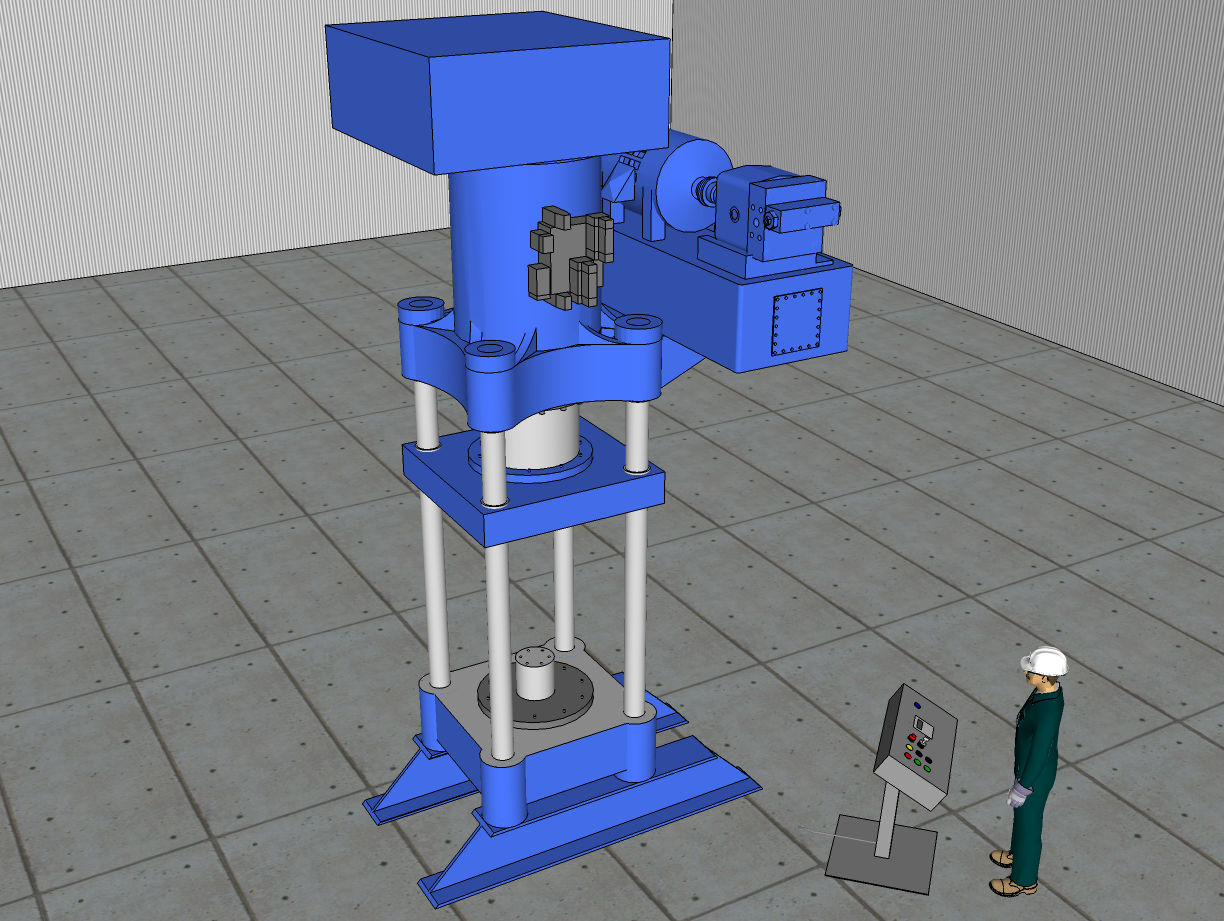

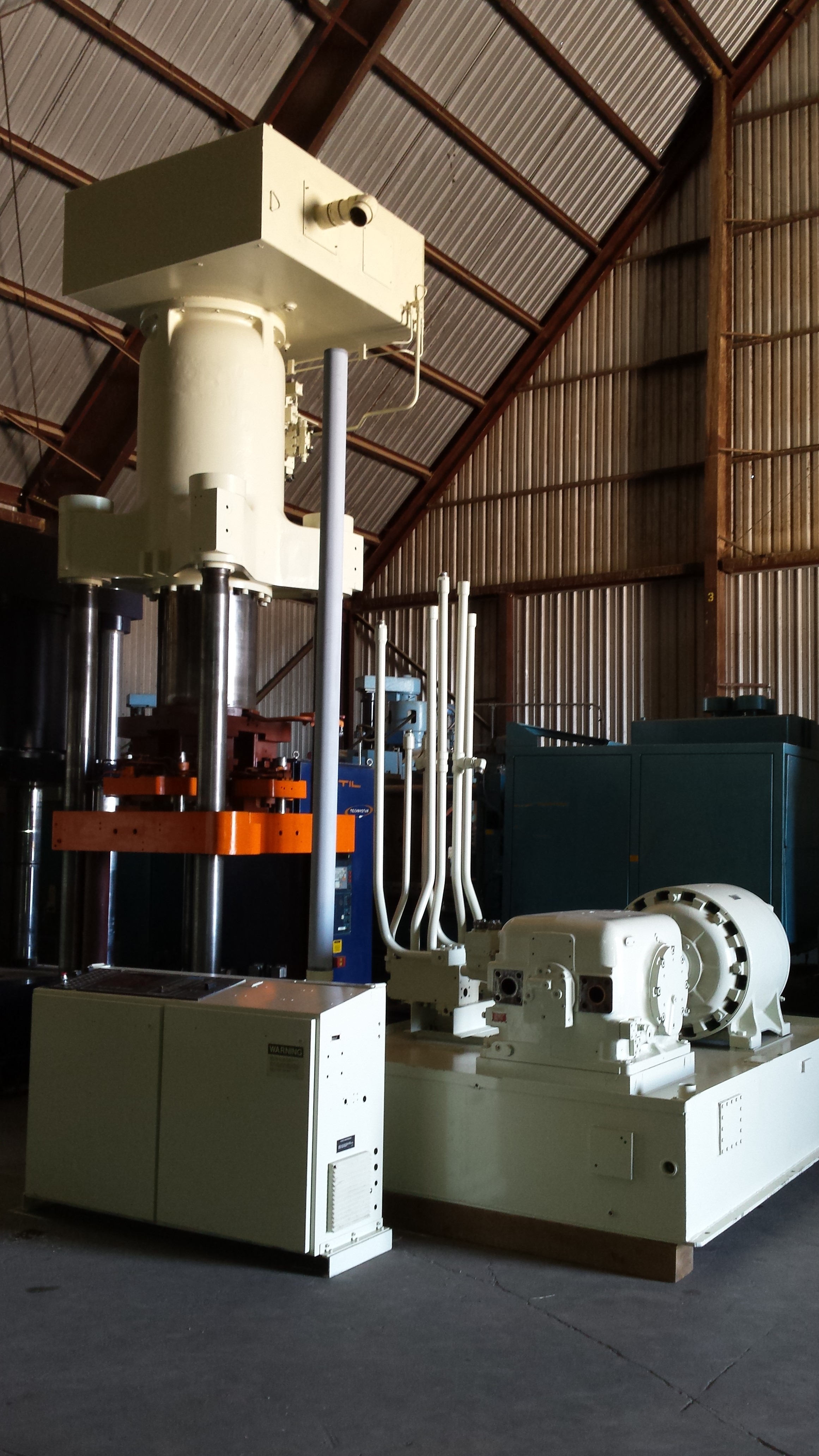

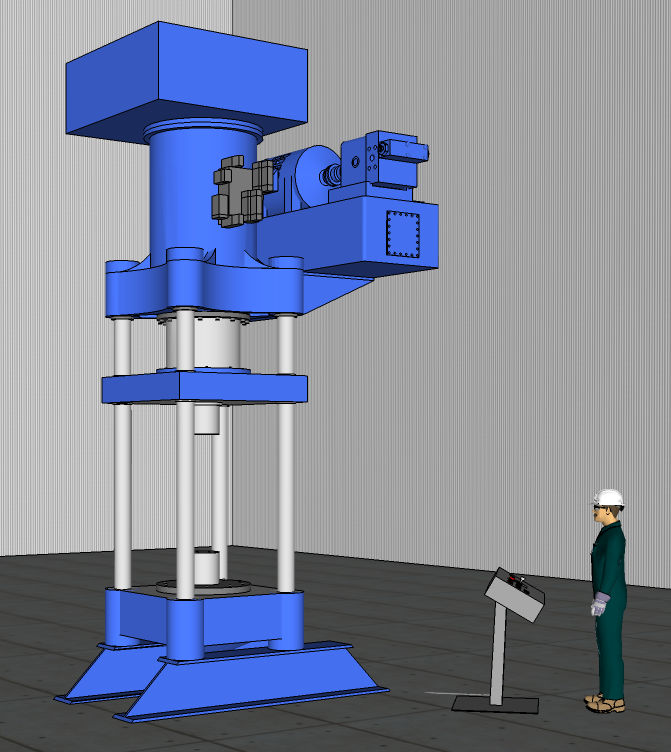

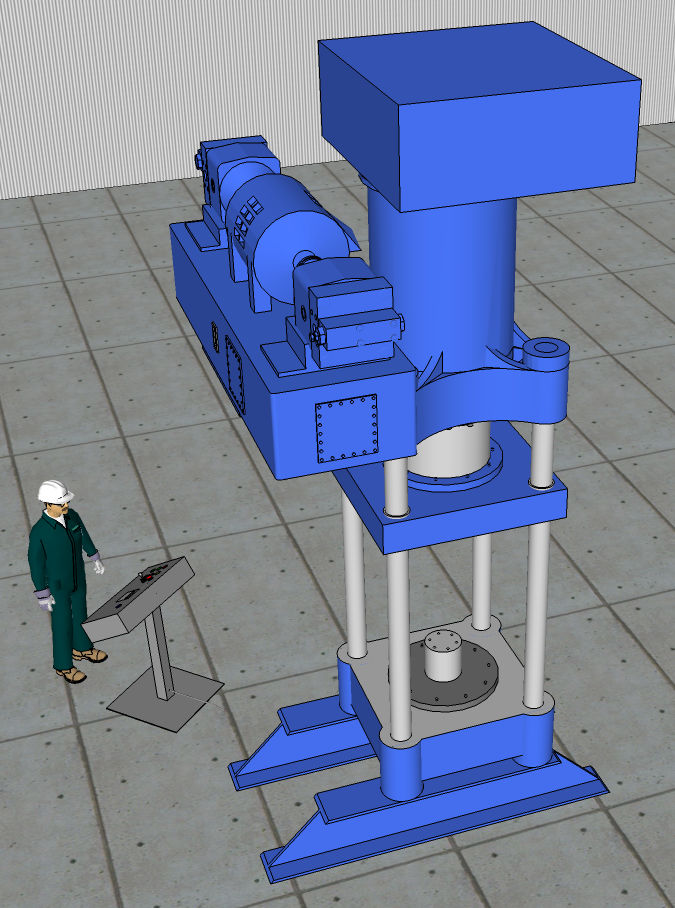

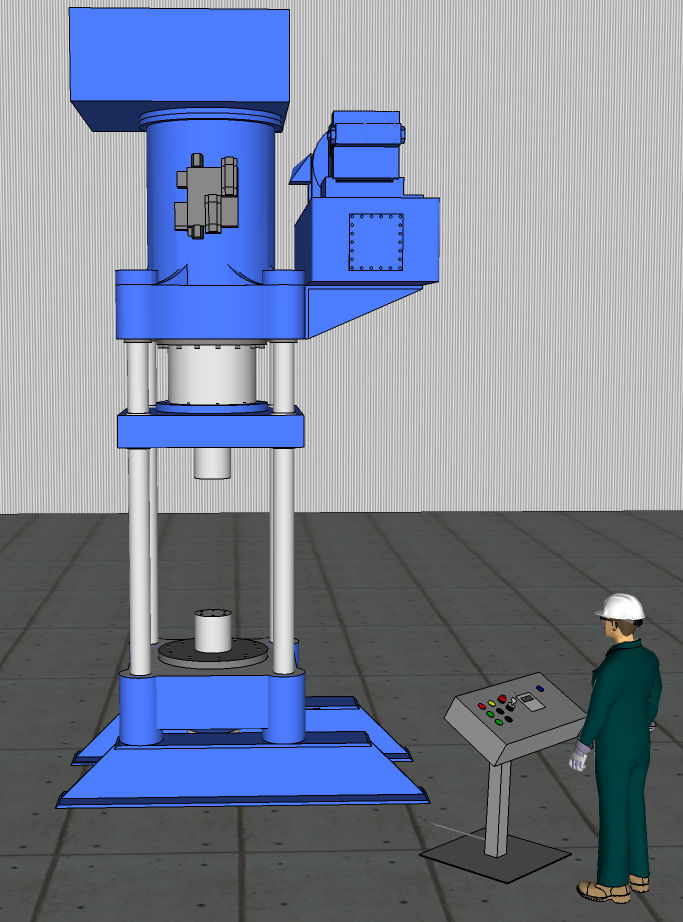

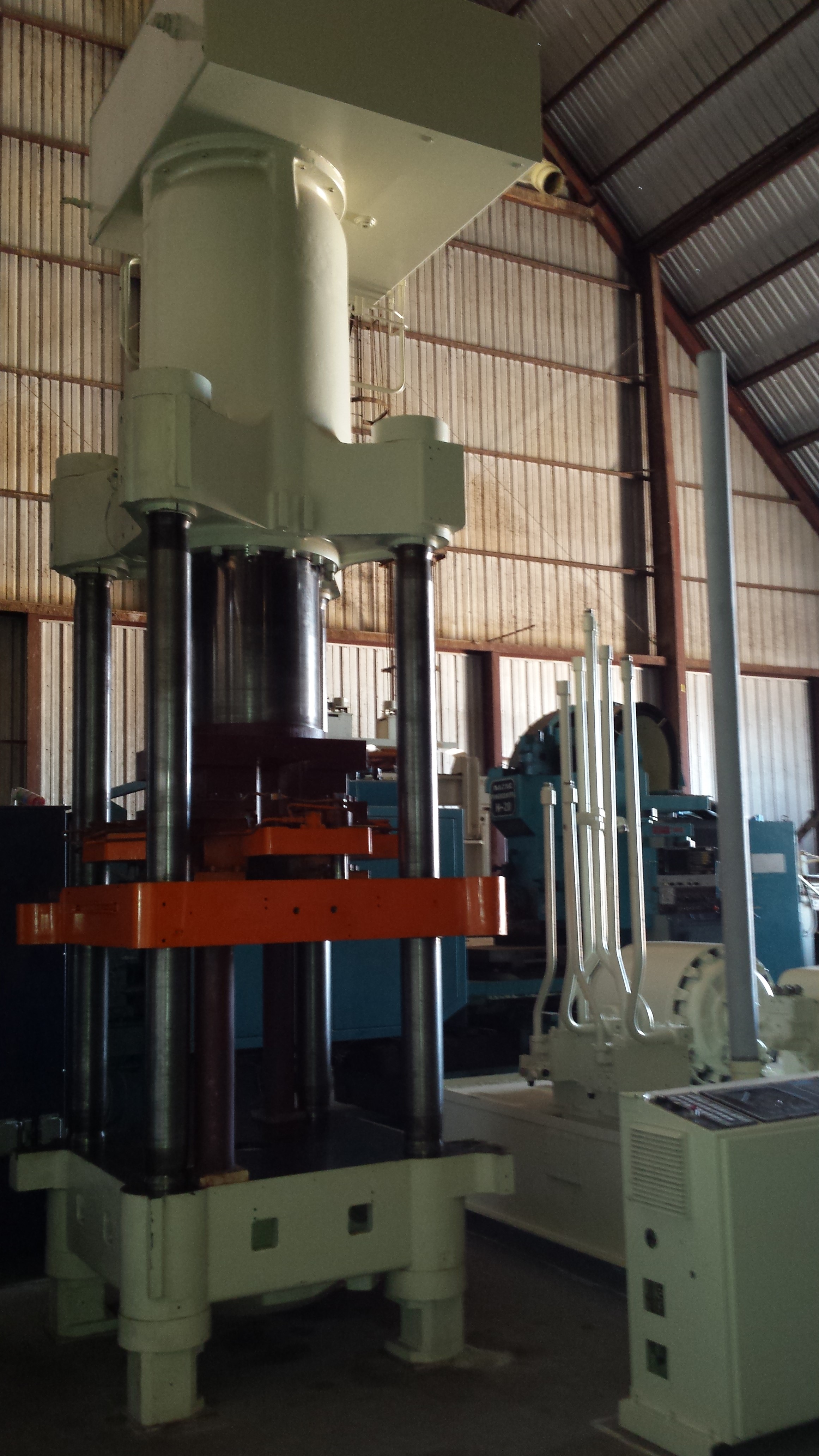

550 Ton Cincinnati Triple Action Hydraulic Press; 4 Column Down-Acting Type; Arranged for High Speed Deep Drawing; Mfg. 1989

Casa Grande, AZ

orCall 1-520-836-9727

Description

Record #3445 1. 550 Ton Cincinnati Triple Action Hydraulic Press; 4 Column Down-Acting Type; Arranged for High Speed Deep Drawing; Mfg. 1989 Specifications: Single Action (combined): Capacity(tonnage): Pressing.............................................. 550 Tons @ 2245 PSI Advance.............................................. 10 Tons (nominal) Return................................................. 45 Tons @ 2245 PSI Speeds: Pressing............................................... 0-35 inches/minute Advance............................................... 0-380 inches/minute Return.................................................. 0-260 inches/minute Area of Slide............................................. 51" L-R x 52" F-B Stroke....................................................... 45" Daylight Opening....................................... 78" (without Knock-Out Spacer Blocks) Number of Hyd. Cylinder(s)....................... One (1) Pressing / Two (2) Return Type of Hydraulic Cylinder(s).................... Single / Double Acting Diameter of Main Cylinder......................... 25" Diameter (nominal) Double-Action (Deep Drawing): Outer Ram (Blank-Holder Slide): Capacity (tonnage): Pressing / Holding........................... 550 Tons @ 2245 PSI Advance.......................................... 20 Tons (nominal) Return............................................ 45 Tons @ 2245 PSI Speeds: Holding.......................................... N/A Advance......................................... 0-380 inches/minute Return............................................ 0-260 inches/minute Area of Slide....................................... 51" L-R x 52" F-B Stroke................................................. 45" (nominal) Daylight Opening................................. 54" (with Knock-Out Spacer Blocks) Number of Hyd. Cylinder(s)................. One (1) Pressing / Two (2) Return Type of Hyd. Cylinder(s)..................... Single / Double Acting Diameter of Main Cylinder .................. 25" (nominal) Inner Ram (Punch-Holder) Capacity (tonnage): Pressing......................................... 200 Tons @ 3000 PSI Advance......................................... N/A Return........................................... 31 Tons @ 3000 PSI Speeds: Pressing......................................... 0-185 inches/minute Advance......................................... N/A Return............................................ 0-380 inches/minute Area of Slide (Ram)............................. 12" Diameter (punch mounting) Stroke of Ram....................................  24" (nominal) Daylight Opening................................. 52" (without Knock-Out Spacer) Number of Hyd. Cylinder(s)................. One (1) Type of Hyd. Cylinder(s)..................... Double Acting Diameter of Hyd Cylinder(s)................. 14" Up-Acting Ram (3rd Action): Capacity (tonnage): Pressing......................................... 200 Tons @ 3000 PSI Advance......................................... N/A Return........................................... 31 Tons @ 3000 PSI Speeds: Pressing......................................... 0-185 inches/minute Advance......................................... N/A Return........................................... 0-380 inches/minute Area of Slide (Ram)................................... 12" Diameter Stroke of Ram.......................................... 24" (nominal) Type of Ram................................................. Double Acting Hyd. Cylinder Sub-Floor Recess Required........................ (none) Bed Area....................................................... 49" L-R x 49" F-B Distance Between Columns.......................... 34.3" L-R x 34.3" F-B Diameter of Columns (4) ............................. 6" (nominal) Distance Floor to Bed................................... 32" (with Lower Third Action / Ejector) Hydraulic System: Pump Type(s) ......................................... Variable Volume Pressure Compensated Power & Pressure.................................... 100 HP @ 3000 PSI (nominal) Reservoir Capacity.................................. 400 Gallons (nominal) Electrical Characteristics.............................. 480 V.A.C. / 3 Phase / 60 Cy. Equipped With: Complete Electrical Controls with Operator's Station Complete Programmable Micro-Processor Interface Replaceable Bronze Bushings Guides (all movements) Precision Outer-Slide Guiding System High Pressure Slide Lubrication 18" High Operator Safety Light Barrier (Front Loading Only) Full Perimeter Barrier Guards (set-up removable) Complete Crown Mounted Hydraulic System with: Parker / Rexroth Multi-Pump / Motor Combination Electro-Hydraulic Control Valves Outer Ram / Slide Pre-Fill Valve; High Volume Type Dual 200 Gallon J.I.C. Reservoirs Overall Dimensions...................................... 5' L-R x 7' F-B x 20' High (from floor) Weight.......................................................... 52,000 lbs. (est) FOB...............................................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3445
