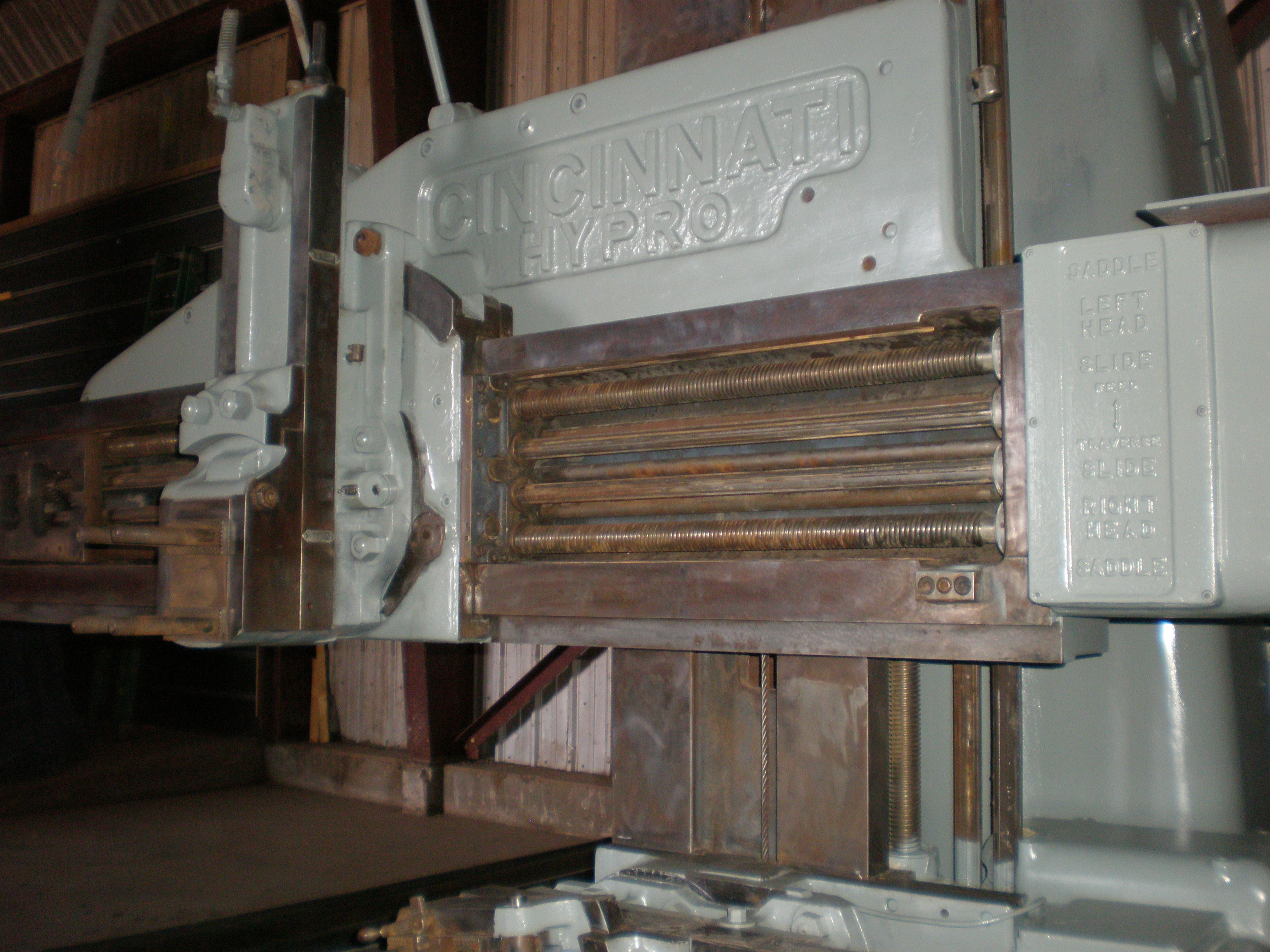

38" x 36" x 28' Cincinnati "Hypro" Planer; #2329

38" x 36" x 28' Cincinnati "Hypro" Planer; #2329

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

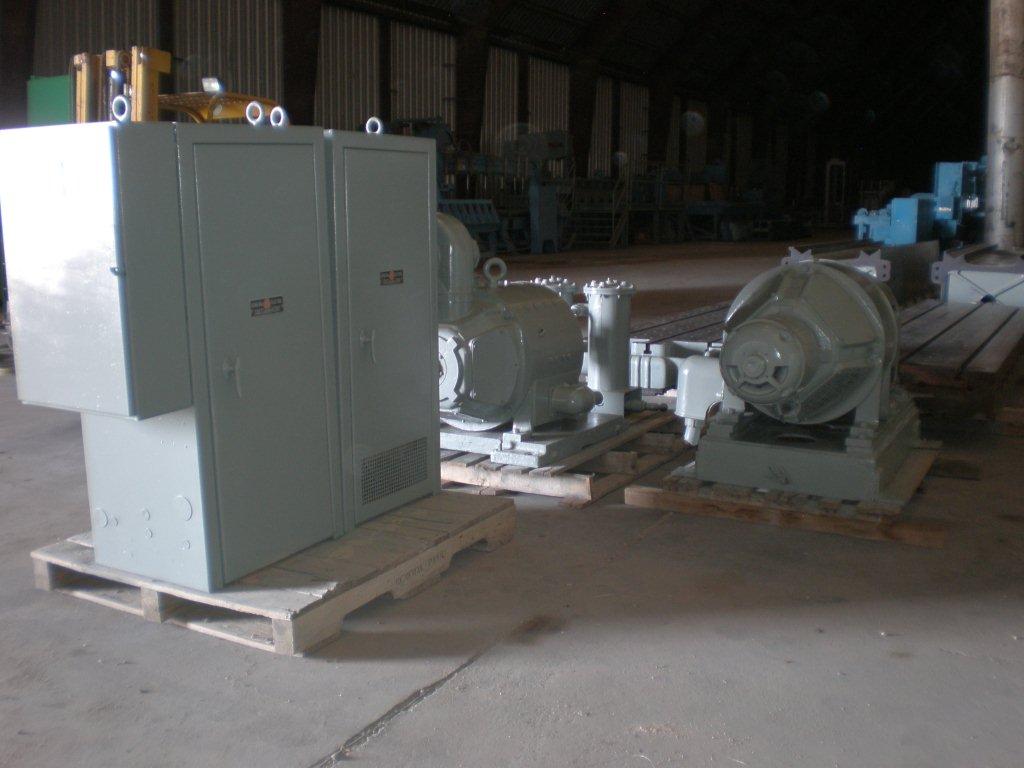

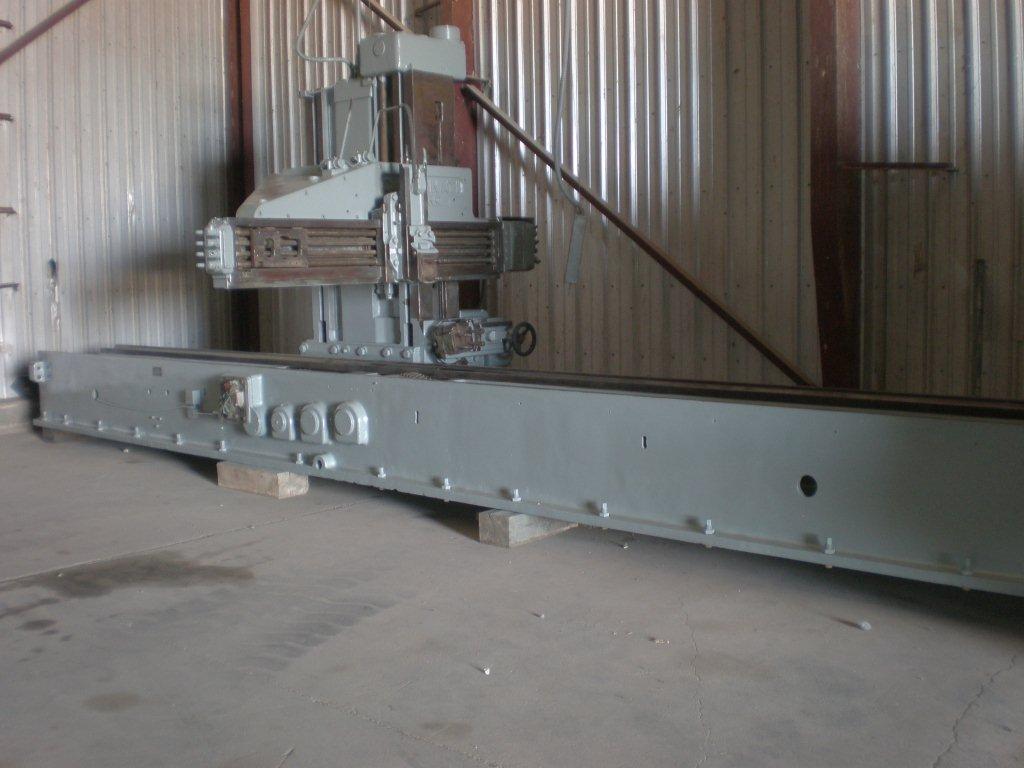

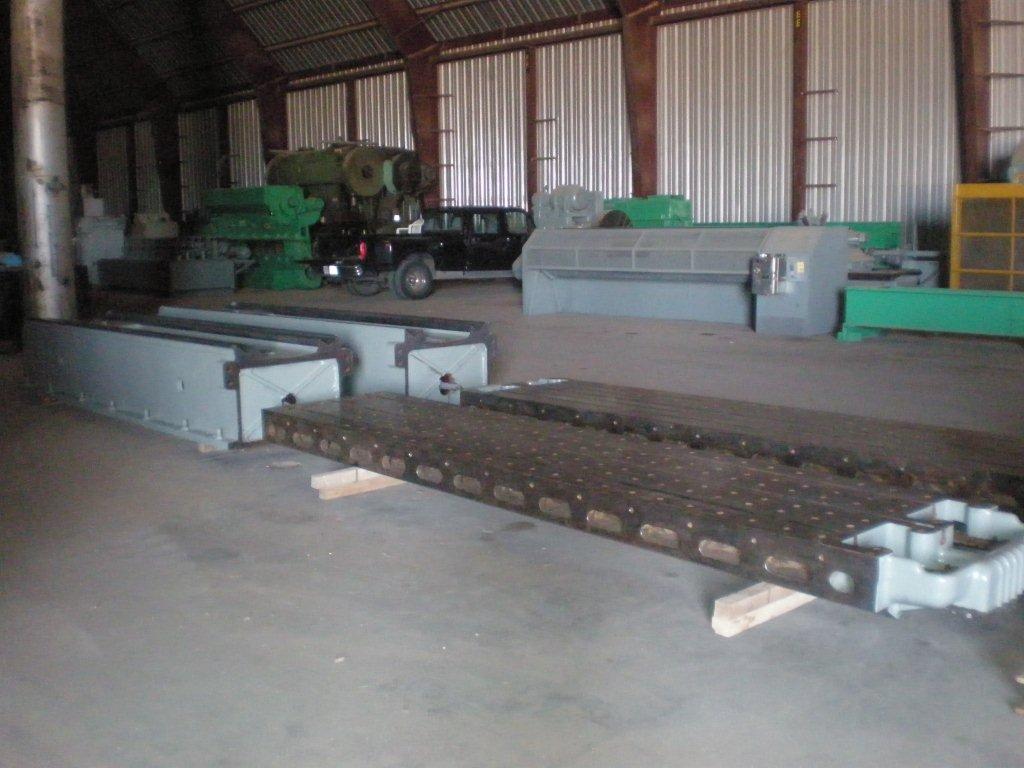

(1) USED Cincinnati "Hypro" 3' x 26' Openside Planner; S/N 7321 Specifications: Area of Table..........................36" x 27' F-B (working) 36" x 29'2" F-B (O.A.) Maximum Table Stroke...................27' Maximum Under Rail.....................38" Maximum Planing Width..................36" Vertical Travel of Rail Head Slide.....15" Vertical Travel of Side Head...........12" All Heads Swivel (left or right).......45° Electrical Characteristics: All G.E. Drive System: 50 HP Motor Generator Set; 25 HP D.C. Motor (direct) 220/440VAC / 3 Phase / 60 Hz / 60/120 AMP 1765 RPM / 107/240V / 88/212 AMP / 250-1200 RPM Equipped With:

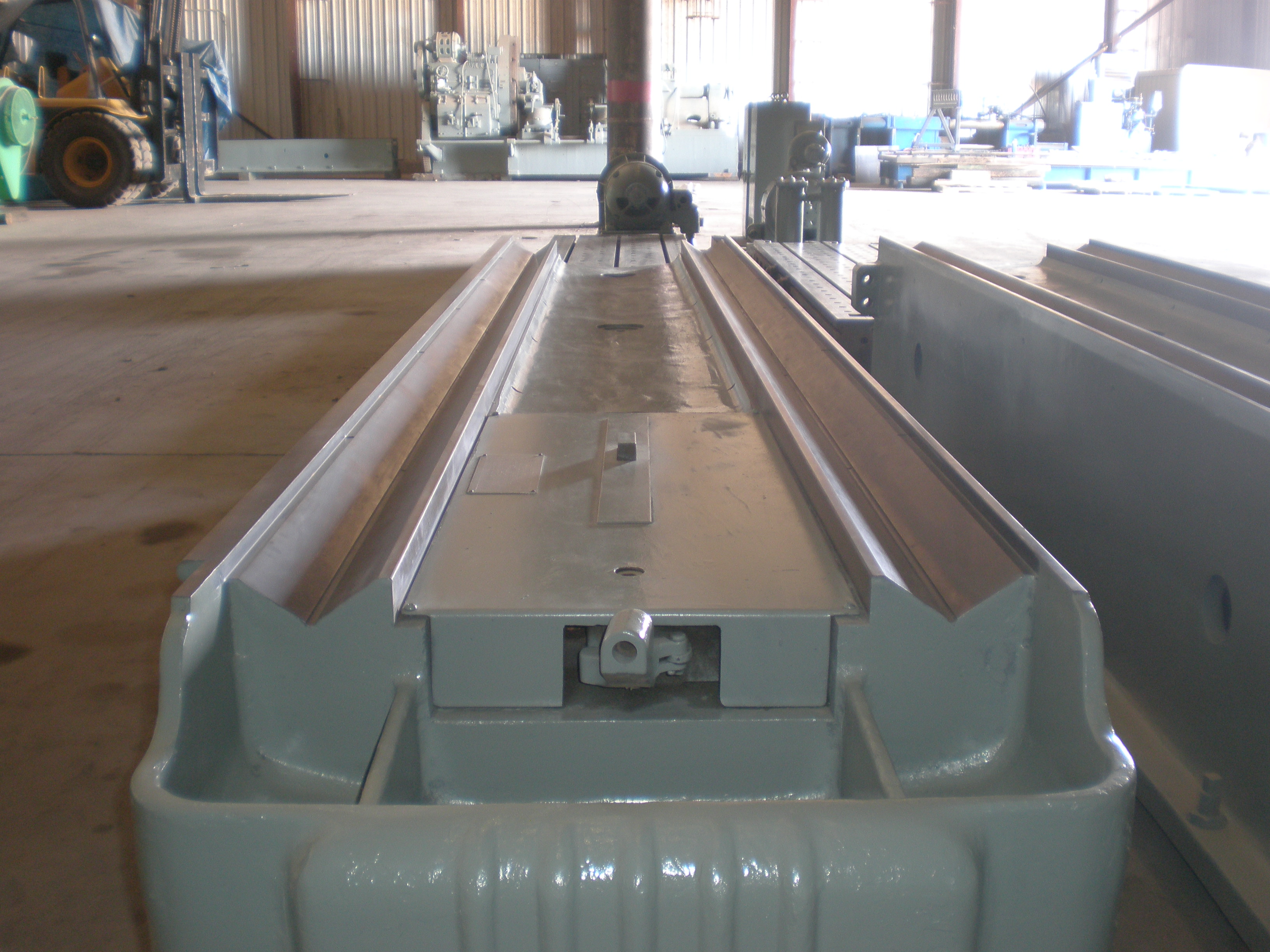

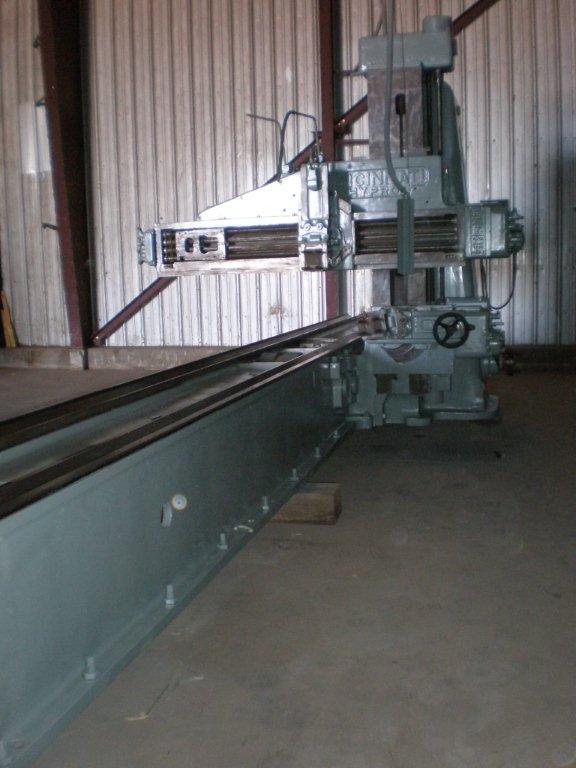

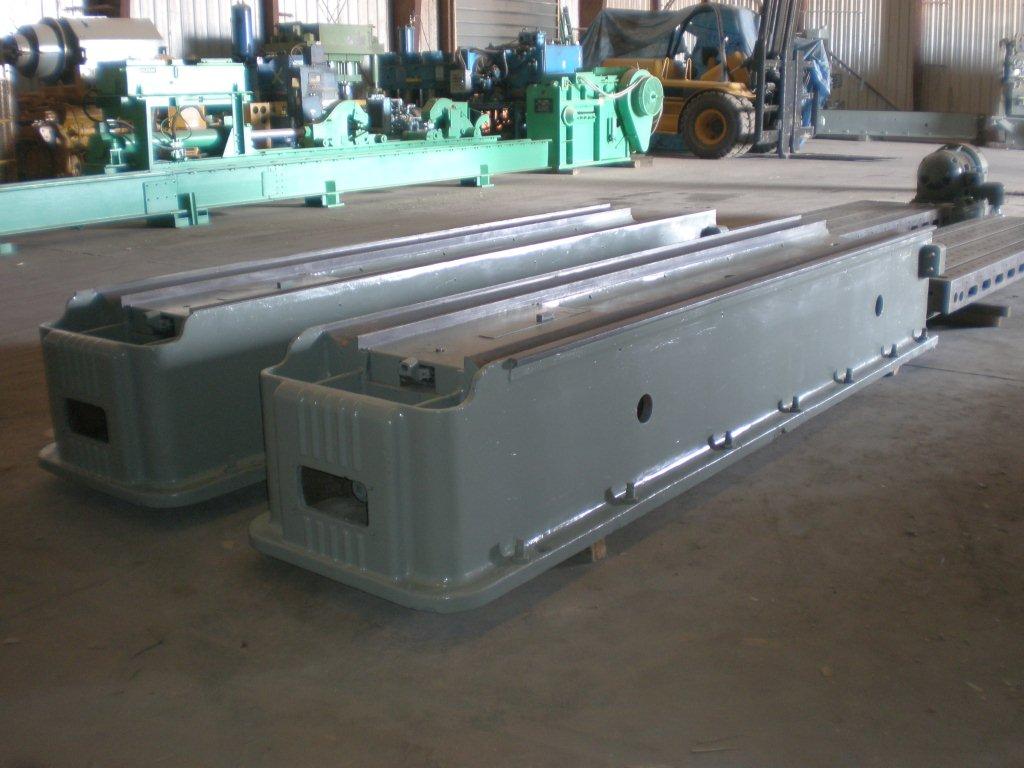

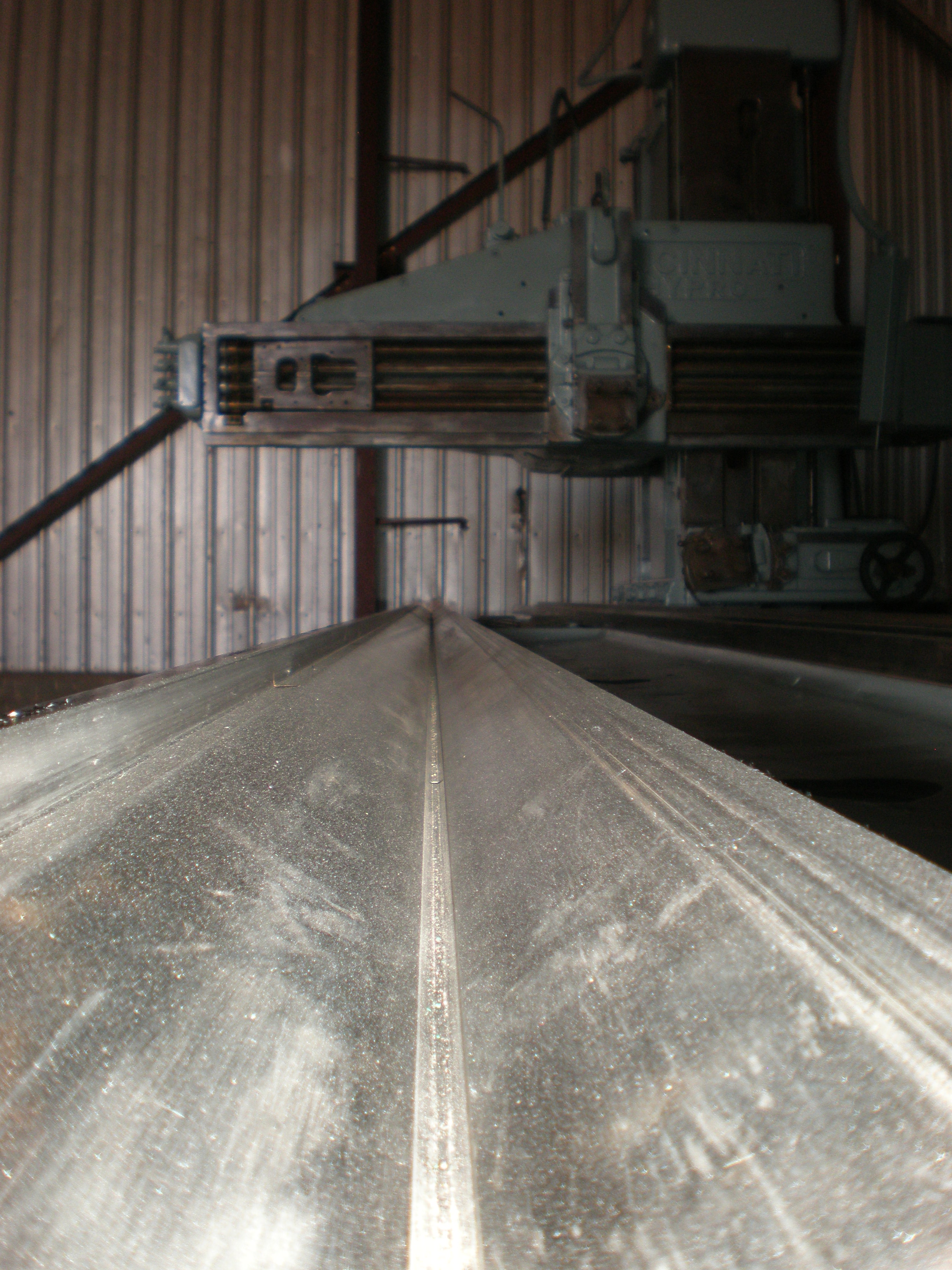

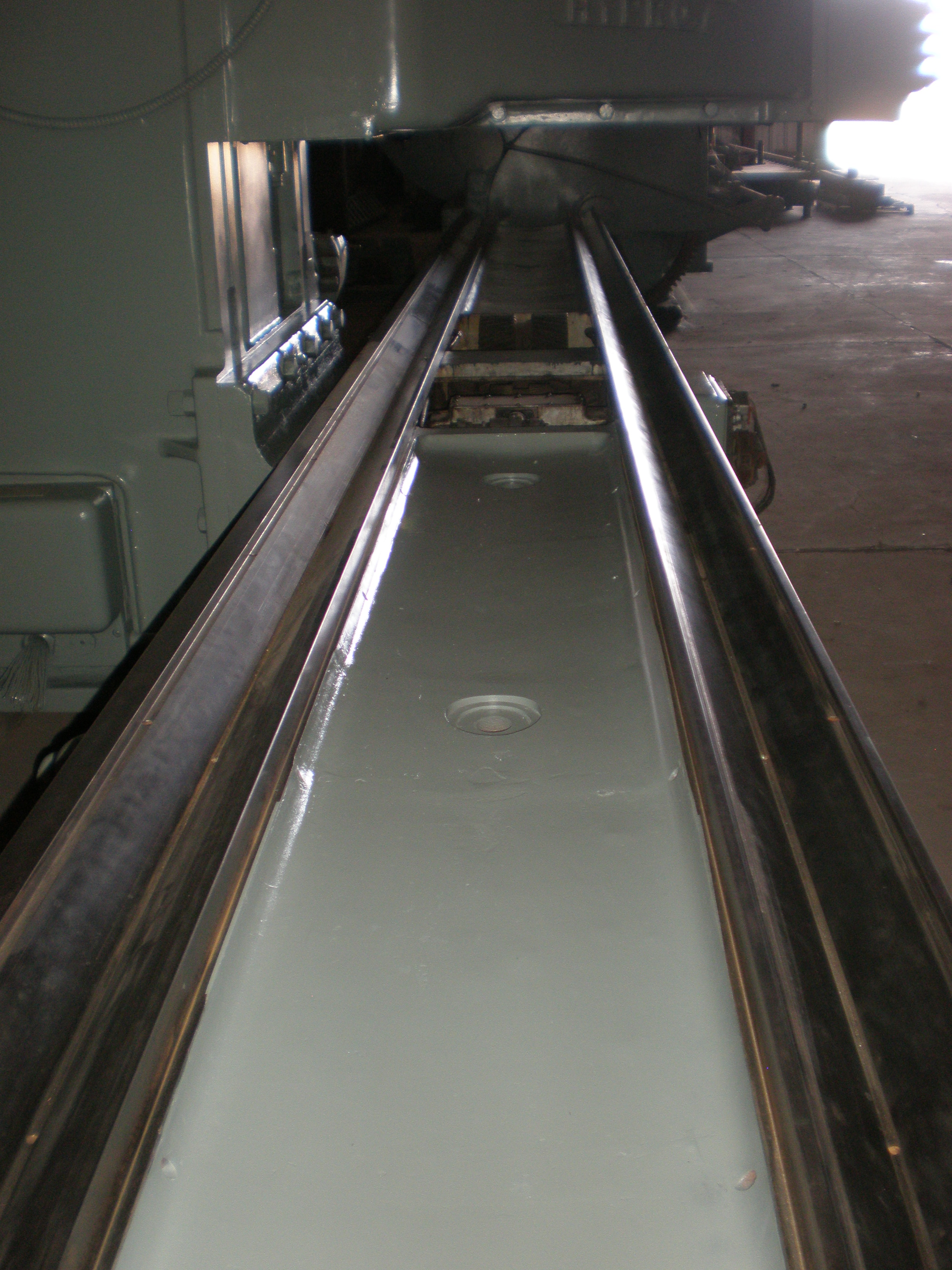

Cast Iron Vee ways for table 2 Rail Heads, (1 complete w/clapper box, 1 missing parts) 1 Side Head w/clapper box Auto Recirculating Lube System Power Feeds and Rapid Traverse on all Heads Operator's Pendant Control Dimensions: Height...........................10' 4" (w/o pendant) Width............................120" (w/o drive) Length...........................56' 6" (complete), 29' 2" (min. shipping length) Weight................................125,000 lbs (est) F.O.B.................................Casa Grande, AZ

Specifications

ManufacturerCincinnati
ModelHypro
ConditionUsed
Serial Number7321
Stock Number2329
