36" Tannewitz Mdl. G1NE Block Saw #3825

36" Tannewitz Mdl. G1NE Block Saw #3825

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

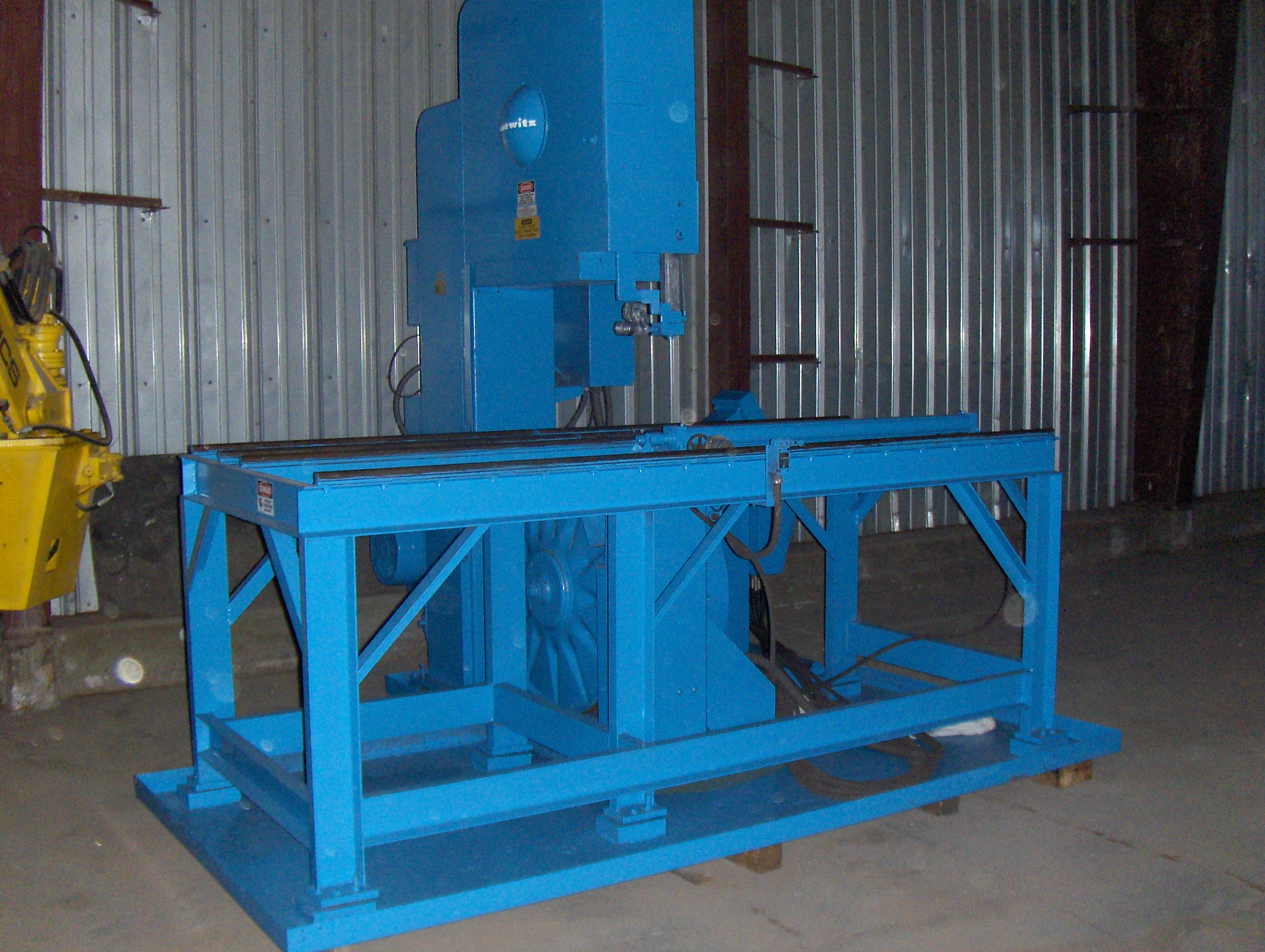

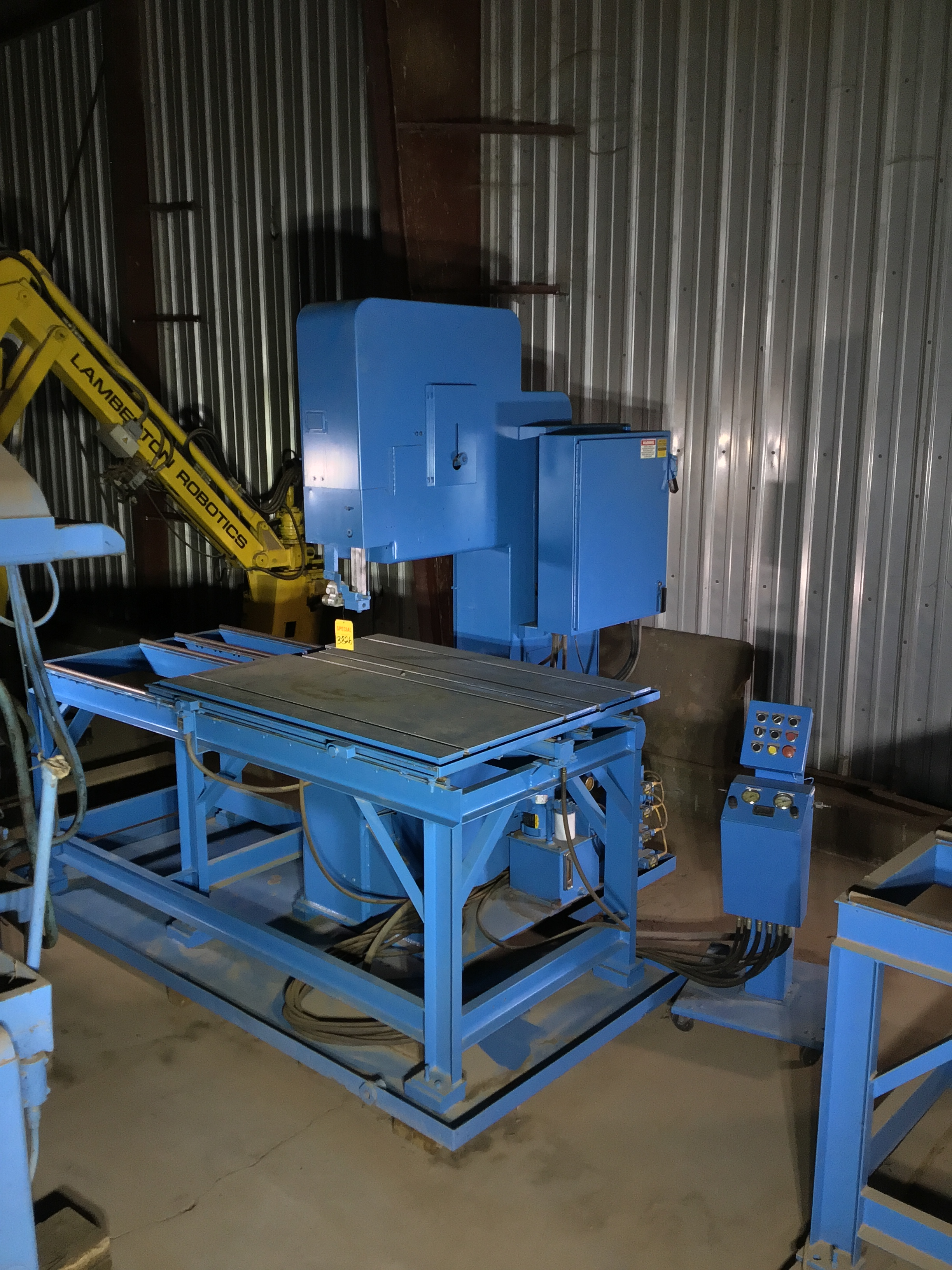

36" TANNEWITZ Model G1NE Vertical Band Type Plate & Block Saw, #3825

S/N 24004PE

Specifications:

Plate Capacity:

Length................................54" (maximum)

Width..................................72"

Thickness...........................16" (maximum)

Travel of Saw Table.................55" (nominal)

Blade Speed (Variable)............(per customer requirement).

Blade Tension Control.............Automatic / Hydraulic

Wheel Diameter......................36"

Throat Depth...........................35 1/2"

Base Construction...................Fabricated & Welded Steel

Blade Width Capacity..............1/2" to 2"

Blade Length........................... 20' (nominal)

Table Size (Main)..................... 48" x 60" (nominal)

Table Capacity (Main)..............5,000 lbs (est.)

Upper Wheel Adjustment..........5" (nominal)

Wheel Type...............................Heavy duty balanced steel disc

Guide Post Size........................1 1/4" x 2 1/4"

Table Height.............................45 1/2" (from floor)

Motor Output............................ 15 HP

Electrical Characteristics..........220/440 VAC / 3 Phase / 60 Cycle

Equipped With:

  • Heavy Duty Blade Guides
  • Complete Electrical Controls with Operators Control Station
  • 15 HP Variable Speed Band Saw Drive
  • Traveling Table with Dual Precision Guide Rails and Power Feed
  • Mist Type Coolant System
  • Operators Manual (optional from manufacturer)


Overall Dimensions..................10' L-R x 9' ft F-B x 9' 6" High (est.)

Weight.......................................6,000 lbs. (est.)

F.O.B...............................Casa Grande, AZ

Specifications

ModelG1NE
ConditionUsed
Serial Number24004PE
Stock Number3825
