200 Ton Atlas-Parker Hydraulic Straightening Press

200 Ton Atlas-Parker Hydraulic Straightening Press

Casa Grande, AZ

orCall 1-520-836-9727

Description

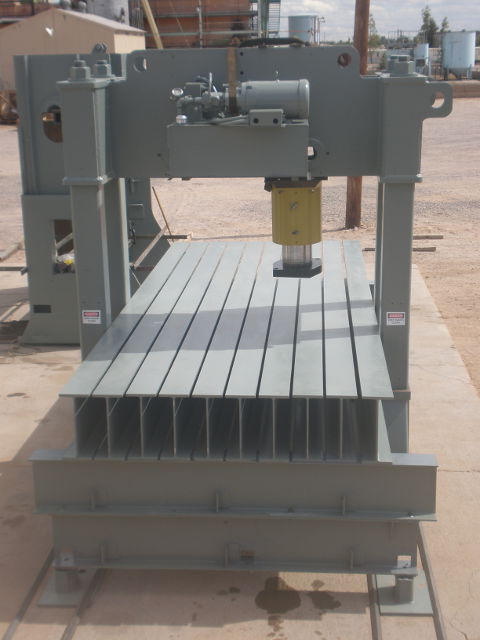

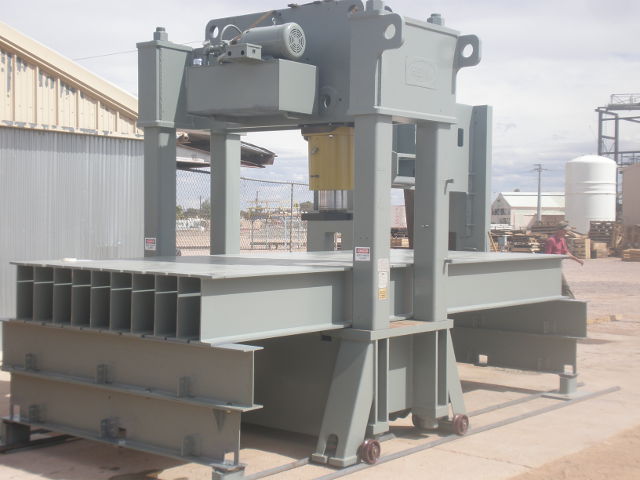

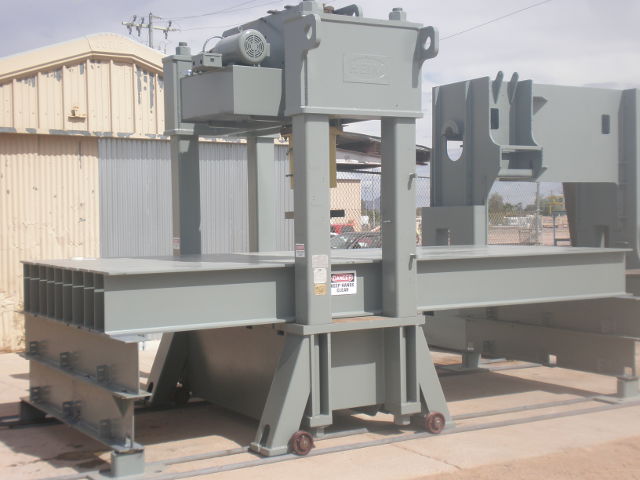

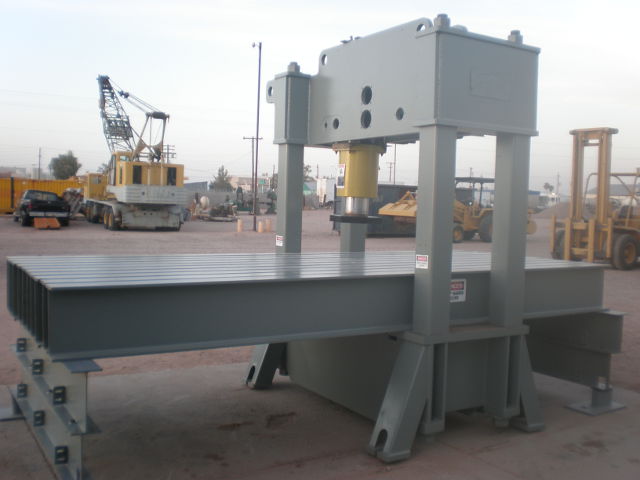

(1) Used 200 Ton Atlas-Parker Hydraulic Straightening Press; Down-Acting Type; MFG 2008 Specifications: Capacity (tonnage): Pressing.......................................200 tons (nominal) Advance........................................27 tons Return (stripping).............................30 tons Bed Area............................................78" L-R x 144" F-B Distance Between Housings...........................80" Window Openings.....................................22 1/2" F-B Stroke of Ram (slide)...............................10" Daylight Opening....................................20" (nominal) Distance Floor to Bed...............................38" Number of Ram Cylinders.............................2 Type of Ram Cylinders...............................Double-Acting Diameter of Ram Cylinders...........................10" Ram (slide) Speeds: Pressing.......................................60 I.P.M. Advance........................................240 I.P.M. Return.........................................350 I.P.M. Hydraulic System: Type................................................Pressure Compensated Variable Volume Power & Pressure....................................25 HP @ 2,500 psi Fluid Capacity......................................80 gal. Electrical Characteristics..........................480 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls With Operator Control Station Complete Hydraulic System With New Micro-Processor/Servo Controls & Display 8 Point Gibbing System With Replaceable Composite Liners Overall Dimensions..................................95" L-R x 144" F-B x 140" H Weight..............................................25,000 lbs. (est.) F.O.B...............................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number397
