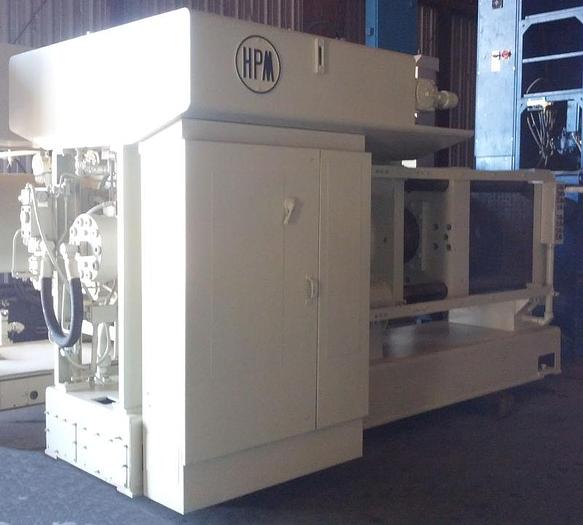

450 Ton HPM Hydraulic Extrusion Press

Casa Grande, AZ

orCall 1-520-836-9727

Description

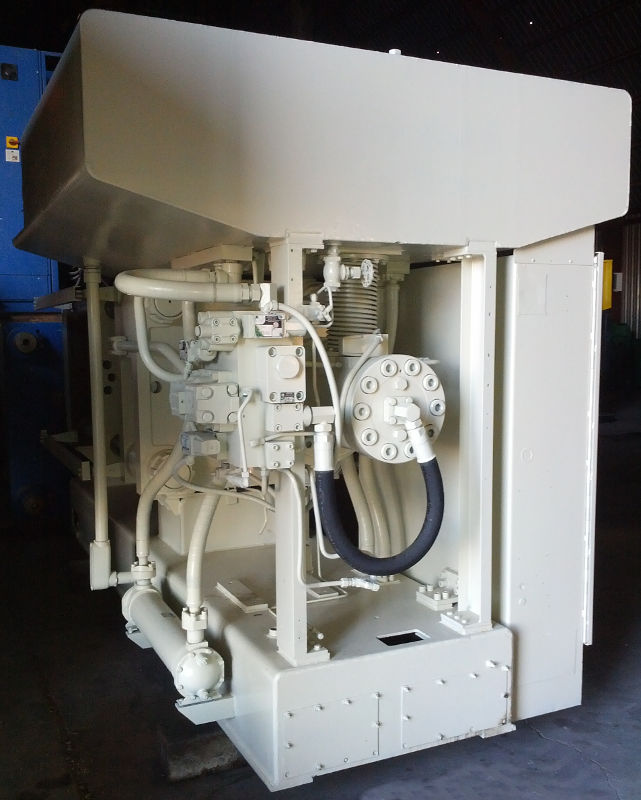

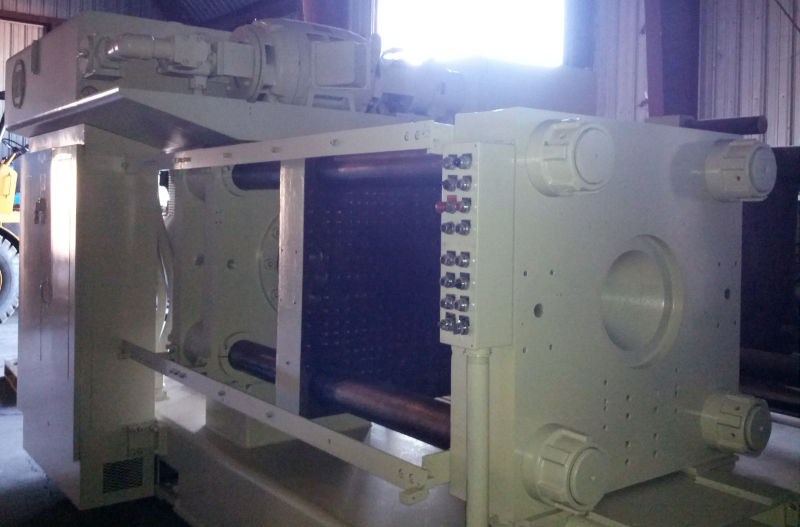

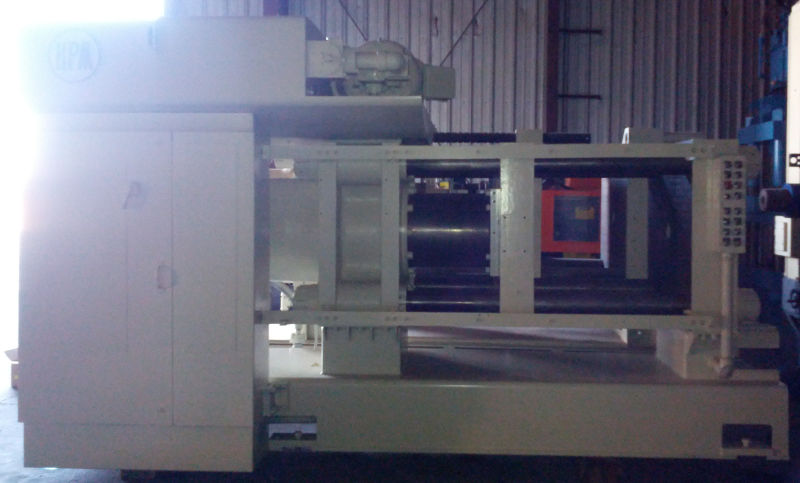

(1) Used 450 Ton HPM Hydraulic Extrusion Press; S/N 66-579
Specifications:
Extrusion Force.............................450 Tons @ 3,000 PSI (nominal)
Stripping / Return Force....................
Stroke(Ram).................................28"
Daylight Opening............................52"
Distance Between Tie Rods...................27" T-B x 27" F-B
Main Ram Diameter...........................19"
Main Ram Cylinder Bore......................19 1/2"
Tie Rod Diameter (4)........................5 1/2"
Distance Floor to Press Center-line.........50"
Extrusion Temperature.......................
Speeds:
Advance................................
Pressing (Extrusion)...................
Opening (Return).......................
Container System:
Billet Diameter (Direct Extrusion).....
Billet Diameter (Indirect Extrusion)...
Max. Billet Length.....................
Container Diameter (outside)...........
Container Heating System...............
Length of Container Housing............
Distance of Travel.....................
Closing Force..........................
Opening Force..........................
Speeds:
Closing...........................
Opening...........................
Billet Shear:
Capacity...............................
Stroke.................................
Speed..................................
Extrusion Stem:
Diameter...............................
Length.................................
Mounting System........................
Die System:
Die Diameter...........................
Die Thickness..........................
Shuttle Stroke.........................
Billet Loading System.......................
Hydraulic System:
System Manufacturer....................Sperry / Vickers
System Pressure........................3,200 PSI (nominal)
System Capacity........................45 GPM
System Horsepower (total)..............50 HP @ 1800 RPM (nominal)
Number of Pumps........................2
Pump Specifications:
Unit #1...........................Vickers V-2462-5
Unit #2...........................Vickers
Primary Drive Motor:
Manufacturer......................Delco
Horsepower Rating.................50
Electrical Characteristics........230/460 VAC / 3 Phase / 60 Cycle
Valve System:
Manufacturer......................Vickers / HPM
Type..............................Multi-Directional / Pilot Operated
Reservoir System:
Type..............................Fabricated Steel
Fluid Volume......................300 gallons (est.)
Control System:
Manufacturer...........................IDEC
Type...................................PLC
Interface..............................3" Touch Screen HMI (up to 12" color optional)
Electrical Characteristics..................460 / 3 Phase / 60 Cycle / 100 Amps
Equipped With:
Complete Electrical Controls with Operator's Station
Complete Hydraulic System with 9" High Volume Pre-Fill Valve
Overall Dimensions..........................177" L x 83" W x 100" H
Weight......................................51,400 lbs. (est.)
F.O.B.......................................Casa Grande, AZ
Keywords: lead, silver, copper, non-ferrous

Specifications

ConditionUsed
Stock Number3460
