700 Ton Van Dorn Extrusion Press #3706

Sold

700 Ton Van Dorn Extrusion Press #3706

Location:Casa Grande, AZ

Description

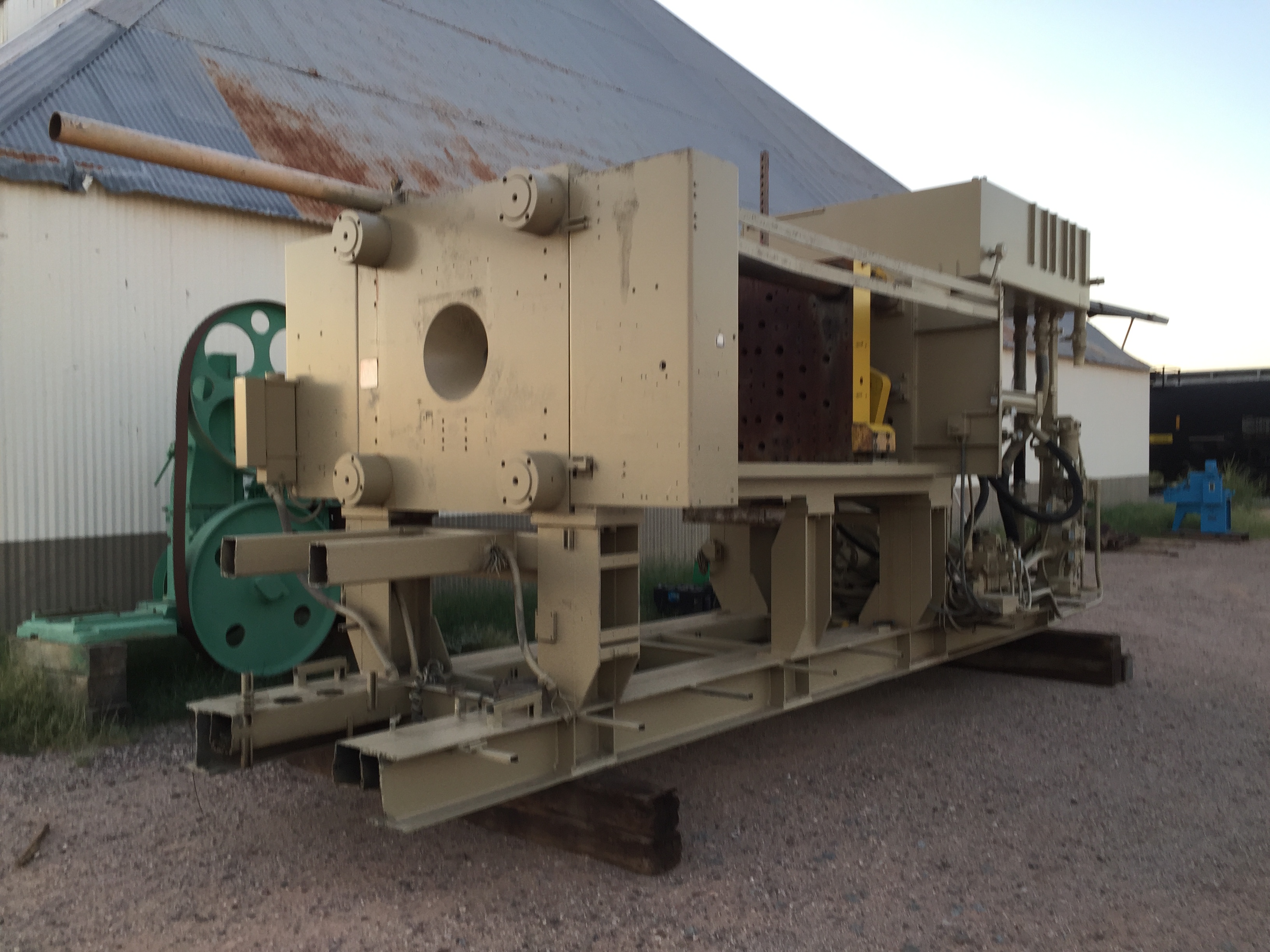

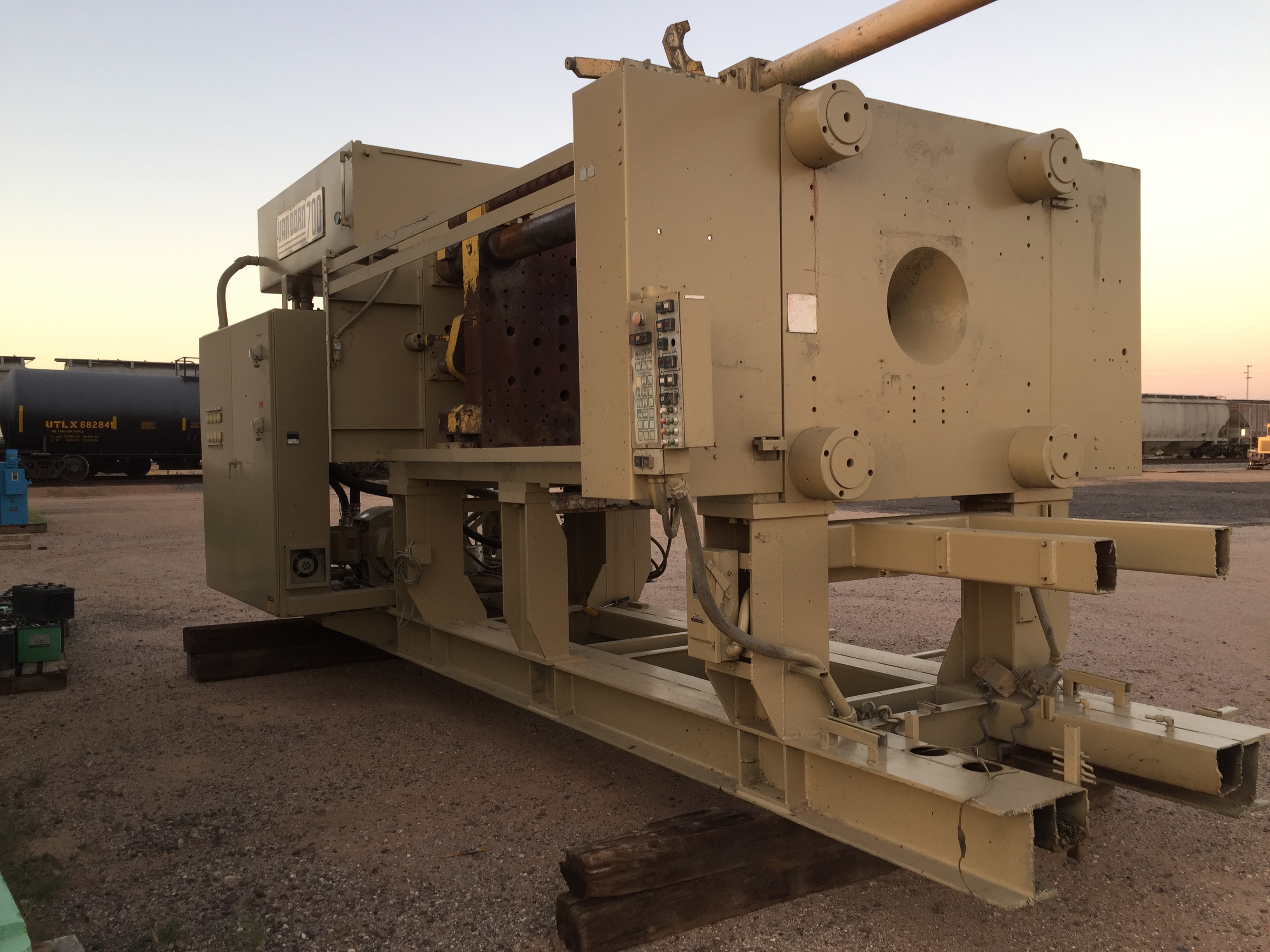

Used 700 Ton Van Dorn Hydraulic 4 Post Horizontal Extrusion Press

Specifications:

Capacity........................................................................ 700 Tons

Pressing.................................................105 Inches/ Min.

Advance.................................................1000 Inches/ Min.

Return....................................................150-1000 Inches/ Min.

Bed Area....................................................................... 54" L R x 54" F B

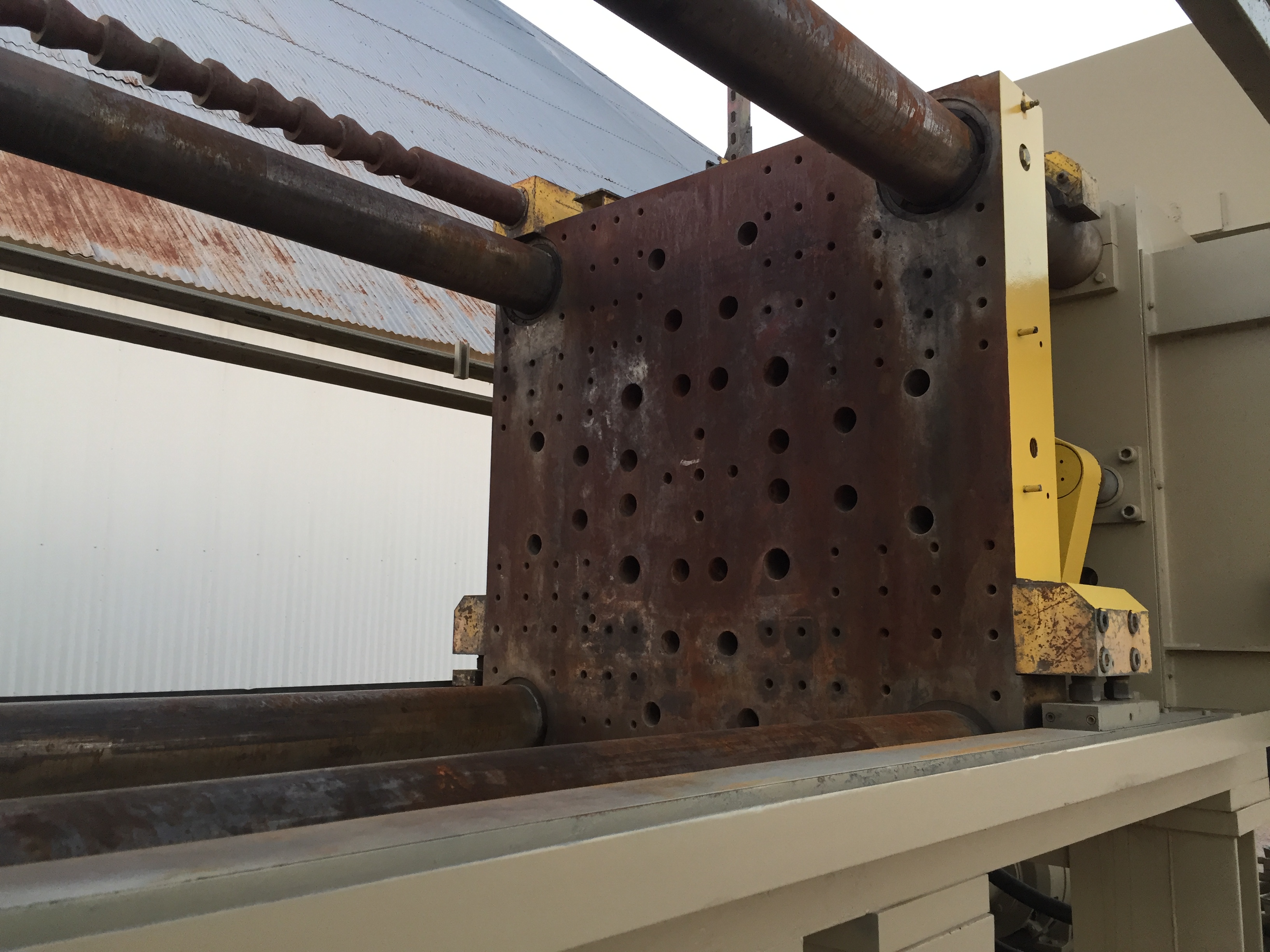

Ram (Slide) Area.......................................................... 54" L R x 54" F B

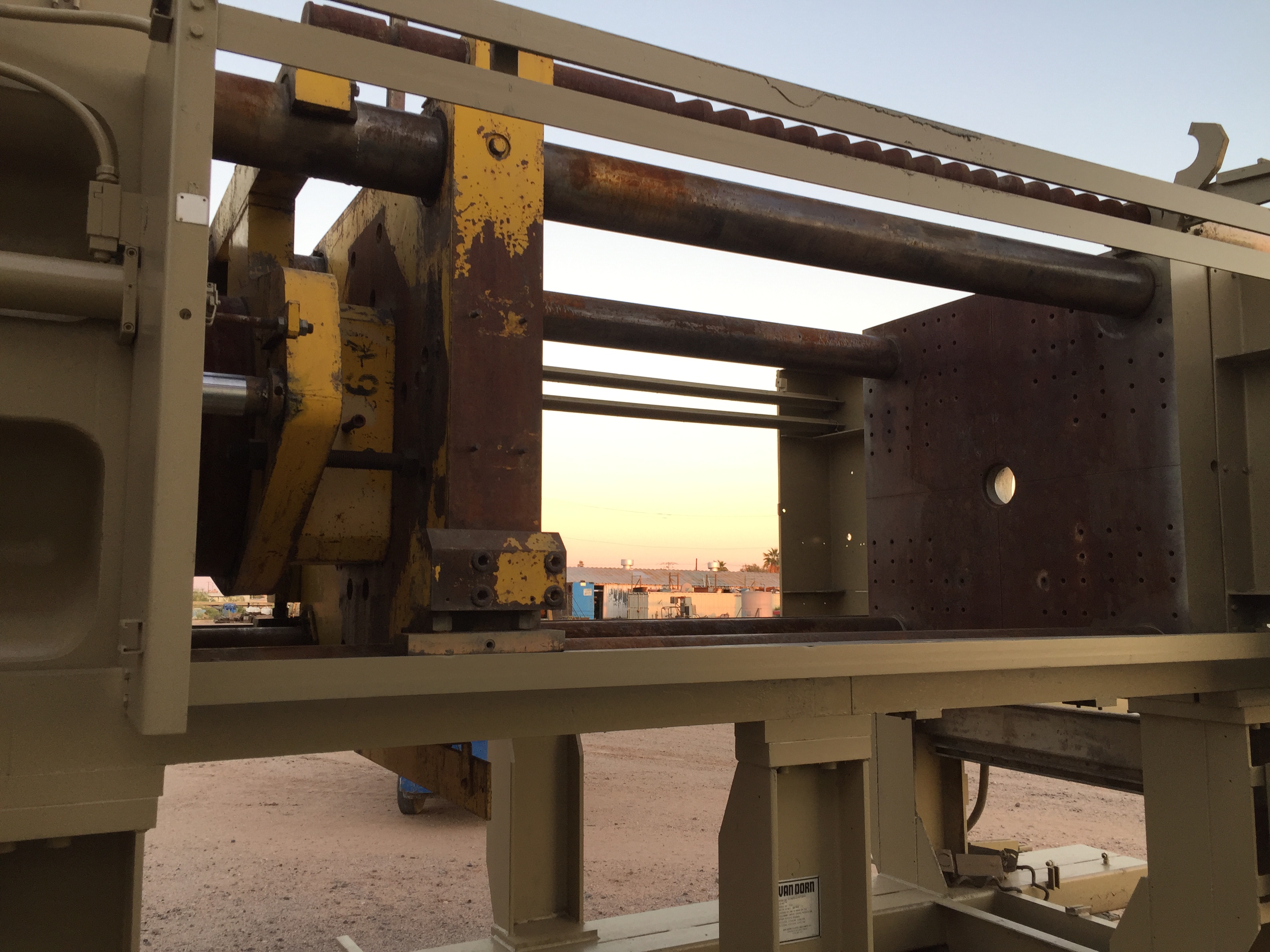

Distance between tie rods(4)........................................ 36" x 36"

Stroke of Ram/Slide...................................................... 54"

Daylight Opening..........................................................80"

Daylight Closed.............................................................24"

Tie Rod Diameter (post)............................................... 7"


Reservoir System:

Type......................................................... Fabricated Steel

Fluid Volume.......................................... 475 gal.


Electrical Requirements:

Main Drive Motor

Manufacturer....................... Reliance

Horsepower Ratings............. 75

Electrical Characteristics..... 230/460 V.A.C. 3 phase / 60 cycles


Dimensions..........................260" L-R x 100" F-B x 123" High

Weight..................................69,000 lbs. (estimated)

Specifications

ManufacturerVan Dorn
Model700 HRS
Year1987
ConditionUsed
Stock Number3706
