36" TANNEWITZ Model G3SE Vertical Band Saw

Casa Grande, AZ

orCall 1-520-836-9727

Description

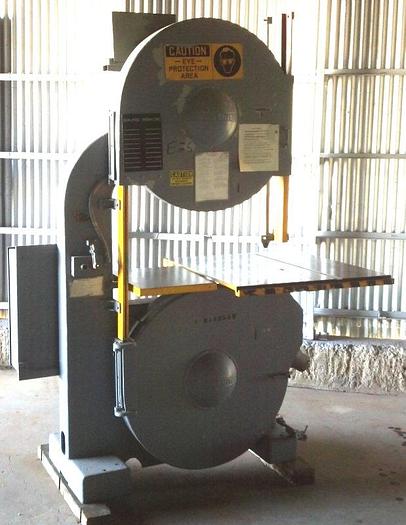

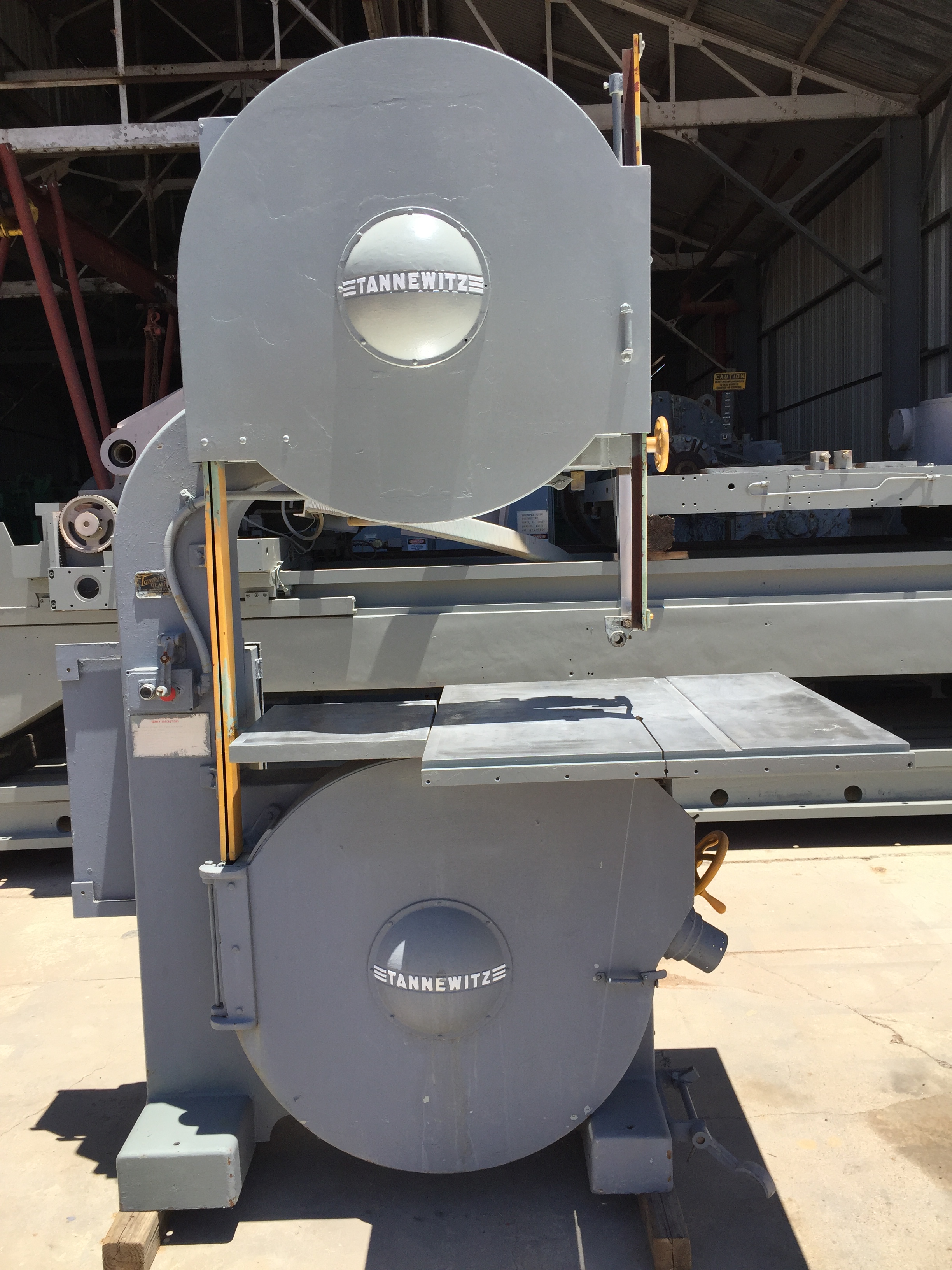

(1) Used 36" TANNEWITZ Model G3SE Vertical Band Saw; S/N 14715
Specifications:
Throat Capacity.............................35"
Wheel Diameter..............................36"
Under Guide Capacity........................12"
Base Construction...........................Cast Iron
Motor Drive.................................Direct
Blade Width Capacity........................1 1/2"
Blade Speed.................................
Blade Length................................
Table Tilt..................................45 Degrees
Table Size..................................37" L-R x 36" F-B
Auxiliary Table.............................16 1/4" x 19 1/2"
Upper Wheel Adjustment......................6" (nominal)
Wheel Type..................................Heavy Duty Balanced Steel Disc
Guide Post Adjustment.......................Manual
Blade Tension Control.......................Manual
Table Height................................40 1/2"

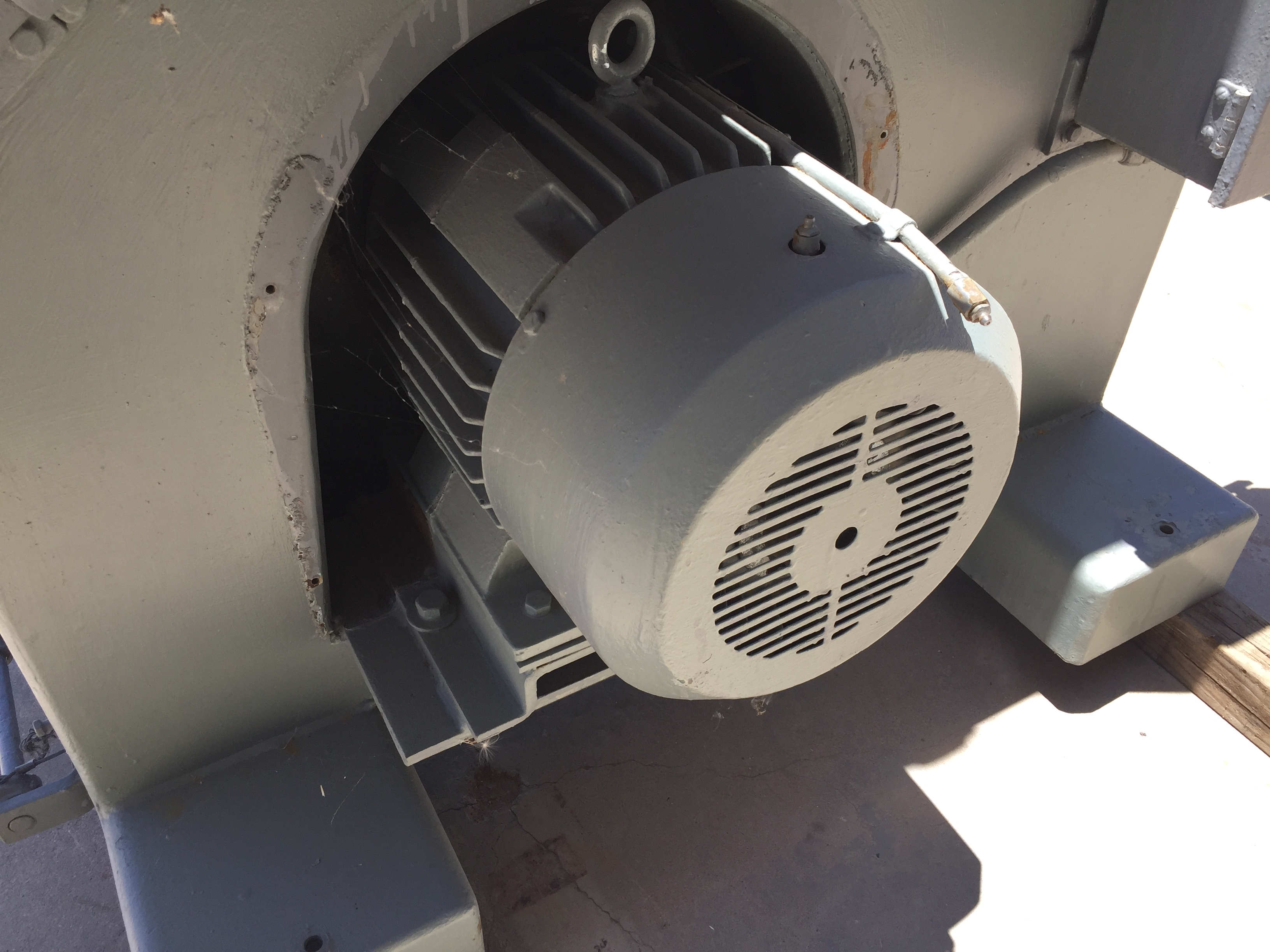

Motor Horsepower (TEFC).....................5 HP
Electrical Characteristics..................3 Phase/ 60 Cycle
Equipped With:
Overall Dimensions..........................72" L-R x 40" F-B x 94" High (est.)
Weight......................................3,500 lbs. (est.)
F.O.B.......................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3389
