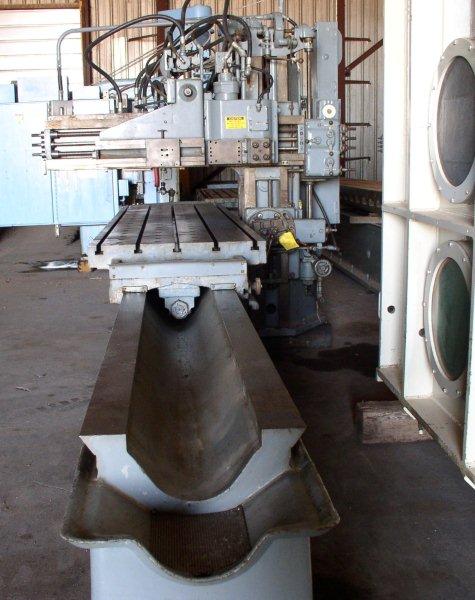

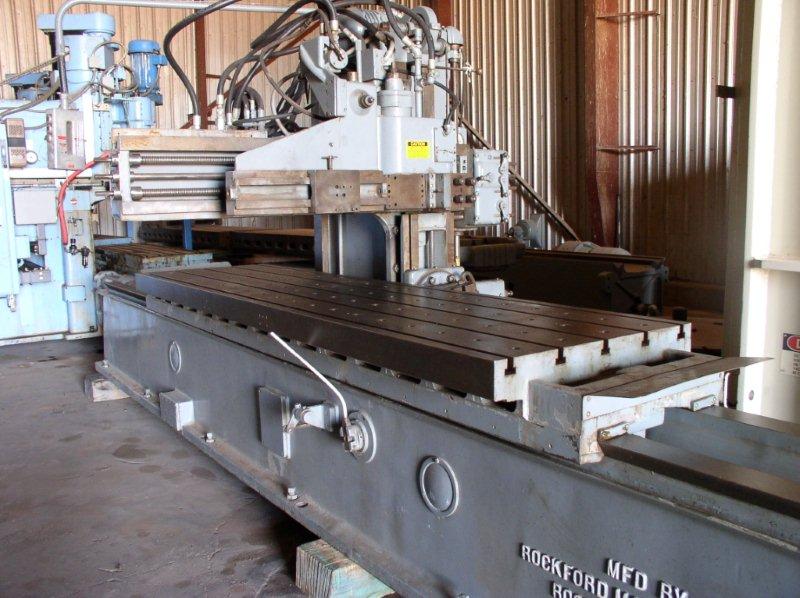

25" x 56" x 132" ROCKFORD Openside Planer; 3 Heads; Oilgear Hyd. Sys.

25" x 56" x 132" ROCKFORD Openside Planer; 3 Heads; Oilgear Hyd. Sys.
Casa Grande, AZ
orCall 1-520-836-9727
Description
(1) USED 10' ROCKFORD Hydraulic Planer; S/N 94-0G-06
Specifications:
Maximum Table Stroke............................................123"
Area of Table...........................................................32'' x 134"
Table Working Surface............................................32" x 120"
(5) 13/16" Slots........................................................7" (center to center)
4 Rows of Holes.......................................................1" diameter
Depth of Table Over Ways.......................................5"
Max. Distance Table to Crossrail..............................24"
Height from Floor to top of Table..............................32 1/2"
Length of Bed Supporting Table...............................254"
Width of Ways Supporting Table..............................3 3/4"
Width over Ways......................................................19"
Horizontal Feeds.......................................................0.001" to 0.200" continuous change
Vertical Feeds...........................................................0.001" to 0.080" continuous change
Length of Crossrail Bearing on Column....................48"
Width of Crossrail Bearing on Column......................11"
Length of Saddle on Crossrail..................................16"
Height of Saddle Bearing on Crossrail......................13"
Horizontal Tool Travel...............................................35"
Vertical Tool Travel...................................................7 1/2"
Distance Column to End of Rail................................54"
Maximum Planing Width............................................57"
Vertical Travel of Rail Head Slide..............................25"
Horizontal Travel of Side Head Slide.........................25"
Heavy Duty:
Table Cutting Speed............................................0' to 50' continuous change
Table Return Speed............................................10' to 150' continuous change
Max. Pull to Table................................................10,800 lbs.
Light Duty:
Table Cutting Speed............................................0' to 80' continuous change
Table Return Speed............................................10' to 150' continuous change
Max. Pull to Table................................................6,400 lbs.
Side Head:
Max. Distance Side Head Tool above Table........18"
Horizontal Tool Travel..........................................7"
Width of Side Head Saddle Bearing on Rail.........11 1/4"
Length of Side Head Saddle on Rail....................12 1/8"
Vertical Side Head Travel.....................................21"
Vertical Feeds......................................................0.001" to 0.200" continuous change
Electrical Characteristics...........................................220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Widened Pattern Table
Tracer Attachment
Complete Hydraulic System w/20 HP DR-2011 Oilgear Hydraulic Pump
2 Rail Heads
1 Side Head
Operator's Pendant Control
Dimensions:
Height..................................................................90"
Width...................................................................88" (w/o Hyd. Sys.)
Length.................................................................26' (complete)
Floor Space.........................................................70" x 311" (nominal)
Net Weight................................................................27,540 lbs. (nominal)
F.O.B........................................................................Casa Grande, Arizona
Specifications
Condition | Used |
Stock Number | 2802 |
