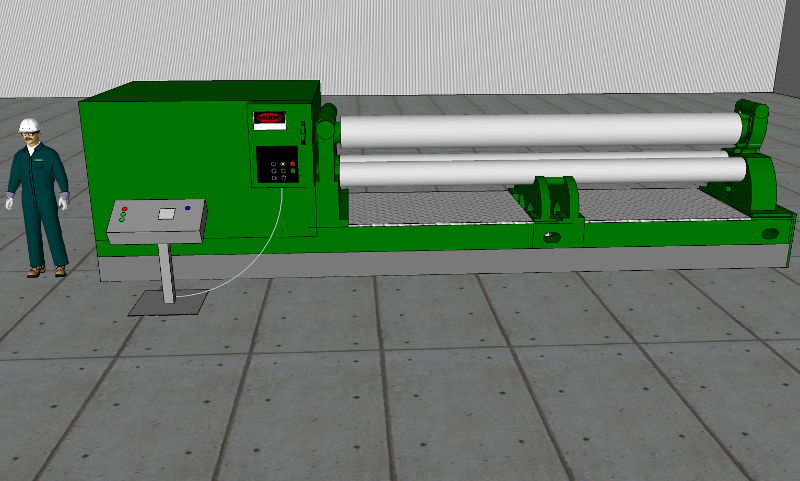

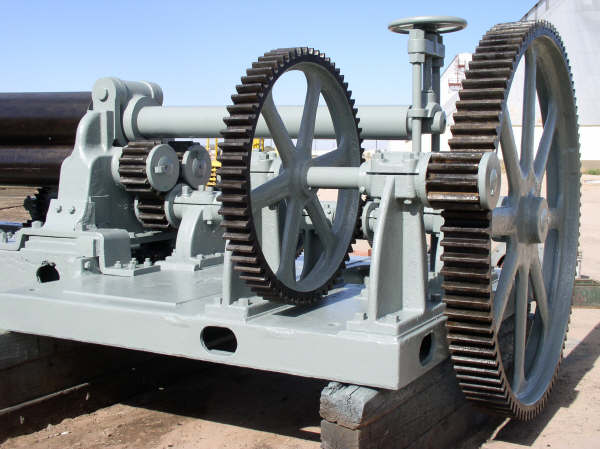

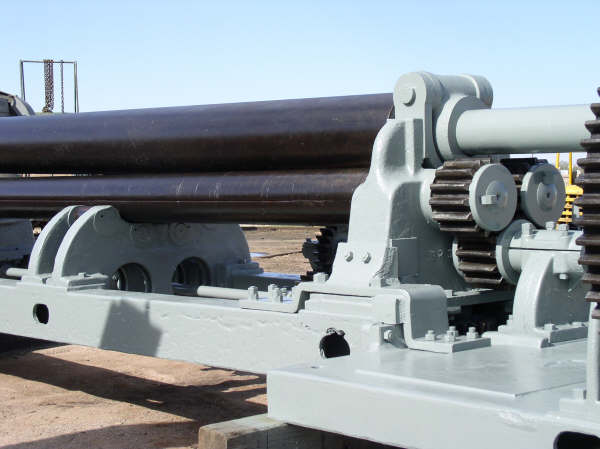

16' x 7/8" Hilles & Jones Plate Bending Roll; Pyramid Type; Vari-Speed; Hyd. Drop End; New Controls; Recon.; 50 HP Main Drive

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 16' x 7/8" Hilles & Jones Plate Bending Roll; Pyramid Type; Vari-Speed; Hyd. Drop End; New Controls; Recon.; 50 HP Main Drive
Specifications:
Capacities:
Mild Steel......................16' x 7/8" (nominal)
Stainless Steel.................16' x 11/16" (nominal)
Bending Radius..................10" (minimum)
Roll Diameters:
Upper...........................17" (nominal)
Lower(dual).....................12" (nominal)
Roll Lengths.........................195" (maximum useable)
Roll Adjustment(upper)...............6" (est.)
Adjustment Method....................Motorized Screw Type
Rolling Speeds(variable).............45-250 in/min.
Pass Line Height.....................47" (from floor)
Roll Speeds (lower/driven)...........1.2- 6 1/2 RPM
Drop End Angle.......................38° (nominal)
Drop End Type........................Hydraulic
Upper Roll Tilt......................5° (7")
Upper Roll Lift Method...............Hydraulic
Main Roll Drive......................50 H.P.
Drive Type(main).....................Variable Frequency
Upper Roll Adjustment Drive..........10 H.P.
Upper Roll Adjustment Drive Type.....Independent
Lubrication System:
Bearings........................Individual Grease Fittings
Lower Roll Drive Gears..........Enclosed Oil Bath
Equipped With:
50 HP Reliance Variable Frequency Reversing Drive
Totally Enclosed Gear Reduction Drive Direct Coupled to Lower Rolls
Complete Electrical Controls with Operator's Pendant Station
5 HP Hydraulic Unit with Reservoir
Twin 8'' H-Beam Frame Support Risers
Overall Dimensions...................28' L-R x 7' F-B x 7' High (No Pit Required)
Weight...............................60, 000 lbs. (est.)
F.O.B................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2509
