Laidlaw Plate / Block Vert. Band Saw

Casa Grande, AZ

orCall 1-520-836-9727

Description

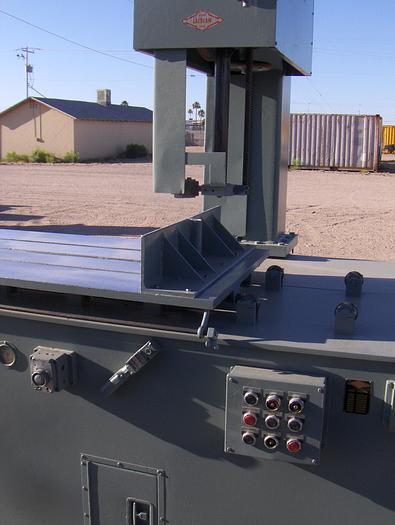

Laidlaw JM30 vertical plate saw SN#7903
Record Number: 3798
Asking Price:
(1) Used Laidlaw Plate Saw; All Steel Construction
Specifications:
Material Capacity:
Length....................................................................50" (max)
Width......................................................................40"" (max)
Height......................................................................26" (max)
Head Feed Rate...........................................................0-45 inches/min
Blade Speed.................................................................60-680 SFPM
Blade Tension Control...................................................Manual
Wheel Diameter (2)......................................................36"
Throat Depth................................................................34" nominal
Blade Width Capacity...................................................1 1/4(maximum)
Blade Length.................................................................245" (nominal)
Table:
Working Surface......................................................56" L-R x25" F-B
Table travel ..............................................................40"
Working Height.........................................................42" (from floor)
Workpiece Mounting System....................................Multiple Slot
Table Construction....................................................Fabricated
Wheel Type....................................................................Balanced disk
Main Drive ....................................................................Reaves direct drive 5hp
Electrical Characteristics...............................................480 VAC / 3 Phase / 60 Cycle
Overall Dimensions.......................................................10ft F-B x 60"L-R x 104
Weight............................................................................9,000 lbs. (est.)
F.O.B.............................................................................Casa Grande, AZ
Read our Terms & Condition
s

Specifications

ConditionUsed
Stock Number3798
