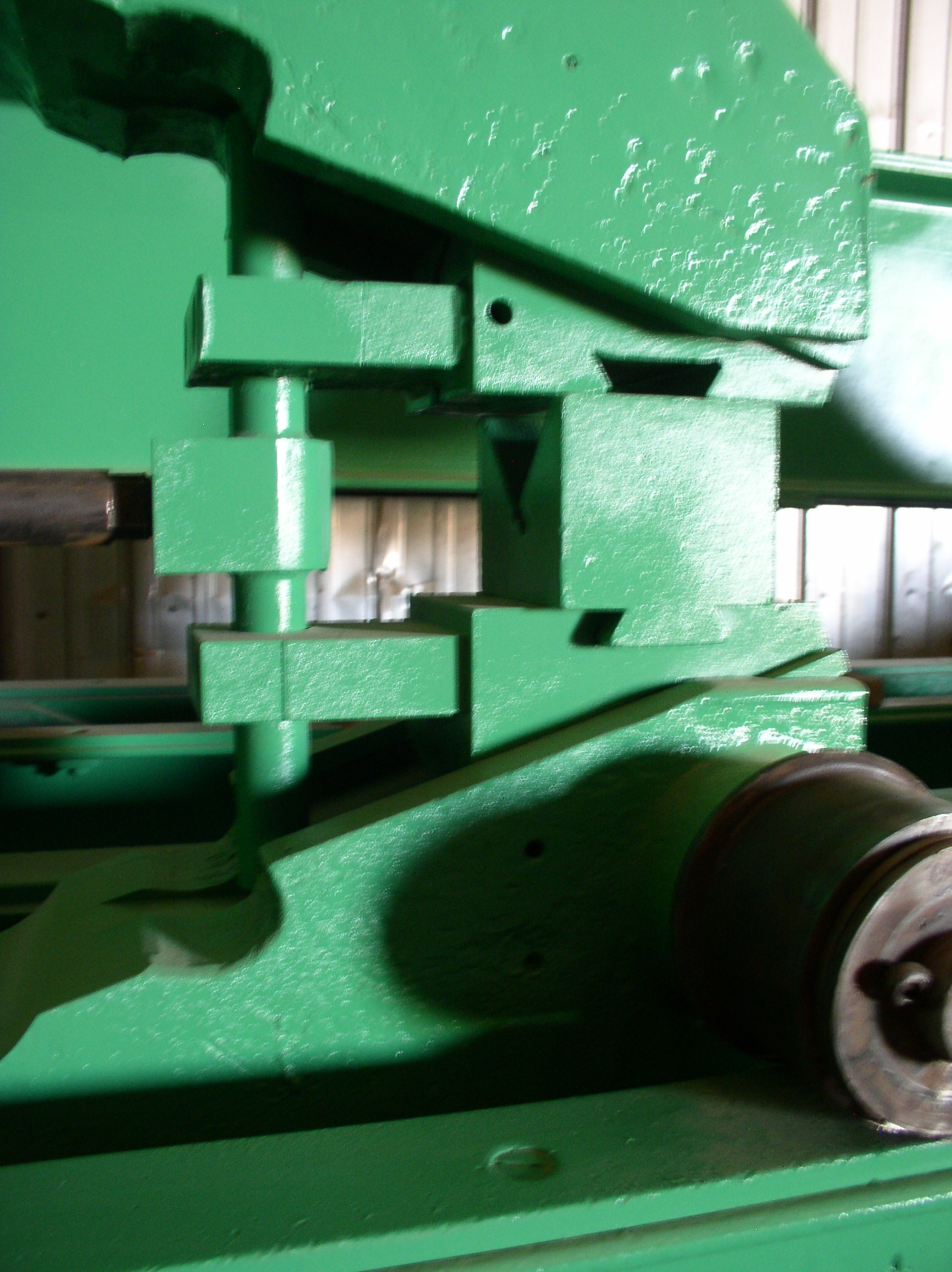

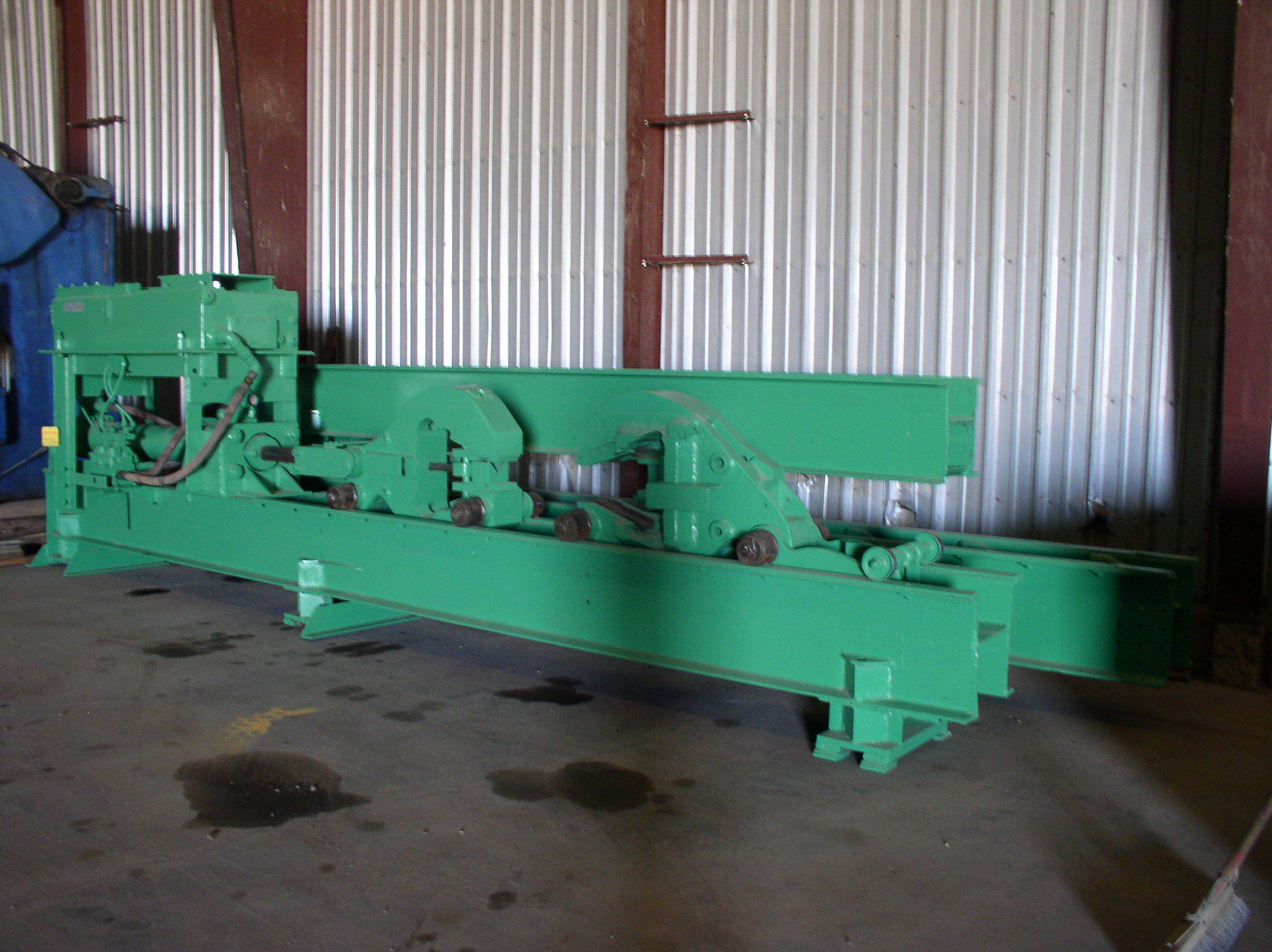

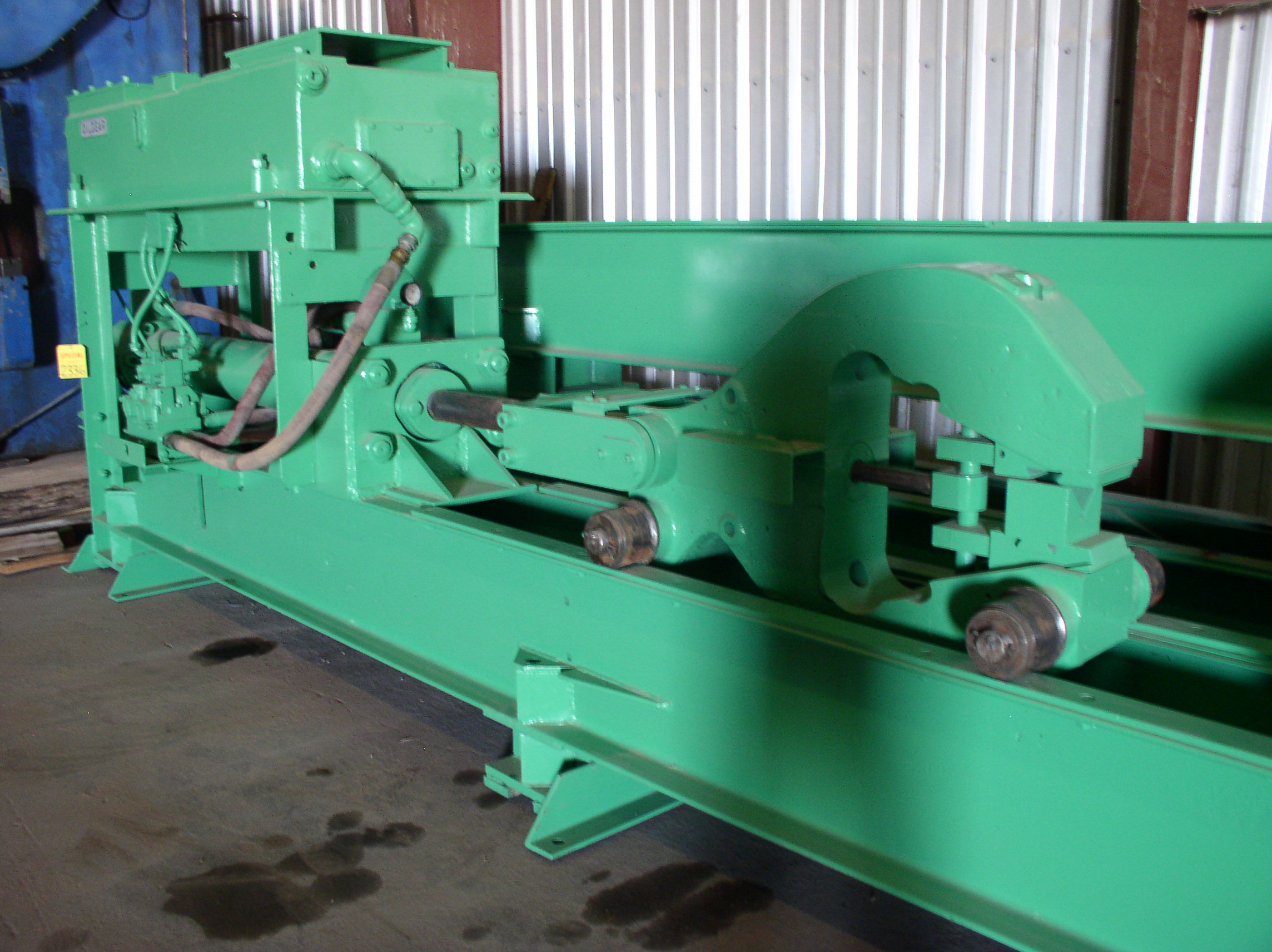

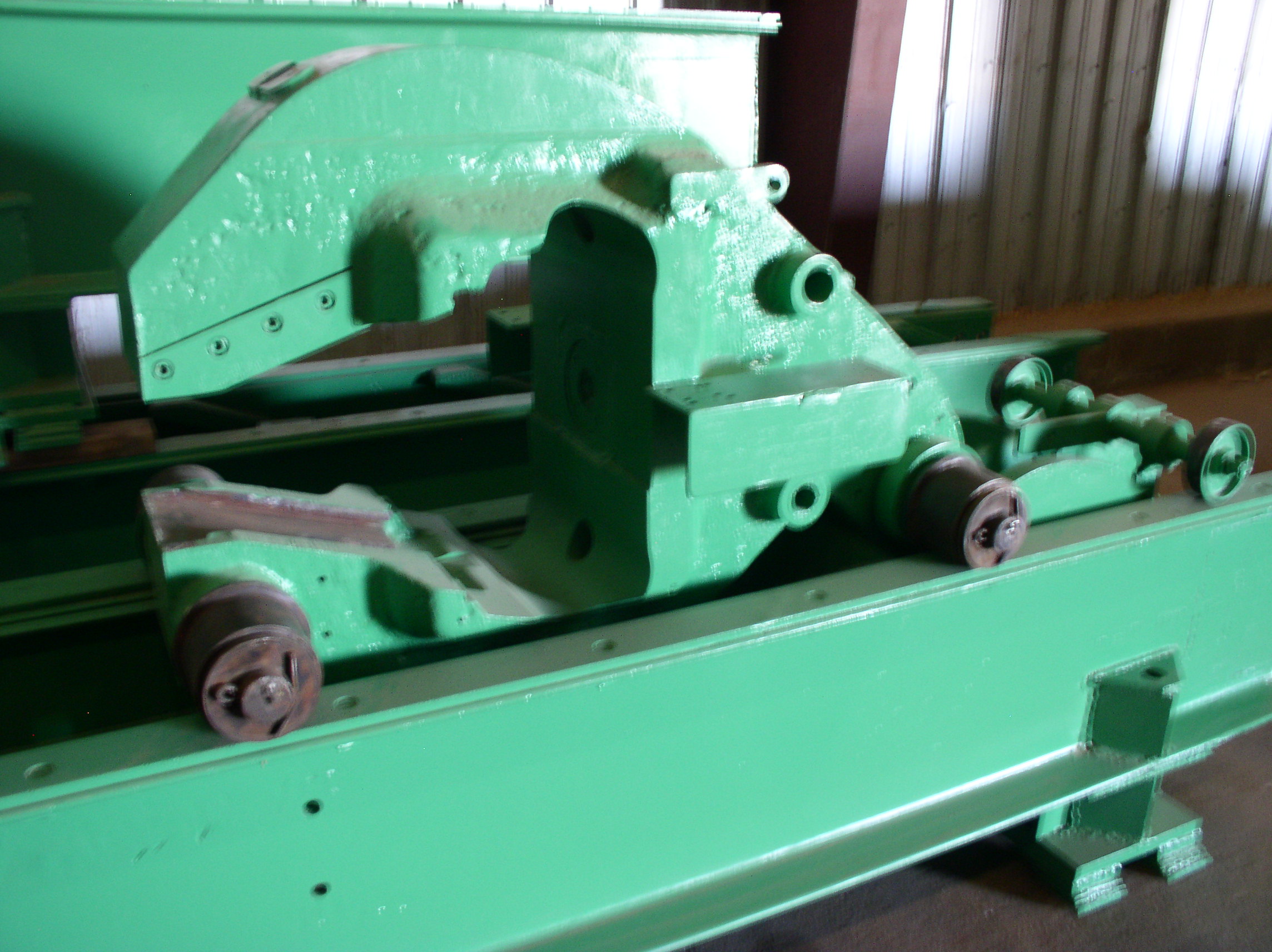

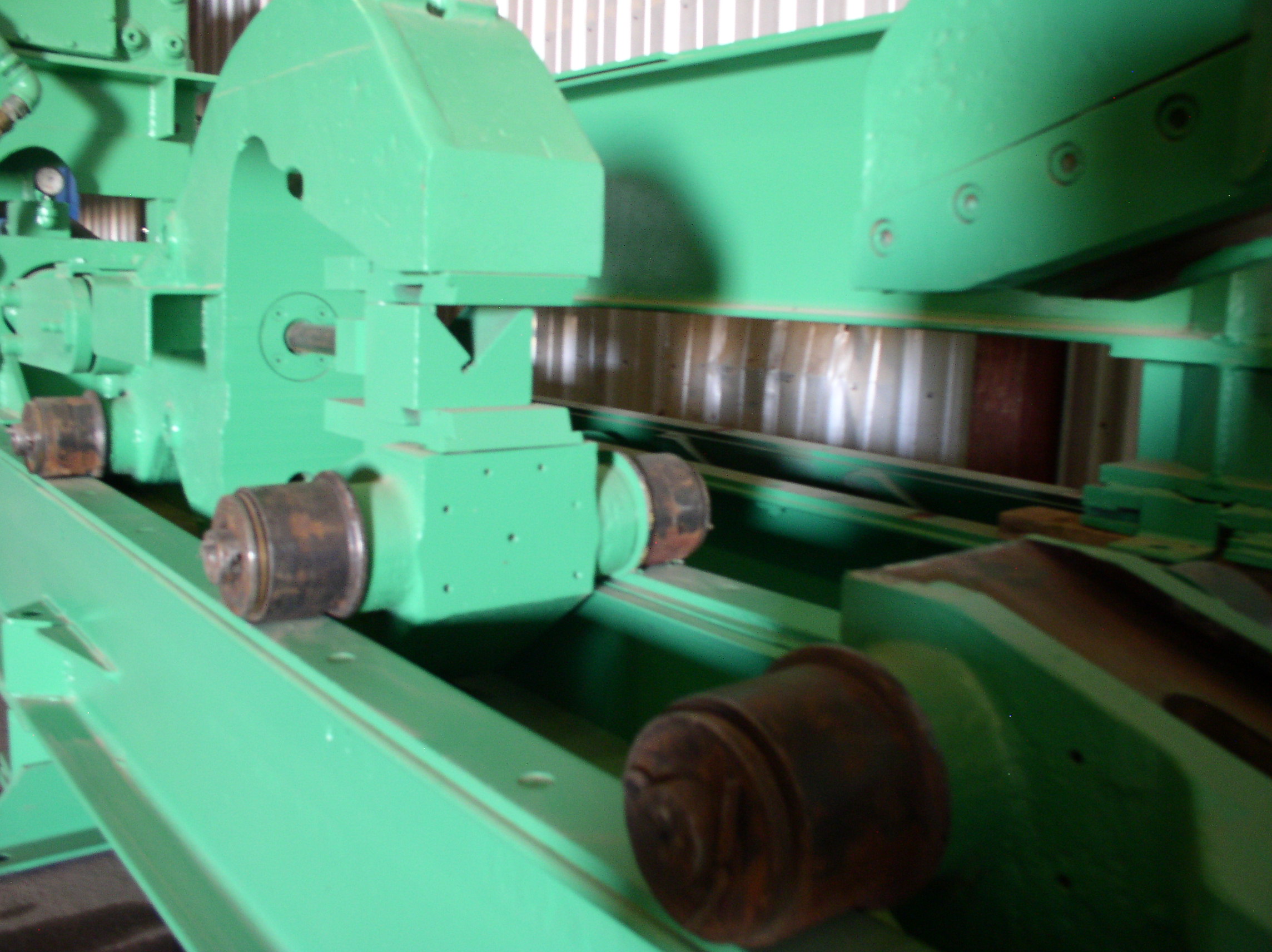

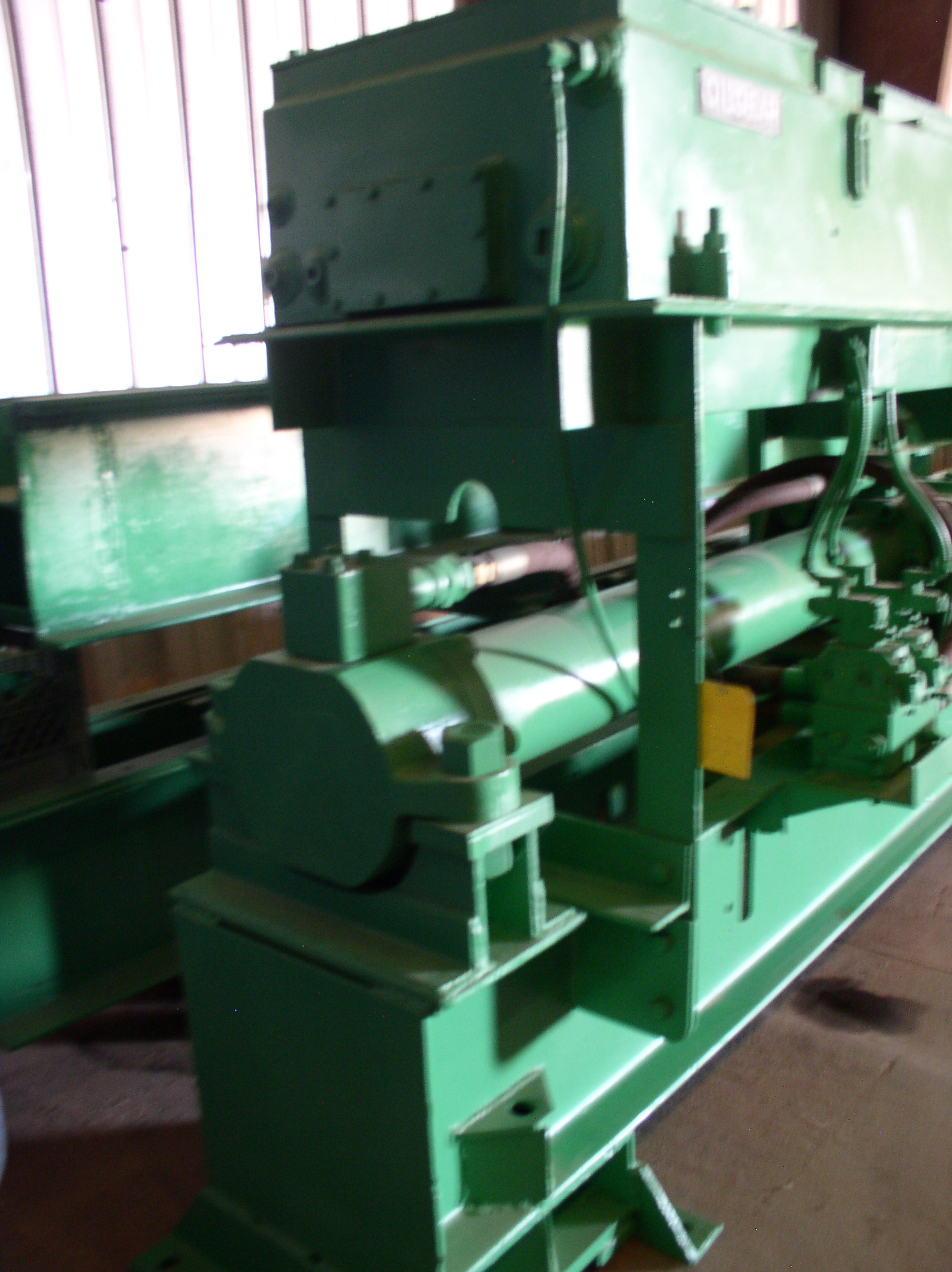

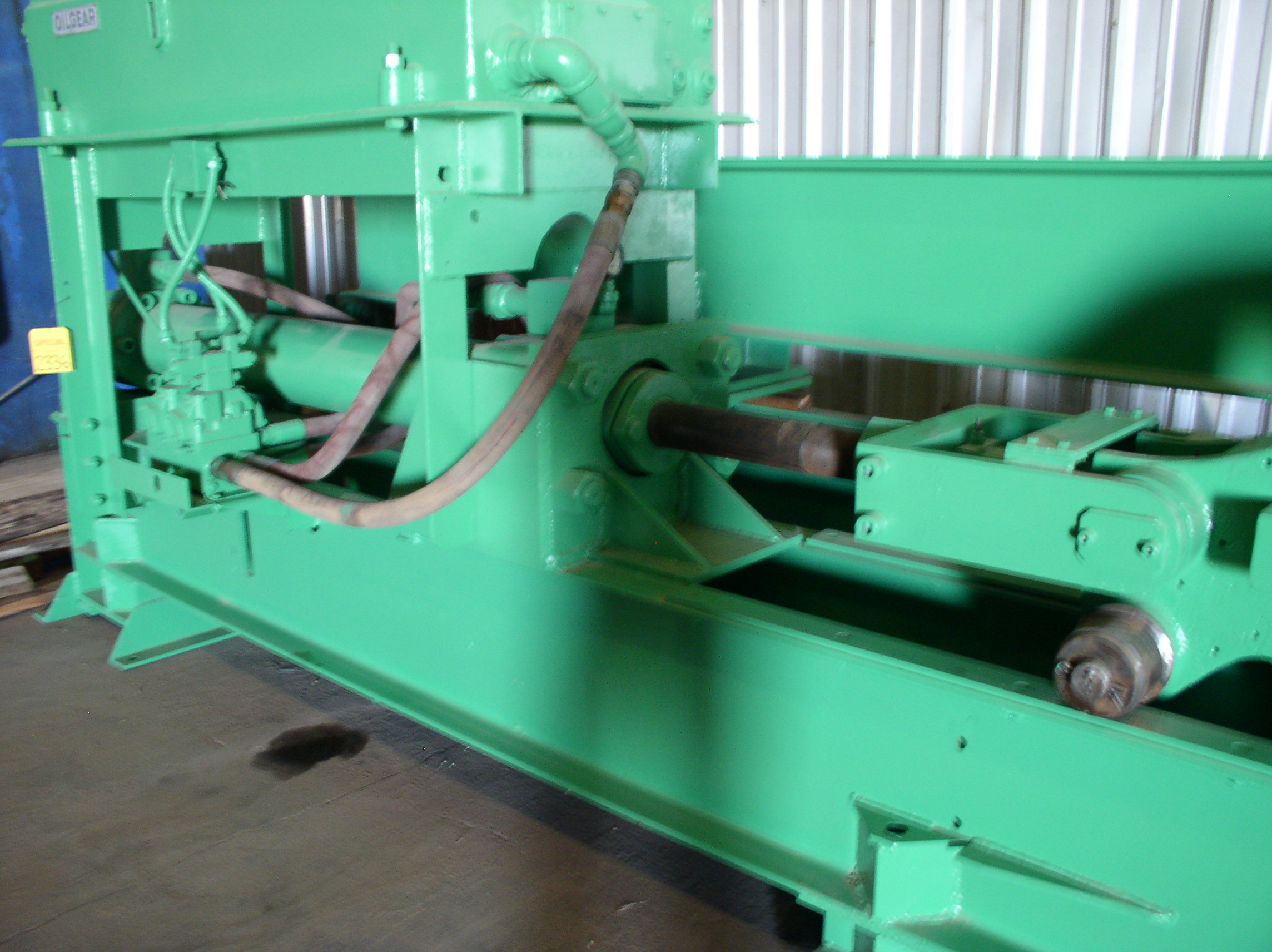

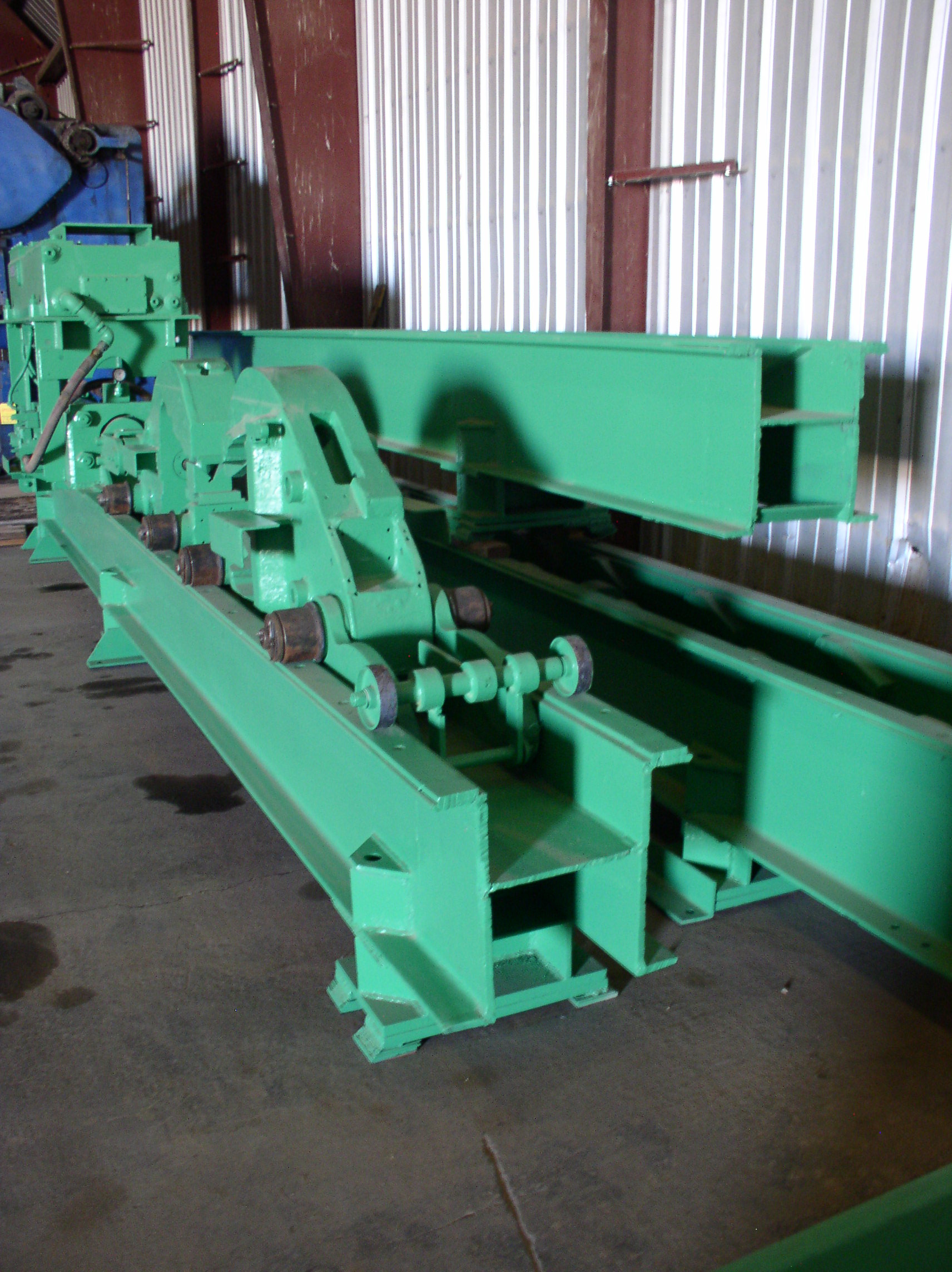

40 Ton Wean-United Extrusion Stretcher; 60" stroke; 58' of track

40 Ton Wean-United Extrusion Stretcher; 60" stroke; 58' of track

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 40 Ton Wean-United Extrusion Stretcher Specifications: Capacity: Tension (stretching) Load..............40 tons @ 2,000 psi (nominal) Tension (stretching) Distance..........60 in. (nominal) Return (pushing) Load.................. Workpiece Length.......................1 42 ft. (max)(nominal) Workpiece Diameter or Cross Section....6 1/2 in. (max) Pass Line Height.......................34 1/2 in. Headstock Type..............................Hydraulic / Non-Rotating Tension Cylinder Diameter...................7 in. (nominal) Tension Cylinder Rod Diameter...............3 5/8 in. Track Length (total)........................58 ft. Track Sections(3)...........................1 @ 24 ft. 1 @ 20 ft 1 @ 14 ft. (each) Track to Pass Line Height...................9 in Track Height (from floor)...................25 in. Track Width (across top)....................20 1/8 in. Track Type..................................Fabricated Steel with Hardened Steel Rails (replaceable) Tailstock Guide System......................Flanged Guide Wheels (4). Tailstock Locking System ...................Over-Riding Drop-Hook. Tailstock positioning increments............24 in. (nominal) Tailstock Positioning System................Manual Jaw Width...................................5 in. Jaw Opening.................................6 in. (max) Jaw Type....................................Tapered Wedge Jaw Actuation...............................Pneumatic Speeds: Tensioning (stretching)................ Compression (pushing / return)......... Tailstock Positioning.................. Hydraulic System: Manufacturer........................... Main Drive............................. Fluid Capacity......................... Electrical Characteristics.................. Equipped With: Complete Electrical Controls with Operator's Control Station Complete Hydraulic System Overall Dimensions..........................66.5 ft. L-R x 3 ft. 2 in. F-B x 6 ft. 6 in. High (est.) Weight......................................22,000 lbs. (est.) FOB.........................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2337
