14 ga x 72" Famco Model 1472 Power Squaring Shear; 5 HP; Back gauge

Casa Grande, AZ

orCall 1-520-836-9727

Description

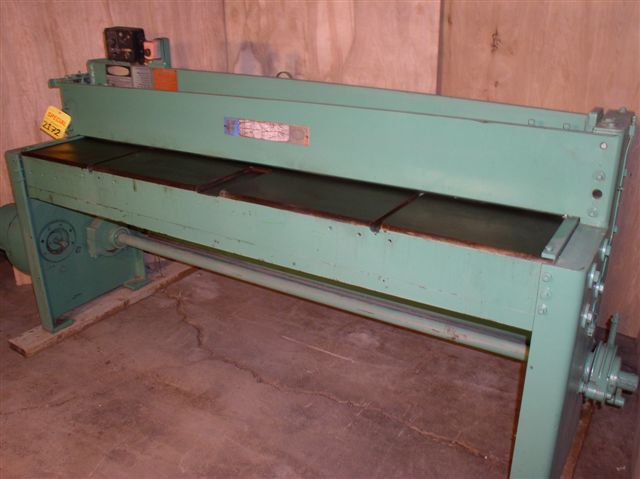

(1) Used 72" x 14 ga. Famco Model 1472 Mechanical Shear; S/N S-04854457; Mfg. 1985
Specifications:
Maximum Capacity............................14 ga
Length of Cut...............................72"
Length Between Housings.....................74 1/2"
Shear (Rake) Angle Taper Per Foot...........0.431 nominal
Ram Adjustment..............................Yes
Gap (Throat)................................N/A
Distance Bed to Floor.......................30
Speed.......................................
Size of Four-Edged Knives...................3 x
Length of Knives............................74
Motor.......................................3 HP
Flywheel RPM................................
Electrical Characteristics..................230/460 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls
30" Backgauge
Overall Dimensions..........................28" F-B x 104" L-R x 43" high (est.)
Weight......................................2,500 lbs. (est.)
FOB.........................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2172
