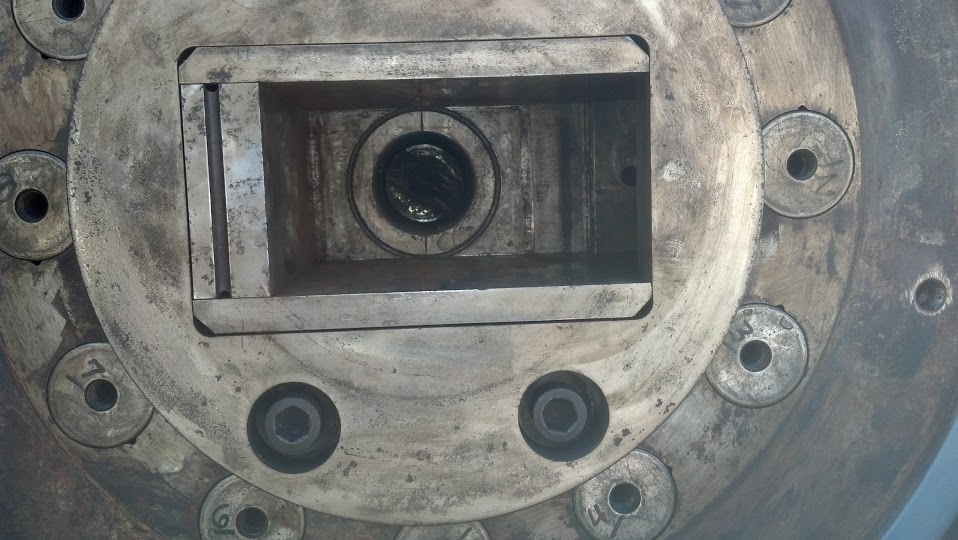

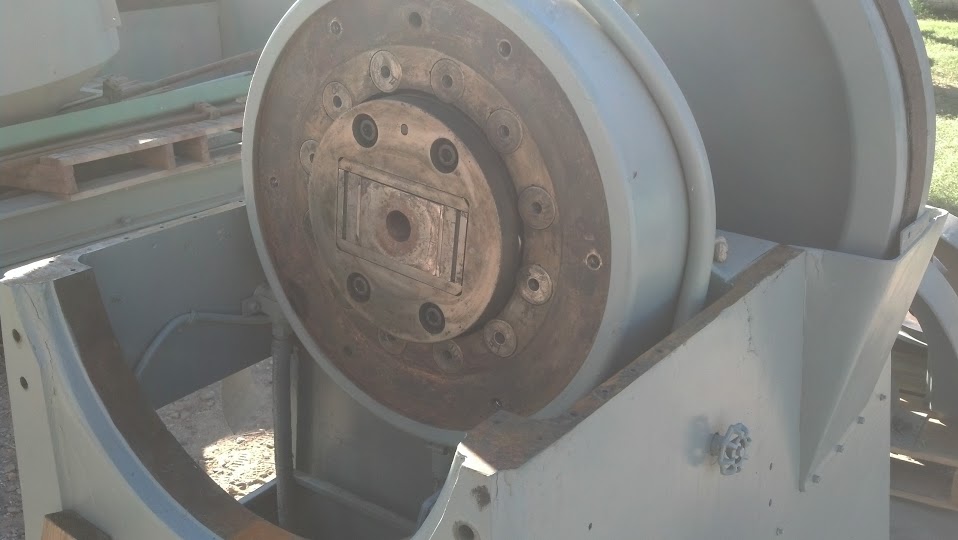

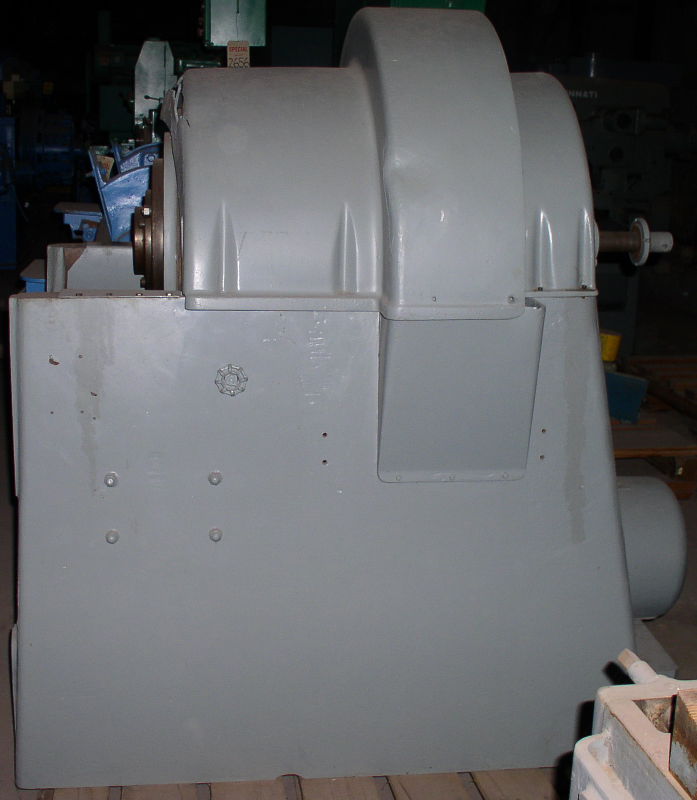

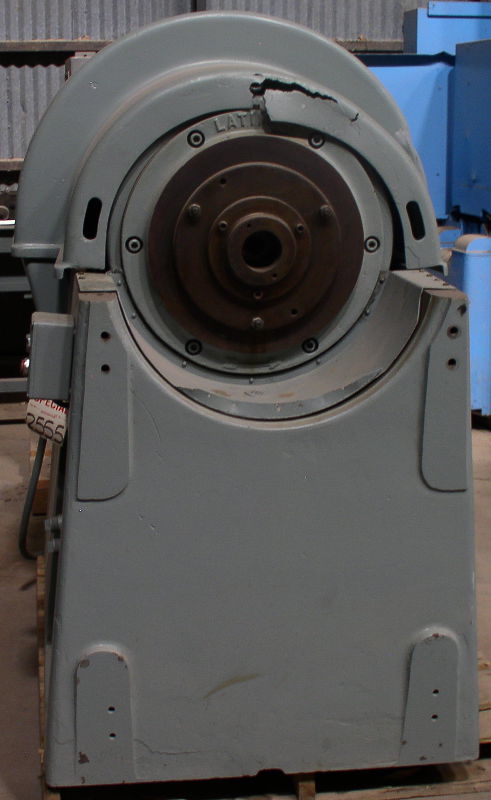

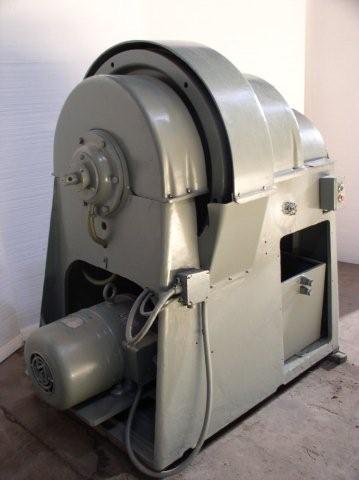

2 1/2” Abbey-Etna Rotary Swager; 2 Die

2 1/2” Abbey-Etna Rotary Swager; 2 Die
Casa Grande, AZ
orCall 1-520-836-9727
Description
(1) Used 2 1/2" Abbey / Etna Rotary Swager
Specifications:
Capacity:
Mild Steel Tubing..............................2 1/2"
Mild Steel Solid.................................1 1/4"
Number of Dies......................................2
Die Width...............................................3"
Die Thickness........................................2 1/2"
Die Length.............................................7"
Number of Rolls.....................................12
Roll Diameter.........................................2" (nominal)
Spindle Speed.......................................300 RPM (est.)
Blows per Minute....................................3,600 (est.)
Height to Spindle Centerline...................34" (nominal)
Main Drive Motor....................................20 HP @ 1,800 RPM
Electrical Characteristics........................220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electrical Controls
Complete Coolant System
1 Set of Dies
Overall Dimensions................................42" L-R x 59" F-B x 60" High (est.)
Weight....................................................4,990 lbs. (palletized.)
F.O.B......................................................Casa Grande, Arizona
Specifications
Condition | Used |
Stock Number | 2555 |
