42" Tannewitz Model R1NE Vertical Band Saw with Oversized Table; S/N 72140

Casa Grande, AZ

orCall 1-520-836-9727

Description

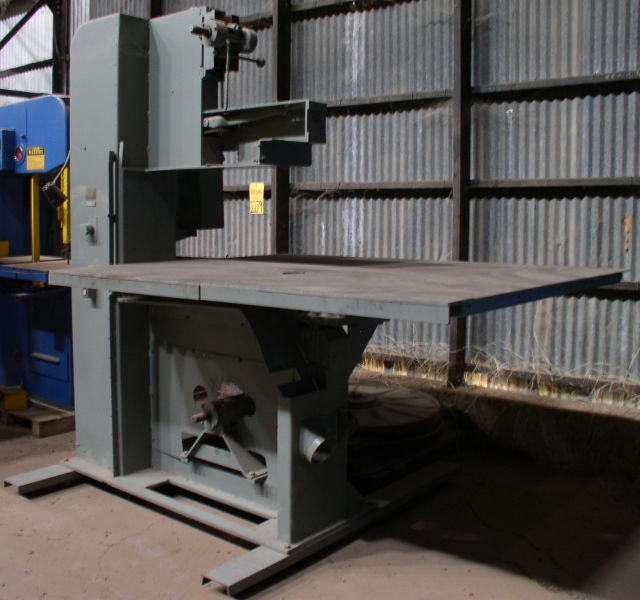

(1) Used 42" Tannewitz Model R1NE Vertical Band Saw; S/N 72140
Specifications:
Blade Speed..........................
Blade Tension Control................
Size, Wheel Diameter.................42"
Under Guide Capacity.................21"
Throat Capacity......................41 1/2"
Base Construction....................Welded Steel
Band Width Capacity..................2"
Band Length..........................22ft 6"
Table Size...........................66" x 82 1/8"
Auxiliary Table Size.................None
Table Tilting........................
Upper Wheel Adjustment...............5"
Wheel Type...........................Heavy Duty Balanced Steel Disc
Gear Adjusted Guide Post.............1 1/4" x 2 1/4"
Table Height.........................47"
Horsepower...........................N/A
Motor Drive..........................Belt Drive
Electrical Characteristics...........
Equipped With:
Speedi-Change Replaceable Tires
Electric 2-Wheel Brakes
Complete Electrical Controls
Operators Manual (optional from manufacturer)
Overall Dimensions..................72 3/8" W x 102" L x 109" H
FOB.................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2279
