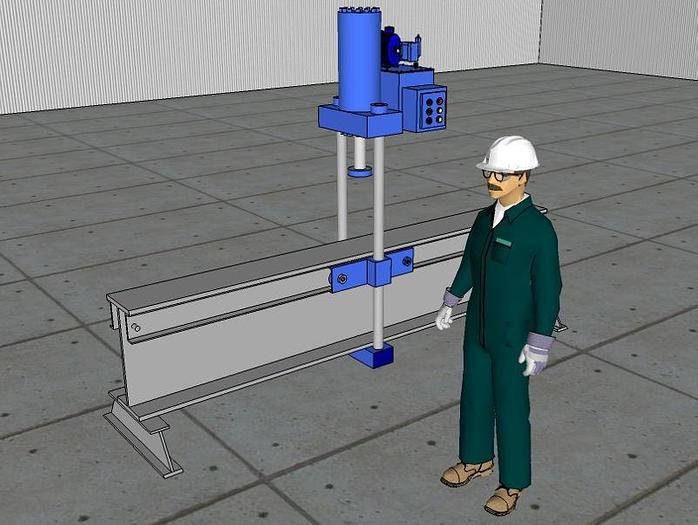

110 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type

110 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

110 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type Specifications: Capacity: Pressing....................110 Tons @ 5000 psi (nominal) Advance..................... Return (stripping).......... Bed Area.........................11" x 96" Distance Between Housings........ Window Openings.................. Stroke of Ram (slide)............18" Daylight Opening.................24" Distance Floor to Bed............30" Number of Ram Cylinders.......... Type of Ram Cylinders............ Diameter of Ram Cylinders........3" Diameter of Tie Rods (2).........2 1/2" Travel of Head...................72" (manual) Ram (slide) Speeds: Pressing....................6 ipm Advance.....................30 ipm Return......................40 ipm Hydraulic System: Manufacturer................ Power & Pressure............ Capacity.................... Electrical Characteristics.......240/480 VAC / 3 Phase / 60 Cycle Equipped With: Complete Hydraulic System with Reservoir Complete Electrical Controls Ram Nose Adapter 2 ea. Sliding Vee Type Support Blocks Overall Dimensions...............2' F-B x 8' L-R x 7' H Weight...........................3,500 lbs. (est.) F.O.B............................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3276
