464 Ton Horizontal Wheel Press

464 Ton Horizontal Wheel Press

Casa Grande, AZ

orCall 1-520-836-9727

Description

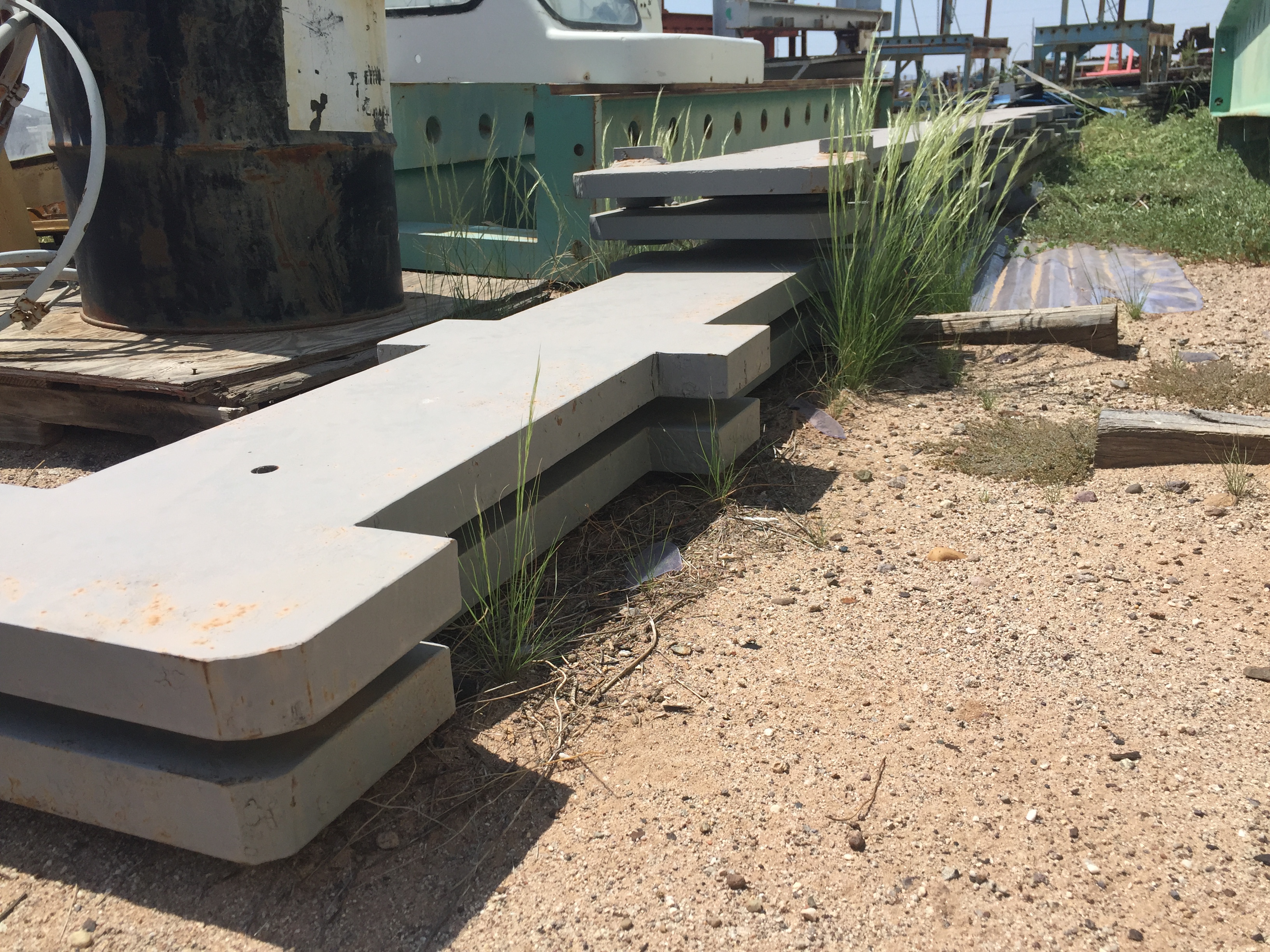

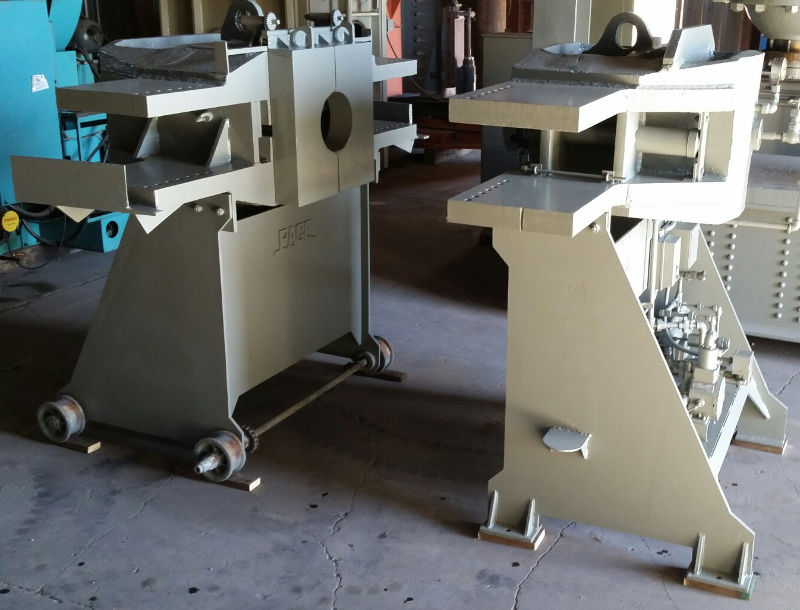

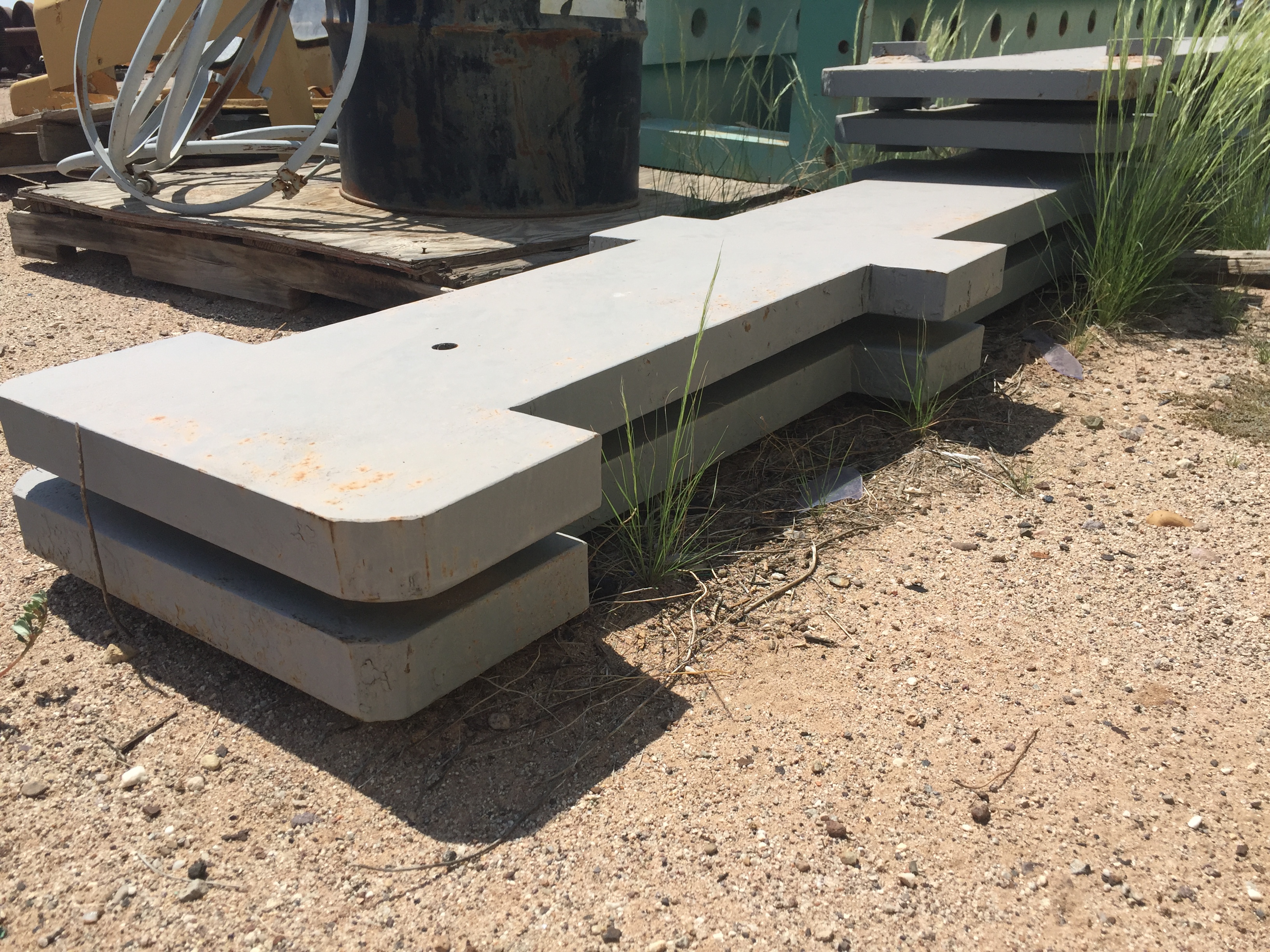

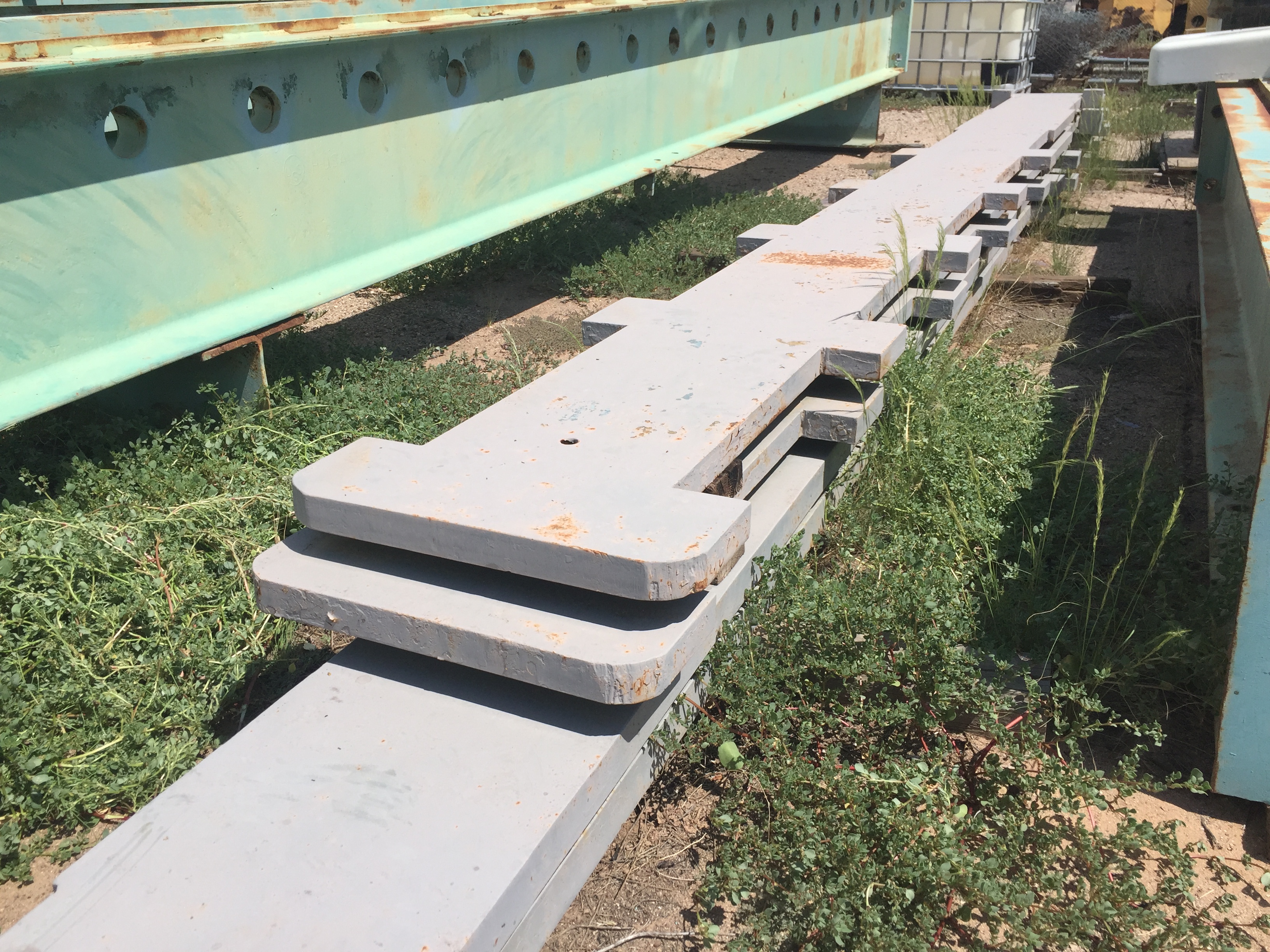

(1) 464 Ton Horizontal Hydraulic Wheel Press Specifications: Capacity (pressing).........................464.4 Tons @ 7000 PSI (could be boosted to 10,000 psi making 663.5 tons.) Stroke of Ram...............................24" Ram Diameter................................13" Distance Between Strain Bars................61"- 89" Length of Strain Bars (short).......................191" x 18" wide

Length of Strain Bars (long)........................276" x 18" wide Number of Resist Head Positions.............10 Distances from Ram to Resist Head...........28" - 264" Distance Floor to Pressing Center line......72" Hydraulic System Power......................Racine

Voltage................................................220/440

Phase..................................................3

HP.......................................................5 Equipped With: Approx. Overall Dimensions.................. Weight......................................31,400 lbs. FOB.........................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3618
