12,000 amp 9 volt RAPID DC Power Supply*: Input 400 amps @ 480 volts

12,000 amp 9 volt RAPID DC Power Supply*: Input 400 amps @ 480 volts
Casa Grande, AZ
orCall 1-520-836-9727
Description

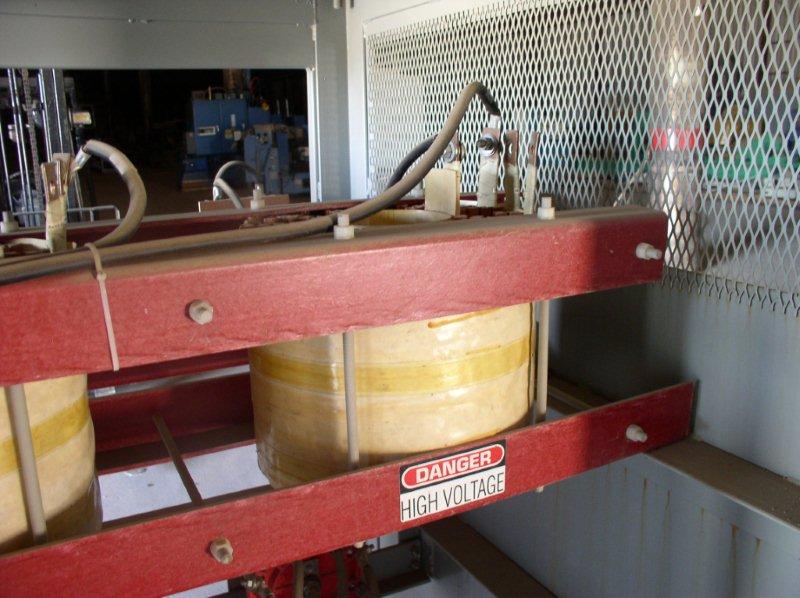

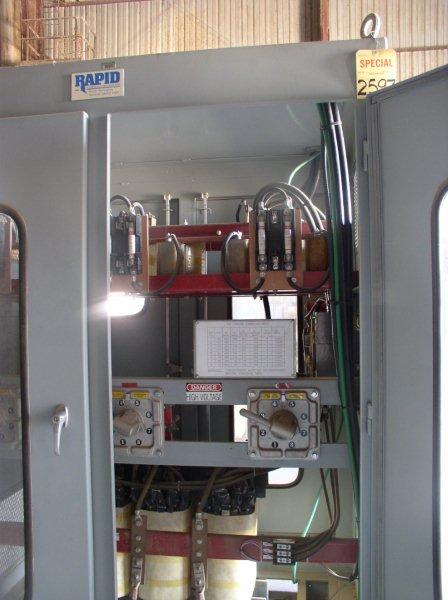

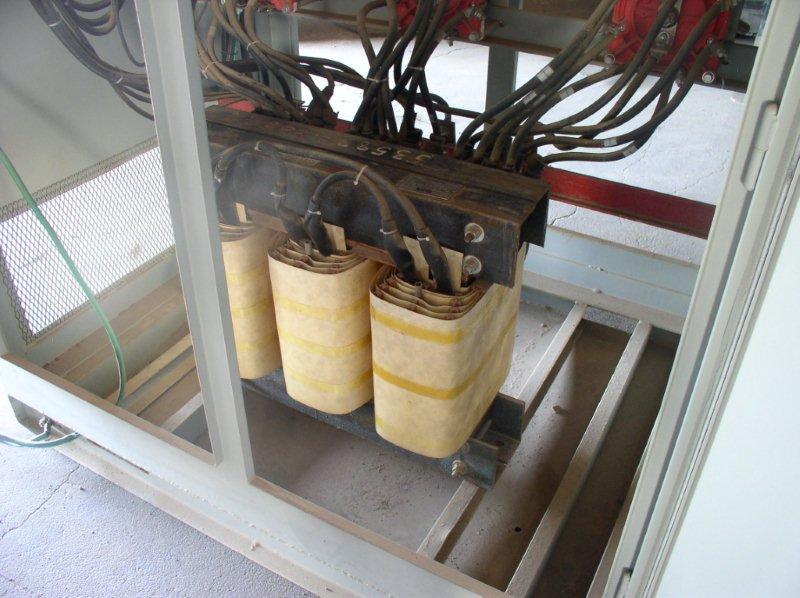

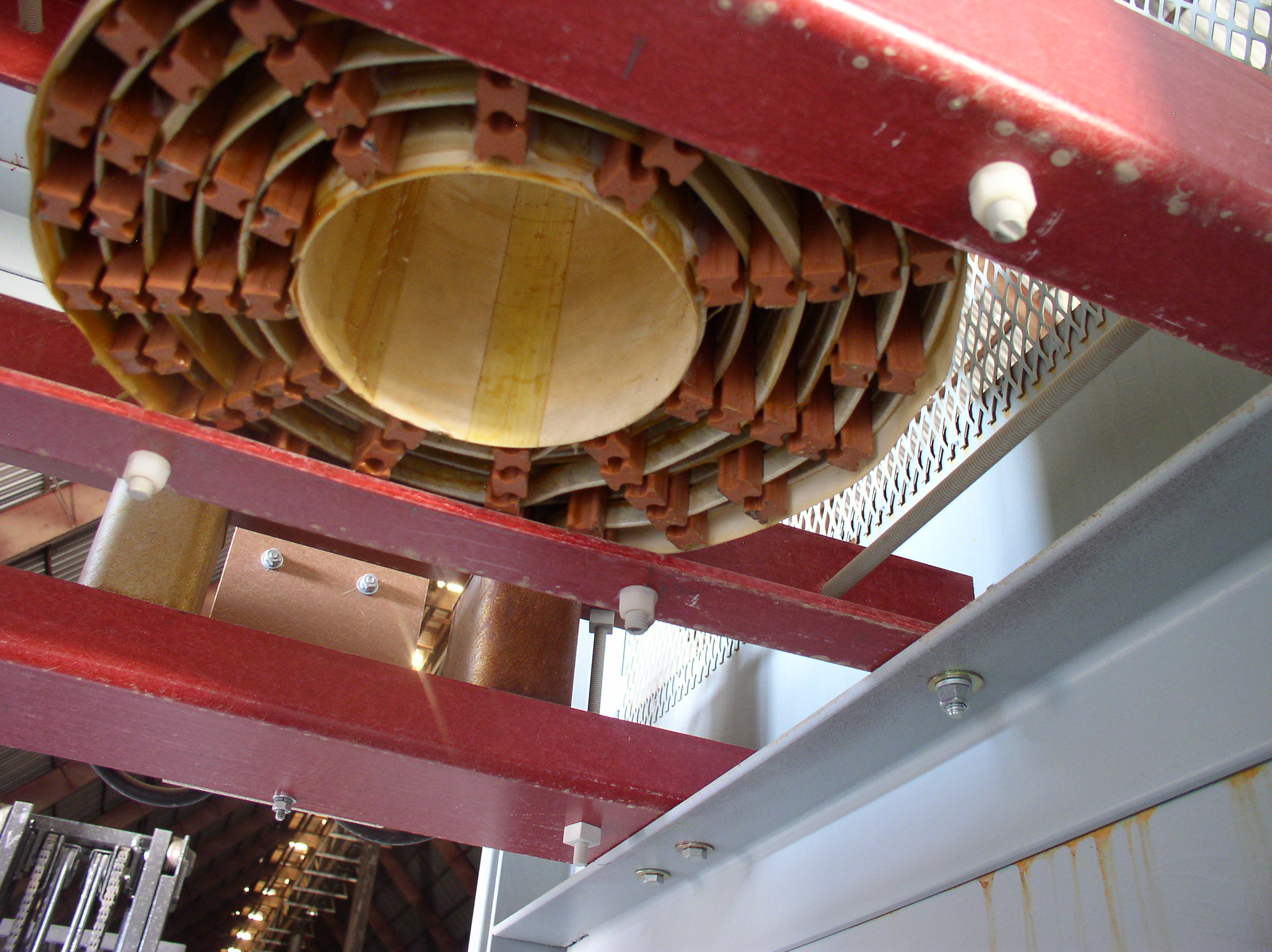

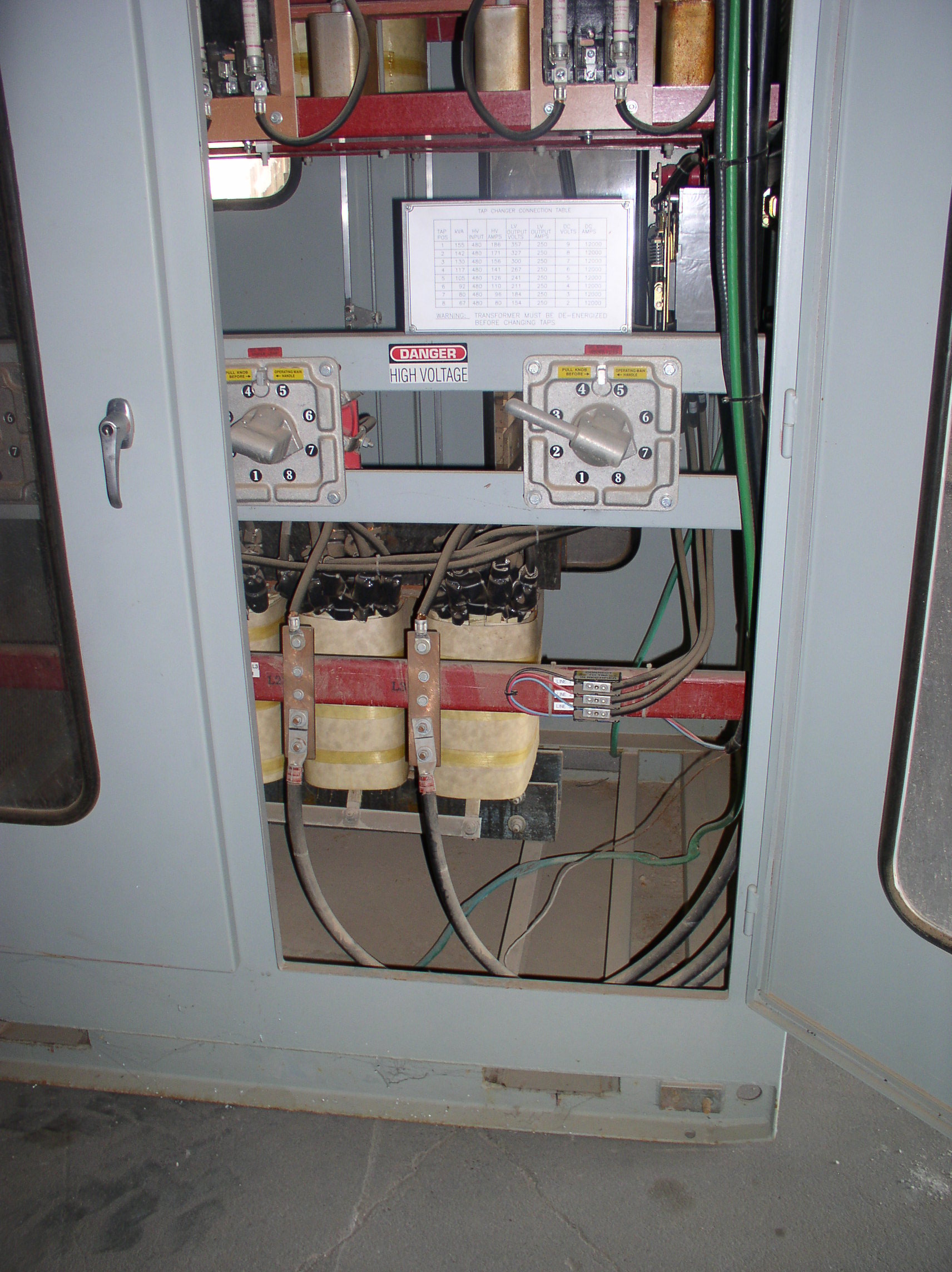

(1) Used RAPID DC Power Supply* / Transformer / Harmonic Filter

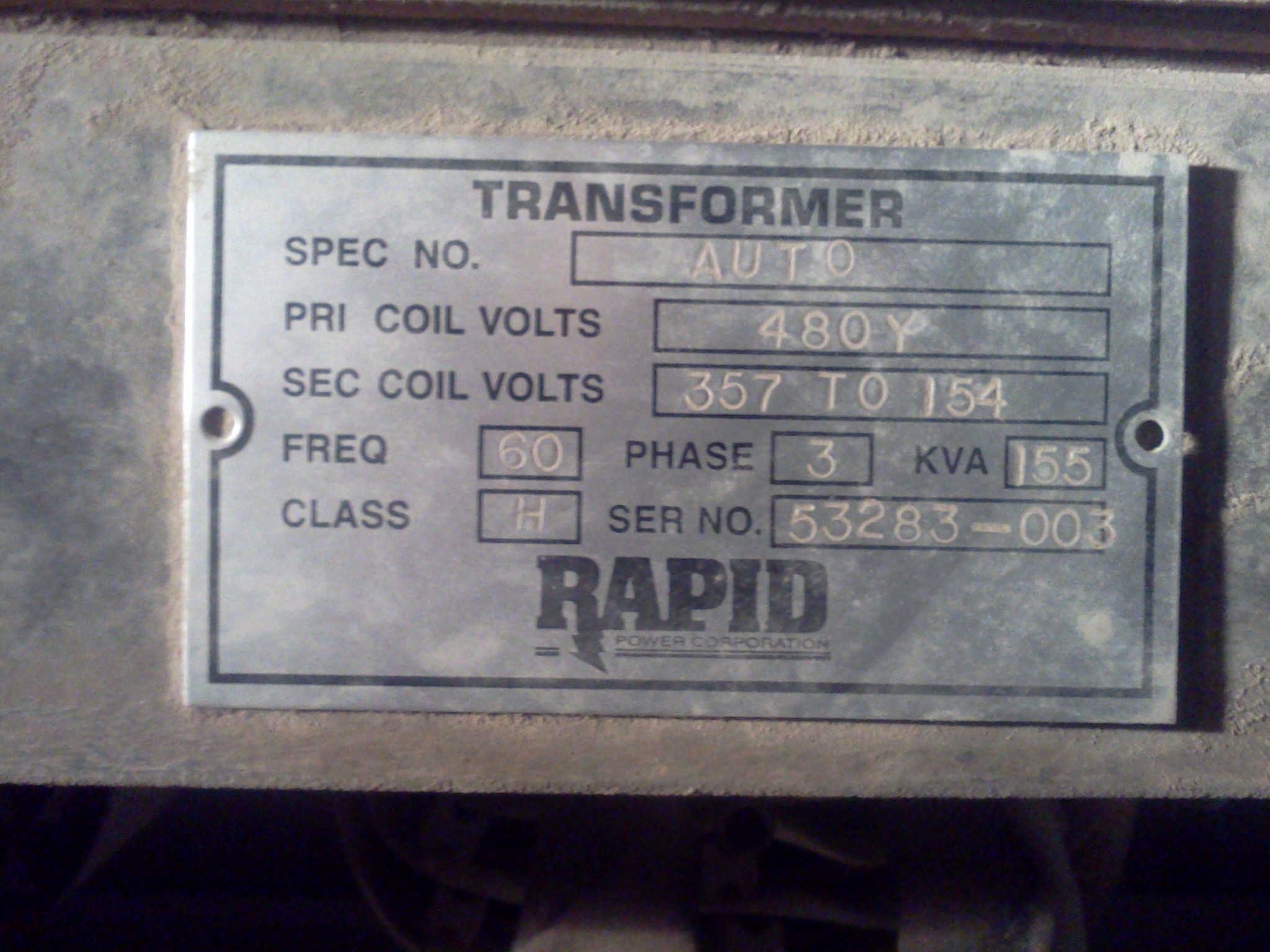

Specifications:
Serial No..............................53283-003
Spec No...............................AUTO
Primary Coil Volts................480Y
Secondary Coil Volts...........357 to 154
Frequency...........................60 Hz
Phase..................................3
kVA......................................155
Class....................................H

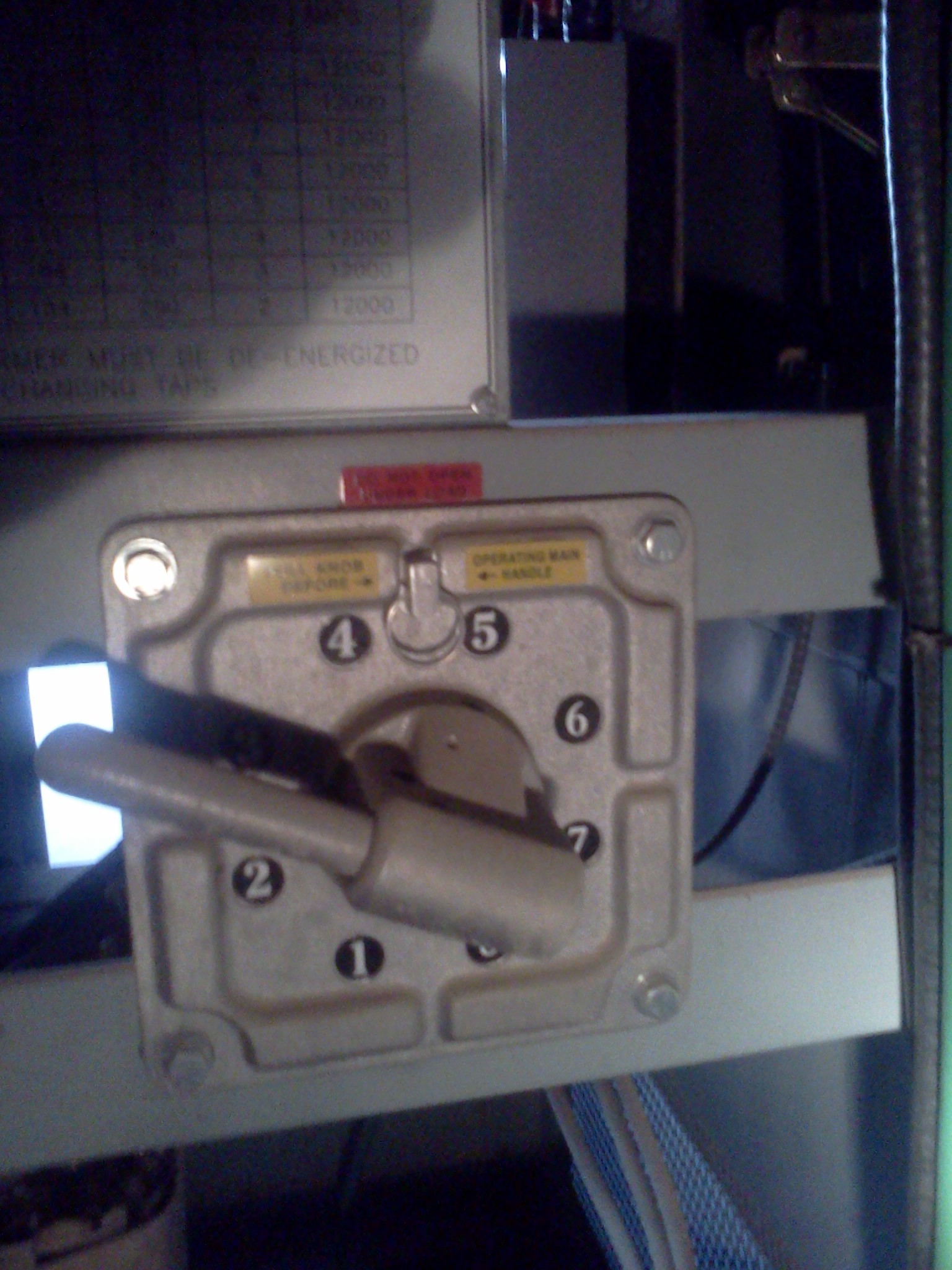

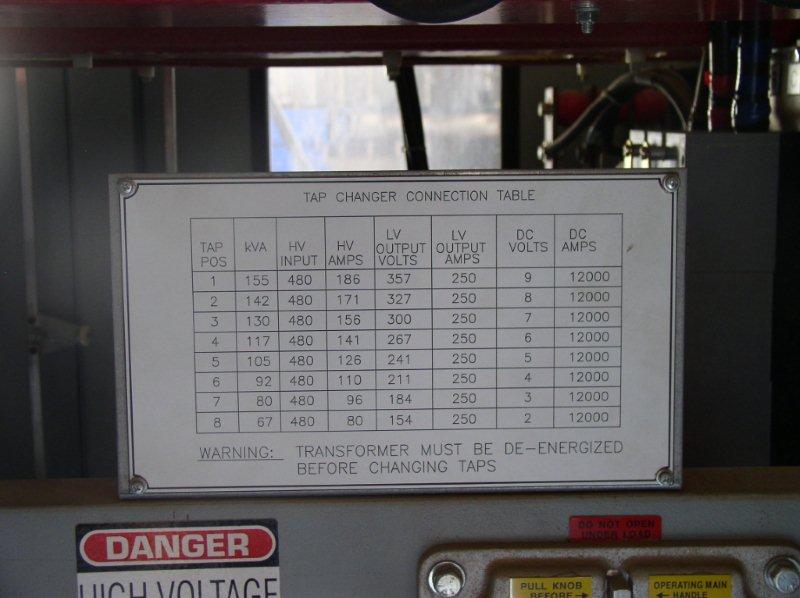

Tap Position
KVA
HV Input
HV Amps
LV Output Volts
LV Output Amps
DC Volts
DC Amps
1
155
480
186
357
250
9
12000
2
142
480
171
327
250
8
12000
3
130
480
156
300
250
7
12000
4
117
480
141
267
250
6
12000
5
105
480
126
241
250
5
12000
6
92
480
110
211
250
4
12000
7
80
480
96
184
250
3
12000
8
67
480
80
154
250
2
12000
Equipped With:

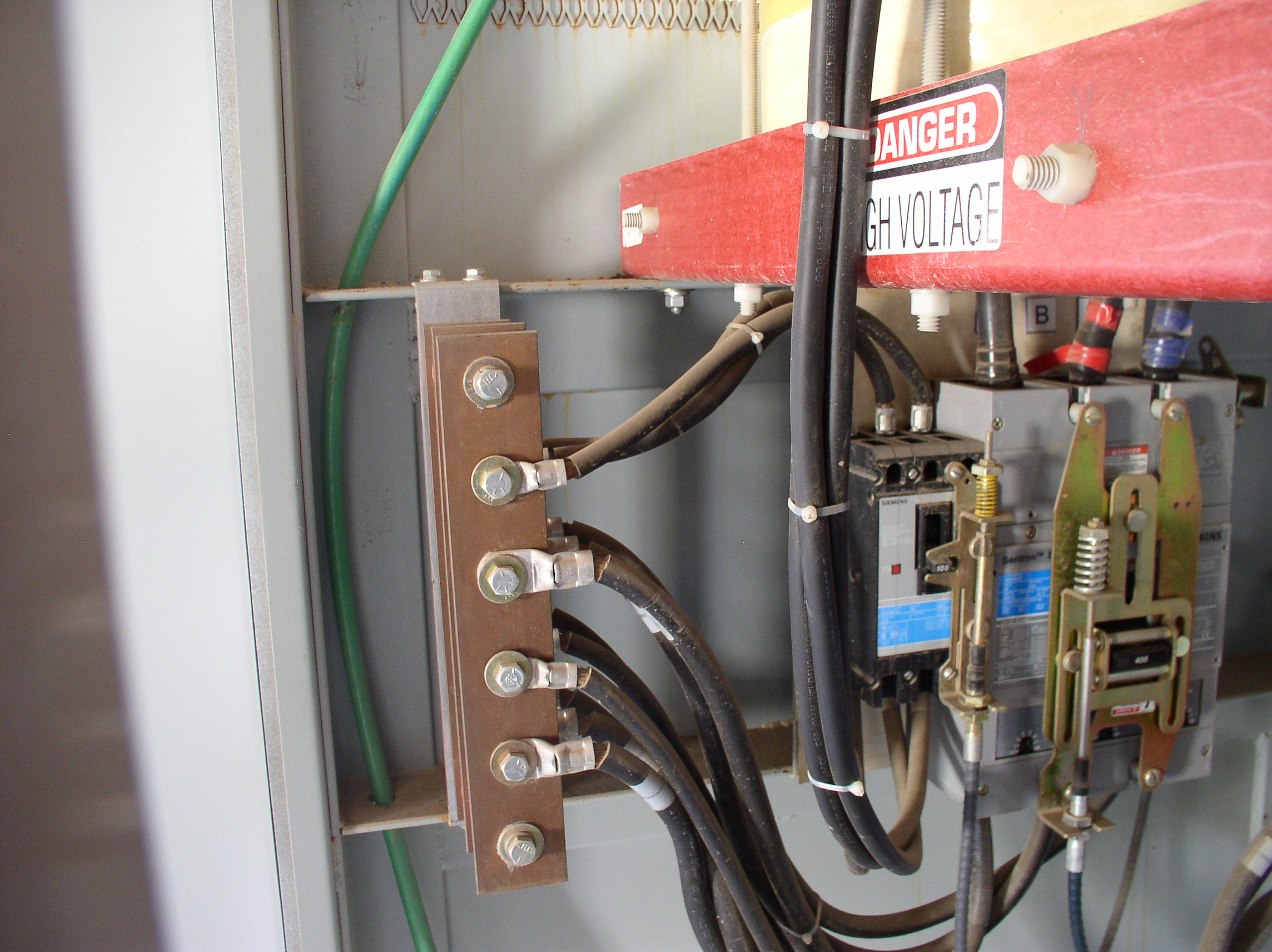

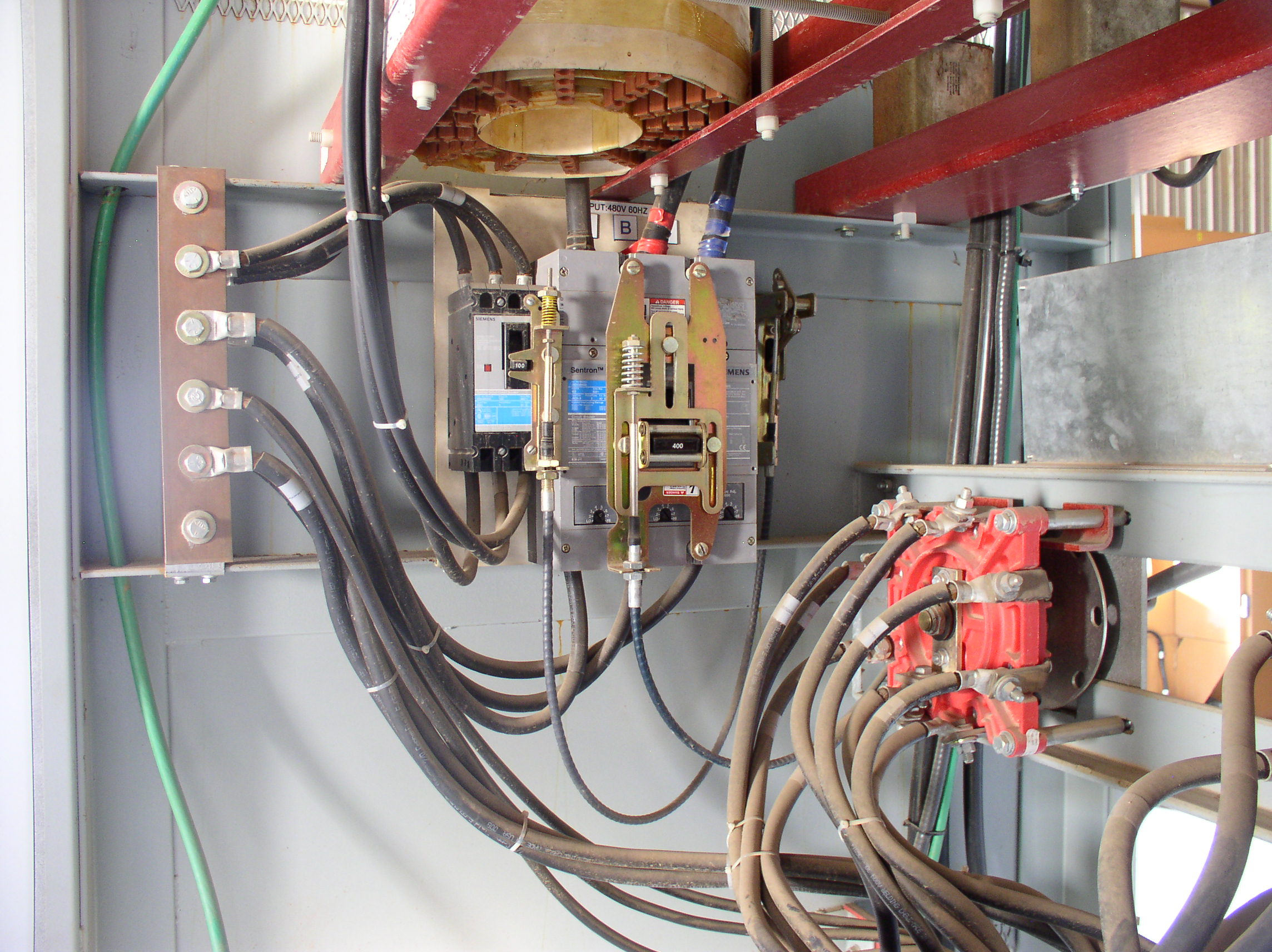

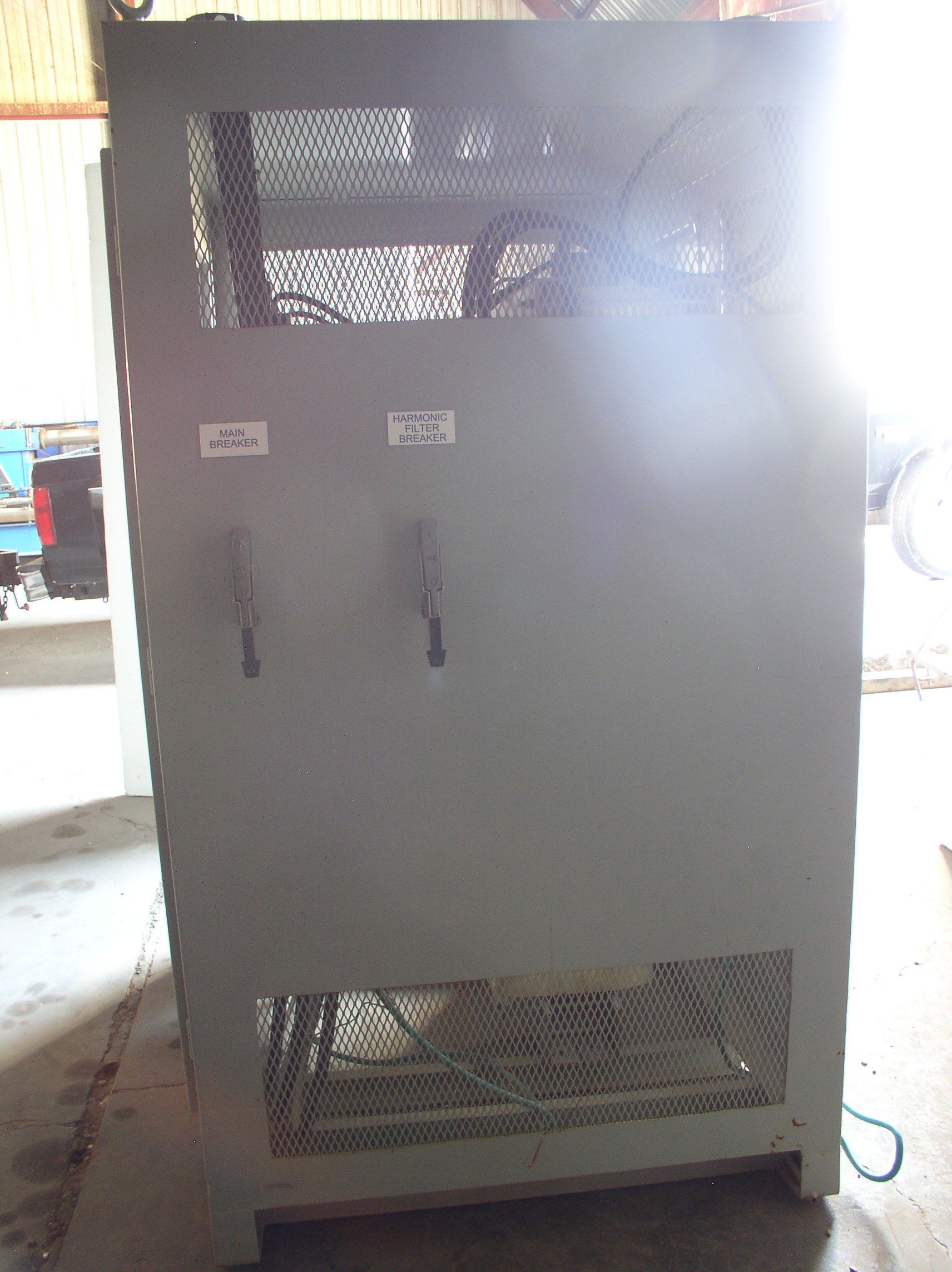

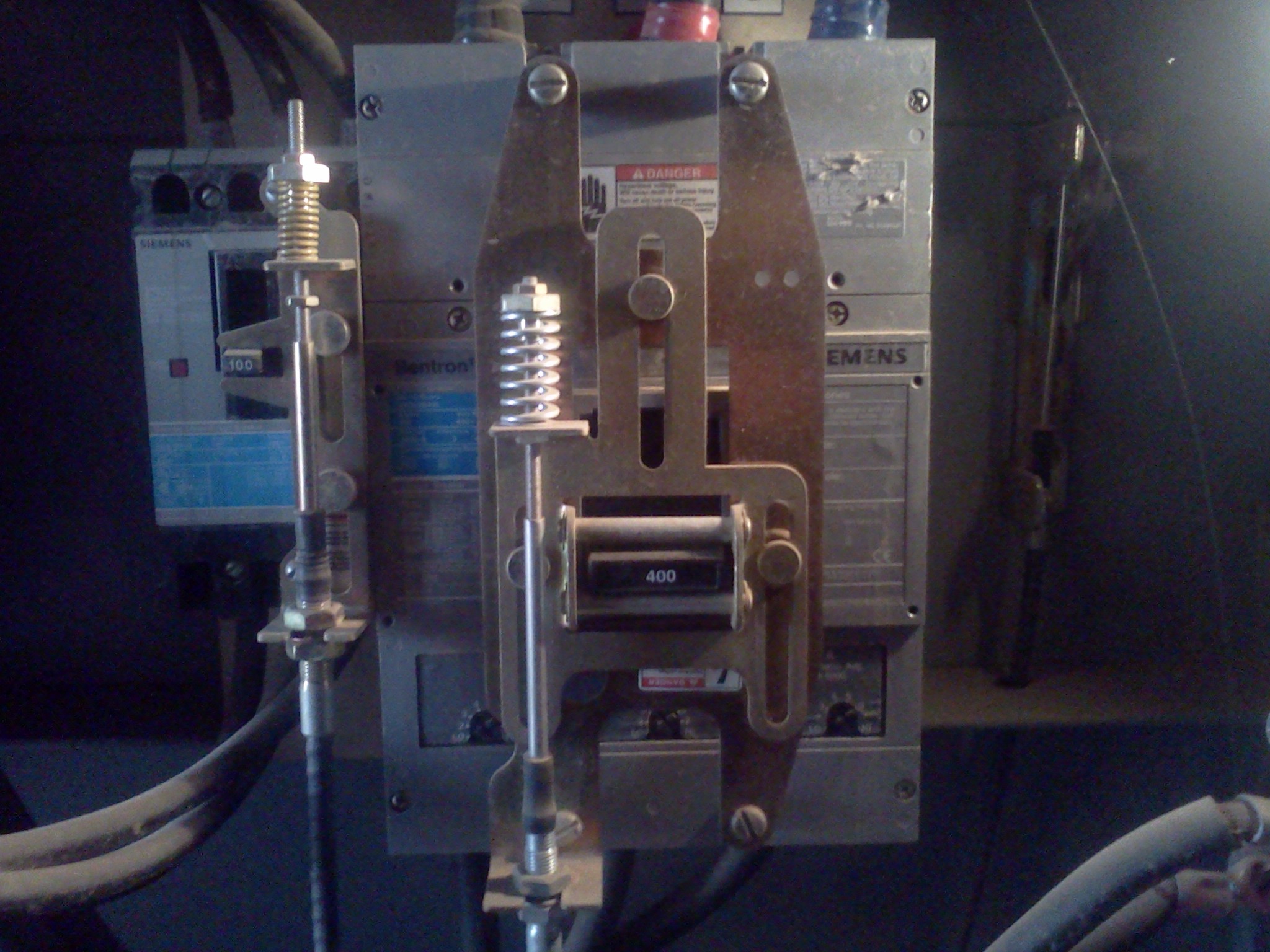

400 Amp main breaker
HD enclosure
Harmonic filter
*An external rectifier is required to complete the power supply.

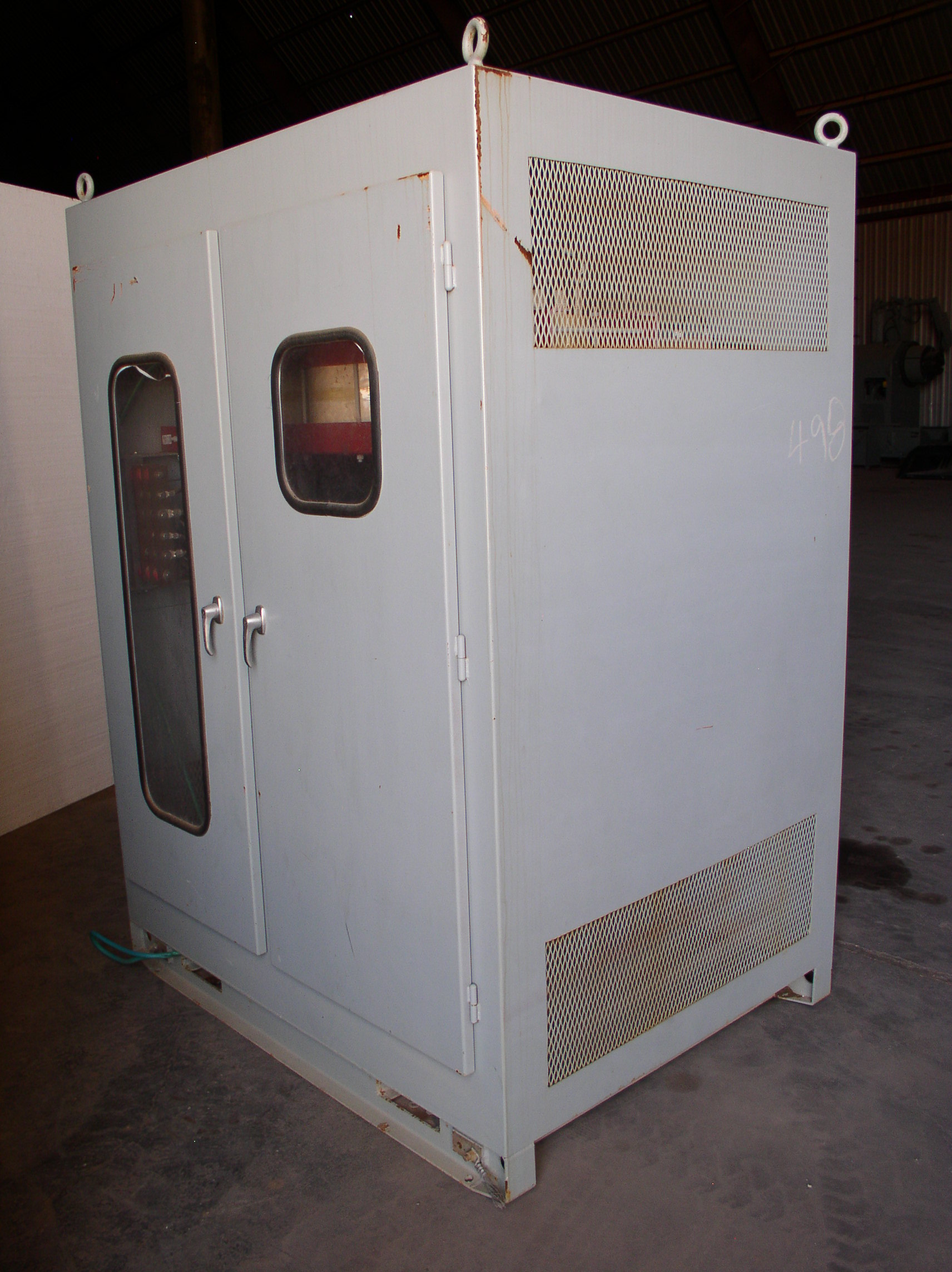

Dimensions...........................63" W x 50" D x 83" H
Weight..................................6,000 lbs. (estimated)
F.O.B...................................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2597 |
