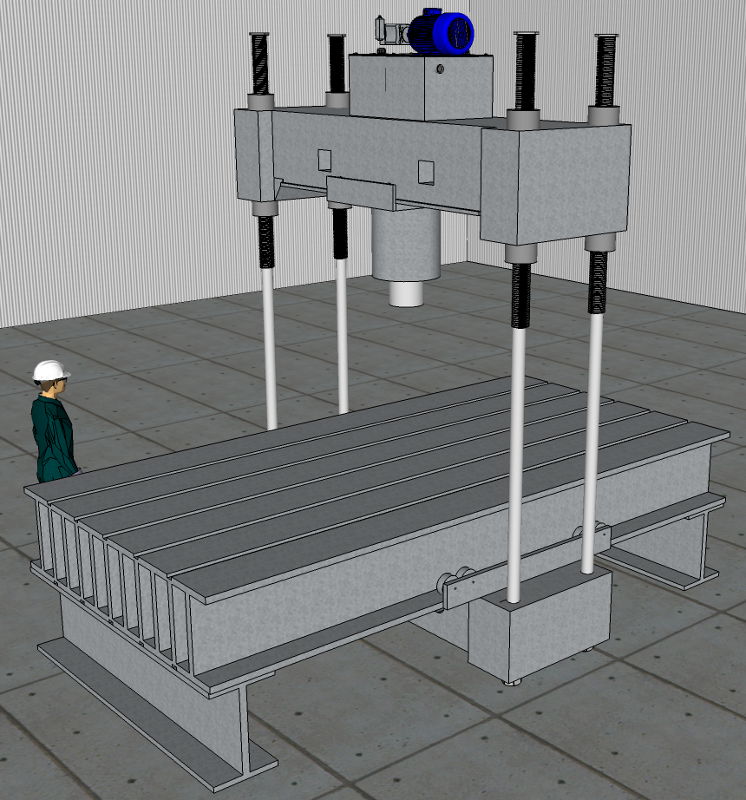

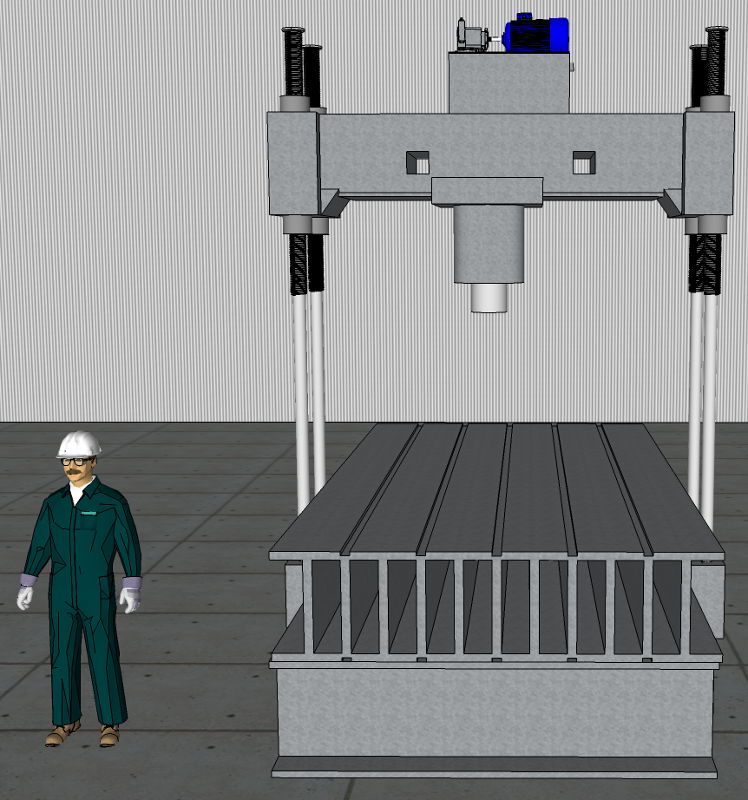

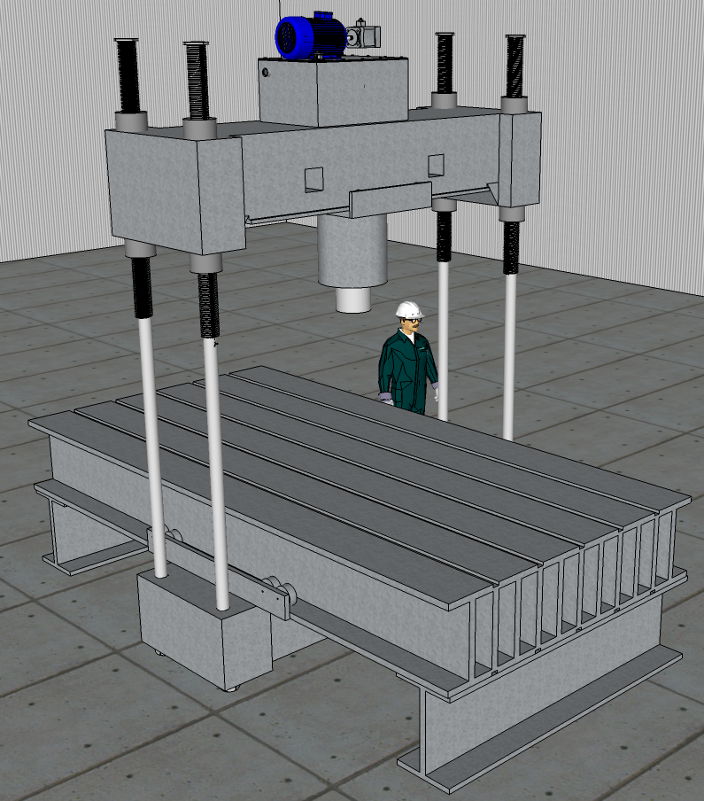

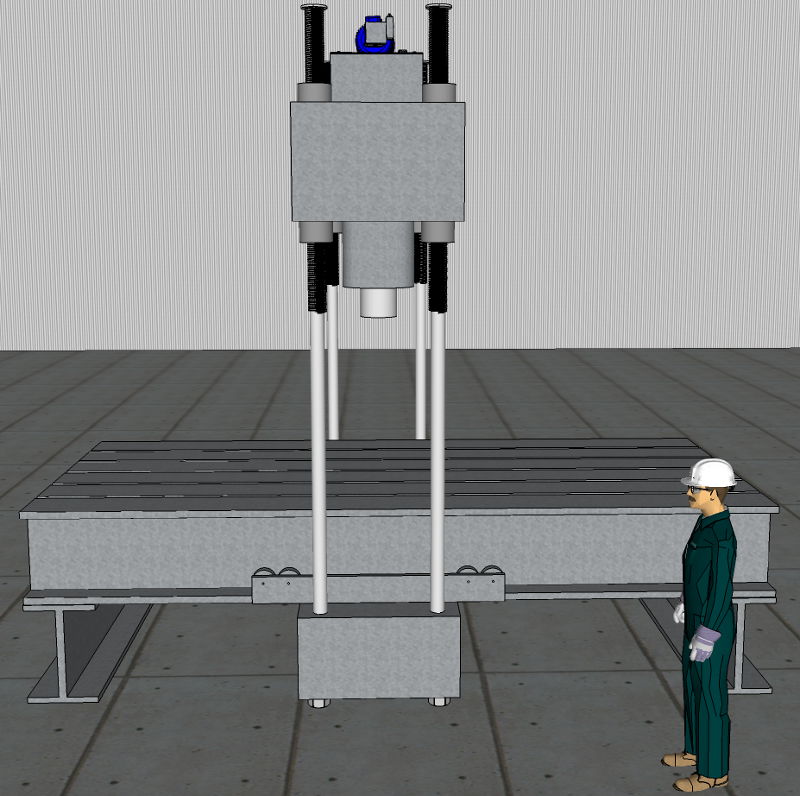

250 Ton A.F.C. Hydraulic Straightening Press; 4 Axis Traveling Gantry Type with Elevating Crown; 4 Column Design

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 250 Ton A.F.C. Hydraulic Straightening Press; 4 Axis Traveling Gantry Type with Elevating Crown; 4 Column Design; All Steel Construction; S/N 94380 Specifications: Capacity (Tonnage): Pressing...............................................254 Tons @ 4500 PSI (Nominal) Advance...............................................35 Tons Return..................................................18 Tons Bed Area...................................................100" F-B x 192" L-R Distance Between Posts (Columns)...........28" F-B x 106" L-R Stroke of Ram (Slide).................................5" Daylight Opening (adjustable)...................12" to 60" Travel of Ram Head...................................70" F-B (nominal) Travel of Gantry .......................................140" L-R (nominal) Distance Floor to Bed................................45" (nominal) Number of Ram Cylinders..........................1 Type of Ram Cylinder................................Double Acting Ram (Piston Rod) Area..............................9" Dia. Diameter of Ram Cylinder (1)....................12" Ram (Slide) Speeds: Pressing................................................3 IPM Advance................................................12 IPM Return...................................................30 IPM Hydraulic System: Pump Type............................................Pressure Compensated Variable Volume Operating Pressure...............................4,500 PSI Fluid Capacity.......................................15 gal. (nominal) Electrical Requirements..............................240/480 VAC/3 phase/60 cycles Equipped With: Complete Electrical Controls with Operator's Station Complete Hydraulic System 2 Axis Traveling Head with Motorized Positioning System Elevating Crown with Motorized Positioning System 100" x 192" Fabricated Steel Table 1 ea. Ram Nose Adapter. Overall Dimensions....................................11' F-B x 17' L-R x 15' High Weight........................................................30,000 lbs. (est.) FOB............................................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3037
