36" Tannewitz Model G1NE Vertical Band Saw; Mfg. 1985; S/N 85083

36" Tannewitz Model G1NE Vertical Band Saw; Mfg. 1985; S/N 85083
Casa Grande, AZ
orCall 1-520-836-9727
Description

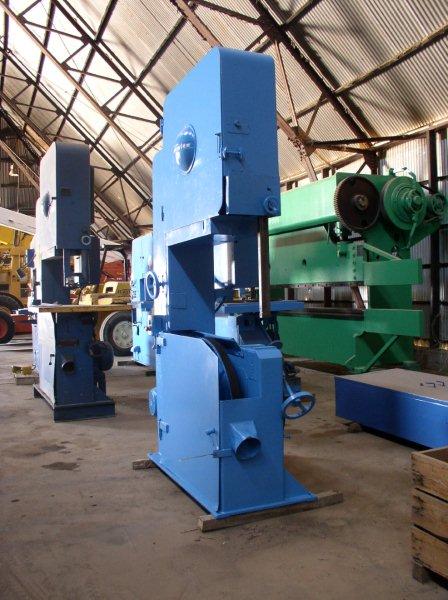

(1) Used 36" Tannewitz Model G1NE Vertical Band Saw; S/N 85083
Specifications:
Blade Speed......................
Blade Tension Control............
Size, Wheel Diameter.............36"
Under Guide Capacity.............20"
Throat Capacity..................35 1/2"
Base Construction................Weldment
Band Width Capacity..............1 1/2"
Band Length......................20'
Table Size.......................36" x 37"
Auxiliary Table Size.............16" x 19"
Table Tilting....................45° Right, 5° Left
Upper Wheel Adjustment...........5"
Wheel Type.......................Heavy Duty Balanced Steel Disc
Gear Adjusted Guide Post.........1 1/4" x 2 1/4"
Table Height.....................42"
Motor Output.....................7 1/2 HP (5.5 kW)
Motor Drive......................Belt
Electrical Characteristics.......480 VAC / 3 Phase / 60 Cycle
Equipped With:
Speedi-Change Replaceable Tires
Electric 2-Wheel Brakes
Complete Electrical Controls
Operator's Manual (optional from manufacturer)
Approx. Dimensions...............78" L x 34 1/2" W x 105" H
Weight...........................3,200 lbs.
FOB..............................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 2765 |
