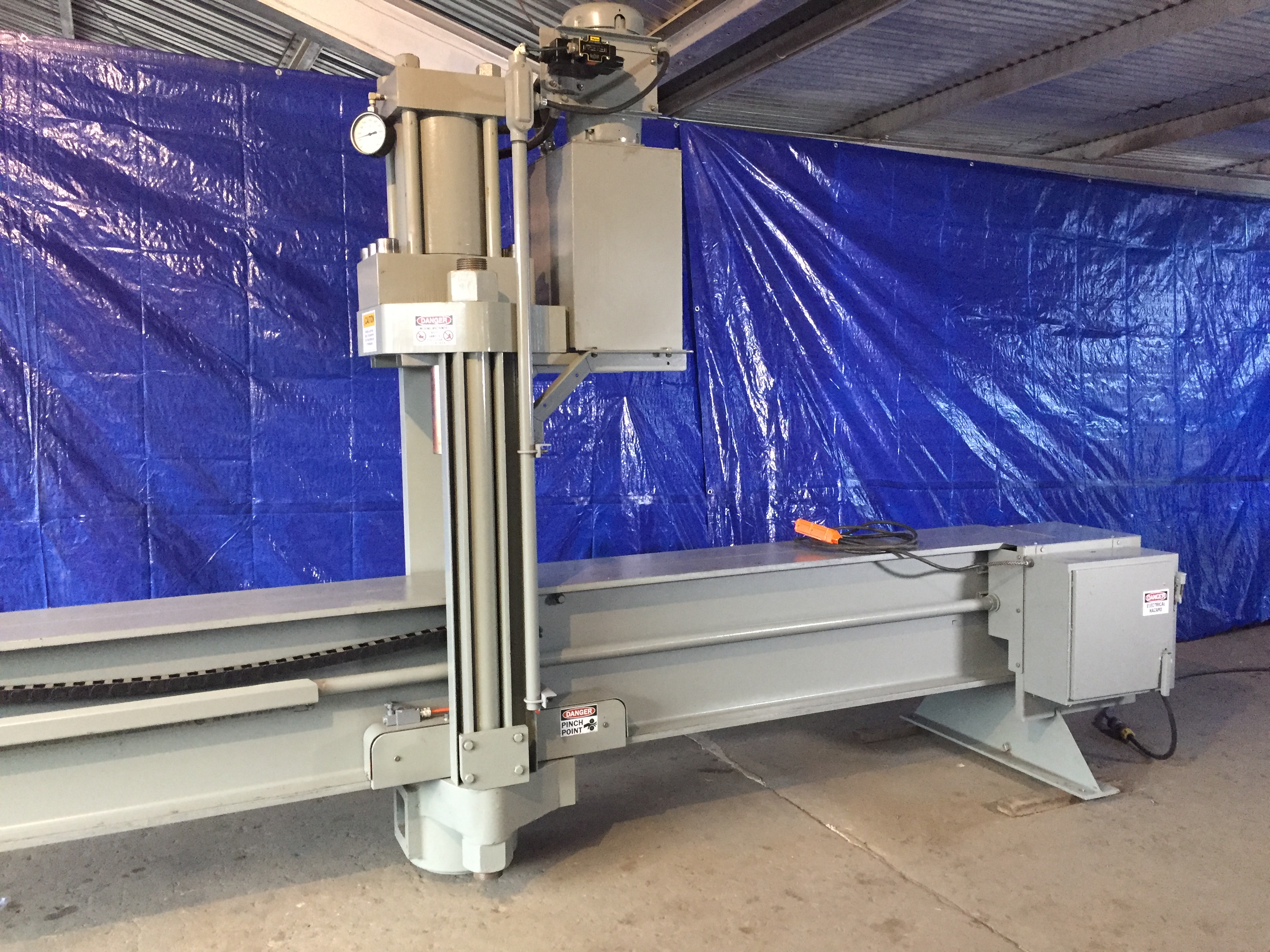

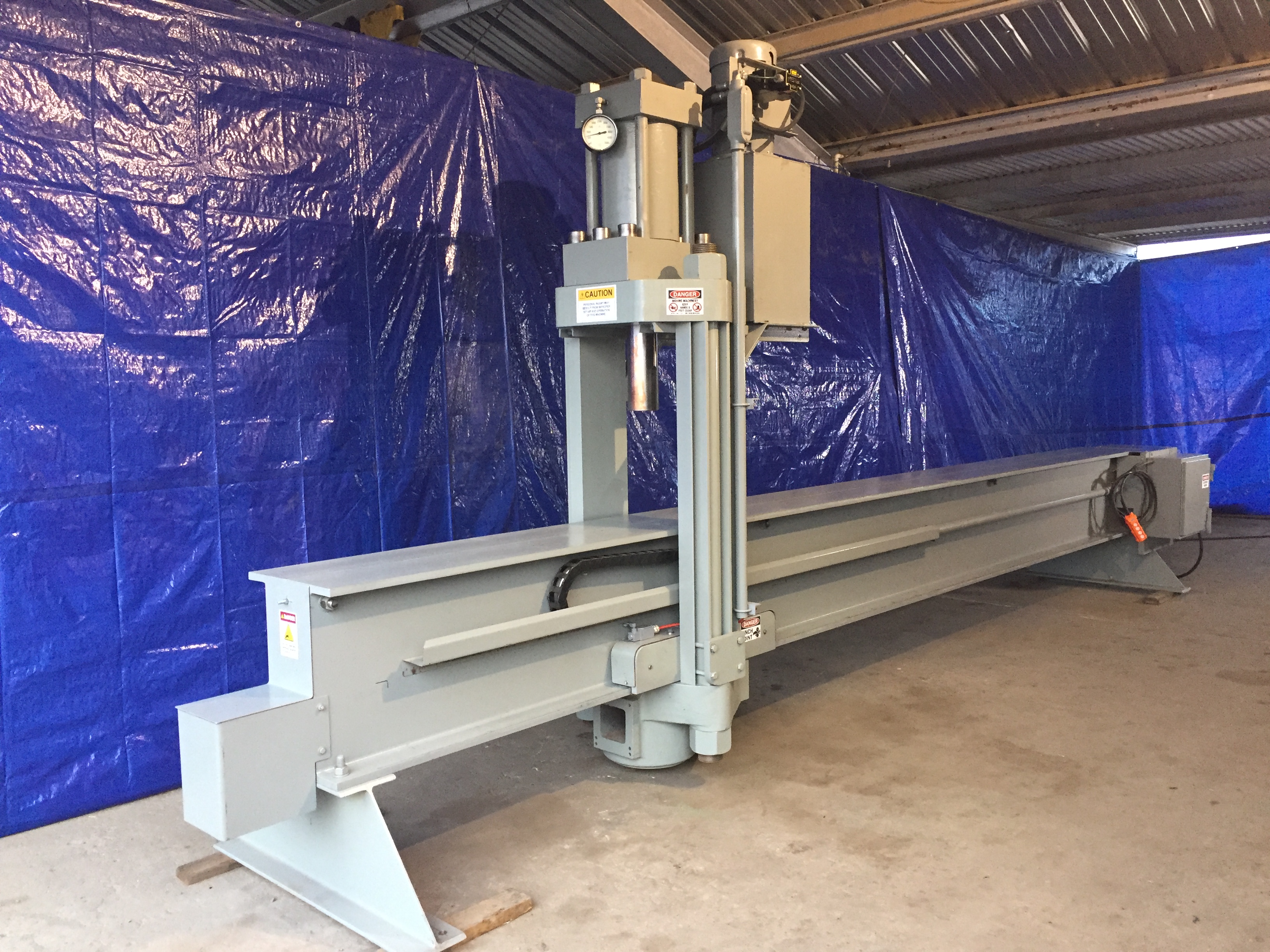

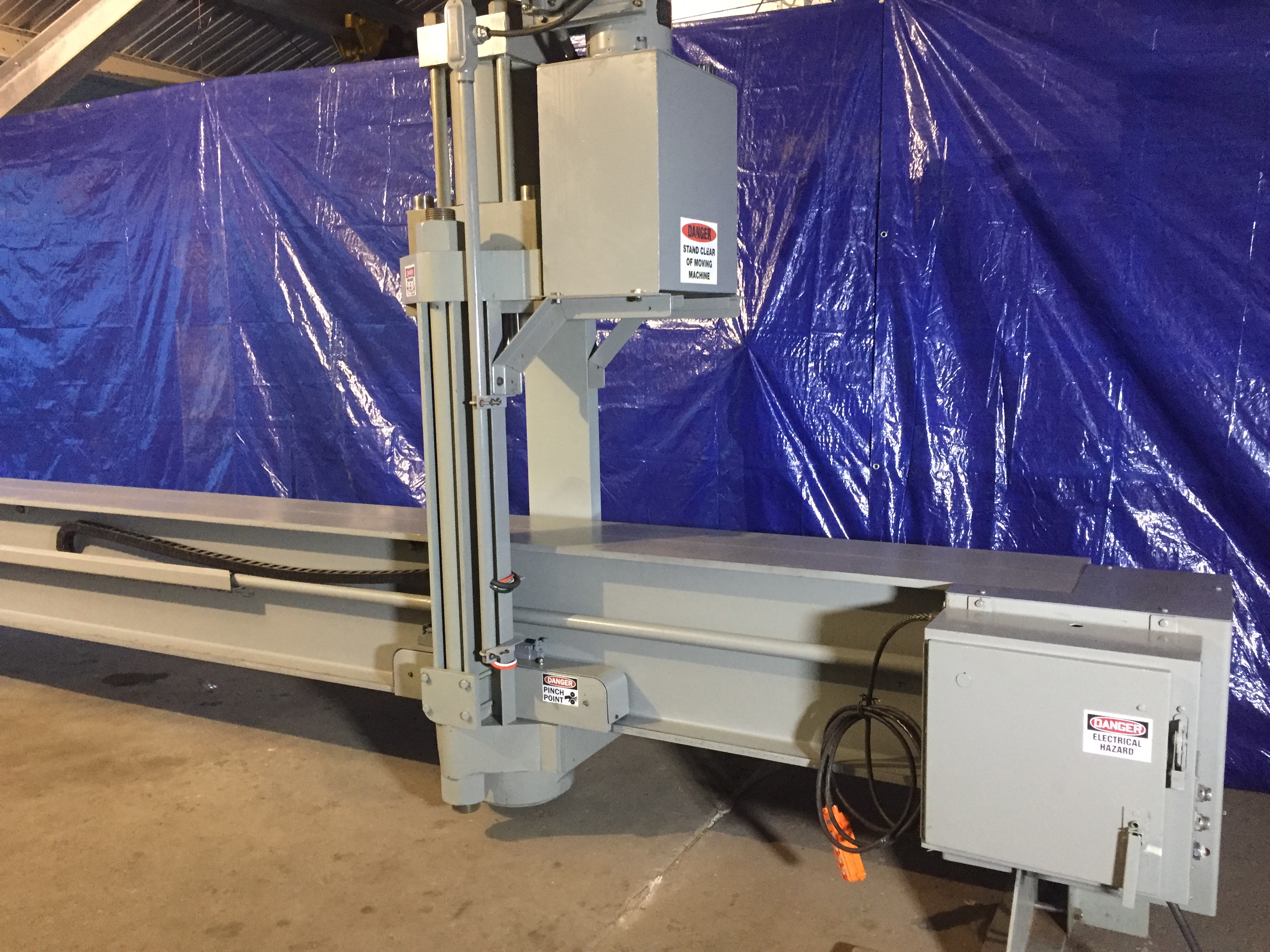

120 Ton HPM / Parker - Hannifin Twin Column Hydraulic Straightening Press

Sold

120 Ton HPM / Parker - Hannifin Twin Column Hydraulic Straightening Press

Casa Grande, AZ

Description

(1) 120 Ton HPM / Parker - Hannifin  Twin Column Hydraulic Straightening Press; 2 Axis Traveling Gantry Type; All Steel Weldment Construction; Rec. #3277 • Pressing Capacity.......................................... 120 Tons @  3380 PSI • Pressing Zone .......... ..................................... 96" Between Supports @ 100%  Capacity • Bed Size........................................................ 15" F-B  x  240" L-R • Bed Height............................. ......................  32"  (nominal) • Distance Between Housings / Columns.......  18" • Column Diameters (2).......... ........................3  1/2" • Stroke of Ram................................................ 11" • Ram Diameter................................................. 4 1/2" • Ram Nose Mounting................. ....................  Removable Clamp Type • Pressing Cylinder Diameter..............................9 1/2" • Daylight Opening  (Ram Nose to Bed)........... 18" • Travel  of Gantry ( X Axis ).............................. 210" L-R  (nominal) • Gantry Travel................................................... Motorized Cable Drive • Gantry Travel Speeds ( X Axis ) .......................0 - 430 IPM (variable) • Z Axis (Ram) Speeds; Advance......65  IPM Pressing...... 0 - 9  IPM Return..........85  IPM • Electrical Characteristics........................... 240 / 480 VAC / 3 Ph. / 60 Cy. • Equipped With; Complete Hydraulic System with Reservoir Complete Electrical Controls with Operators Station Variable Speed Motorized Gantry Travel Complete 7.5 HP Hydraulic System  (Gantry Mounted) Optional Left End Mounted Operators Control Station  ($850 Additional) Ram Nose Adapter • Overall Dimensions;    3 1/2 ft. F-B  x  20 ft. L-R  x  8 ft. High  (nominal) • Machine Weight;.......................9,000 lbs.  (est) • FOB  Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3277
