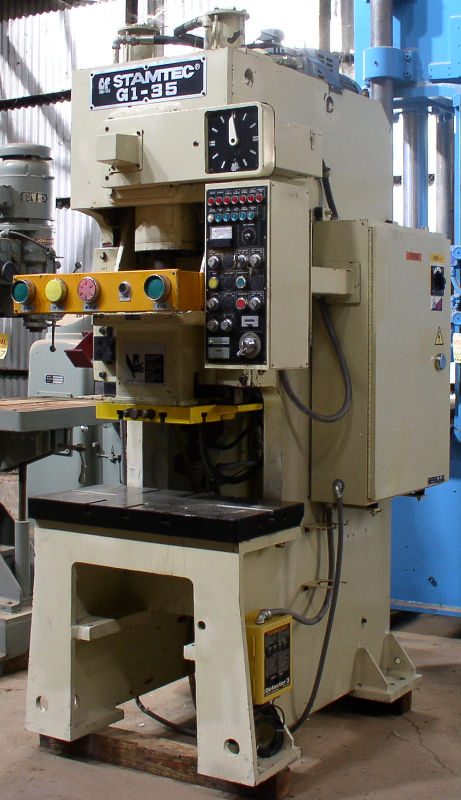

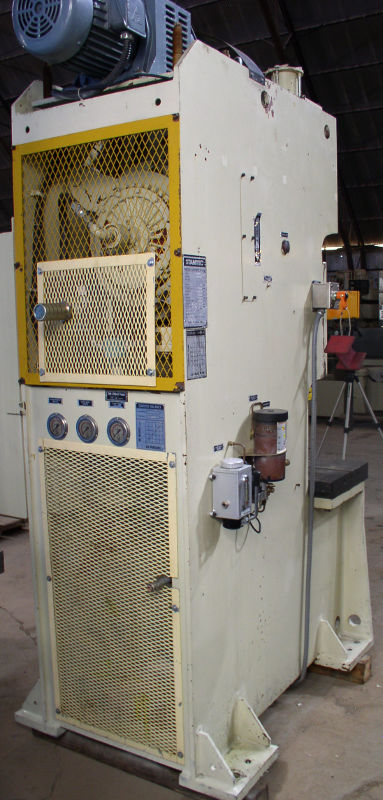

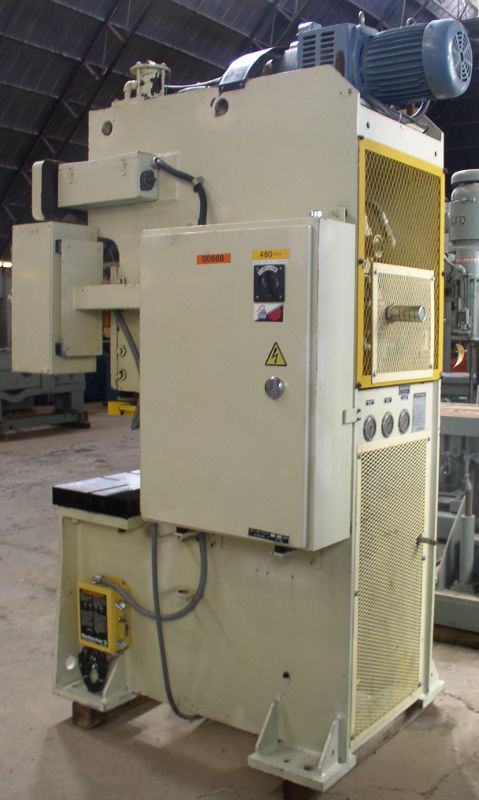

35 Ton STAMTEC Model G1-35 Gap Frame Open Back Press; Mfg 2008

35 Ton STAMTEC Model G1-35 Gap Frame Open Back Press; Mfg 2008

Casa Grande, AZ

orCall 1-520-836-9727

Description

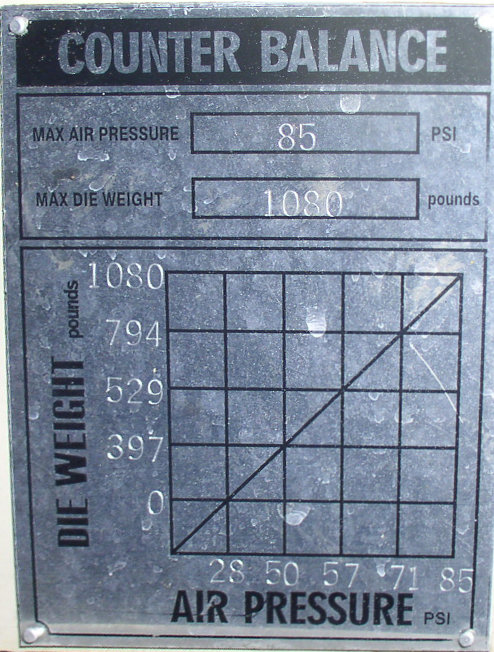

(1) Used 35 Ton STAMTEC Model G1-35 Gap Frame Open Back Press; S/N: S80801; Mfg 2008 Specifications: Capacity.............................................35 Tons Stroke................................................2.76" Shut Height Bed to Slide....................8.6" Slide Adjustment................................2.17" Bed Area............................................31" L-R x 14" F-B Opening in Bed..................................18" L-R x 10" F-B Slide Face Area.................................14.17" L-R x 9.84" F-B (T-Slotted) Distance Bed to Floor.........................28" Throat.................................................8" Opening through Back.......................18" Maximum Die Weight..........................1080 lbs. Speed.................................................40-120 S.P.M. Main Drive Motor.................................VS5, 4 HP Electrical Characteristics....................240/480 VAC / 3 Phase / 60 Cycle Equipped With: Gauges Dual Voltage Motor Auto Counter Motor RPM Control and Meter Diagnostic Indicator Lights Brake Single/Continuous Stroke Modes Lubrication System Counter Balance Overload Protector Regulator Complete Electrical Controls Overall Dimensions...............................41" L-R x 57" F-B x 98" High Weight..................................................6,000 lbs. (est.) F.O.B.....................................................Casa Grande

Specifications

ConditionUsed
Stock Number3409
