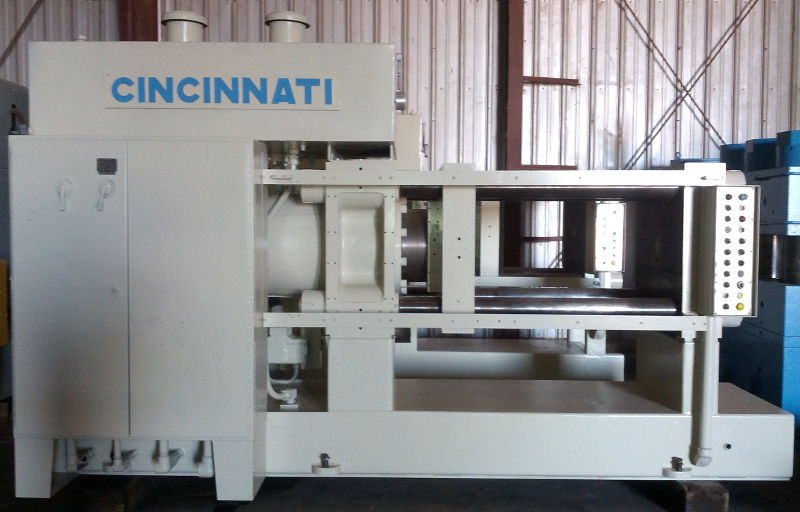

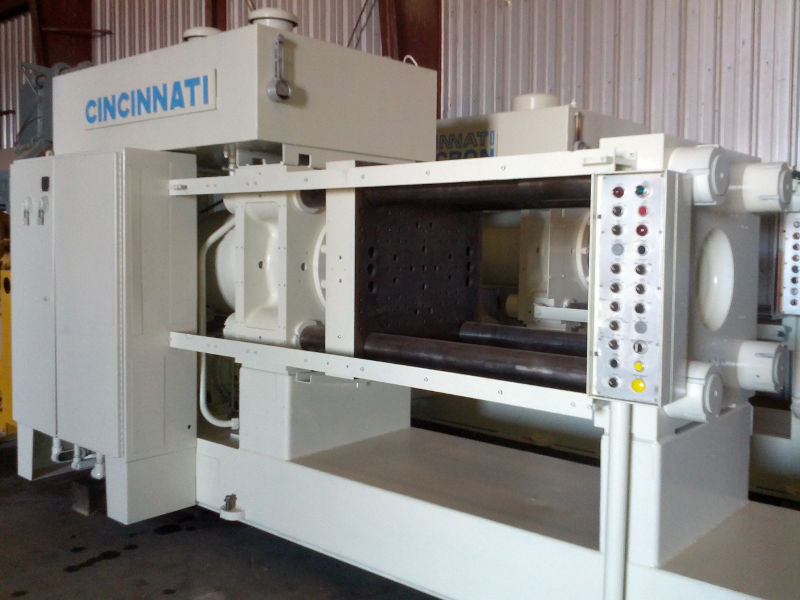

375 Ton Cincinnati Hydraulic Extrusion Press; 4-Column Type

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 375 Ton Cincinnati Hydraulic Extrusion Press; S/N 4003N32-5W-102
Specifications:
Extrusion Force.............................375 Tons @ 3,000 PSI (nominal)
Stripping / Return Force....................90 Tons @ 2,866 PSI (nominal)
Stroke(Ram).................................24"
Daylight Opening............................48"
Distance Between Tie Rods...................22" T-B x 22" F-B
Main Ram Diameter...........................17 1/2"
Main Ram Cylinder Bore......................18"
Tie Rod Diameter (4)........................5"
Distance Floor to Press Center-line.........50"
Speeds:
Advance................................0 - 120 in./min.
Pressing (Extrusion)...................18 in./min.
Opening (Return).......................150 in./min.
Container System:
Billet Diameter (Direct Extrusion).....4" - 5"
Billet Diameter (Indirect Extrusion)...5" - 6"
Max. Billet Length.....................16" (nominal)
Container Diameter (outside)...........9" - 12"
Container Heating System...............(optional)
Length of Container Housing............16"
Distance of Travel.....................(optional)
Closing Force..........................(optional)
Opening Force..........................(optional)
Speeds:
Closing...........................(optional)
Opening...........................(optional)
Billet Shear:
Capacity...............................(optional)
Stroke.................................(optional)
Speed..................................(optional)
Extrusion Stem:
Diameter...............................(per customer application)
Length.................................(per customer application)
Mounting System........................(per customer application)
Die System:
Die Diameter...........................(optional)
Die Thickness..........................(optional)
Shuttle Stroke.........................(optional)
Billet Loading System.......................(optional)
Hydraulic System:
System Manufacturer....................Sperry / Vickers
System Pressure........................3,200 PSI (nominal)
System Capacity........................45 GPM
System Horsepower (total)..............50 HP @ 1800 RPM (nominal)
Number of Pumps........................2
Pump Specifications:
Unit #1...........................Vickers
Unit #2...........................Vickers
Primary Drive Motors:
Manufacturer......................Delco
Horsepower Rating.................50
Electrical Characteristics........230/460 VAC / 3 Phase / 60 Cycle
Valve System:
Manufacturer......................Sperry / Vickers
Type..............................Multi-Directional / Pilot Operated
Reservoir System:
Type..............................Fabricated Steel
Fluid Volume......................300 gallons (est.)
Control System:
Manufacturer...........................IDEC
Type...................................PLC
Interface..............................3" Touch Screen HMI (up to 12" color optional)
Electrical Characteristics..................460 / 3 Phase / 60 Cycle / 100 Amps
Equipped With:
Complete Electrical Controls with Operator's Station
Complete Hydraulic System with 9" High Volume Pre-Fill Valve
Overall Dimensions..........................161" L x 69" W x 106" H
Weight......................................35,520 lbs.
F.O.B.......................................Casa Grande, AZ
Keywords: lead, silver, copper, non-ferrous

Specifications

ConditionUsed
Stock Number3458
