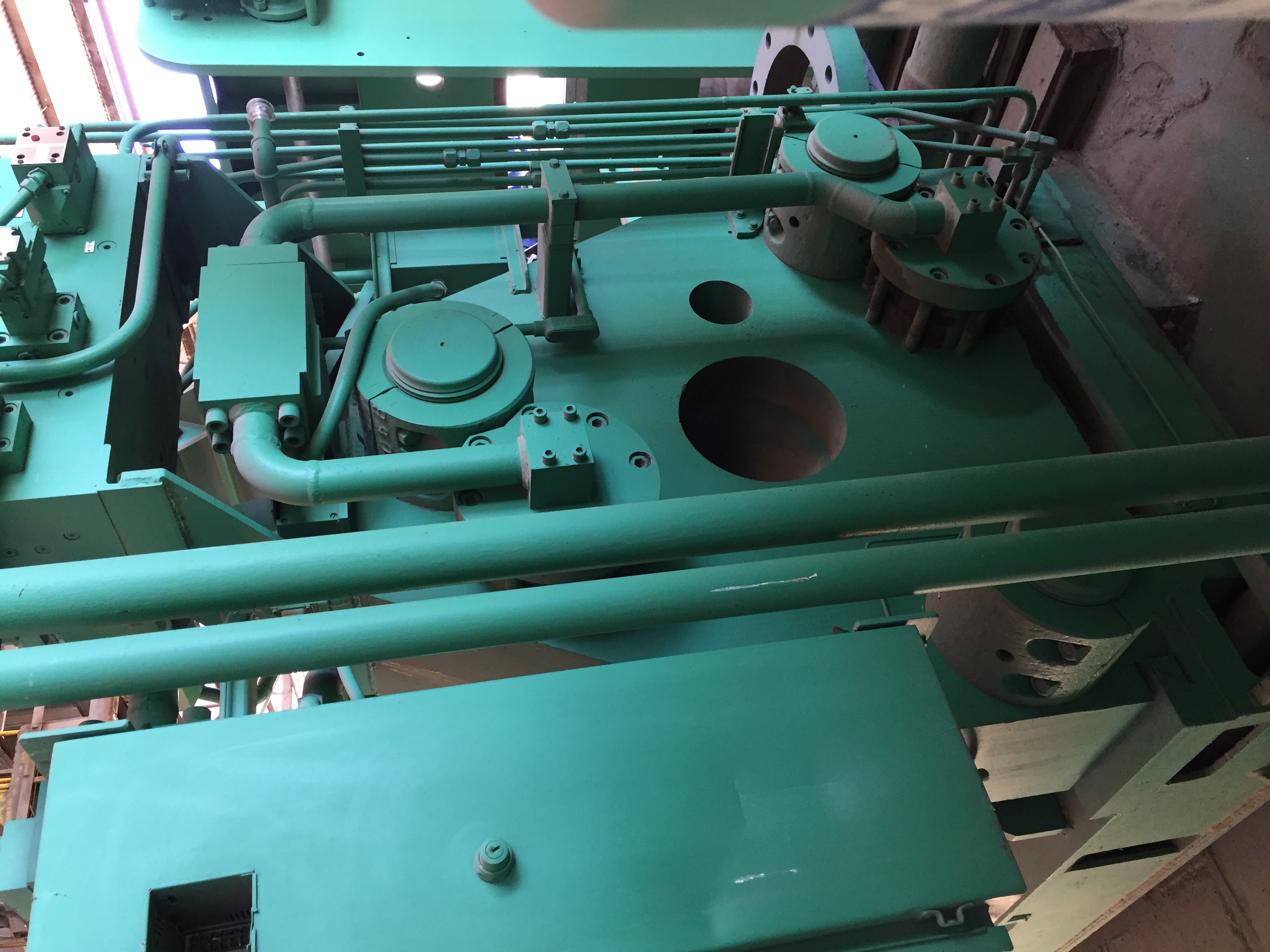

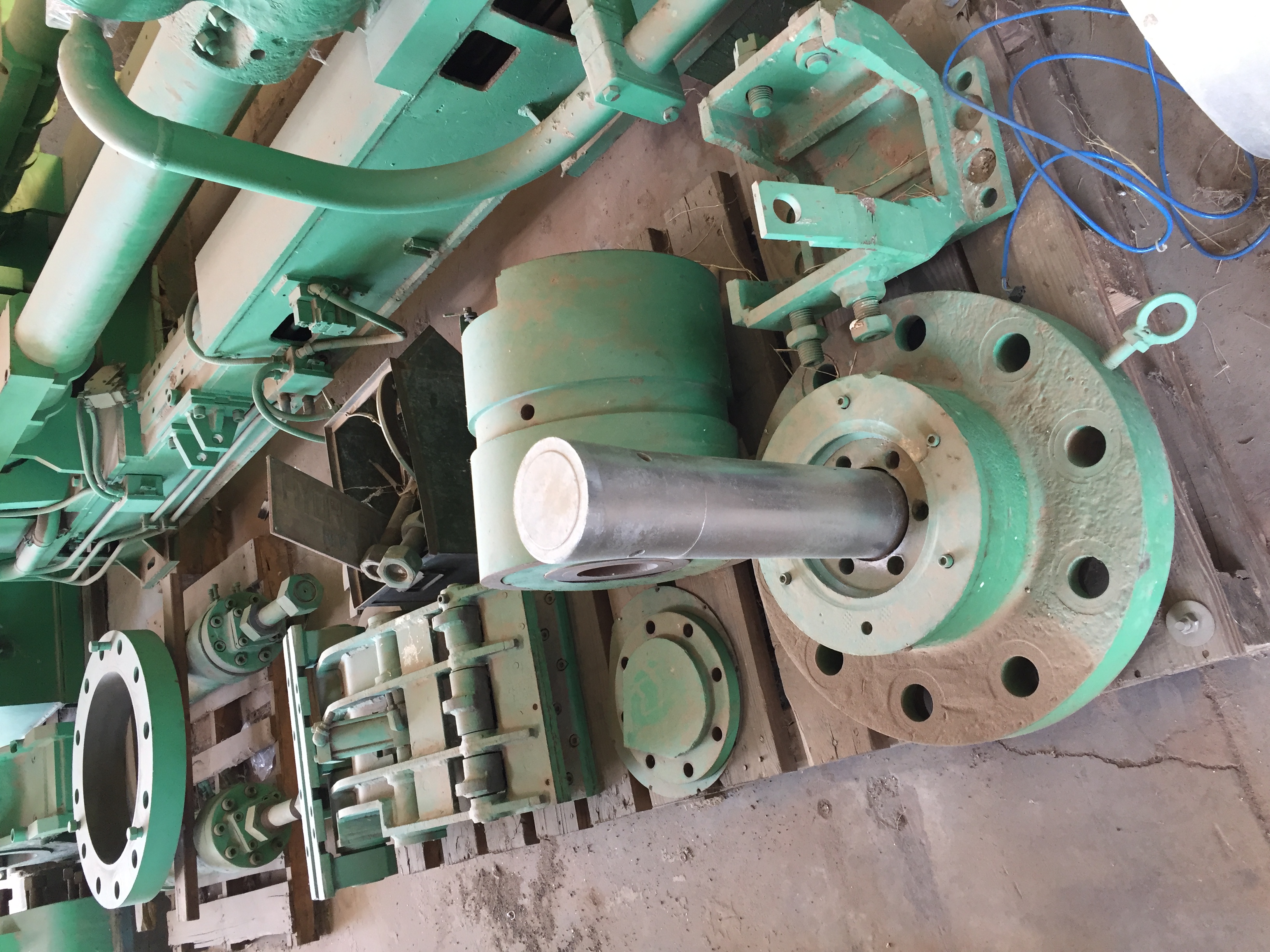

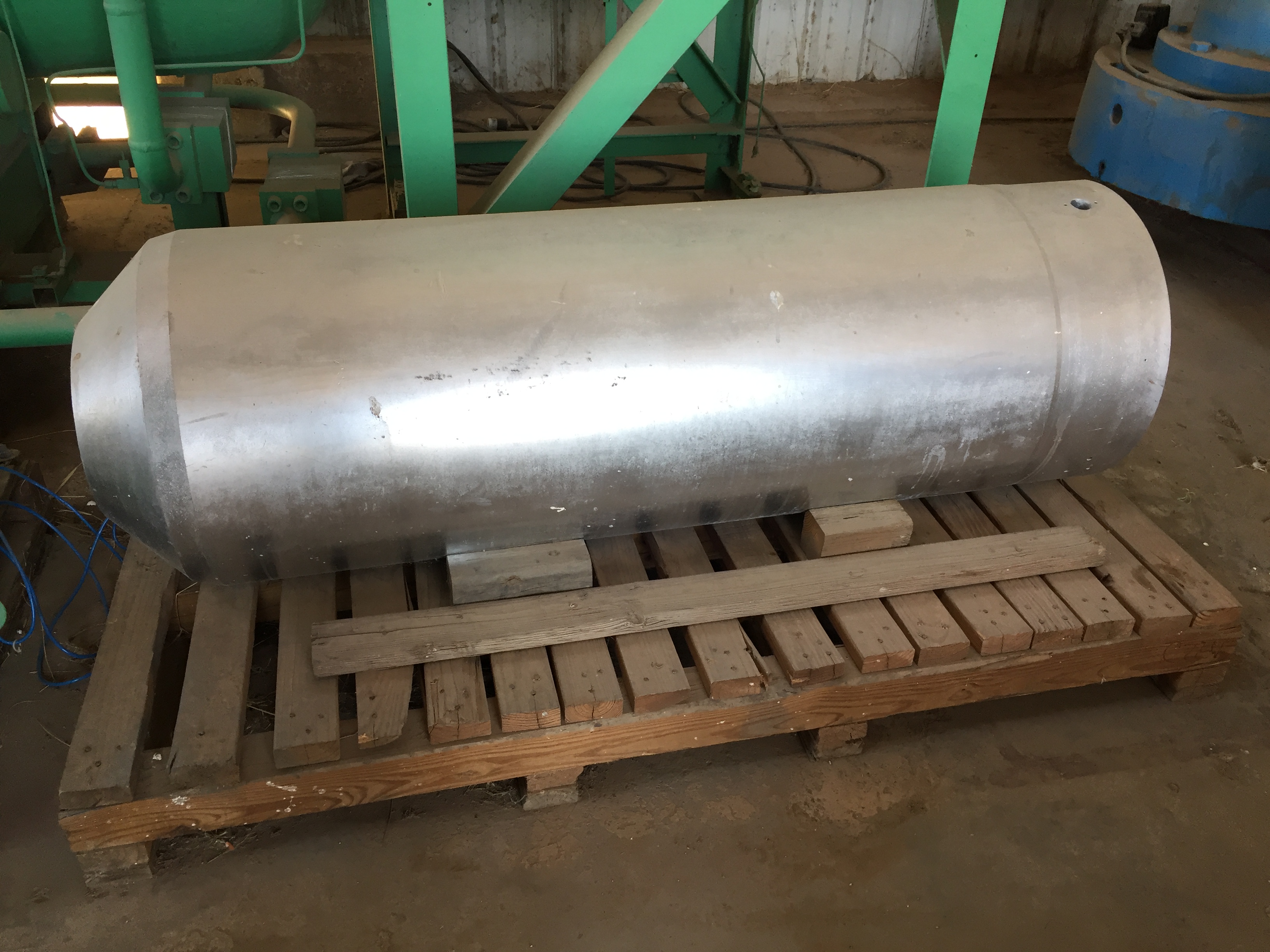

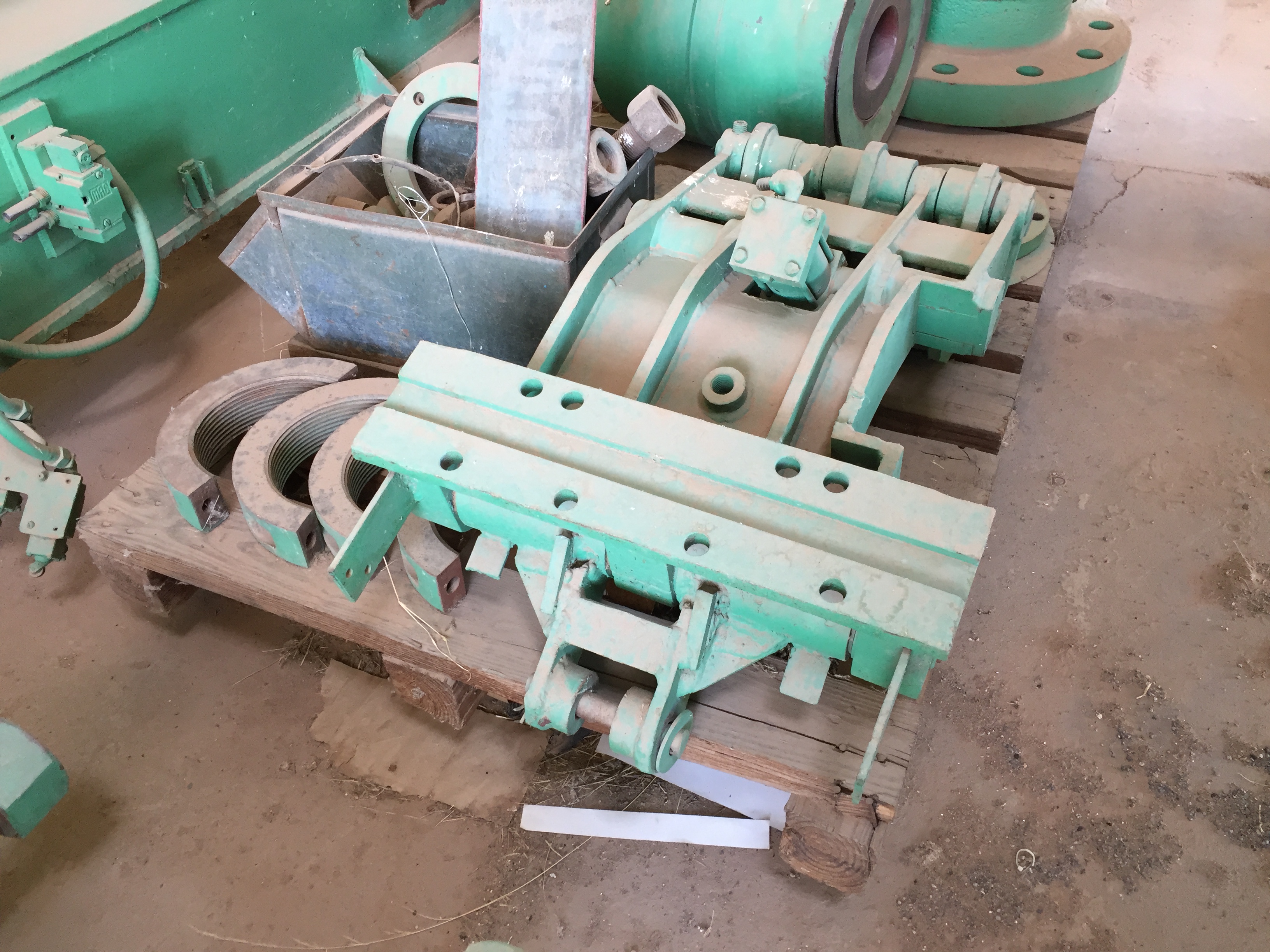

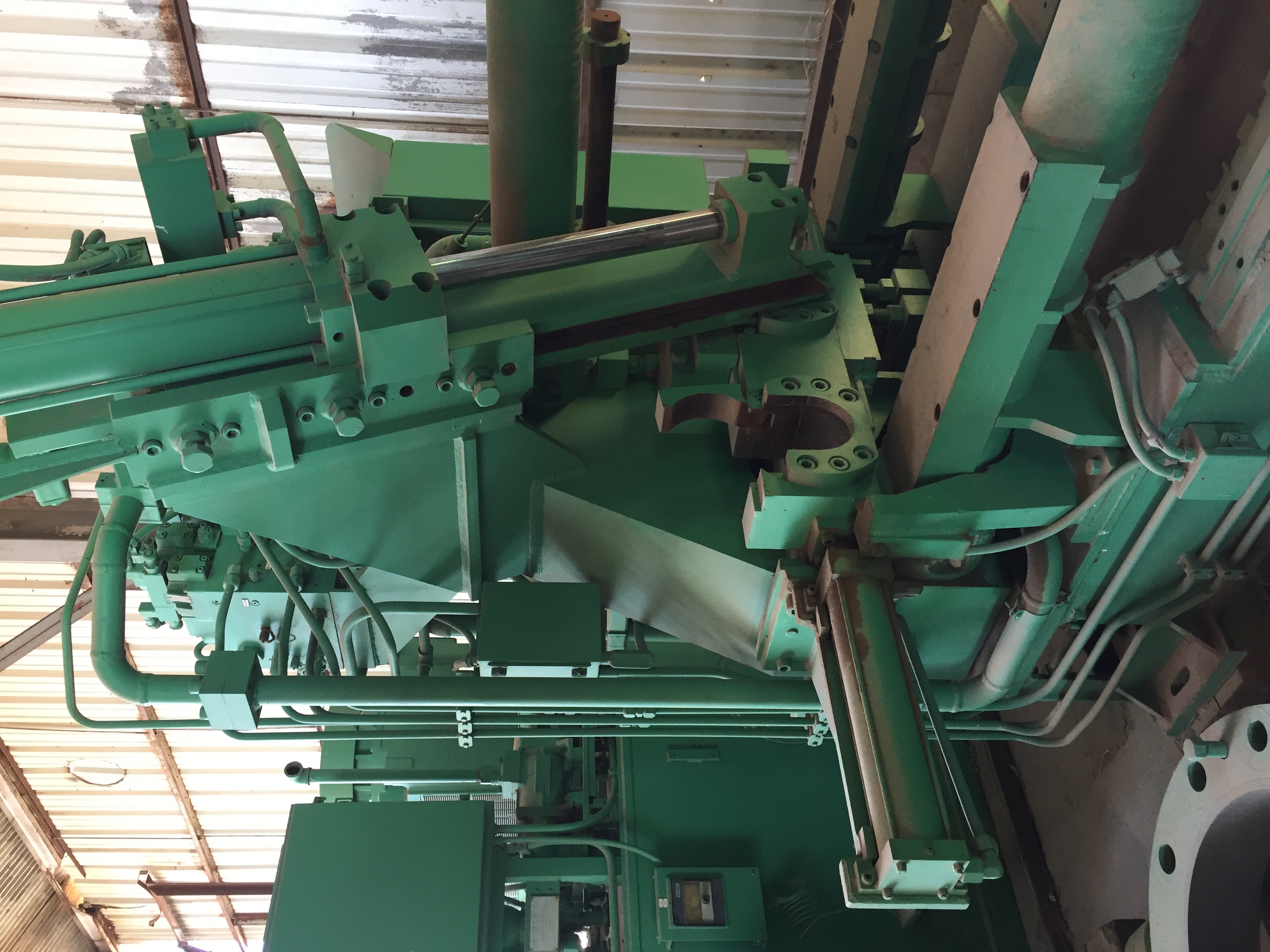

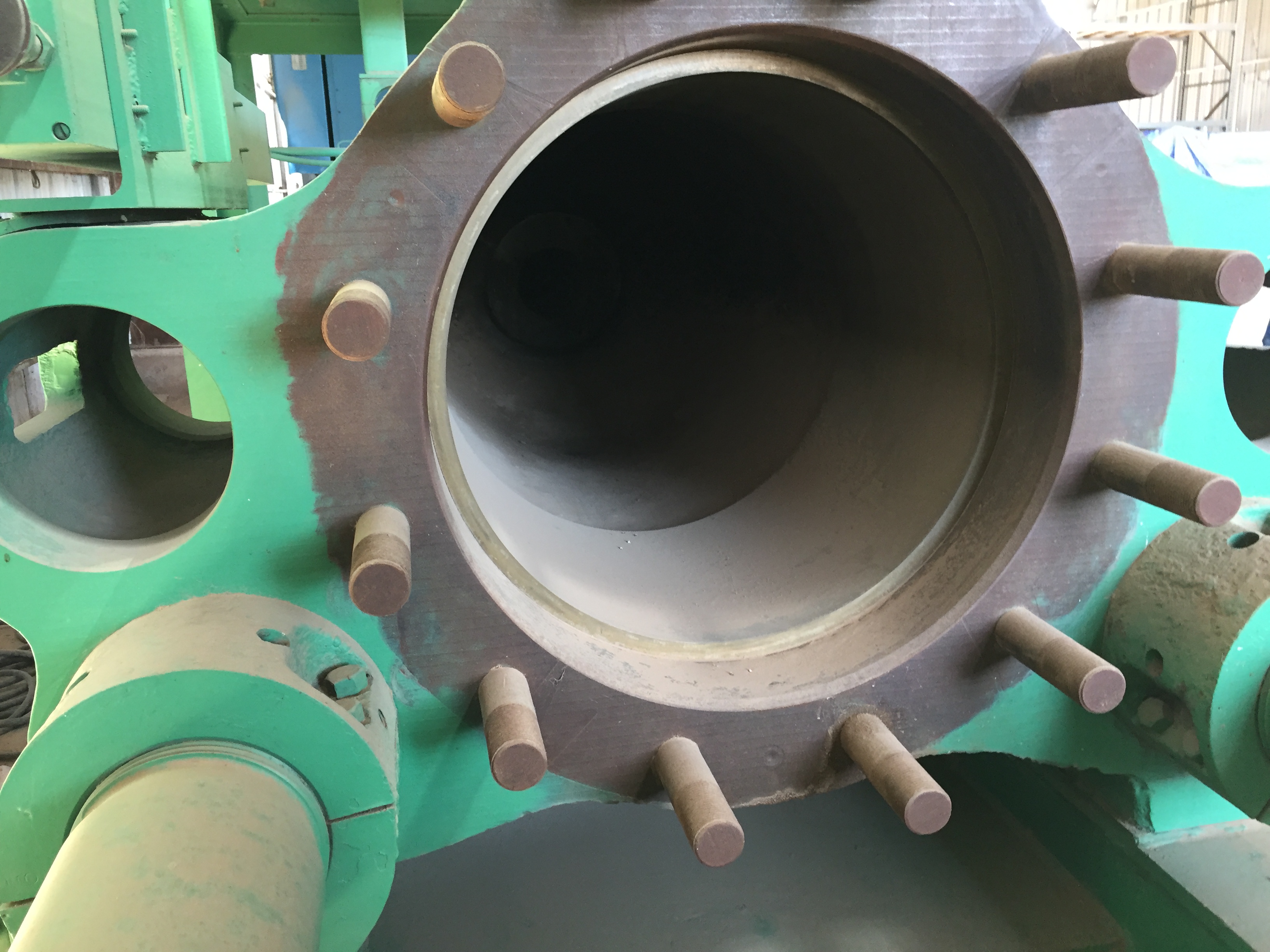

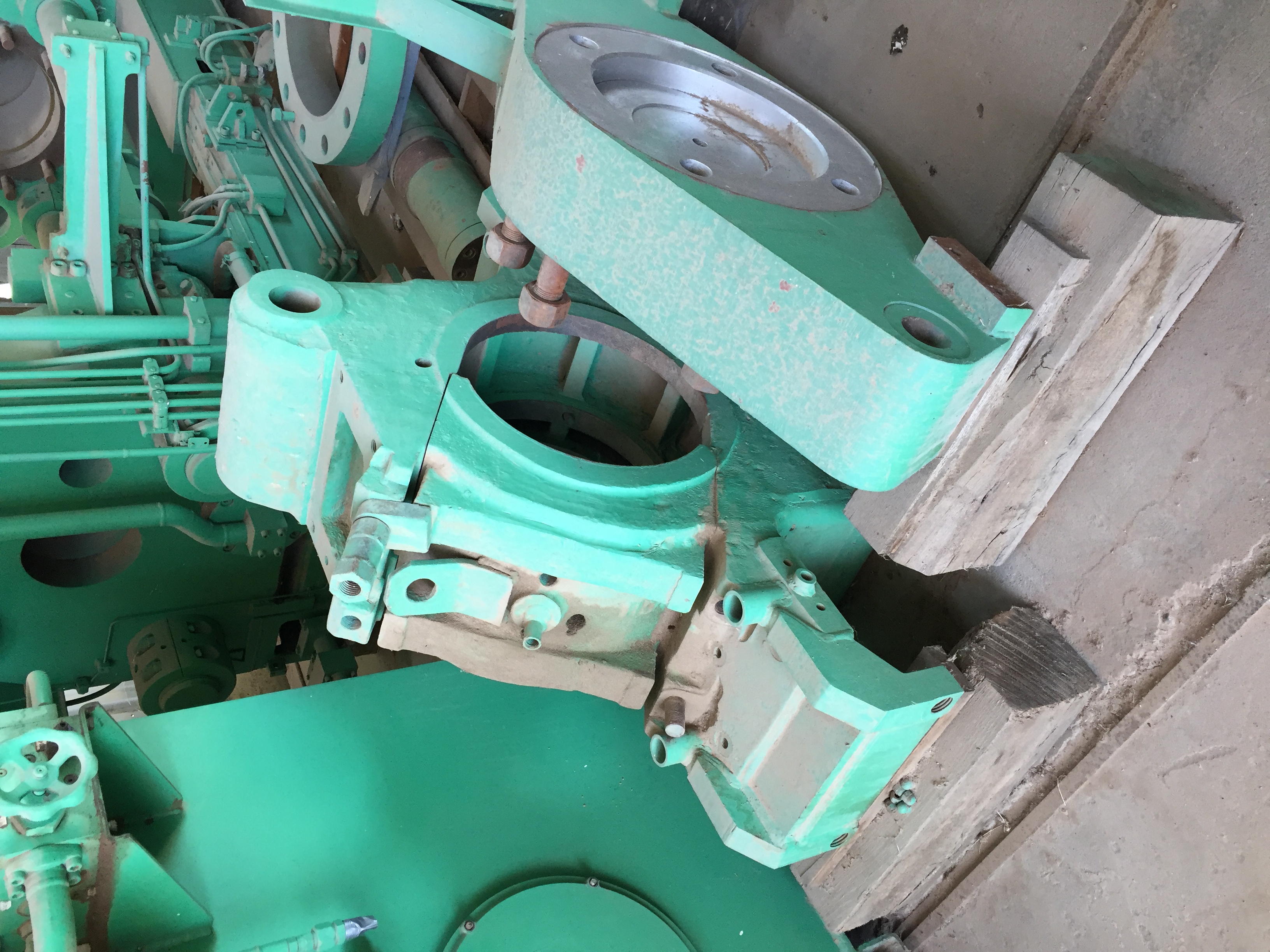

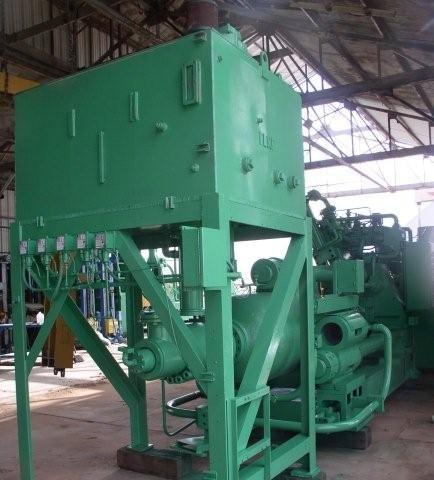

700 Ton Loewy Extrusion Press; 4 1/2" x 16" Billet

700 Ton Loewy Extrusion Press; 4 1/2" x 16" Billet

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 700 Ton Loewy "Hydropress" Extrusion Press Specifications: Extrusion Force.........................708 Tons @ 3200 PSI Stripping / Return Force................ Assist Cylinders (2)....................50 Ton Capacity (each) Stroke (Advance Slide).................. Stroke(Ram).............................42" (nominal) Daylight Opening........................ Distance Between Tie Rods............... Main Ram Diameter.......................22" Tie Rod Diameter(3).....................7" Distance Floor to Press Center-line.....36" Stump Shear Capacity....................65 Tons Speeds: Advance............................0-700 I.P.M. Pressing (Extrusion)...............0-150 I.P.M. (est.) Opening (Return)...................0-1000 I.P.M. Container System: Billet Diameter....................4 1/2" (nominal) Billet Length......................16" (maximum) Container Diameter (outside)....... Container Length................... Container Heating System...........Electric Travel of Container Housing........36" (est.) Force of Travel / (Closing)........ Force of Travel / (Opening)........ Speeds: Closing....................... Opening....................... Billet Shear: Type............................... Capacity........................... Stroke............................. Speed.............................. Billet Loading System: Loading Cycle Time.................20 seconds per billet (nominal) Die System: Die Diameter....................... Die Thickness...................... Shuttle Stroke..................... Hydraulic System: System Manufacturer................ System Pressure....................3,200 PSI System Capacity....................1200 Gal. (est.) System Horsepower (total)..........525 H.P. Number of Pumps.................... Pump Specifications: Unit #1....................... Unit #2....................... Unit #3....................... Unit #4....................... Primary Drive Motors: Manufacturer.................. Horsepower Rating............. Electrical Characteristics.... Equipped With: Rexroth Variable Volume Pressure Compensated Hydraulic System With Reservoirs Complete Electrical Controls With Operator's Control Station Hydraulic Actuated Stump Shear Extrusion Die Holder and Clamping System Billet Container System With Electric Heater 4" Dia. Extrusion Mandrel (1) 30 ton x 60" Stretcher Overall Dimensions......................30' L-R x 8' F-B x 106" High Weight..................................120,000 lbs. (est.) F.O.B...................................Casa Grande, Arizona Keywords: lead, silver, copper, non-ferrous

Specifications

ConditionUsed
Stock Number2338
