12 ga x 52" CIDAN Power Squaring Shear

Casa Grande, AZ

orCall 1-520-836-9727

Description

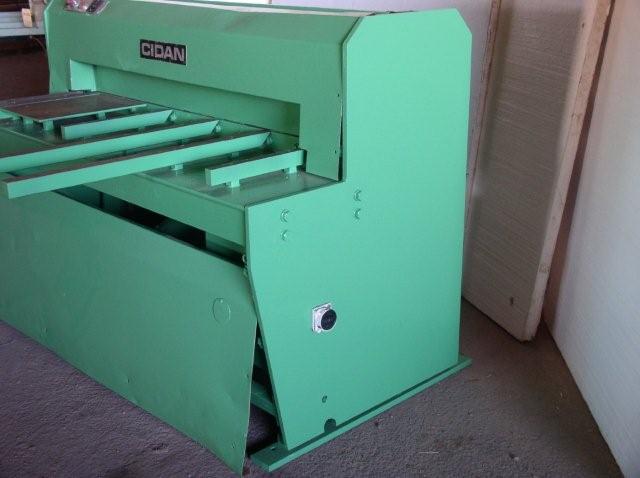

(1) Used 12 ga. x 52" CIDAN Model MS-F 13/ 3.0 Power Squaring Shear; S/N 0673-0984
Specifications:
Maximum Capacity.....................................12 ga.
Length of Cut.............................................52"
Length Between Housings..........................52"
Shear (Rake) Angle Taper Per Foot..........0.31" nominal
Ram Adjustment.........................................No
Gap (Throat)..............................................No
Distance Bed to Floor.................................31" nominal
Speed.........................................................N/A
Size of Four-Edged Knives..........................2"
Length of Knives.........................................52"
Motor...........................................................5.3 HP (4 kW)
Electrical Characteristics.............................230/460 VAC / 3 Phase / 60 Cycle
Equipped With:
Operator's foot switch
Complete Electrical Controls
Overall Dimensions.....................................34" F-B x 66" L-R x 45" high
Weight........................................................1,200 lbs. (est.)
F.O.B..........................................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2591
