500 Ton Cincinnati Extrusion Press #3620

Sold

500 Ton Cincinnati Extrusion Press #3620

Location:Casa Grande, AZ

Description

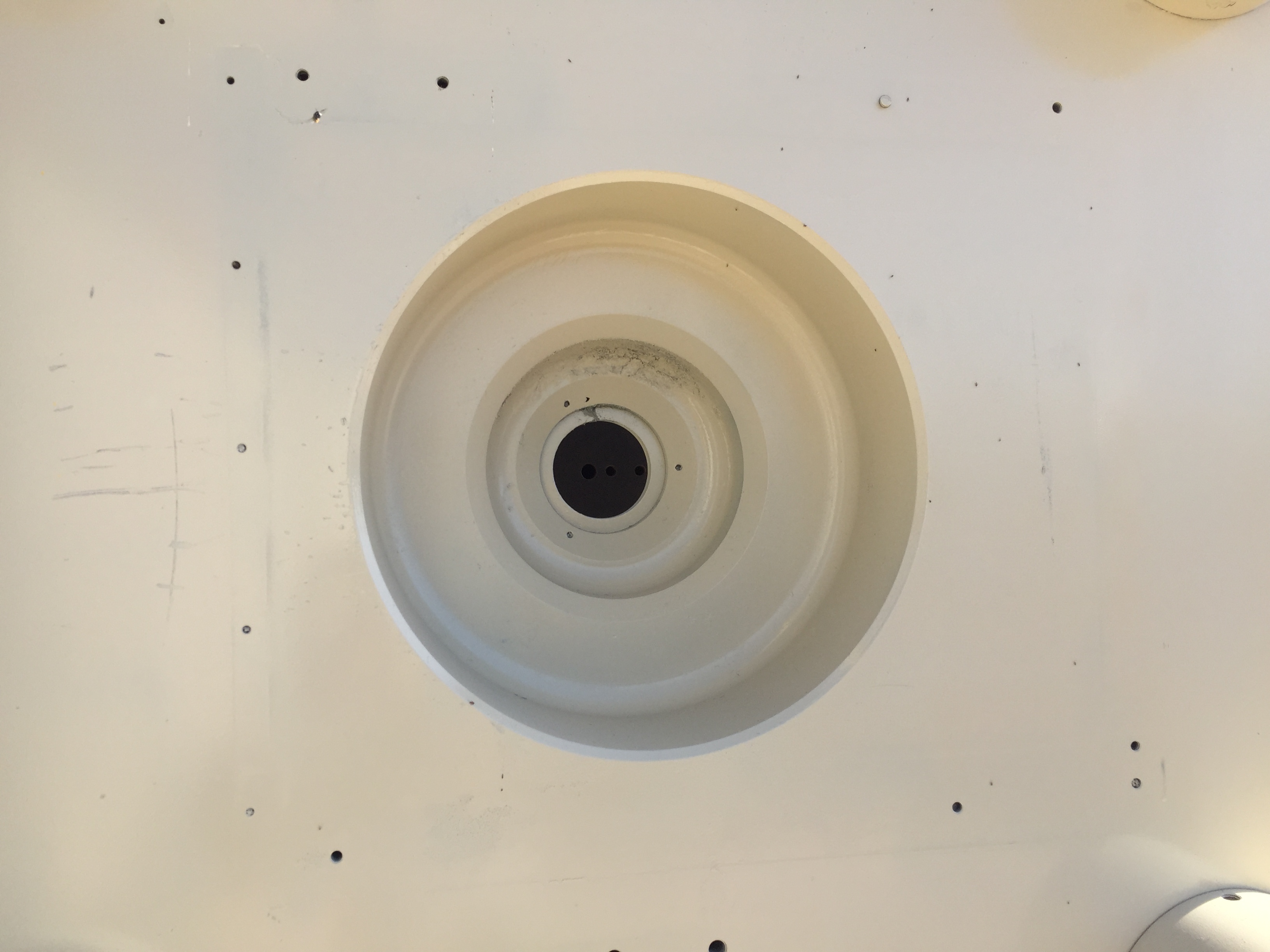

Used 500 Ton CINCINNATI - MILACRON Hydraulic 4 Post Horizontal Extrusion Press

Specifications:

Capacity........................................................................ 500 Tons

Pressing.................................................7.5 Inches/ Min.

Advance.................................................650 Inches/ Min.

Return....................................................250 Inches/ Min.

Bed Area....................................................................... 48" L R x 48" F B

Ram (Slide) Area.......................................................... 48" L R x 48" F B

Distance between tie rods(4)........................................ 32" x 32"

Stroke of Ram/Slide...................................................... 45"

Daylight Opening.......................................................... 60"

Tie Rod Diameter (post)............................................... 6"


Hydraulic System;.

Vickers/ Parker

Pressure.................................................... 3,000 psi (max.)

Number of Pumps..................................... 3

Pump Type ................................................. Fixed Displacement / variable volume pressure compensated


Reservoir System:

Type......................................................... Fabricated Steel

Fluid Volume.......................................... 400 gal.


Electrical Requirements:

Main Drive Motor

Manufacturer....................... Reliance

Horsepower Ratings............. 75

Electrical Characteristics..... 230/460 V.A.C. 3 phase / 60 cycles

Amps....................................190/95

RPM......................................1185


Dimensions..........................209" L-R x 80" F-B x 114" High

Weight..................................45,000 lbs. (estimated)

Specifications

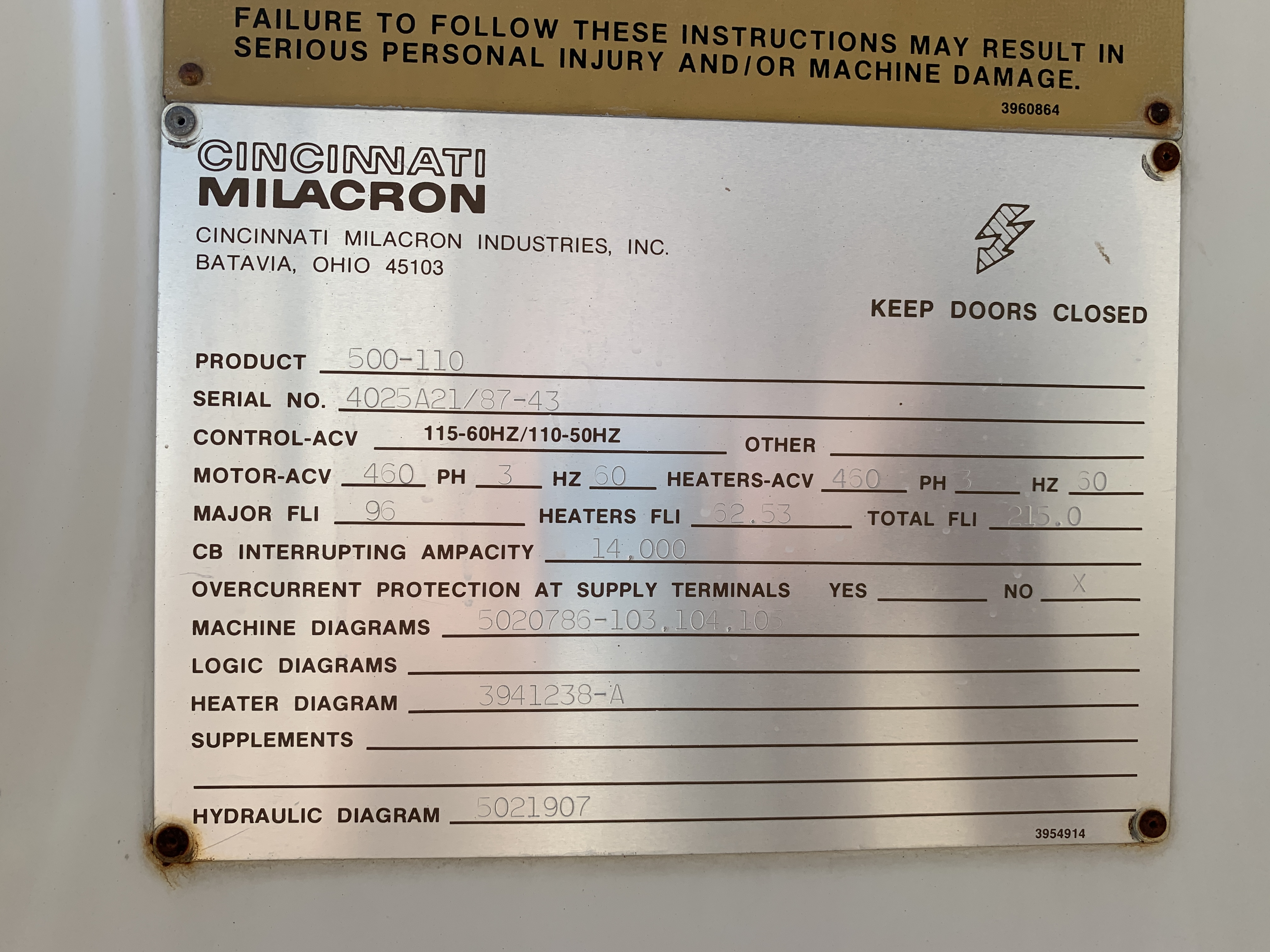

ManufacturerCincinnati Milacron
Model500-110
Year1987
ConditionUsed
Stock Number3620
