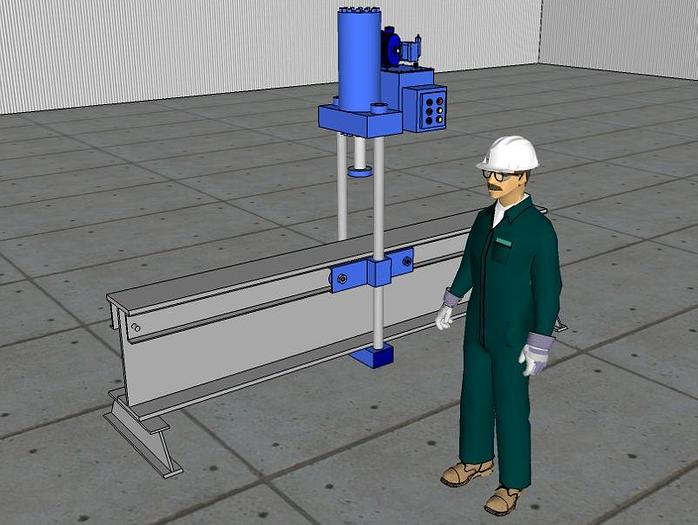

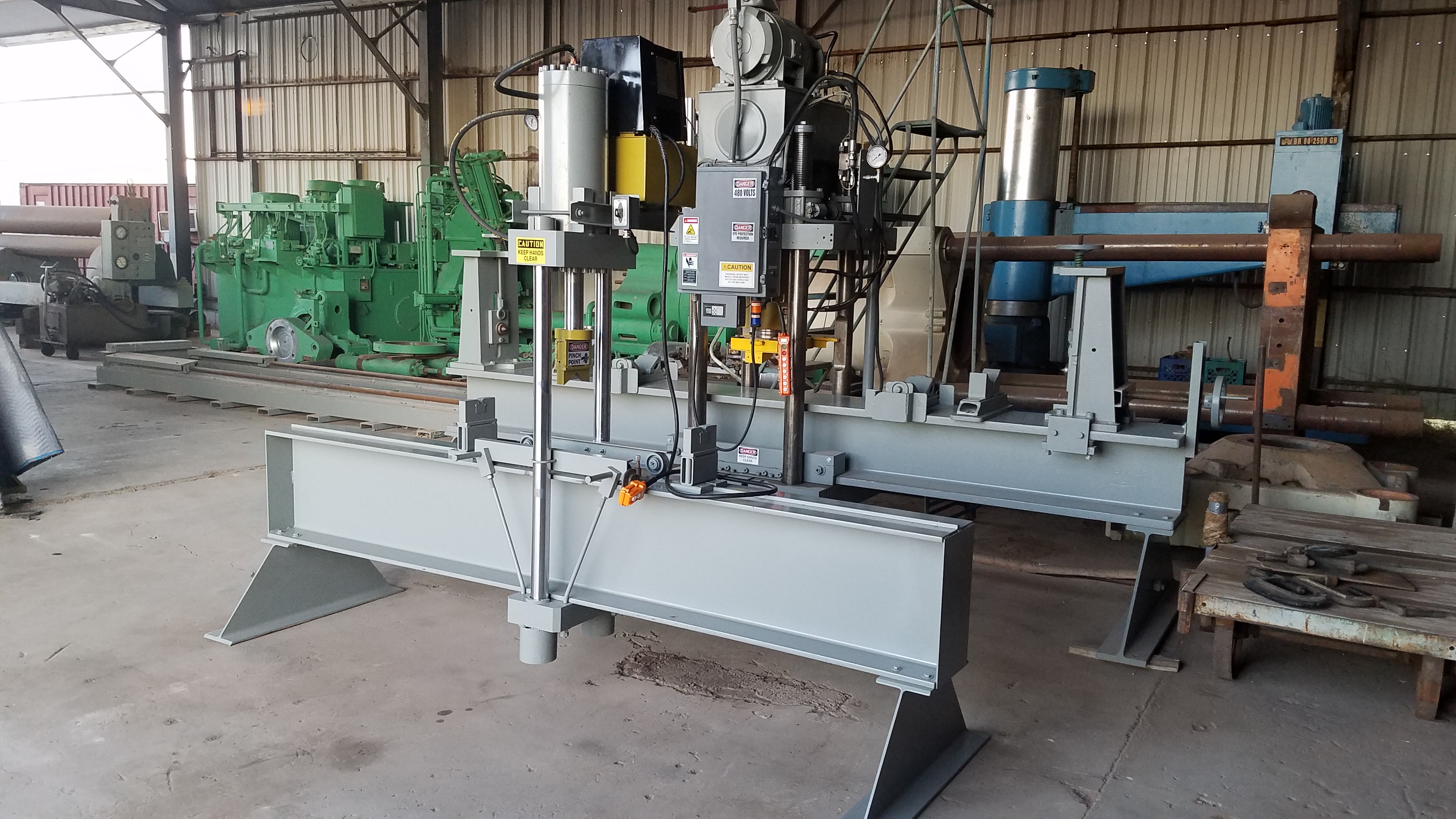

80 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type

80 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type
Casa Grande, AZ
orCall 1-520-836-9727
Description
80 Ton Rutil Hydraulic Straightening Press; 2 Axis Traveling Head; Dual Tie Rod Type
Specifications:
Capacity:
Pressing.................................80 Tons @ 3600 PSI (nominal)
Advance................................12 Tons
Return (stripping)..................20 Tons
Bed Area....................................11" x 96"
Distance Between Tie Rods.......11 1/4"
Stroke of Ram ...........................18"
Daylight Opening.......................24"
Distance Floor to Bed................30" (nominal)
Type of Ram Cylinder.............. .Double Acting
Diameter of Ram .......................3"
Diameter of Tie Rods (2)...........2 1/2"
Travel of Head...........................72" (manual)
Ram (slide) Speeds:
Pressing.................................6 ipm
Advance................................30 ipm
Return...................................40 ipm
Hydraulic System...................... Pressure Compensated Variable Volume
Reservoir Capacity.....................5 Gallons (nominal)
Electrical Characteristics............240/480 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Hydraulic System with Reservoir
Complete Electrical Controls
Ram Nose Adapter (optional)
2 ea. Sliding Vee Type Support Blocks (optional)
Overall Dimensions.................24" F-B x 96" L-R x 110" High
Weight......................................3,500 lbs. (est.)
F.O.B............................Casa Grande, Arizona
Specifications
Condition | Used |
Stock Number | 3275 |
