Tannewitz Mdl. GVTNE Vert. Band Saw #4041

Tannewitz Mdl. GVTNE Vert. Band Saw #4041

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

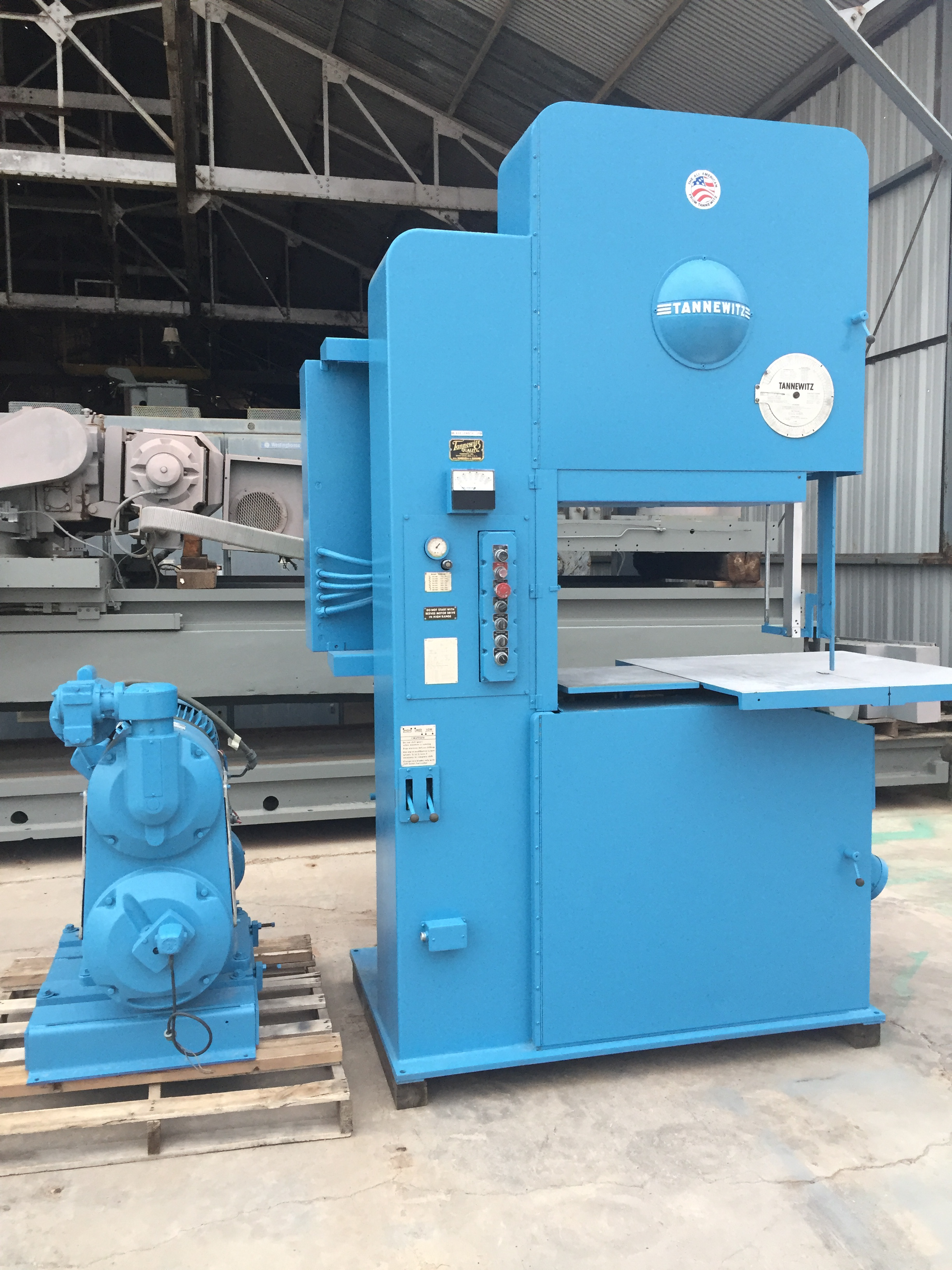

(1) Used 36" Tannewitz Model GVTNE Vertical Band Saw; S/N 84016

Specifications:

Blade Speed (Infinitely Variable)...........70-15,000 F.P.M.

Blade Tension Control.......................Hydraulic

Size, Wheel Diameter........................36"

Under Guide Capacity........................20"

Throat Capacity.............................35 1/2"

Base Construction...........................Welded Steel

Band Width Capacity.........................1/8" to 1 1/2"

Band Length.................................18'7" min - 20' max

Table Size..................................36" x 37"

Auxiliary Table Size........................16" x 19"

Table Tilting...............................45° Right, 5° Left

Upper Wheel Adjustment......................5"

Wheel Type..................................Heavy Duty Balanced Steel Disc

Hydraulic Adjusted Guide Post....................1 1/4" x 2 1/4"

Table Height................................42" (From Floor)

Horsepower..................................15 HP

Motor Drive.................................Belt

Electrical Characteristics..................220/440 VAC / 3 Phase / 60 Cycle

Equipped With:

TANNEWITZ High Speed Pressed Steel Wheels w/Replaceable Tires And Rims

Heavy Duty High Speed Blade Guides

U.S. ELECTRICAL Variable Speed Drive

DRIVE-ALL Model DAF244 3-Speed Geared Transmission

Electric/Hydraulic Wheel Brakes

Complete Electrical Controls

Operator's Manual (optional from manufacturer)

Overall Dimensions..........................8' L-R x 5' F-B x 108" Height

Weight......................................5,000 lbs. (est.)

F.O.B.......................................Casa Grande, AZ

Specifications

ConditionUsed
Serial Number84016
Stock Number4041
