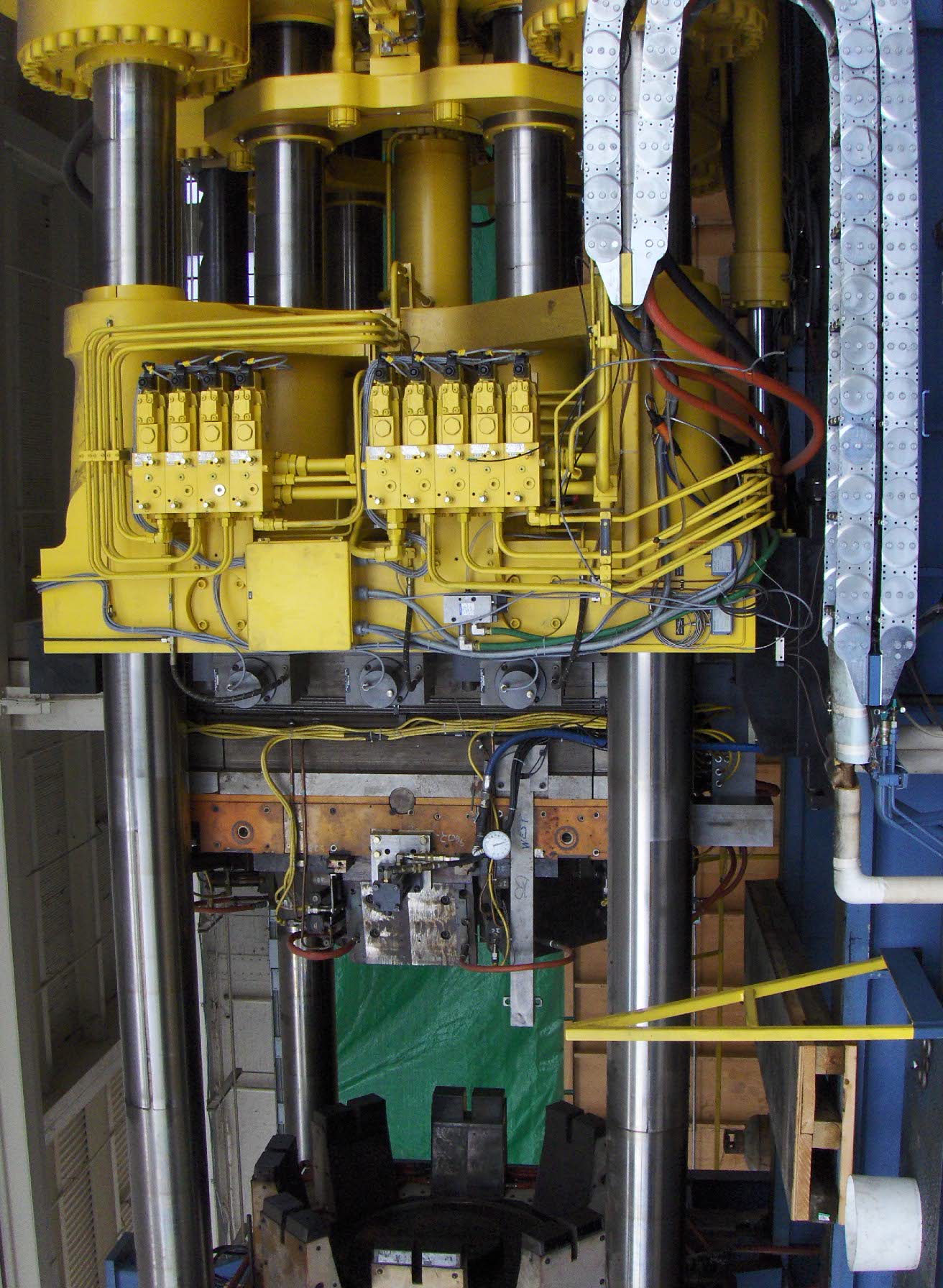

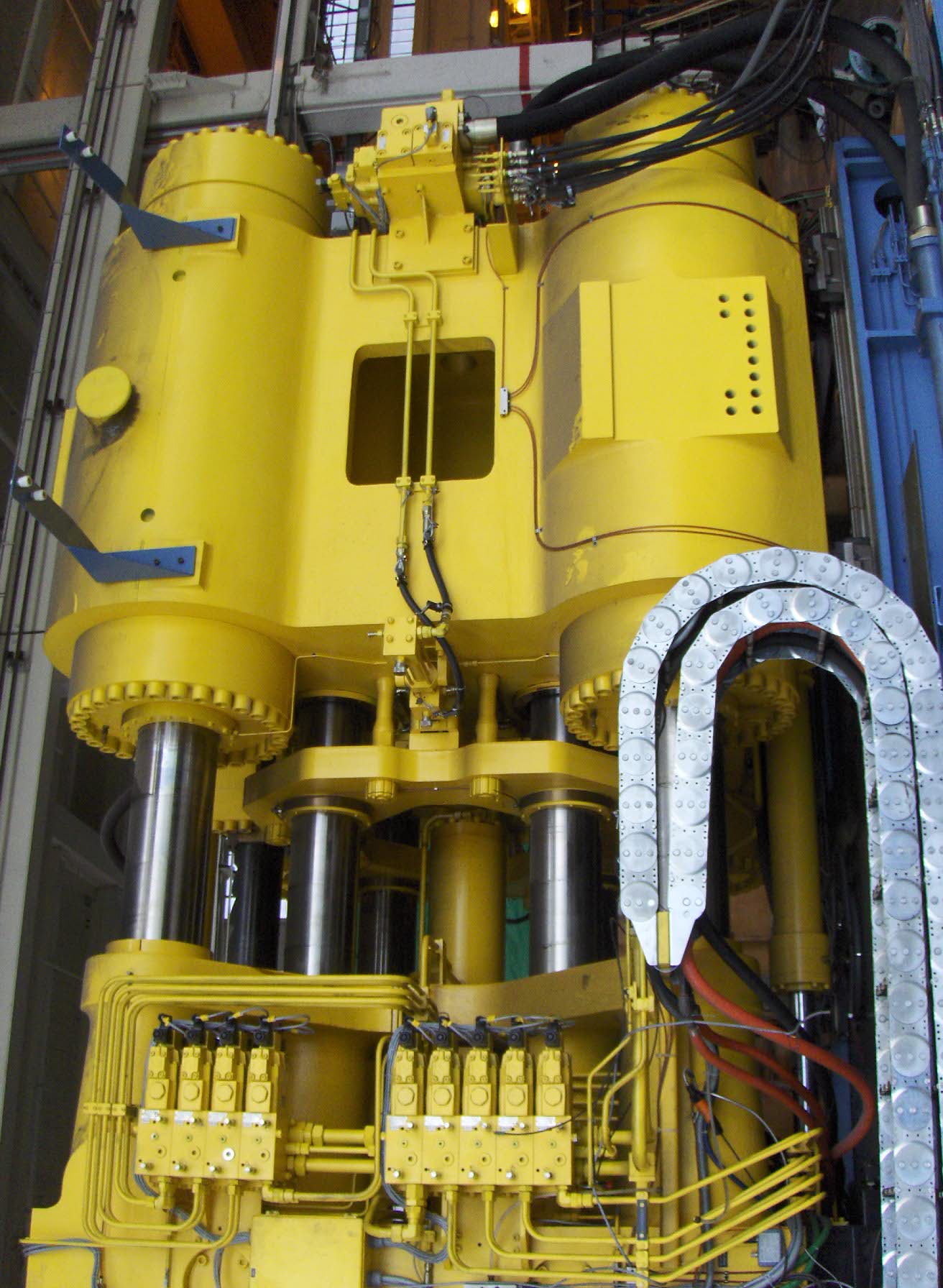

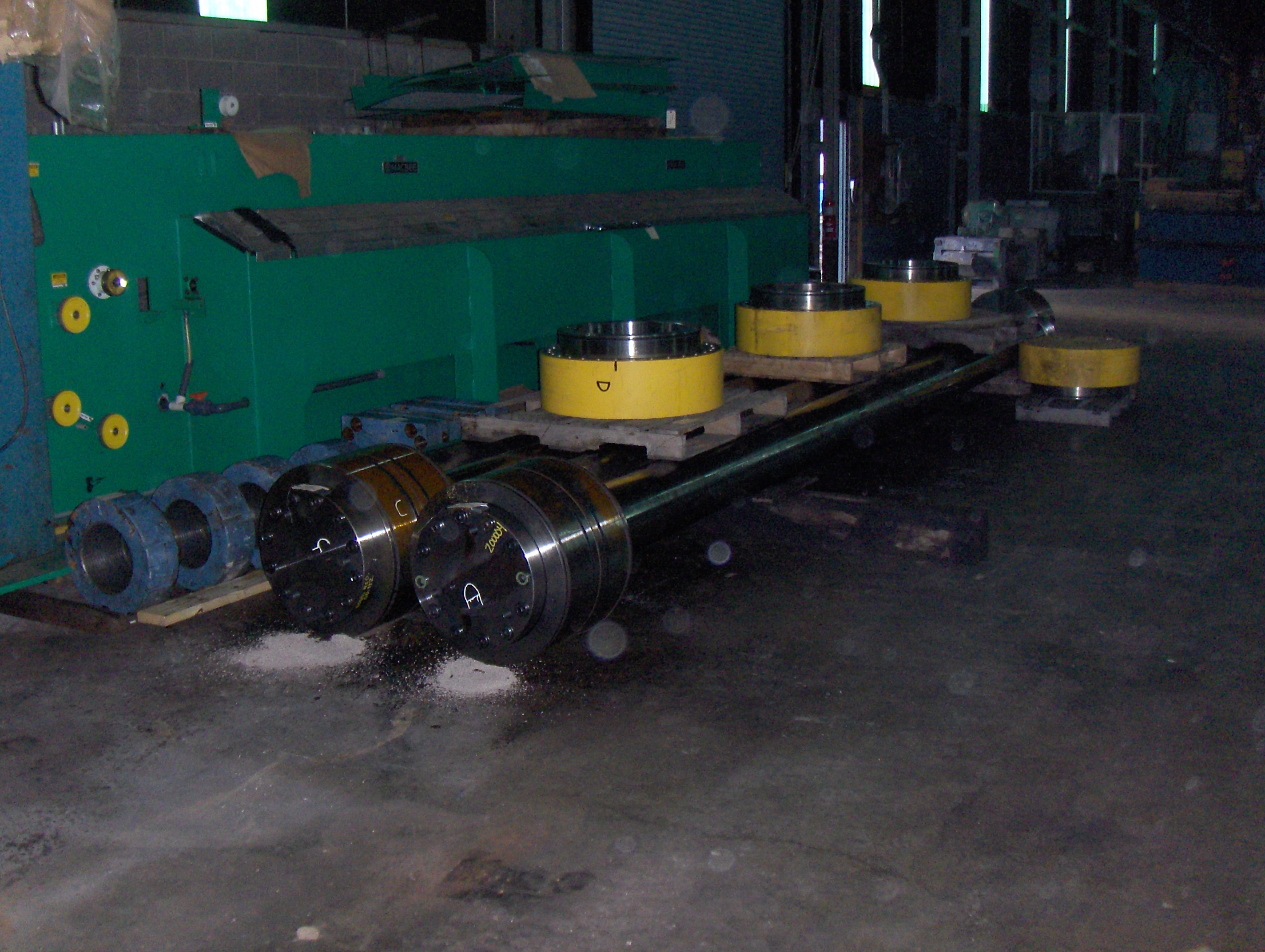

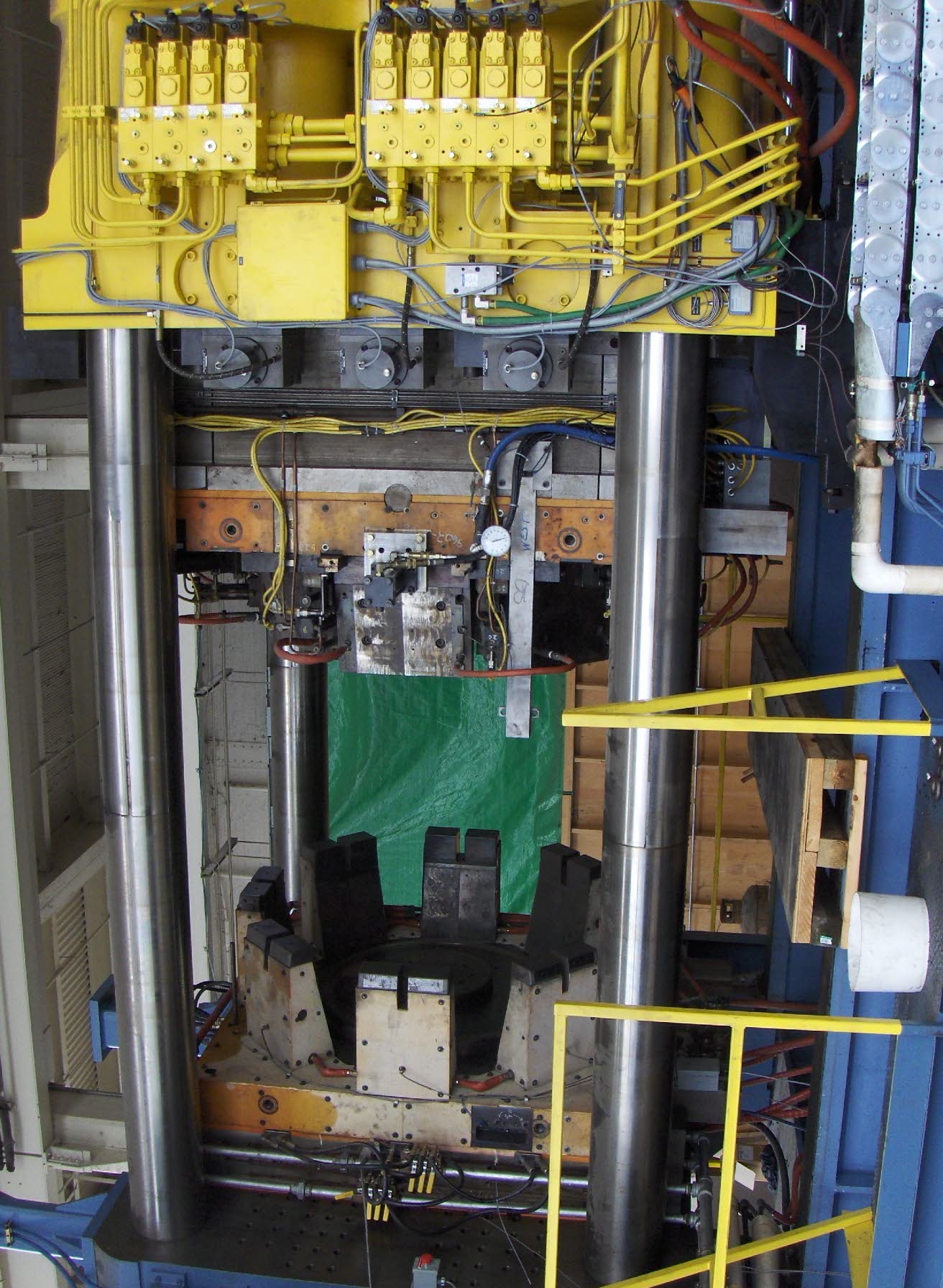

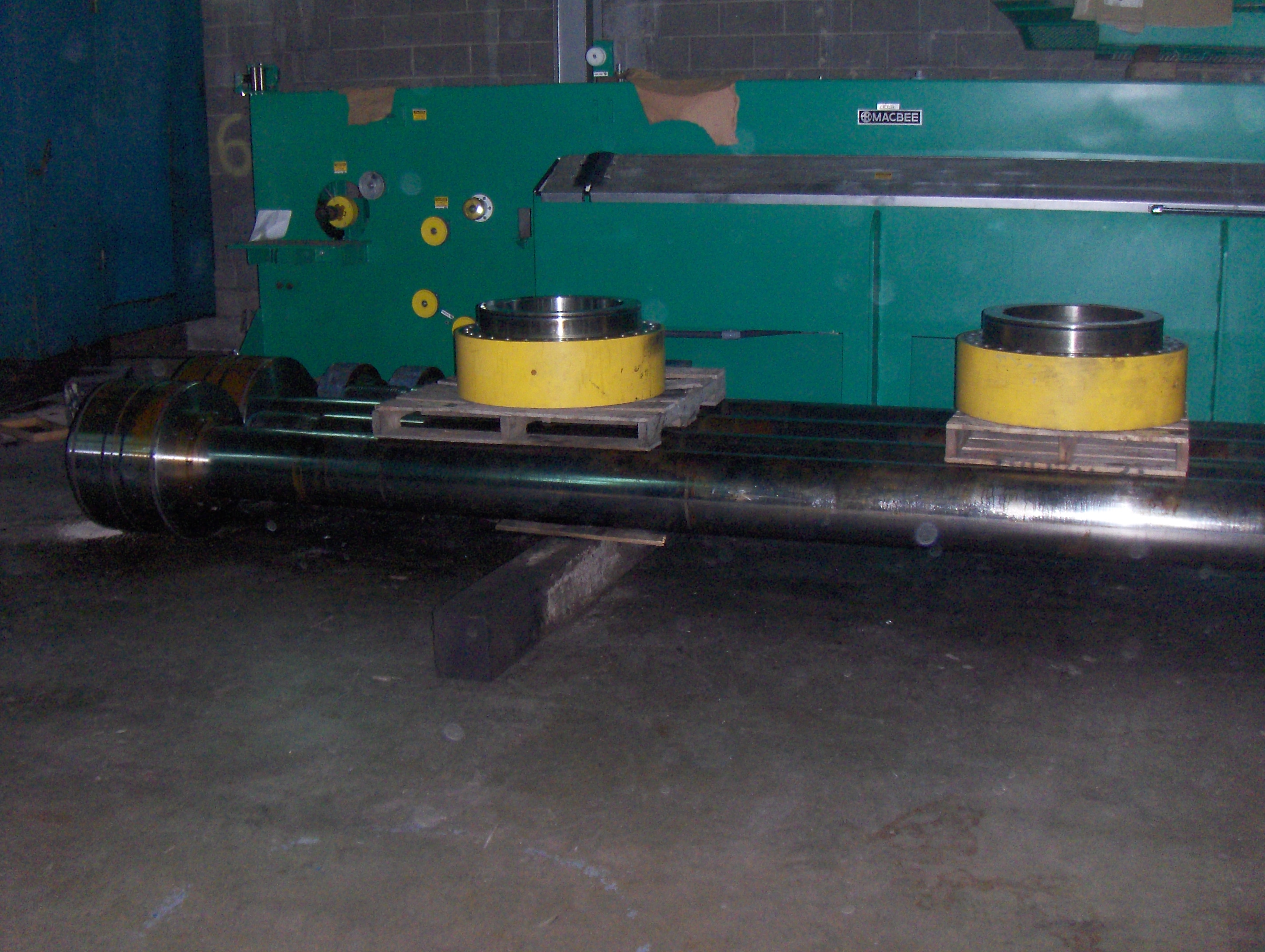

2,000 Ton Engel Hydraulic Press; 4 Post Dn-Acting; Mint; Mfg. 1995

2,000 Ton Engel Hydraulic Press; 4 Post Dn-Acting; Mint; Mfg. 1995

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 2,000 Ton Engel 4 Post Hydraulic Press; Down Acting Type; MFG 1995 Specifications: Capacity (Tonnage): Pressing...................................2,000 Tons Advance..................................200 Tons Return.....................................250 Tons Bed Area......................................120" LR x 90" FB Ram (Slide) Area.........................120" LR x 90" FB Distance Between Post.................72" LR x 55" FB Stroke of Ram/Slide......................80" (est) Daylight........................................150" (est) Distance Floor to Bed....................30" (est) Tie Rod Diameter ..........................12" Number of Ram Cylinders...............4 Type of Ram Cylinders....................Double Acting Diameter of Ram Cylinders................22" (est) Ram (Slide) Speeds; Pressing............................50 in/min Advance............................180 in/min Return................................210 in/min Hydraulic System; Manufacturer & Type.............Rexroth Variable Volume / Pressure Compensated Power & Pressure...................525 HP @ 3,000 psi Fluid Capacity.........................1,000 gal. Electrical Characteristics.............480 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls With Operator Station Complete Hydraulic System Overall Dimensions: Press...............................94" F-B  x  130" L-R  x  20 ft. High  (Est.) Hydraulic Unit...................... Weight: Press............................... 278,000 lbs. (est.) Hydraulic Unit................. 18,000 lbs. F.O.B....................................Akron, OH

Specifications

ConditionUsed
Stock Number2510
