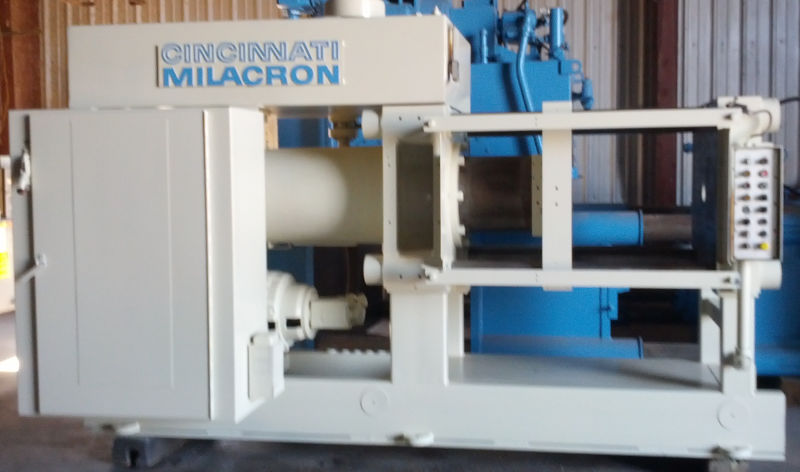

250 Ton Cincinnati Hydraulic Extrusion Press

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 250 Ton Cincinnati Hydraulic Extrusion Press; S/N 4082A21/79-38
Specifications:
Extrusion Force.............................250 Tons @ 3,000 PSI (nominal)
Stripping / Return Force....................
Stroke (Ram)................................29"
Daylight Opening............................42"
Distance Between Tie Rods...................27" T-B x 27" F-B
Main Ram Diameter...........................17 1/2"
Main Ram Cylinder Bore......................17 3/4"
Tie Rod Diameter............................4"
Distance Floor to Extrusion Centerline......52" (nominal)
Extrusion Temperature.......................
Speeds:
Advance................................
Pressing (Extrusion)...................
Opening (Return).......................
Container System:
Billet Diameter (Direct Extrusion).....
Billet Diameter (Indirect Extrusion)...
Max. Billet Length.....................
Container Diameter (Outside)...........
Container Heating System...............
Length of Container Housing............
Distance of Travel.....................
Closing Force..........................
Opening Force..........................
Speeds:
Closing...........................
Opening...........................
Billet Shear:
Capacity...............................
Stroke.................................
Speed..................................
Extrusion Stem:
Diameter...............................
Length.................................
Mounting System........................
Die System:
Die Diameter...........................
Die Thickness..........................
Shuttle Stroke.........................
Billet Loading System.......................

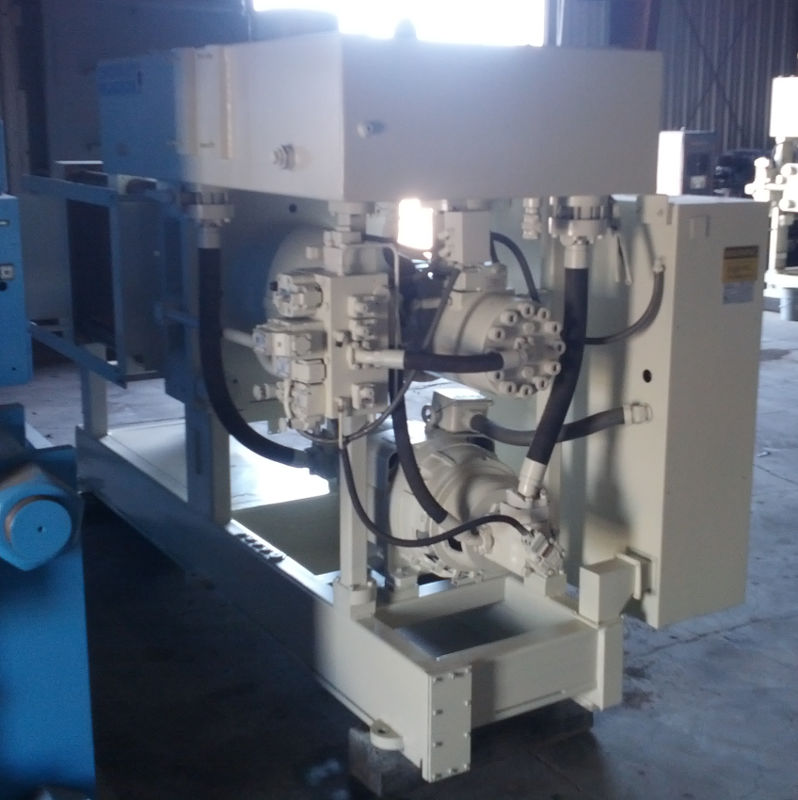

Hydraulic System:
System Manufacturer....................Sperry / Vickers
System Pressure........................3,200 PSI (nominal)
System Capacity........................45 GPM
System Horsepower (Total)..............50 HP @ 1,800 RPM (nominal)
Number of Pumps........................2
Pump Specifications:
Unit #1...........................Vickers 4520V60A510B12180
Unit #2...........................Vickers 4520V60A510B12L180
Primary Drive Motor:
Manufacturer......................Delco
Horsepower Rating.................60
Electrical Characteristics........230/460 VAC / 3 Phase / 60 Cycle
Valve System:
Manufacturer......................Sperry / Vickers
Type..............................Multi-Directional / Pilot Operated
Reservoir System:
Type..............................Fabricated Steel
Fluid Volume......................277 gallons (est.)
Control System:
Manufacturer...........................IDEC
Type...................................PLC
Interface..............................3" Touch Screen HMI (up to 12" color optional)
Electrical Requirements.....................460 VAC / 3 Phase / 60 Cycle / 100 Amps
Equipped With:
Complete Electrical Controls with Operator's Station
Complete Hydraulic System with 9" High Volume Pre-Fill Valve
Overall Dimensions..........................151" L x 75" W x 100" H
Weight......................................35,000 lbs. (est.)
F.O.B.......................................Casa Grande, AZ
Keywords: lead, silver, copper, non-ferrous

Specifications

ConditionUsed
Stock Number3459
