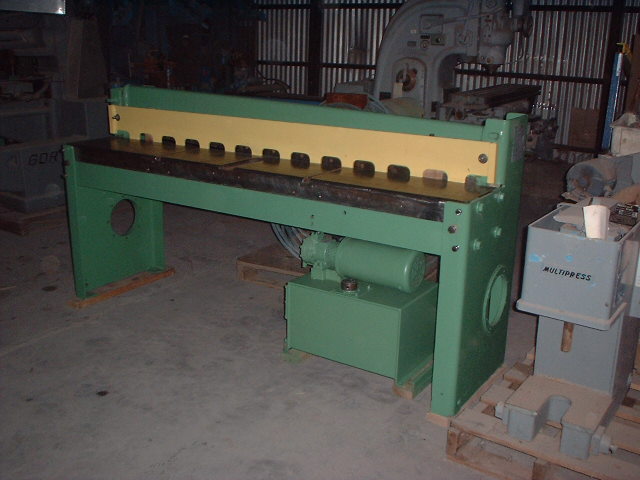

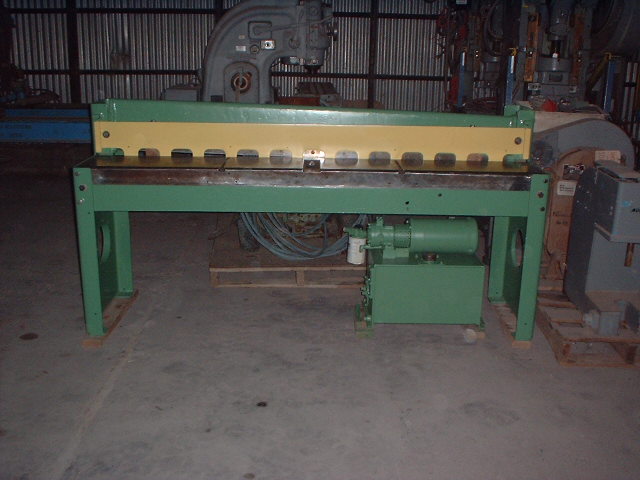

16 ga x 72" Niagara Hydraulic Shear; Series One

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 6' x 16ga. Niagara Hydraulic Shear; Series One; S/N 50409
Specifications:
Maximum Capacity...........................16 ga.
Length of Cut..............................72"
Length Between Housings....................76"
Shear (Rake) Angle Taper Per Foot..........3/8" nominal
Ram Adjustment.............................Yes
Distance Bed to Floor......................32"
Speed......................................N/A
Size of Four-Edged Knives..................2 1/8" x 9/16"
Length of Knives...........................74"
Motor......................................3 HP
Electrical Characteristics.................230/460 VAC / 3 Phase / 60 Cycle
Equipped With:
3 HP Varipak Auxiliary Hydraulic Unit
Finger Guard
Overall Dimensions.........................84" L-R x 24" F-B x 44" High
Weight.....................................1,000 lbs. (est.)
F.O.B......................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2207
