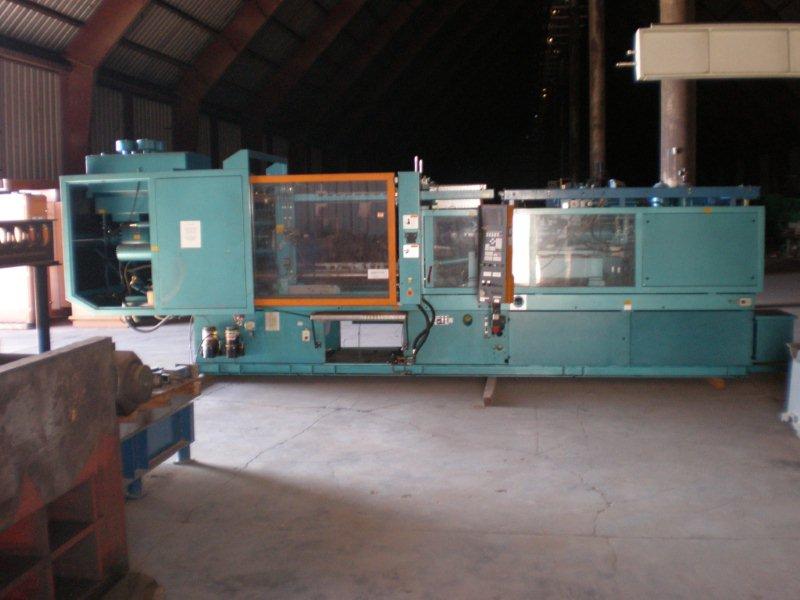

310 Ton Ferromatik-Milacron Injection Molding Press; 2 Color; 2 Injector Screws

310 Ton Ferromatik-Milacron Injection Molding Press; 2 Color; 2 Injector Screws

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 310 Ton Ferromatik-Milacron Injection Molding Press; Model K275-S/2F; S/N 556190; Year 1999 Specifications: Clamp Force....................................310 tons Opening Force.................................18 1/3 tons Ejector Force....................................9 1/5 tons Ejector Stroke...................................7 7/8" Injection Capacity / Shot Size..........22.9 - 31.2 oz. Injection Pressure.............................34,500 psi & 39,450 psi Clamp Stroke...................................33 1/2" Stroke Volume..................................9.2 cubic inches & 3.9 cubic inches Platen Size........................................43 3/4" F-B x 42" T-B (Ram) 43 3/4" F-B x 45 3/4" T-B (Bed) Distance Between Tie Rods..............29 1/2" F-B x 29 1/2" T-B Max. Daylight...................................47" Min. Mold Thickness........................33 1/2" Min. Mold Installation Height...........13 1/2" Max. Mold Weight...........................5,291 lbs. (moving) 2,535 lbs.  (fixed) # of Screws.......................................2 Screw Diameter................................1 3/16" Screw Stroke..................................... Controller Type................................FM Heater..............................................19 1/2 kW Hydraulic Fluid Capacity.................. Motor, Horsepower.........................85 HP Electrical System............................460 Volts / 3 Phase / 60 Cycles Equipped With: Complete Electrical Controls With Operators Station Complete Hydraulic System Approx. Dimensions......................310" L x 83" W x 105 1/2" H Weight............................................41,000 lbs. (est.) F.O.B..............................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2896
