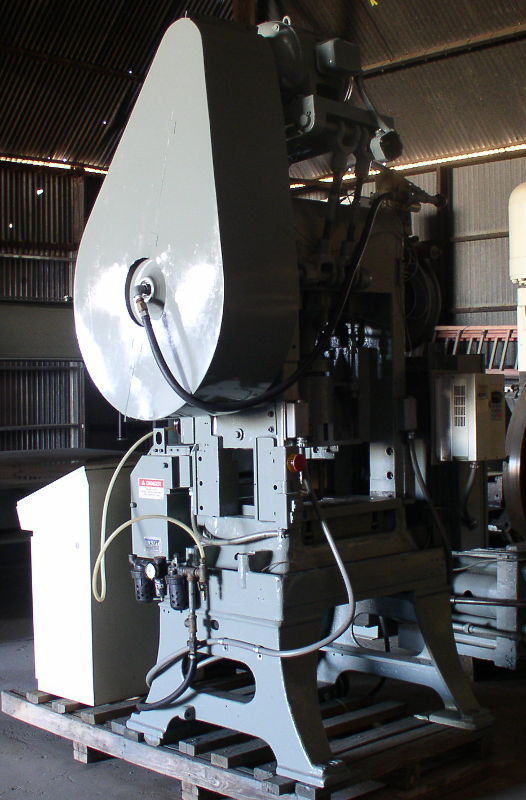

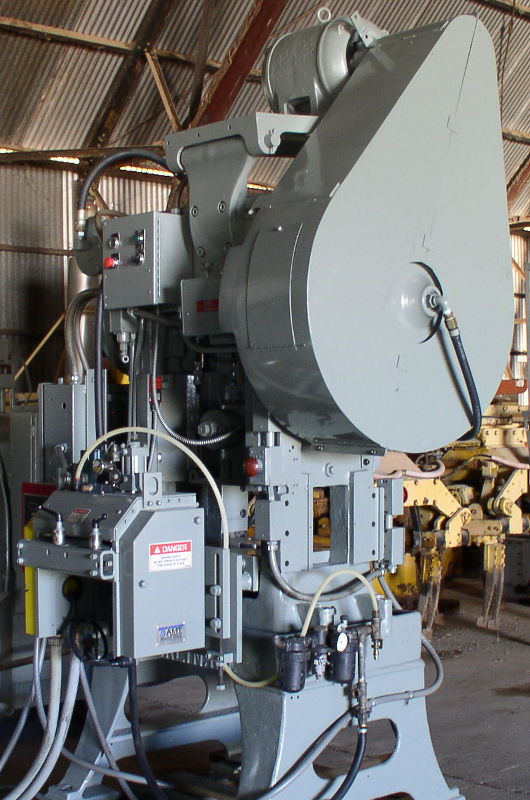

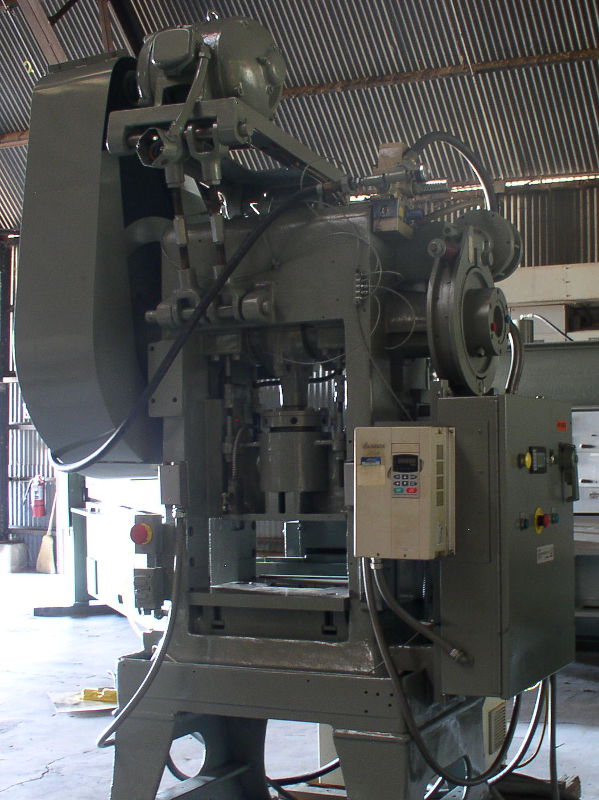

30 Ton Bliss Straight Side S.C. High Speed Press; Flywheel Drive; Re-mfg. 2005

30 Ton Bliss Straight Side S.C. High Speed Press; Flywheel Drive; Re-mfg. 2005

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

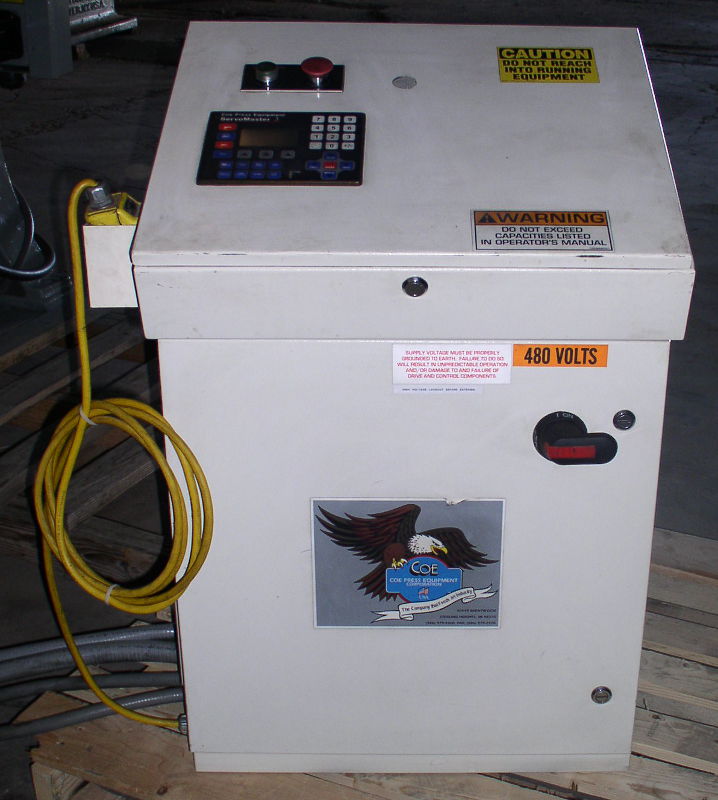

(1) Used 30 Ton Bliss Straight Side S.C. High Speed Press; Flywheel Drive; Re-mfg. 2005 Specifications: Capacity: Bottom of Stroke.............................30 tons Mid-Stroke...................................... Bed Area.............................................14" x 20" Bed Opening.......................................12" L-R x 6" F-B Slide Area............................................16" L-R x 8" F-B Distance Between Housings.................20" Distance Between Gibbs......................16 1/2" Window Opening..................................6 7/8" L-R x 9 1/2" T-B Stroke...................................................2" (est.) Daylight Opening.................................10" (est.) Shut Height Over Bed (SDAU)..............8" (est.) Distance Floor to Bed...........................32" Power Ram Adjustment.........................3" (est.) Speed...................................................50 - 200 SPM Main Drive Motor...................................7 1/2 HP Electrical Characteristics.......................240/480 VAC / 3 Phase / 60 Cycle Equipped With: PA Microprocessor Control AC/Brake 7 1/2 HP VFD Delta Wintriss Autoset 1500 Load Monitor 6 cam RLS Ross Dual Sol. Valve Automatic Lubrication System 12" x 10ga C.O.E. "Servomaster 3" Servo Roll Feeder (2007, optional) Approx. Overall Dimensions.................79" L x 64" W x 110" H Weight..................................................5,500 lbs. (est.) F.O.B....................................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3326
