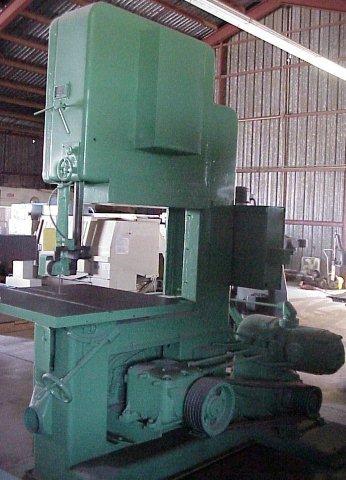

36" Tannewitz Model GVTNE Vertical Band Saw; S/N 13309

36" Tannewitz Model GVTNE Vertical Band Saw; S/N 13309

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 36" Tannewitz Model GVTNE Vertical Band Saw; S/N 13309 Specifications: Blade Speed (Infinitely Variable)...........55-11,000 F.P.M. Blade Tension Control....................... Size, Wheel Diameter........................36" Under Guide Capacity........................20" - (Up To 42" Optional) Throat Capacity.............................35 1/2" Base Construction...........................Welded Steel Band Width Capacity.........................1/8" to 1 1/2" Band Length.................................18'7" min - 20' max Table Size..................................36" x 37" Auxiliary Table Size........................16" x 19" Table Tilting...............................45° Right, 5° Left Upper Wheel Adjustment......................5" Wheel Type..................................Heavy Duty Balanced Steel Disc Gear-Adjusted Guide Post....................1 1/4" x 2 1/4" Table Height................................42" (From Floor) Horsepower..................................10 HP Motor Drive.................................Belt Electrical Characteristics..................220/440 VAC / 3 Phase / 60 Cycle Equipped With: TANNEWITZ High Speed Pressed Steel Wheels w/Replaceable Tires And Rims Heavy Duty High Speed Blade Guides U.S. ELECTRICAL Variable Speed Drive DRIVE-ALL Model DAF244 3-Speed Geared Transmission Electric/Hydraulic Wheel Brakes Complete Electrical Controls Compressed Air Chip Blower Optional Power Feed Table System Optional Extended Height (Work Thickness) Capacity Operator's Manual (optional from manufacturer) Overall Dimensions..........................8' L-R x 5' F-B x 108" Height Weight......................................5,000 lbs. (est.) F.O.B.......................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number1736
