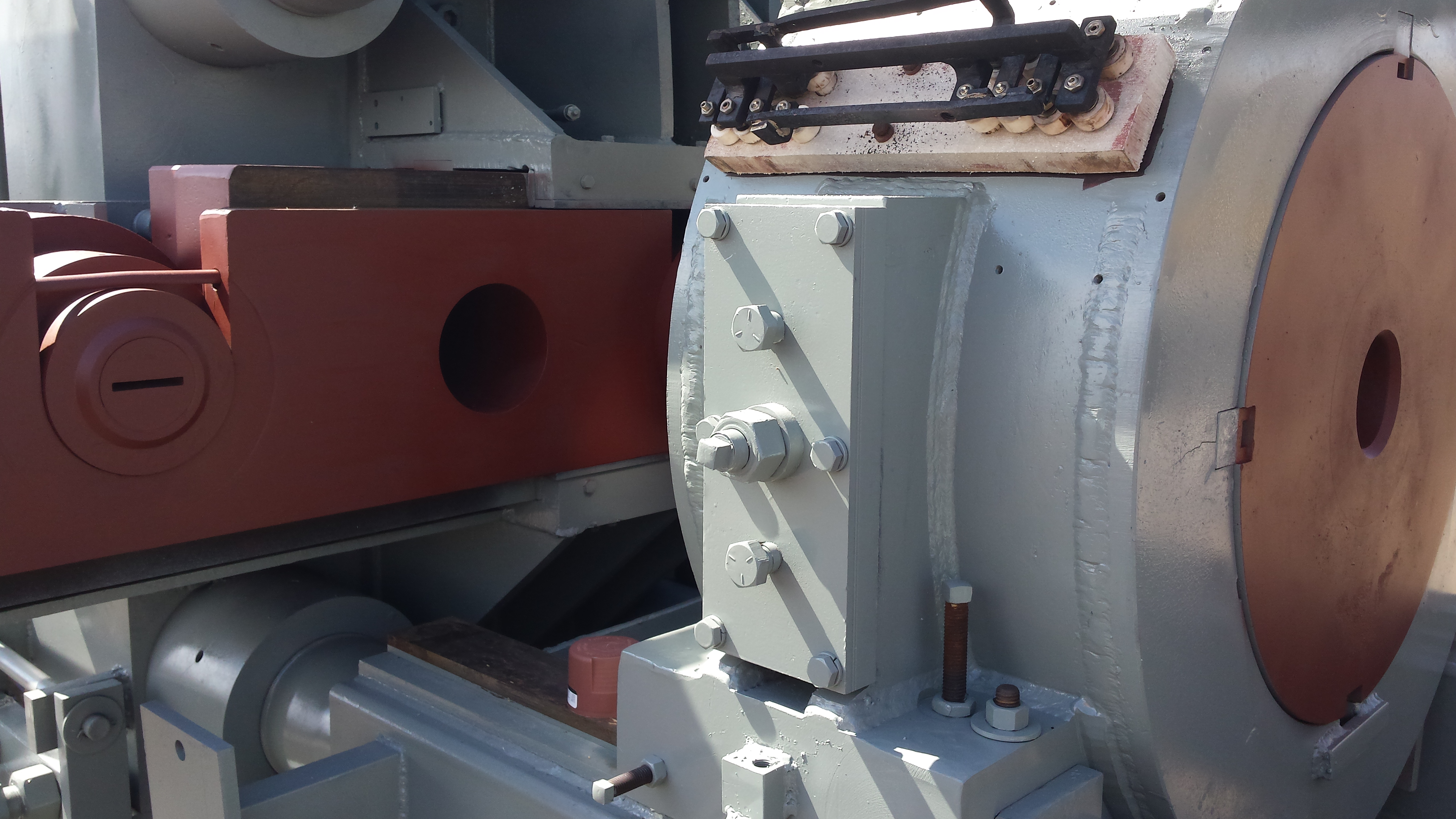

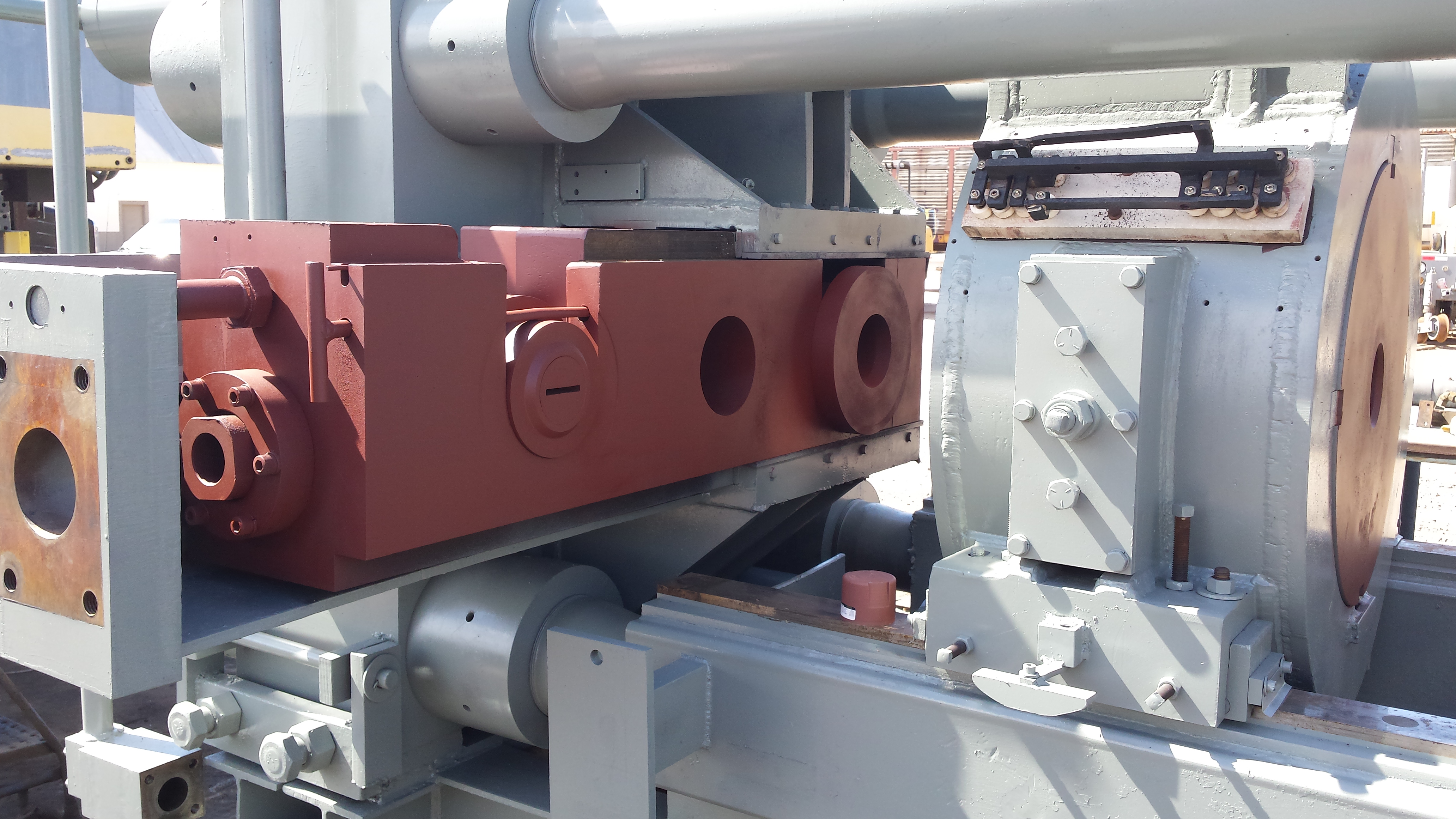

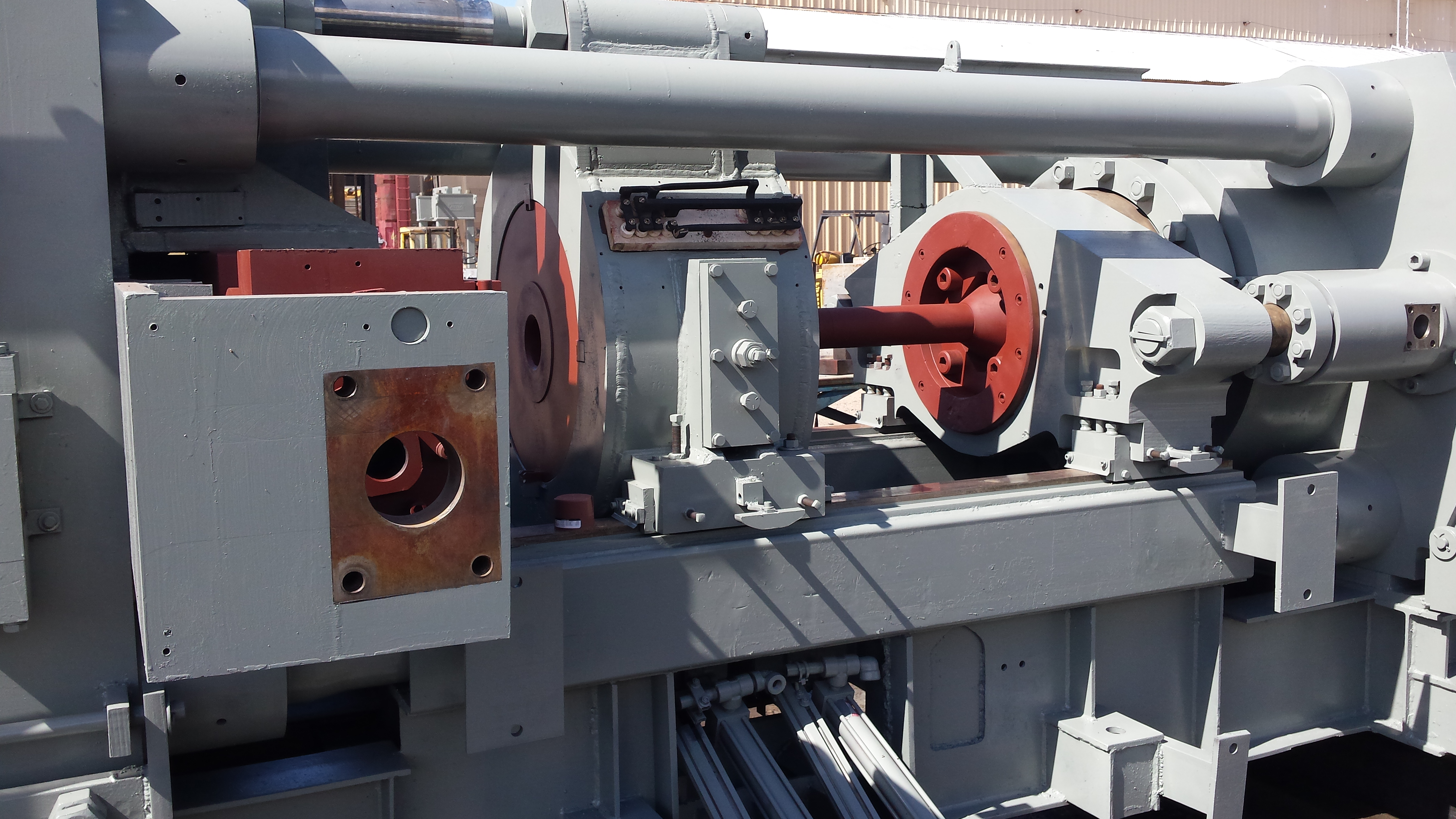

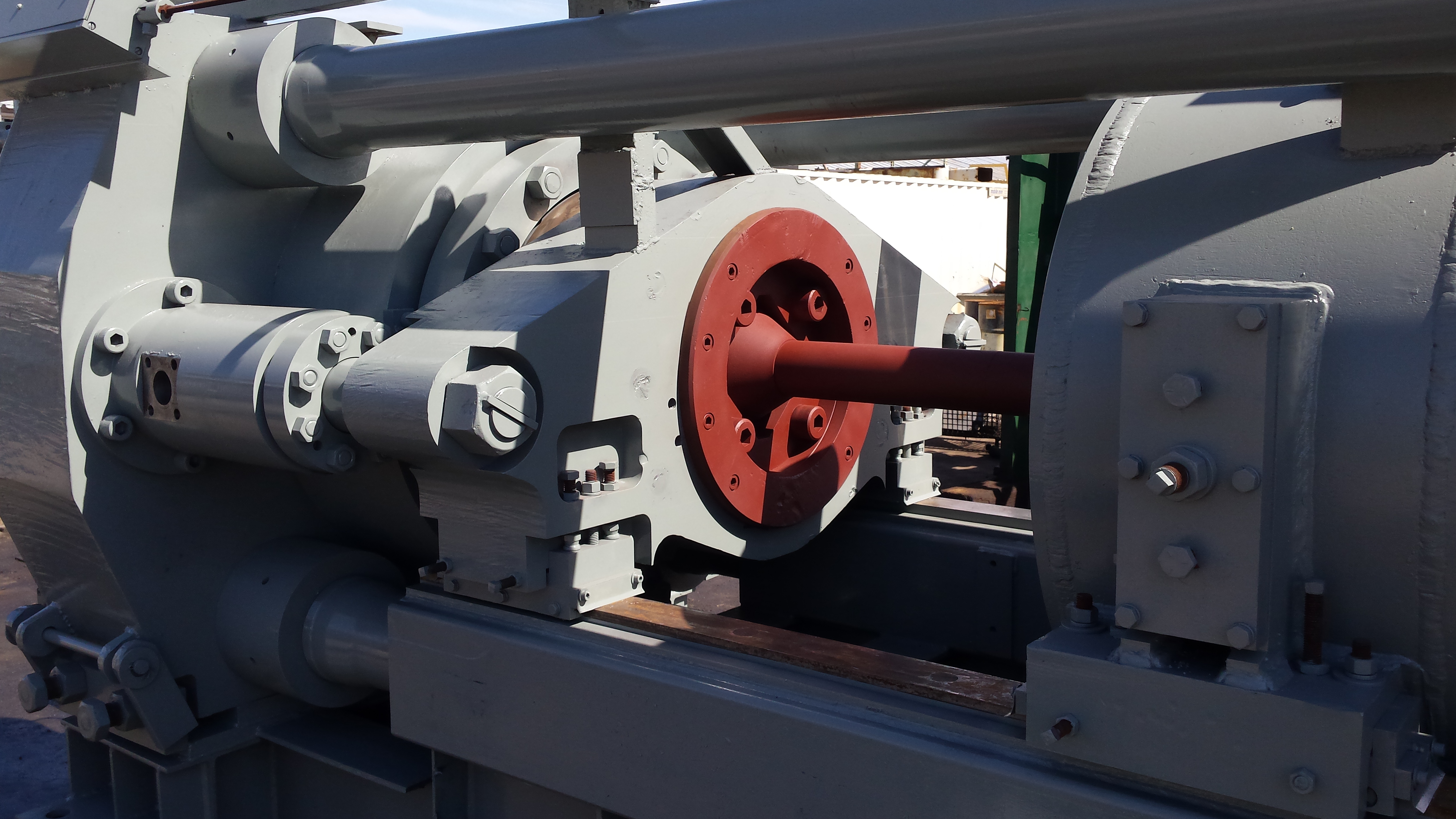

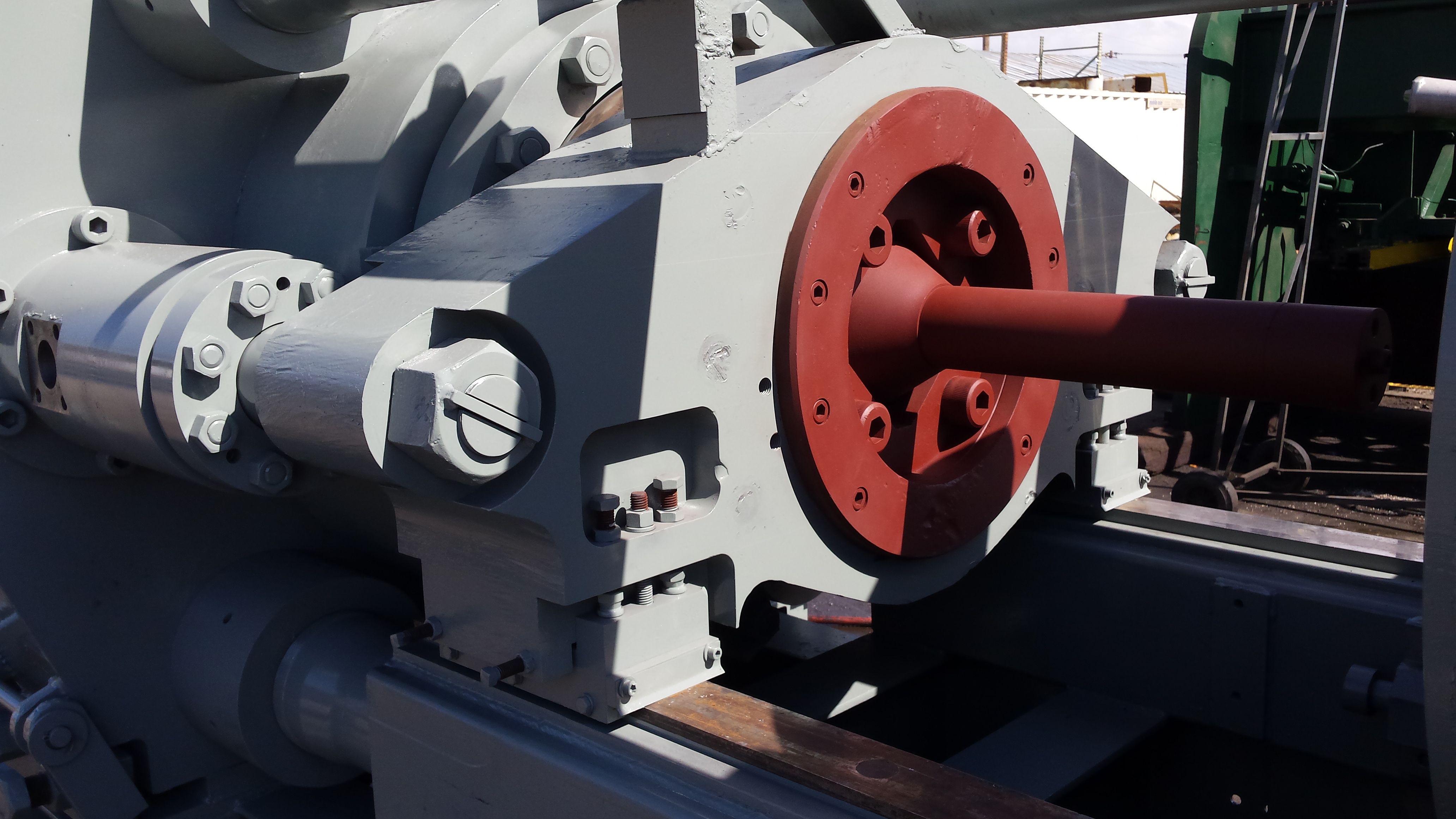

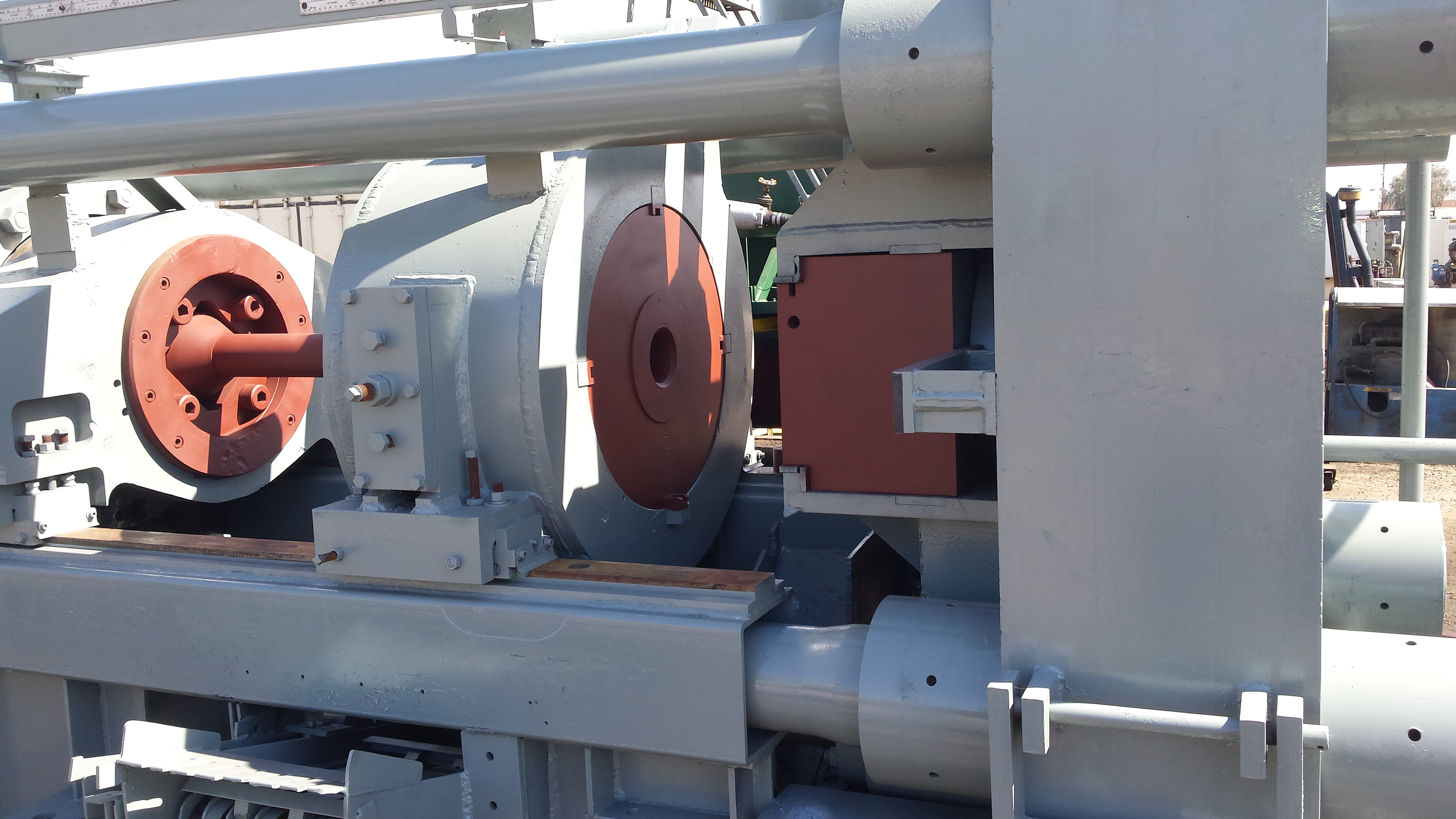

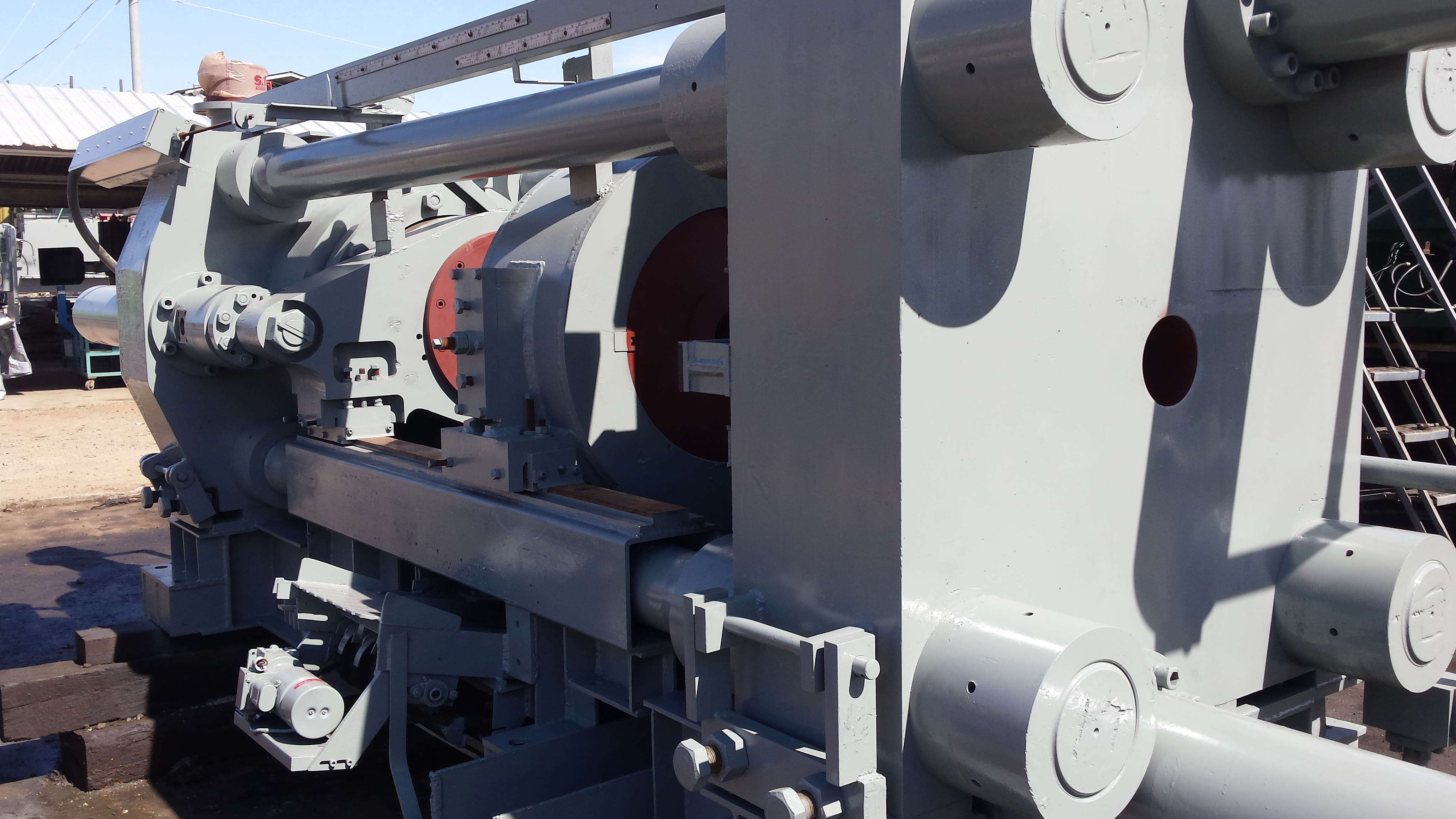

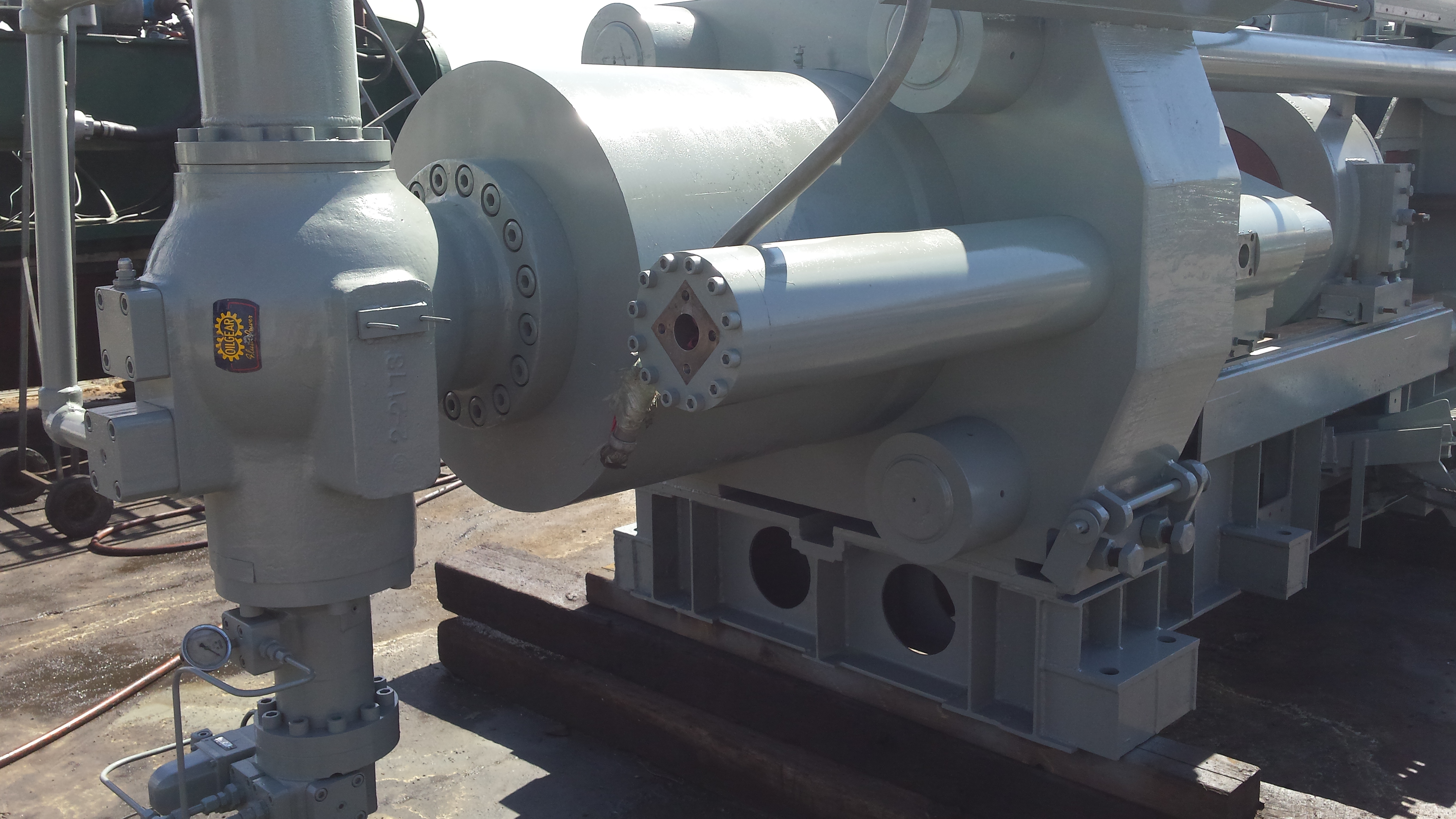

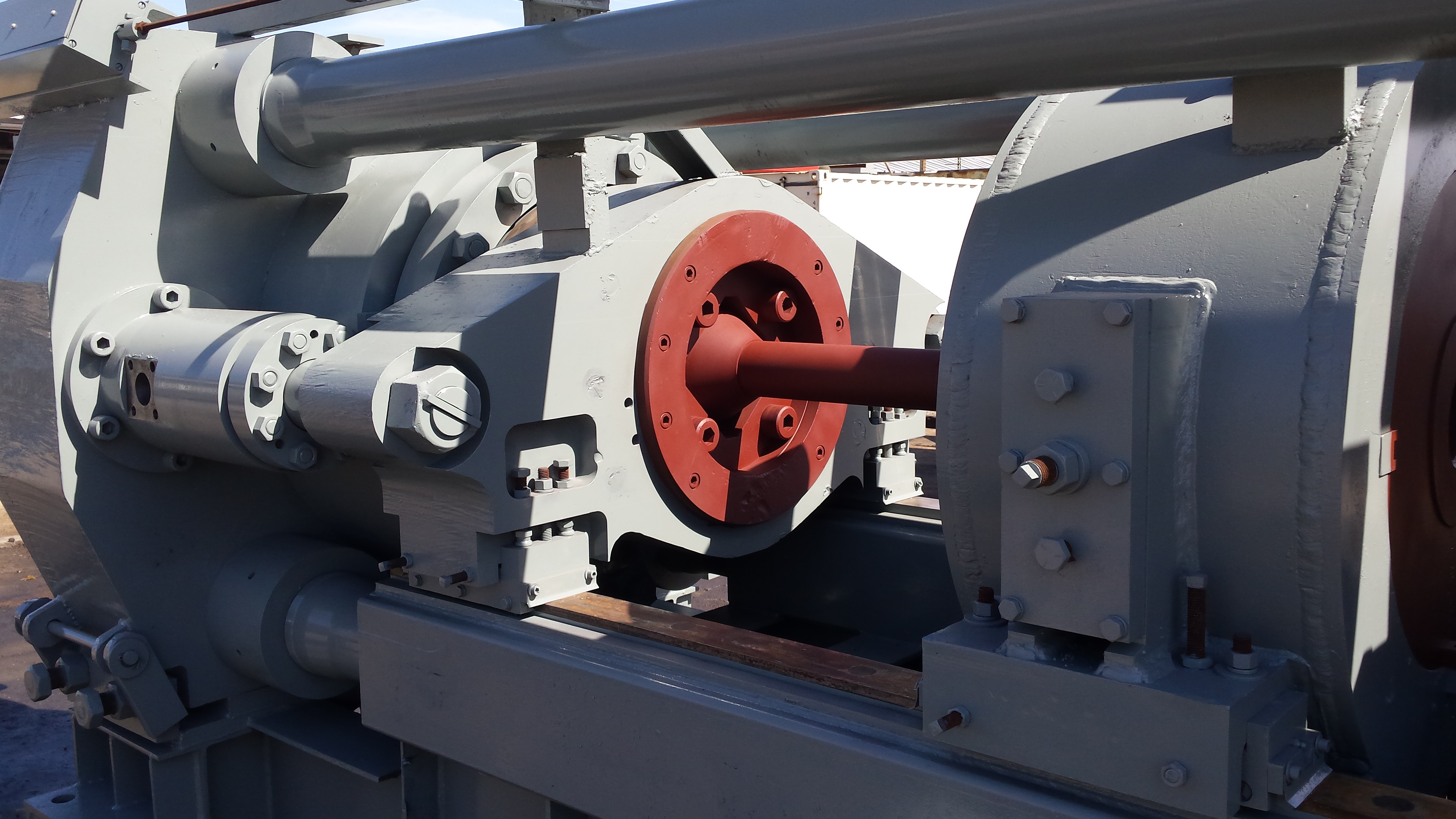

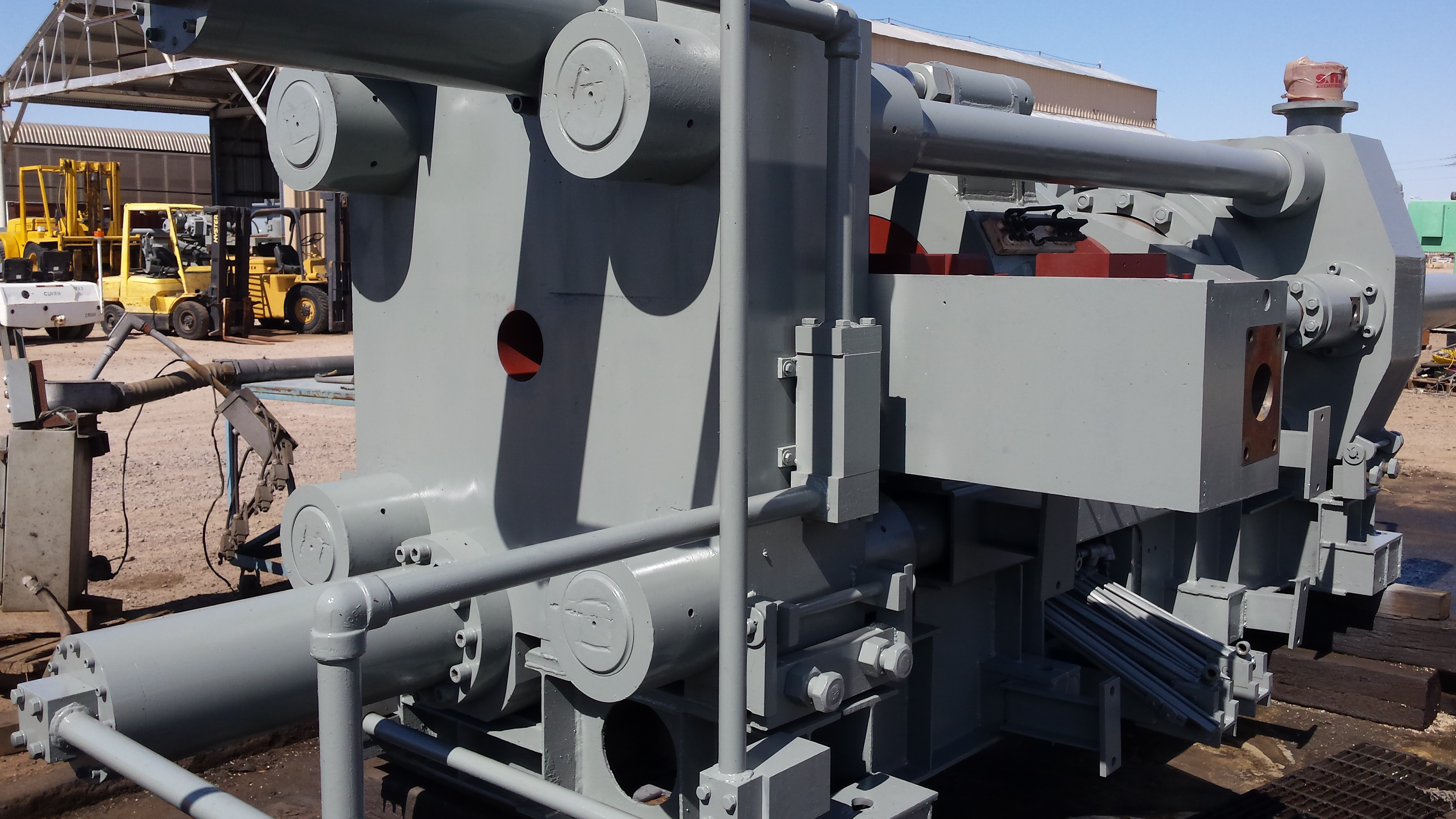

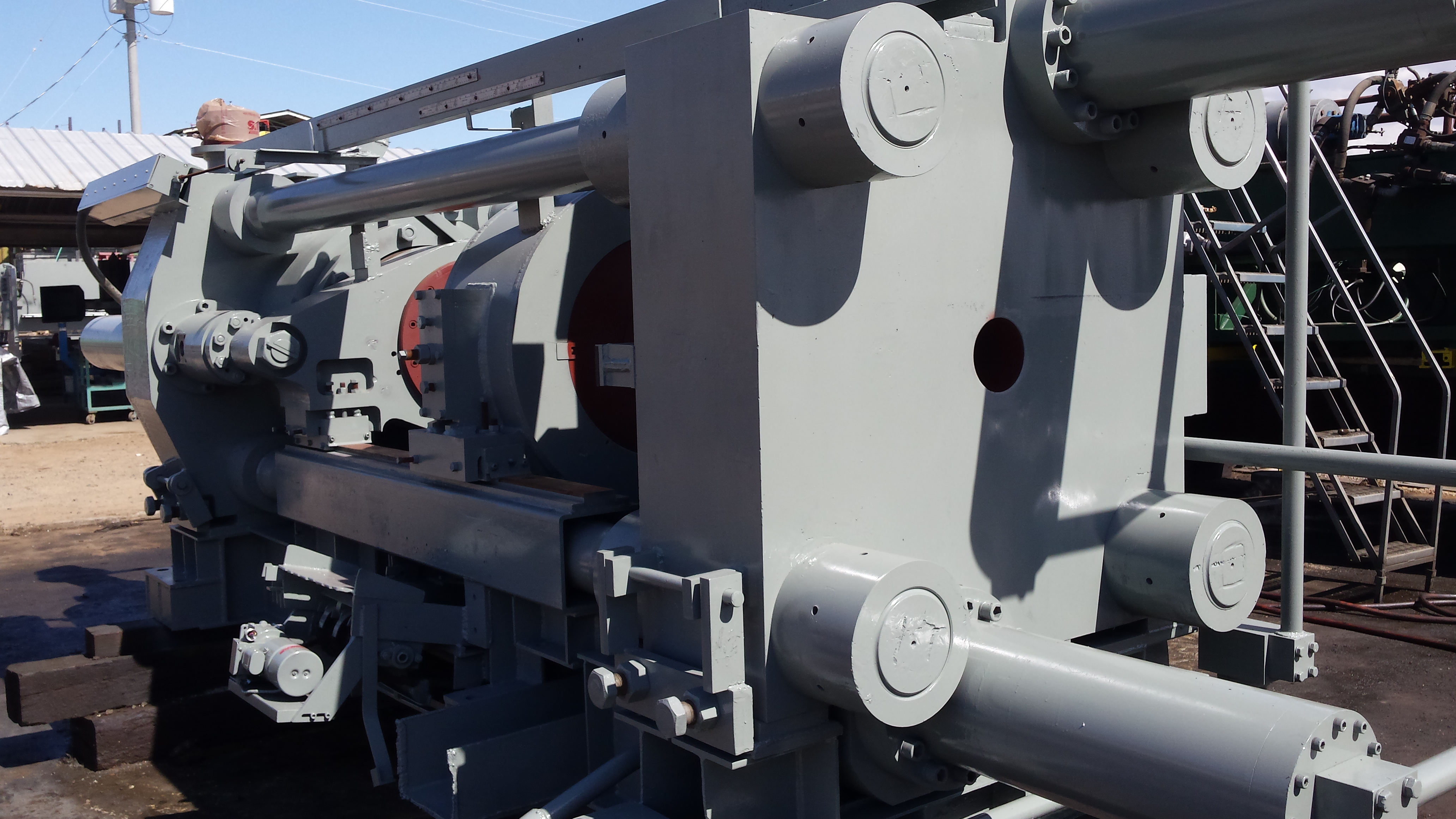

750 Ton Schloemann Hydraulic Extrusion Press

750 Ton Schloemann Hydraulic Extrusion Press

Casa Grande, AZ

orCall 1-520-836-9727

Description

Specifications : Press; Frame Type..........................................Tie Rod Construction  / Symetrical Orientation Extrusion Force...........................................750 Tons @  2,895 PSI Stripping / Return Force.............................. 75 Tons @  2,895  PSI Stroke (Ram)...............................................             36"  (nominal) Distance Ram Face to Die Face .................. 54" Distance Between Tie Rods  (4)..................  27" vertical x  27" horizontal Main Ram Diameters (1).............................  24" (nominal) Advance / Return Piston Diameters (2)....... 6 1/2" (nominal) Tie Rod Diameters (4)................................. 6"  (nominal) Distance Floor to Press Center-line............. 36" (nominal) Speeds: Advance................................................. (TBD)    Inches / Min. Pressing (Extrusion)..............................     "        Inches / Min. Opening (Return)...................................     "        Inches / Min. Stem System; Diameter.......................................................   4" Length..........................................................  17" (without nose piece) Material........................................................  H 13 Mounting System........................................ (4) Bolt Locking Ring Nose Piece; Diameter........................................................  4 1/8" (nominal) Length...........................................................   2" Material........................................................   Inconel Mounting System.........................................   (4) Bolt Container System: Billet Diameter.......................................                     4"  (maximum) Billet Length (maximum).......................                   14 1/2" Billet Loading Clearance.........................     18" Container Diameter (outside)................                      22" Container Length...................................                      16" Container Material ................................        H 13  @ R "C"  34 Hardness Container Heating System.....................       Electric Resistance Bands / Rods Operating Temperature ...........................    1050 Deg F.   (maximum) Liner Diameter  (outside) .....................        9 1/2"   (nominal) Liner Bore ............................................        4 1/4" Liner Length..........................................        16" Liner Material .......................................       H13 Container Housing System; Travel Mechanism..................................       Dual Hydraulic Cylinders Travel Distance .....................................                     22"  (nominal) Guide / Alignment System .......................    Adjustable Gibbing with Bronze Liners Container Mounting System.....................    Circumferential Alignment Key with Locking Steps Die Face Sealing Force  ..........................      70 Tons @ 2,895 PSI Breakaway Force (Opening)...................     100 Tons @  2,895 PSI Speeds: Closing..........................................       (TBD) Inches / Min. Opening...........................................         "     Inches / Min. Billet / Stump / Butt Shear: Capacity..................................................       N/A Guide / Alignment System .......................    Circular Bronze Liner Blade Size & Type.....................................   N/A Shearing Angle.........................................     Verical Stroke......................................................       N/A Cycle Time..............................................       N/A Die System: Die Holder / Backer Diameter  (outside)...... 7"/ 10"/ 11" (nominal) Die Holder Height.................................        3 1/2" Die Diameter.........................................                        3" (with existing holders) Die Stack Height.................................      11" (maximum) Die Stack Retainer System...................        Captivating Steps with Cross-Pin. Die Shuttle System; Shuttle Type...........................................       (3) position / Horizontal Slide / Hydraulic Cylinder Powered Slide Alignment System .......................     Adjustable Gibbs with (4) Bronze Wear Inserts. Die Holder Mounting Method ..............      Drop-In Breach with Locking Pin Slide Support System..............................   Replaceable Bronze Thrust Plate Shuttle Stroke........................................      30"  (nominal) Index Rate.............................................      20 Seconds (nominal) Billet Loading System; Type of System .......................................     Ramp Feed with Lower Swing-Up Mechanism and Pneumatic Clamping Actuation Method....................................     Hydraulic Cylinder Loading Cycle Time................................     45 Seconds / Billet (nominal) Hydraulic System: System Manufacturer........................ ...      Parker / Rexroth / Oilgear System Pressure....................................       3,000 PSI  (nominal) System Capacity...................................        45 GPM  (nominal) System Horsepower (total)...................       75 HP Number of Pumps................................       2 ea. Pump Type............................................       Vane / Variable Volume Pressure Compensated Primary Drive Motors: Manufacturer..........................       U.S. Electrical Horsepower Ratings...............       75 HP @ 1800 RPM Electrical Characteristics.......        460 / 480 V.A.C. 3 phase / 60 cycles Hydraulic Valve System: Manufacturer(s)....................................Rexroth / Vickers / Oilgear Type..................................................   Solenoid / Pilot Operated / 6" Pre-fill Functions..........................................   2 / 3 / 4 Way Spool Types Hydraulic Reservoir System Type..................................................   Steel Fabricated / Over-Head Mtd. Volume............................................   300 Gallons (nominal) Electrical Requirements.............................................. 480 V.A.C./ 3 phase / 60 cycles Equipped With : Complete Electrical Controls. Complete Hydraulic System with Inter-Connect Piping and Manifolds. Horizontal Nat. Gas Fired Billet Furnace Intermediate Billet Handler 30 ft. Run-out and Cooling Table Complete Reconditioning Process Technical Support Documentation. Two (2) Die Holders Overall Dimensions: 8ft F-B  x  24ft L-R x  12ft  High (approx.) Weight: 54,000 Lbs.  (estimated) Price:            $385,950 F.O.B...................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3465
