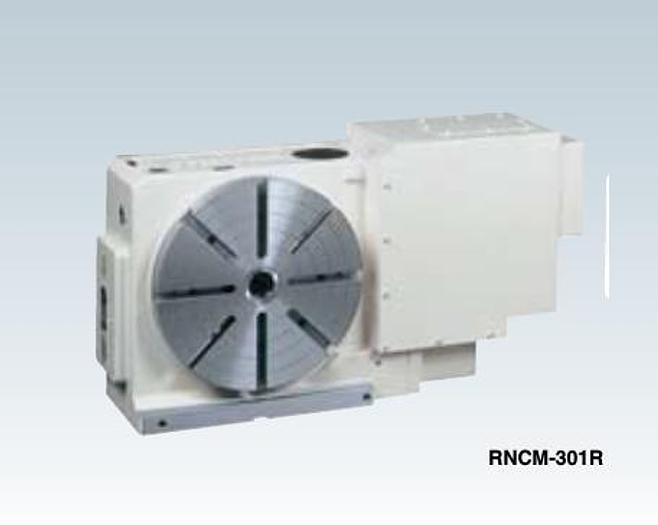

12" Tsudakoma Model RNCM-301R CNC Rotary Table; Mfg. 2001

12" Tsudakoma Model RNCM-301R CNC Rotary Table; Mfg. 2001
Casa Grande, AZ
orCall 1-520-836-9727
Description

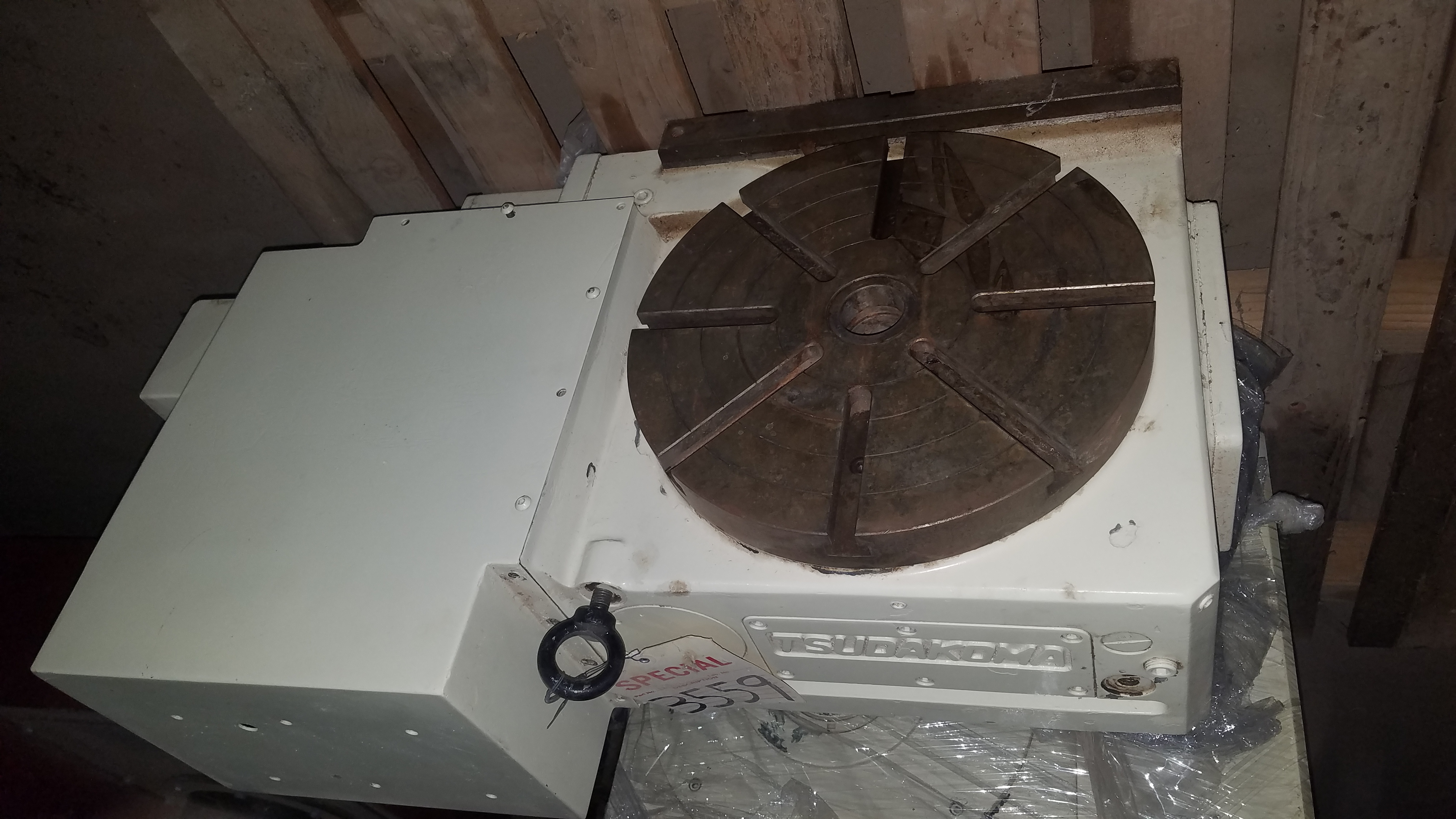

(1) Used 12" Tsudakoma Model RNCM-301R Rotary Table; Fanuc Compatable; Mfg. 2001; S/N 020217
Specifications:
Handedness........................Right
Table Diameter....................12.6"
Center Height.....................8.27"
Center Nose.......................40H7 Nose Diameter
Center Bore........................1.57" Through Bore

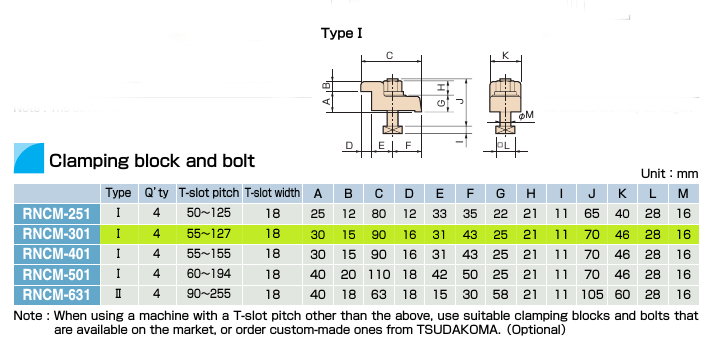

Table T-Slot Width................14H7
Guide Block Width.................18h7
Servo Motors.........................iF8, iF12
Speed Reduction Ratio..........1/360, 1/180
Max. Table Speed..................5.5 RPM to 11.1 RPM
Indexing Accuracy.................15 sec
Repeatability..........................4 arc sec
Max. Work Weight.................330 lbs. (vertical)
..................771 lbs.(vertical with tailstock)
.................. 771 lbs. (horizontal)

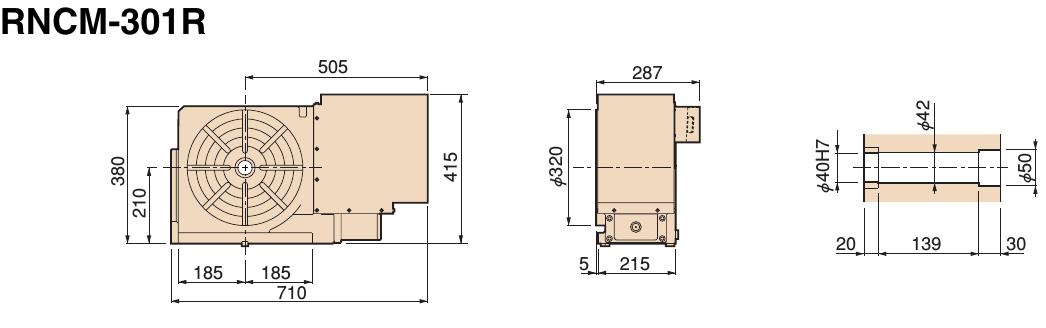

Overall Dimensions................27.95" L x 16.34" W x 11.3" H
Weight....................................440.9 lbs. [200 kg]
FOB...............................Casa Grande, AZ
Specifications
Condition | Used |
Stock Number | 3559 |
