8" x 144" TANNEWITZ Model 3000-MH8 Vertical Band Type Plate Saw; Mfg. 1994

Casa Grande, AZ

orCall 1-520-836-9727

Description

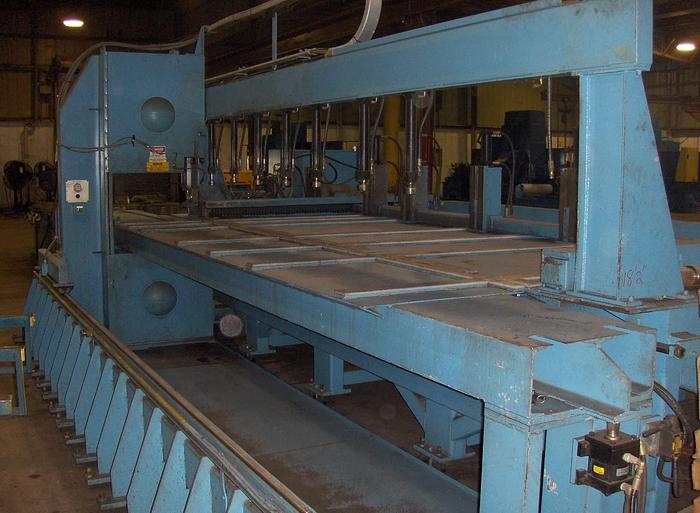

(1) Used TANNEWITZ Model 3000-MH8 Vertical Band Type Plate Saw; Traveling Head Design; Mfg. 1994; S/N 92023
Specifications:
Plate Capacity:
Length................................144" (maximum)
Width..................................0 - 120"
Thickness............................0-8" (maximum)
Travel of Saw Head.................0-148" (nominal)
Blade Speed (Variable)............55-350 F.P.M.
Blade Tension Control.............Automatic / Hydraulic
Wheel Diameter......................30"
Throat Depth...........................29"
Base Construction...................
Blade Width Capacity..............1/2" to 2"
Blade Length...........................204"
Table Size (Main)...................  86" x 144" (nominal)
Table Capacity (Main)..............18,000 lbs (est.)
Upper Wheel Adjustment..........4" (nominal)
Wheel Type............................... Heavy Duty Steel
Guide Post Size.........................2" x 4"
Table Height.............................45 1/2" (from floor)
Motor Output............................ 7 1/2 HP
Electrical Characteristics..........220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Cut Watch System
Automatic Stock Indexing
Hydraulic Hold-Down System
Heavy Duty Blade Guides
Complete Electrical Controls with Operators Control Station
7 1/2 HP Variable Speed Band Saw Drive
Traveling Head with Dual Precision Guide Rails and Power Feed
Power Guide Post Adjustment
Mist Type Coolant System
Operators Manual (optional from manufacturer)
Overall Dimensions..................20 ft  4" L-R x 14 ft  F-B x 8 ft 3" High (est.)
Weight.......................................24,000 lbs. (est.)
F.O.B...............................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2521
