110 Ton Verson OBI; Hvy. Duty; 27" x 42" Bed; 8" Str.; Roll Feed; Air Cl

110 Ton Verson OBI; Hvy. Duty; 27" x 42" Bed; 8" Str.; Roll Feed; Air Cl

Casa Grande, AZ

orCall 1-520-836-9727

Description

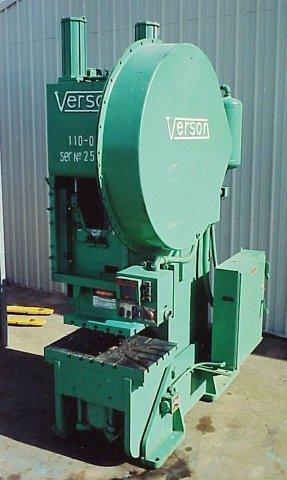

(1) Used 110 Ton Verson Model 110 O.B.I. Press; S/N 25061; Single Back Geared; All Steel Construction Specifications: Capacity.................................110 Ton Bed Area.................................42" L-R x 27" F-B Opening in Bed...........................6" x 6" Slide Face Area..........................28" L-R x 21" F-B (T-Slotted) Distance Between Housings................22 11/16" Opening through Back.....................22" Slide Adjustment.........................5" Stroke...................................8" Shut Height Bed to Slide.................18" Throat...................................14 3/8" Distance Bed to Floor....................35" Speed....................................40 SPM Main Drive Motor.........................10 HP Electrical Characteristics...............440VAC / 3 Phase / 60 Cycle Equipped With: Complete Electrical Controls with Operator's Station Lincoln Centromatic Centralized Lubrication System Dual Pneumatic Counter Balance System 4 Point Ram Bibbing 27"x 42" T-Slotted Bolster Plate 20 Ton Air Cushion Motorized Slide Adjustment Air Clutch & Brake Optional Variable-Speed Overall Dimensions.......................57" L-R x 114" F-B x 155" High Weight...................................34,000 lbs. (est.) F.O.B....................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number1096
