12" x 144" TANNEWITZ Model 3000-MH1 Vertical Band Type Plate Saw; Mfg. 2003

12" x 144" TANNEWITZ Model 3000-MH1 Vertical Band Type Plate Saw; Mfg. 2003

Casa Grande, AZ

orCall 1-520-836-9727

Description

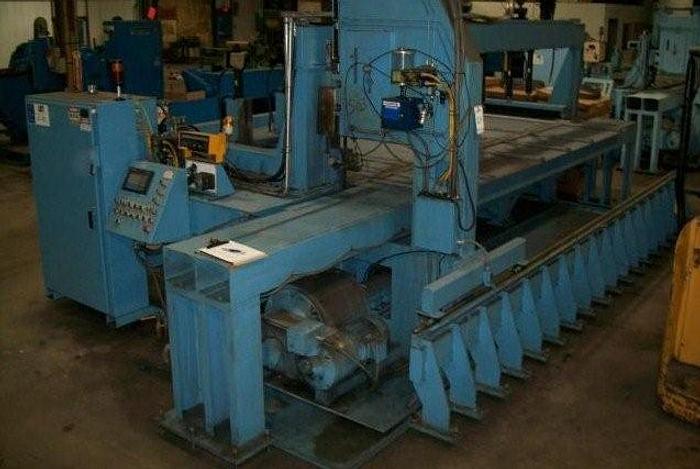

(1) Used TANNEWITZ Model 3000-MH12 Vertical Band Type Plate Saw; Traveling Head Design; Mfg. 2003; S/N 25003 Specifications: Plate Capacity: Length.................................144" (max) Width..................................6" (minimum) No Maximum Thickness.............................. Travel of Saw Head..........................0 - 144" (nominal) Blade Speed (Variable)......................55 - 350 F.P.M. Blade Tension Control....................... Wheel Diameter..............................30" Throat Depth................................29" Base Construction........................... Blade Width Capacity........................1/2" to 2" Blade Length................................204" Table Size (Main)...........................86" x 144" (nominal) Table Capacity (Main).......................12,000 lbs (est.) Upper Wheel Adjustment......................4" (nominal) Wheel Type.................................. Guide Post Size.............................1" x 2" Table Height................................45 1/2" (from floor) Motor Output................................5 HP Motor Drive................................. Electrical Characteristics..................220/440 VAC / 3 Phase / 60 Cycle Equipped With: Cut Watch System Automatic Stock Indexing Hydraulic Hold-Down System Heavy Duty Blade Guides Complete Electrical Controls with Operators Control Station 5 HP Variable Speed Band Saw Drive Traveling Head with Dual Precision Guide Rails and Power Feed Power Guide Post Adjustment Mist Type Coolant System Operators Manual (optional from manufacturer) Overall Dimensions..........................20 ft 4" L-R x 14 ft F-B x 8 ft 3" High (est.) Weight......................................14,000 lbs. (est.) F.O.B.......................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number2522
