Pacific Hydraulic Shear 1/2" x 120"

Casa Grande, AZ

orCall 1-520-836-9727

Description

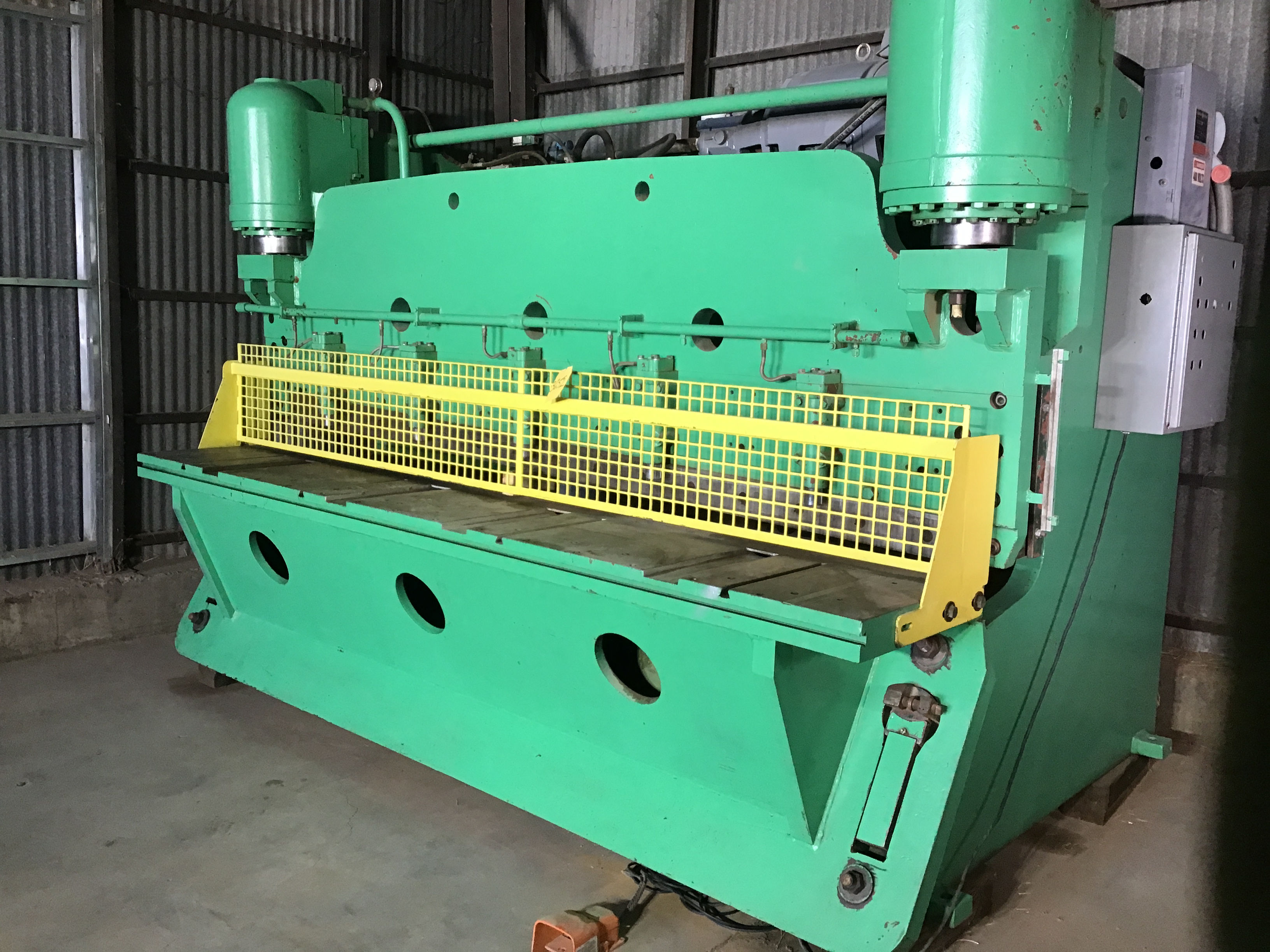

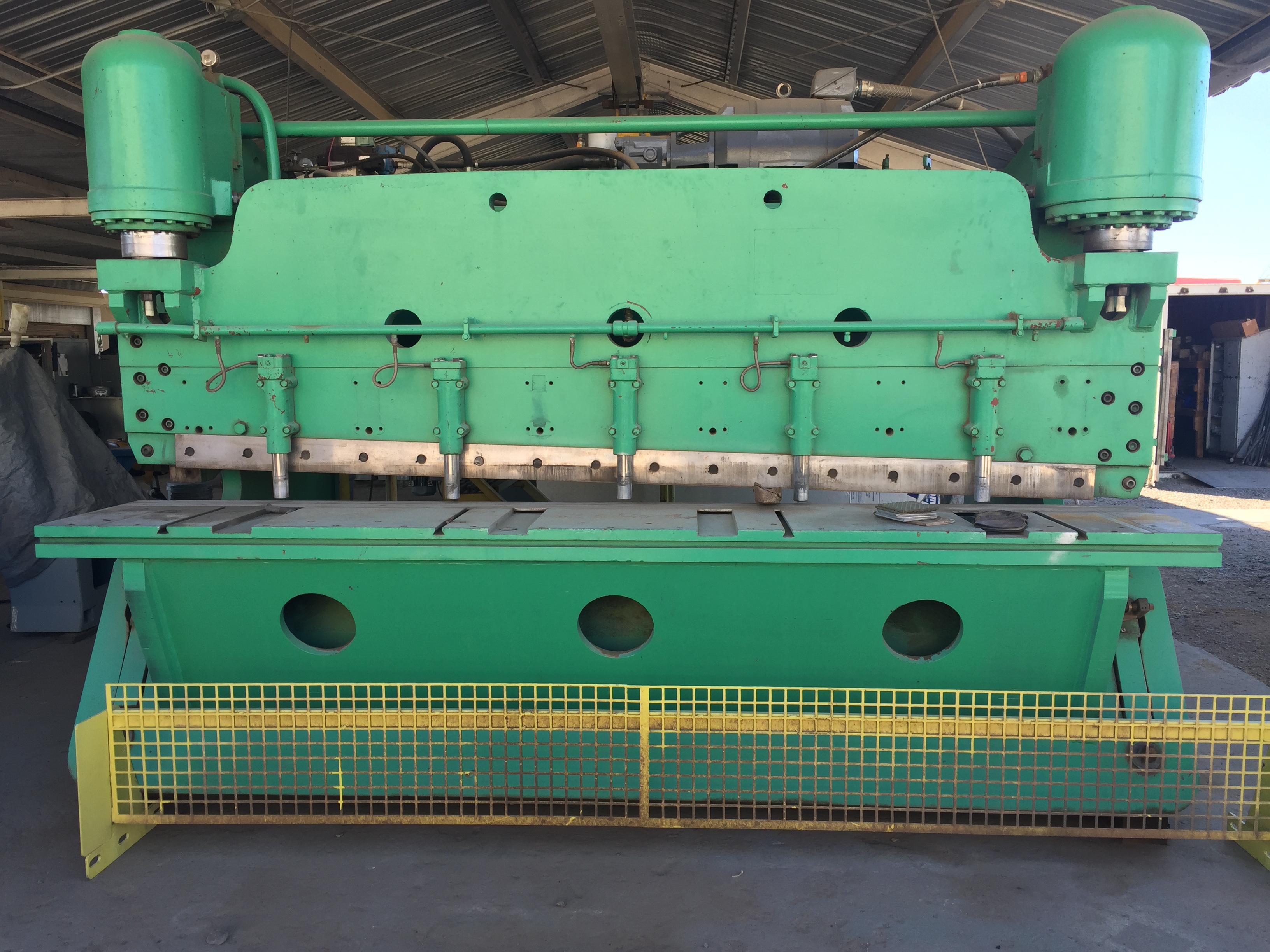

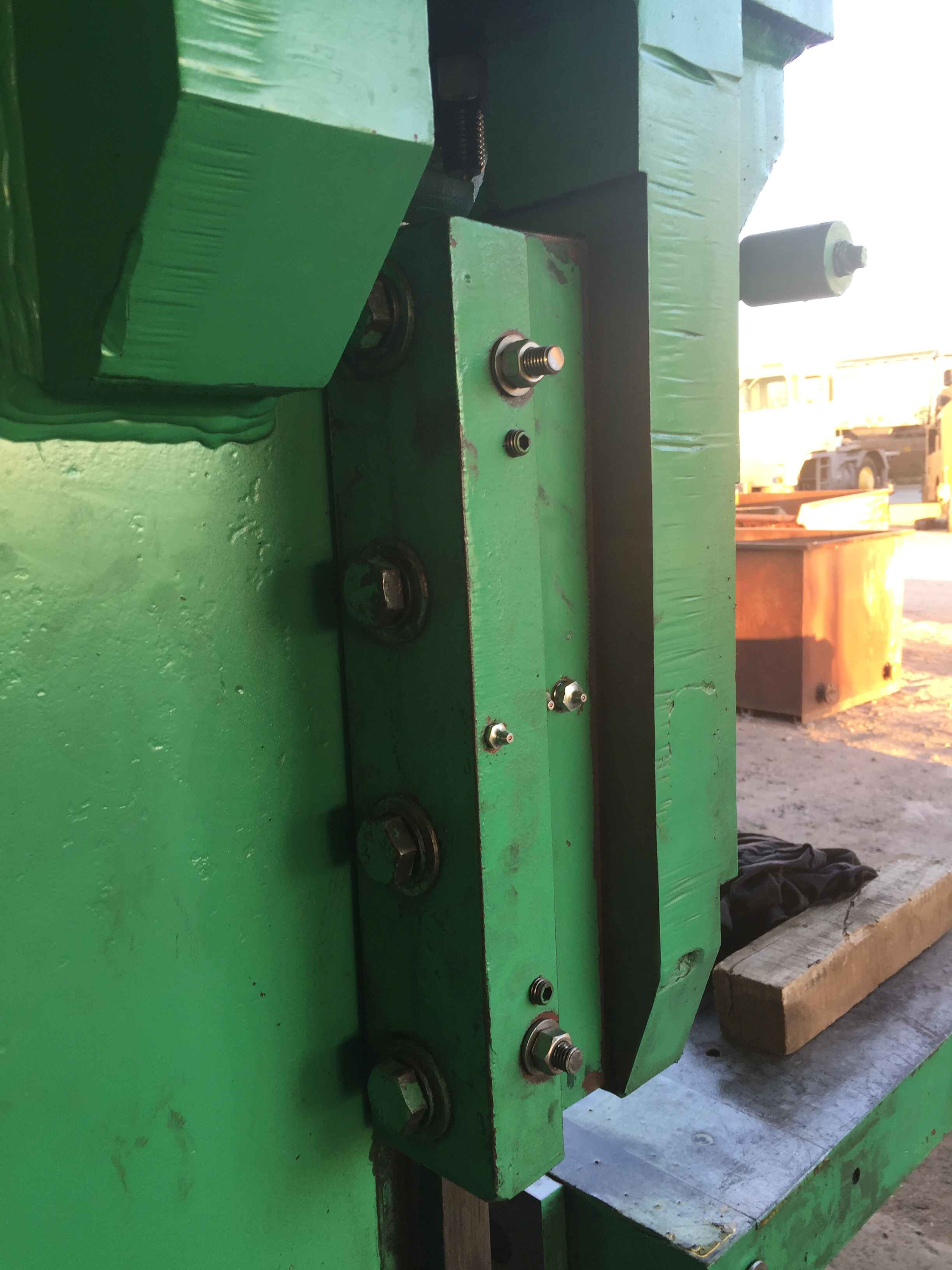

1/2" x 120" Pacific Model 500R10 Hydraulic Shear;
Record Number: 3652
(1) Used 10 ft x 1/2" Pacific Model 500R12 Hydraulic Shear;
Specifications:
Maximum Capacity.........................1/2" (mild steel)
Length of Cut............................126"
Length Between Housings..................130"
Shear(Rake) Angle Taper Per Foot.........5/8"
Gap (Throat).............................9"
Distance Bed to Floor....................32"
Speed....................................28 Str./ Min. (nominal)
Size of Four-Edged Knives................1.250 x 5.000" x 126"
Length of Knives.........................126"
Motor....................................15 HP @ 1800 RPM
Electrical Characteristics...............480 VAC / 3 Phase / 60 Cycle
Equipped With:
36" Back Gage
lubrication system
Hydraulic Hold-Down System
8 ft. Squaring Arm

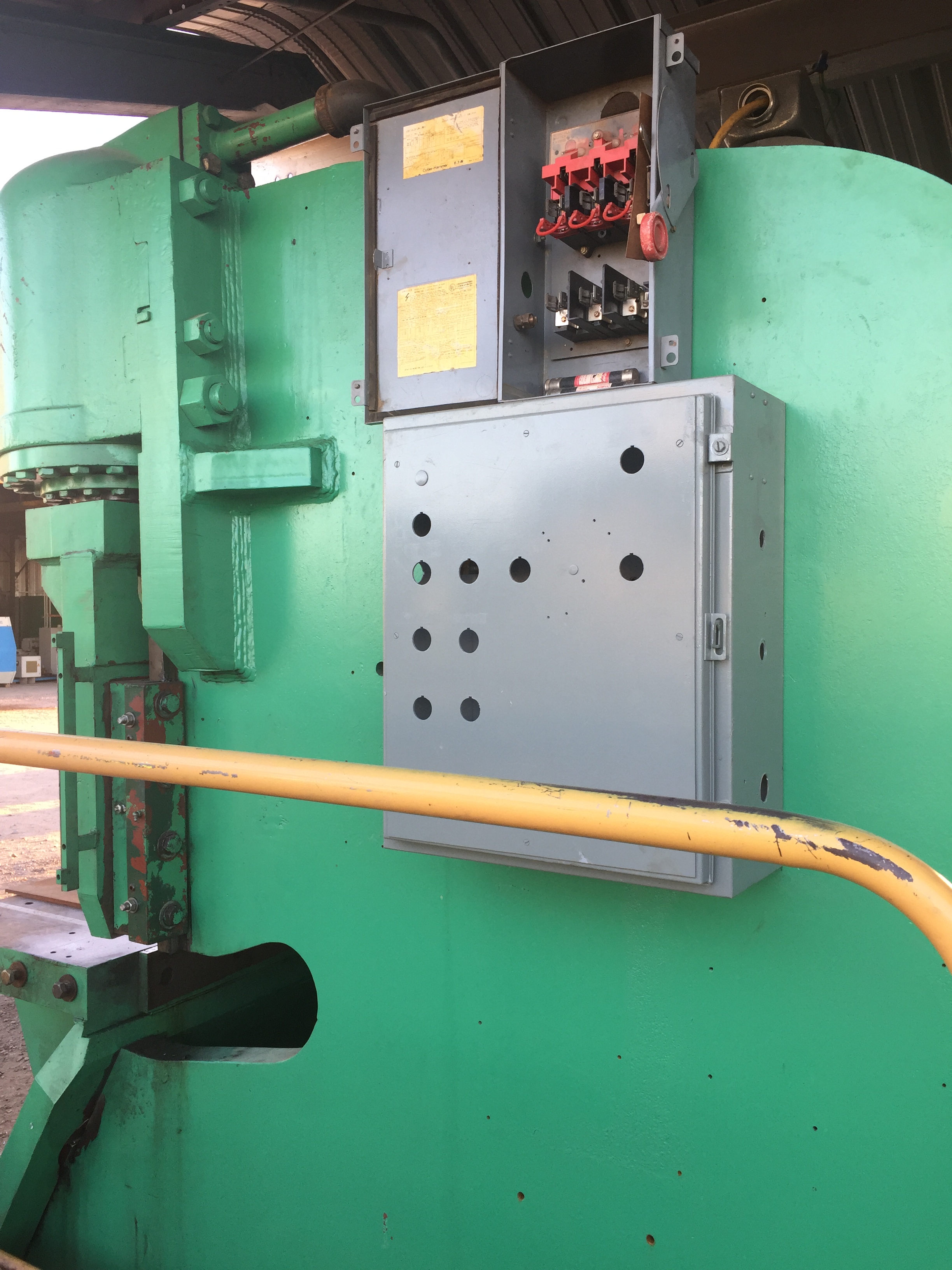

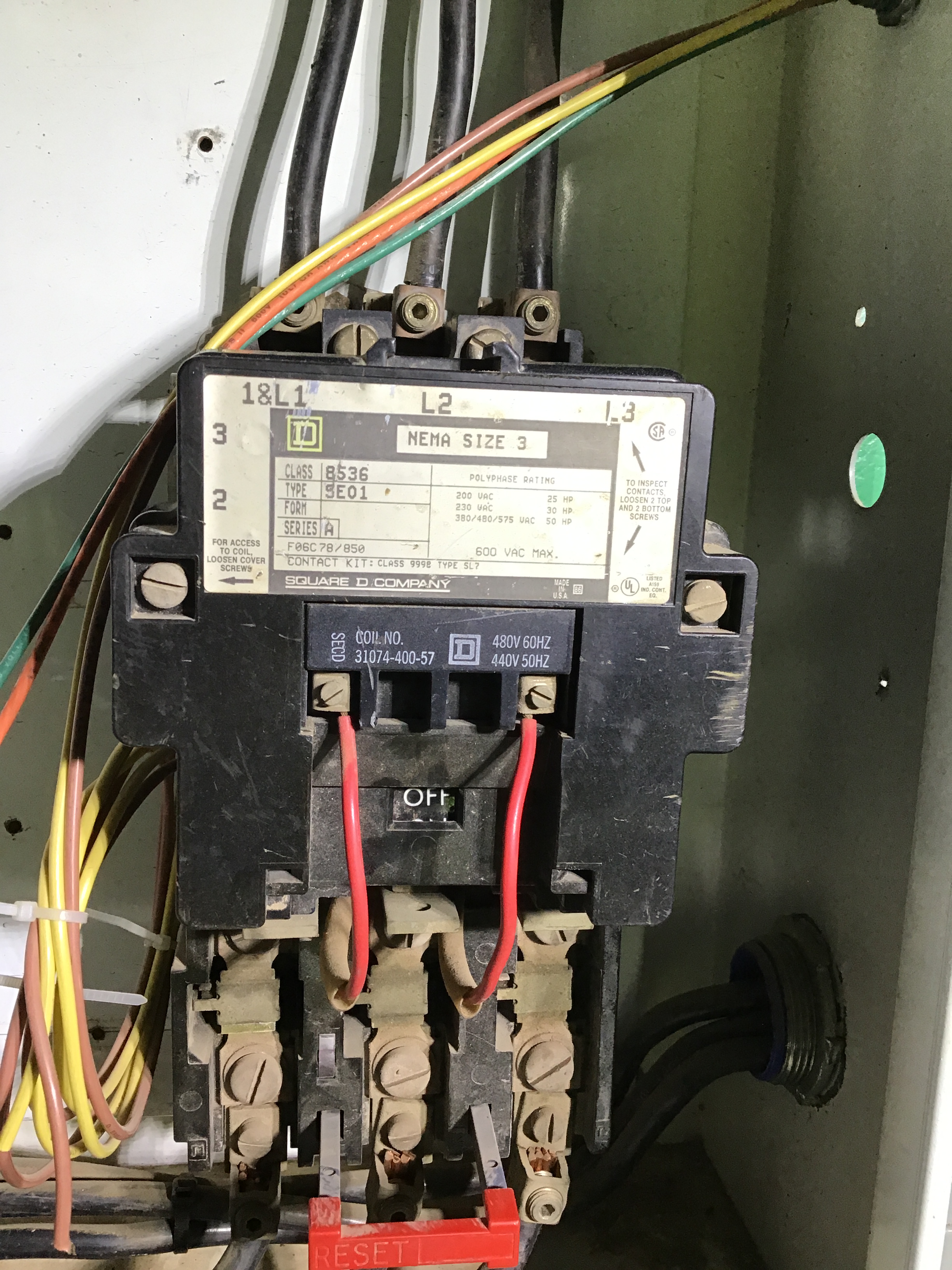

Complete Electrical Controls
Overall Dimensions.......................153" L-R x 75" F-B x 80" High (est.)
Weight...................................30,000 lbs. (est.)
F.O.B.......Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3652
