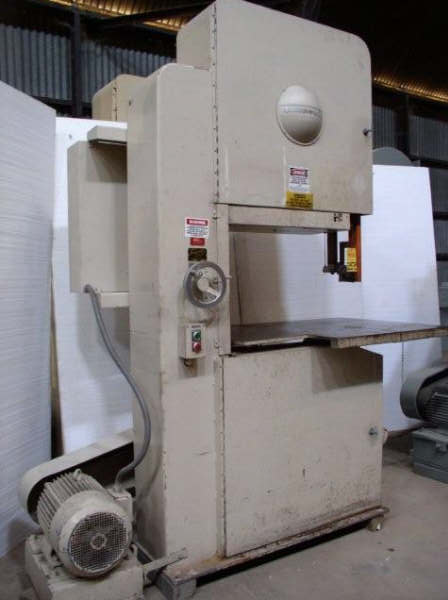

36" Tannewitz Model G1NE Vertical Band Saw

Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used 36" Tannewitz Model G1NE Vertical Band Saw; S/N 96007 Specifications: Blade Speed........................Upon Request Blade Tension Control..............Manual Size, Wheel Diameter...............36" Under Guide Capacity...............20" Throat Capacity....................35 1/2" Base Construction..................Welded Steel Band Width Capacity................Up to 1 1/2" Band Length........................245" (est.) Table Size.........................36" L-R x 37" F-B Auxiliary Table Size...............16" x 19" Table Tilting......................45° Right, 5° Left Upper Wheel Adjustment.............5" Wheel Type.........................Heavy-Duty Balanced Steel Disc Gear Adjusted guide post...........STD. Table Height.......................42" Horsepower.........................15 HP Motor Drive........................Multiple V-Belt Electrical Characteristics.........460 VAC / 3 Phase / 60 Cycle Equipped With: Speedi-Change Replaceable Tires Automatic Electric 2-Wheel Brakes Heavy Duty High Speed Guides Complete Electrical Controls Operator's Manual (optional from manufacturer) Overall Dimensions.................92" L-R x 42" F-B x 106" High Weight.............................3,600 lbs. (est.) F.O.B..............................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number2575
